Additional information

Country of Origin

Denmark

PID

1011671

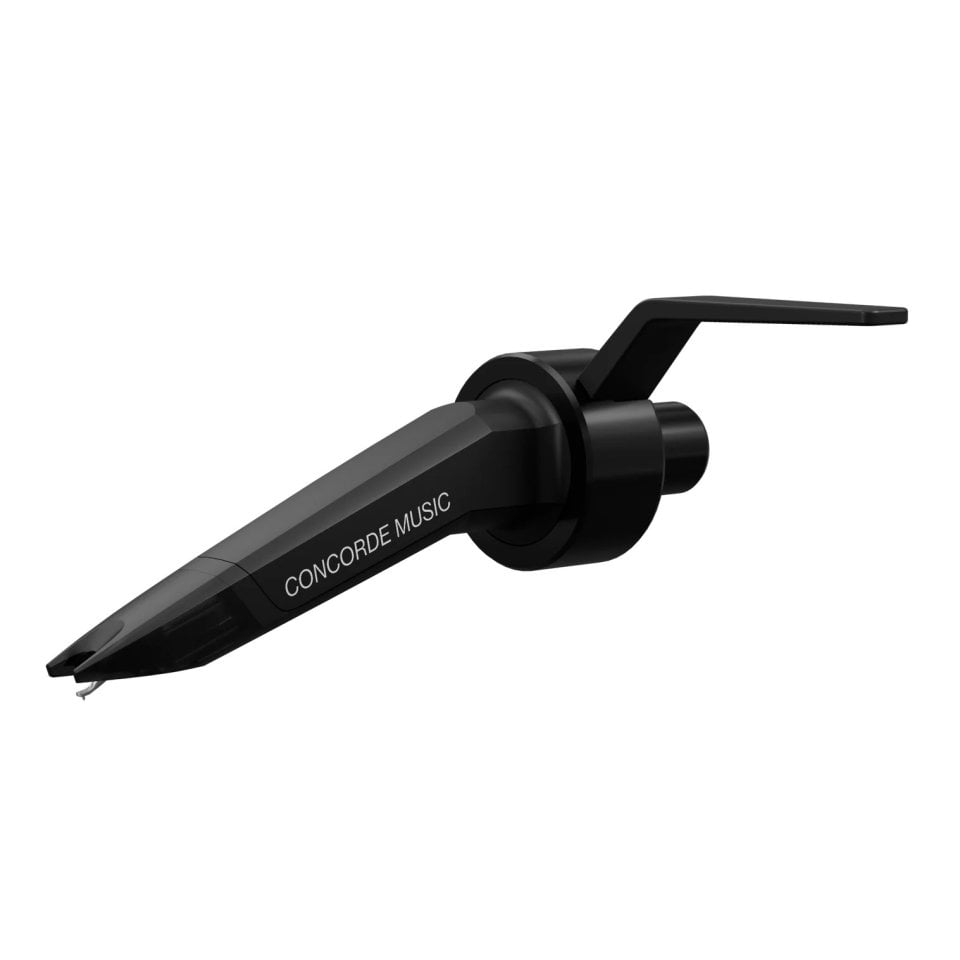

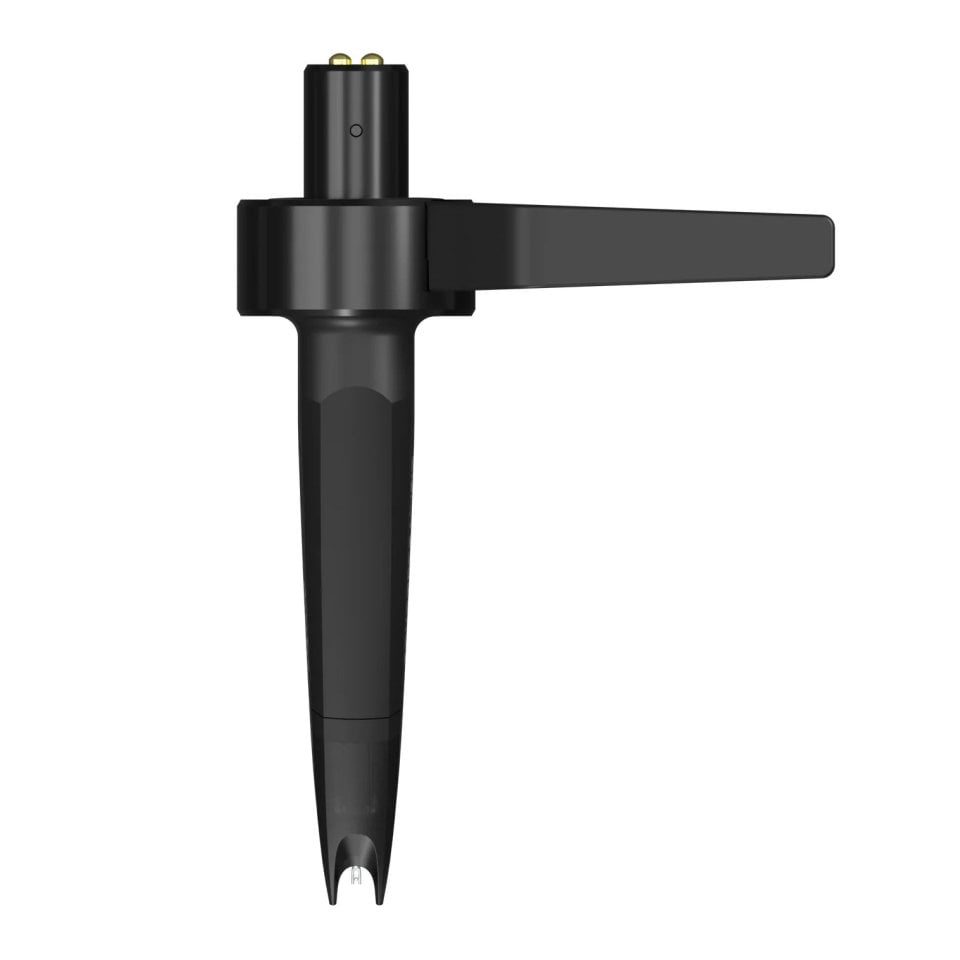

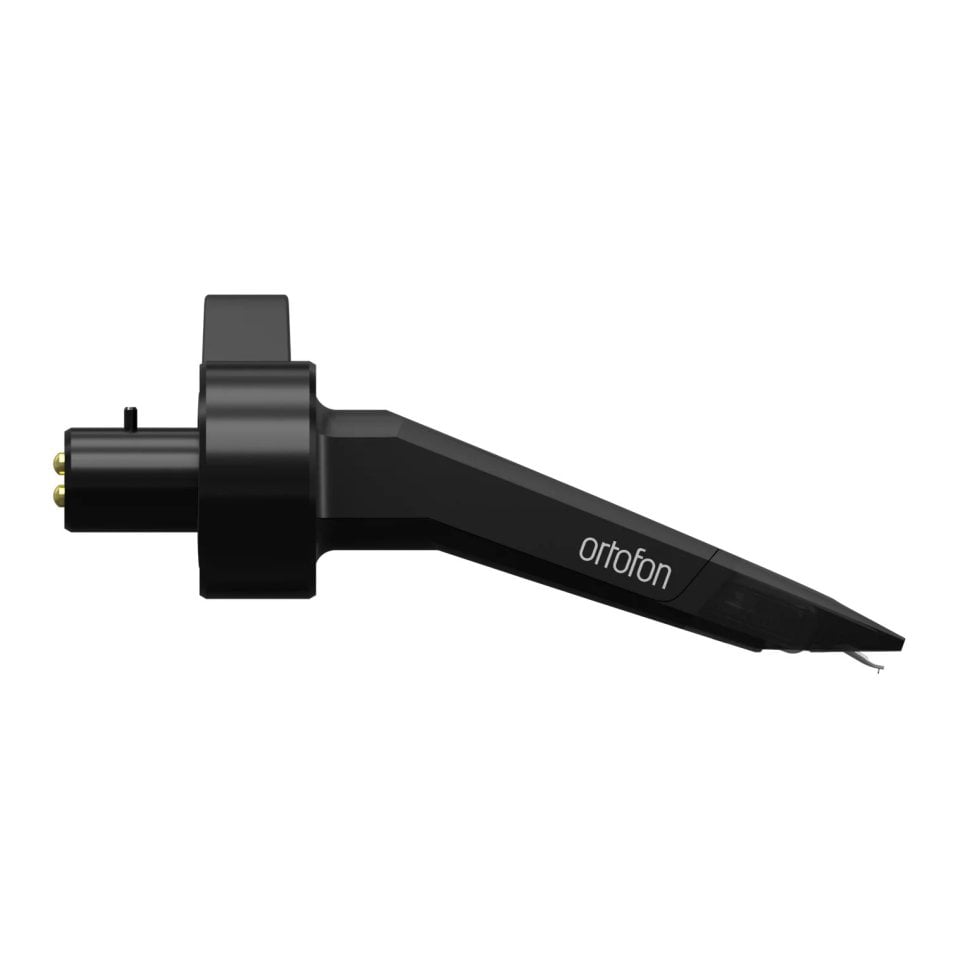

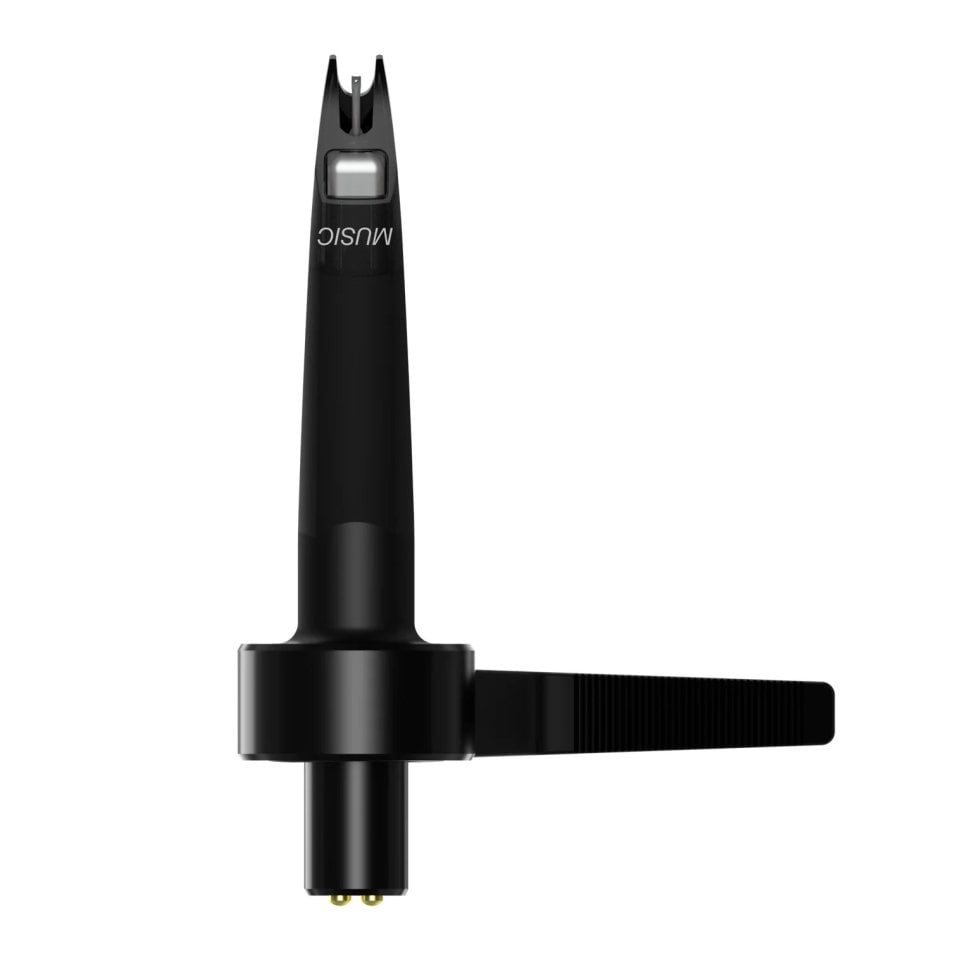

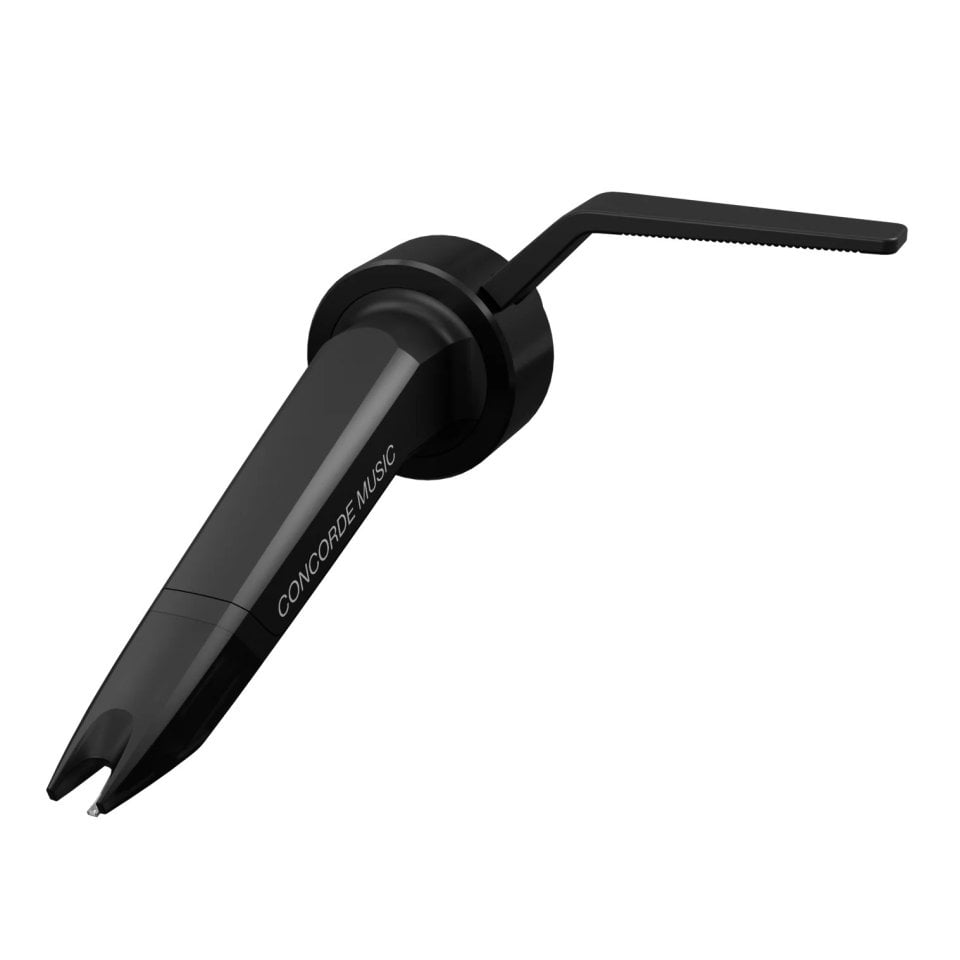

The Concorde Music Black cartridge combines a rich design heritage with precise audio performance. Featuring the Nude Shibata stylus on an aluminum cantilever, it offers an upgrade from the Concorde Music Bronze model. Its unique design allows easy installation on S-shaped tonearms without tools, making it practical and user-friendly for vinyl enthusiasts.

Iconic Design with a Story

Originating from the original Concorde launch, this cartridge carries a legacy as one of the most recognizable in the audio world. Its screwless, wire-free mounting system earned a Danish industrial design award, establishing it as a lasting icon in the industry.

Precision in Every Groove

The Nude Shibata stylus stands out with its narrow and long contact surface, closely resembling the original cutting stylus. This design ensures accurate sound reproduction, minimal distortion, and extended frequency response for detailed playback.

Specialized Internal Suspension

The cartridge’s needle suspension uses Ortofon’s exclusive rubber compounds, produced in-house and developed by their research team. This internal suspension is crucial for delivering high-quality performance and durability.

Clear and Dynamic Soundstage

Equipped with Ortofon’s four-coil generator system and silver-plated oxygen-free copper wiring, the cartridge achieves excellent channel balance and separation. With a 6 mV output, it delivers natural sound clarity and captures every detail with precision.

Easy Installation and Compatibility

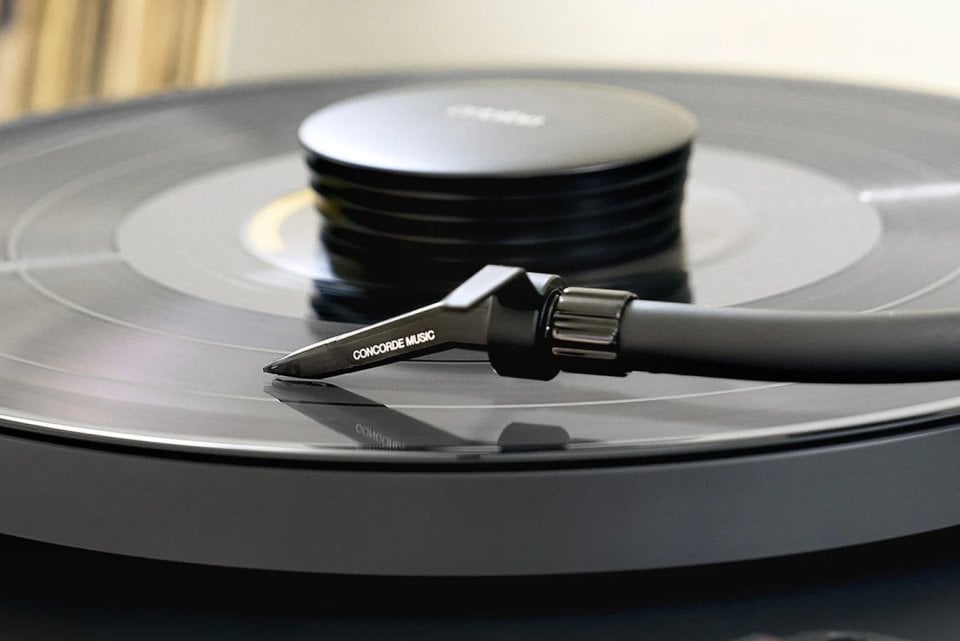

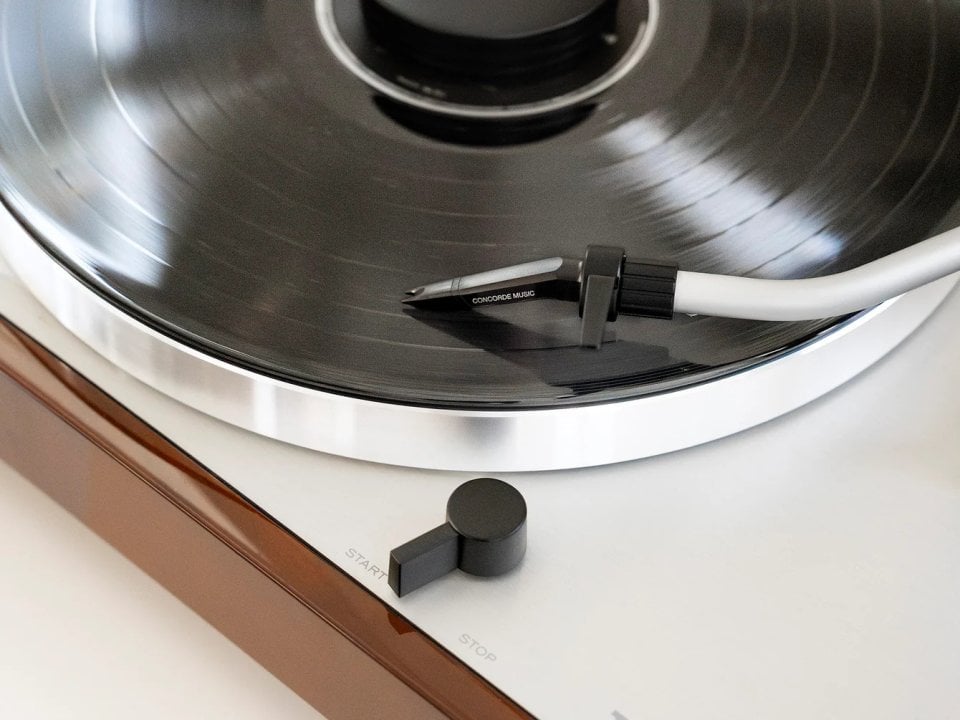

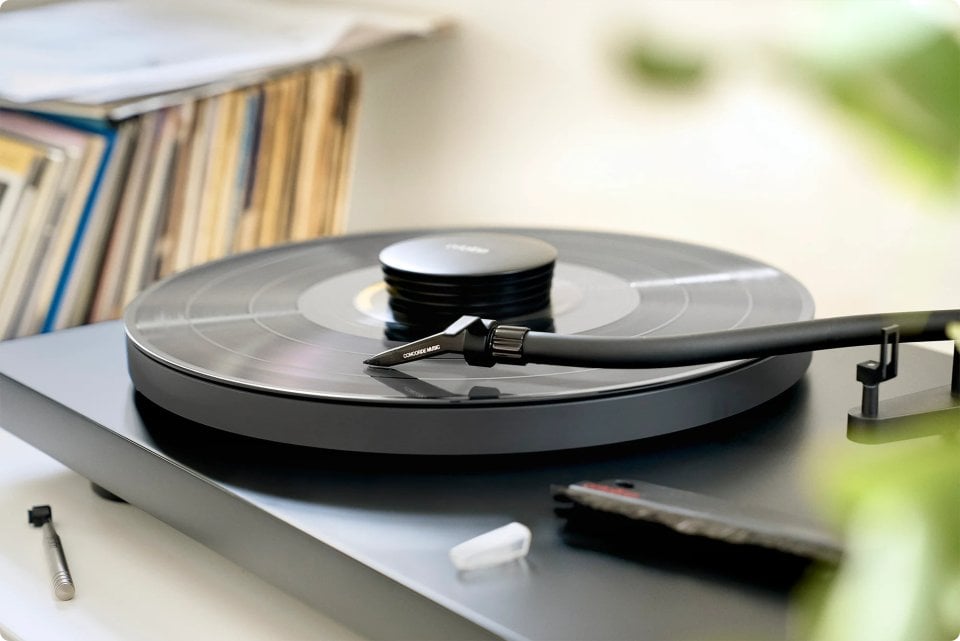

The Concorde Music Black fits effortlessly onto all S-shaped tonearms thanks to its bayonet mount. No tools are needed, so setup is straightforward and convenient for users of all levels.

Upgradeable Stylus Options

This cartridge supports a full upgrade path within the Concorde Music series, including the Stylus Concorde Music Black LVB 250. Replacing the stylus is simple—just remove the old one and insert the new, keeping the stylus guard on during installation to protect the needle.

Features

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5 cm/s: 6 mV
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 18 dB
  • Frequency response: 20 Hz – 20 kHz, +2 / 0 dB
  • Tracking ability at 315 Hz (recommended tracking force): 80 µm
  • Dynamic lateral compliance: 15 µm/mN
  • Stylus type: Shibata diamond on aluminum cantilever
  • Stylus tip radius: r/R 6/50 µm
  • Recommended tracking force: 1,8 g
  • Tracking angle: 20°
  • Internal impedance (DC resistance): 1,27 kΩ
  • Cartridge color: black/black
  • Cartridge weight: 18 g
  • Recommended load resistance: 47 kΩ
  • Internal inductance: 815 mH
  • Recommended load capacitance: 150–300 pF
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

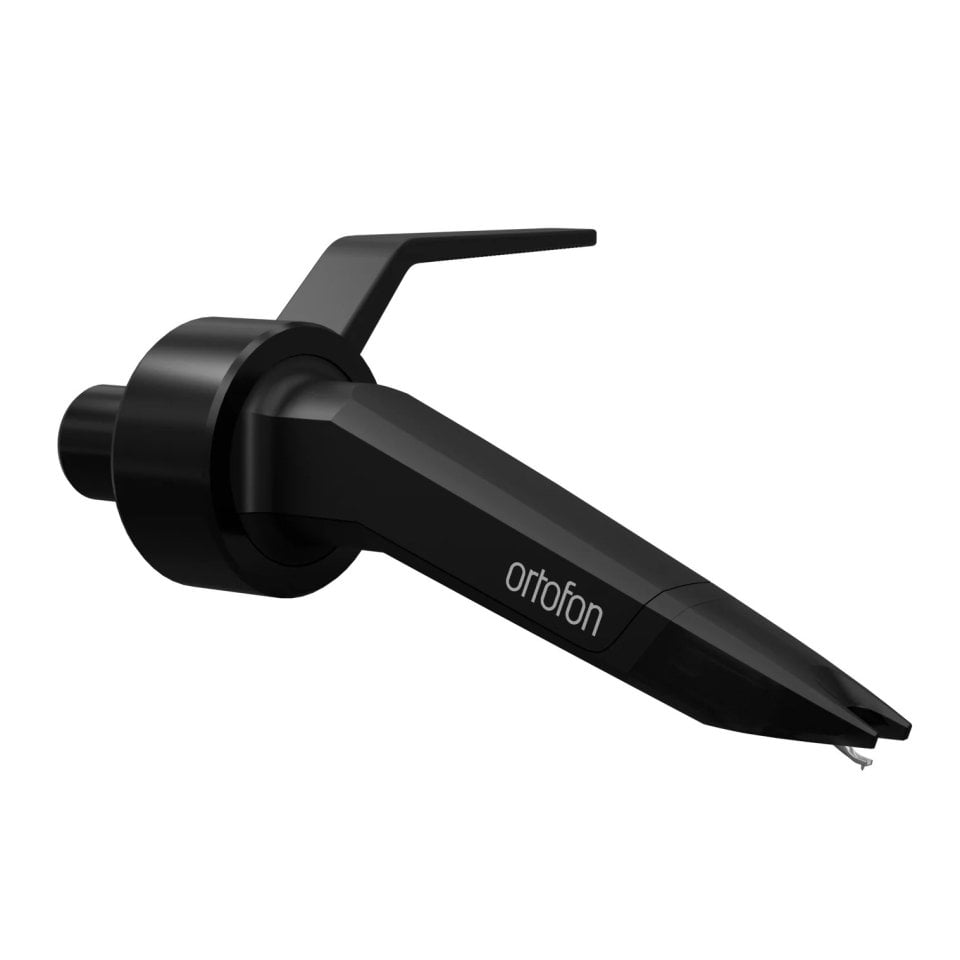

Ortofon Concorde Music Black cartridge

507.15
sis. KM 24%
  • MM cartridge with bayonet/SME mount
  • Nude Shibata Diamond Needle
  • Output voltage 6 mV
  • Needle bar aluminum
  • Weight 18 grams
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 01430300
EAN kood: 5705796080650, 2220010116715

The Concorde Music Black cartridge combines a rich design heritage with precise audio performance. Featuring the Nude Shibata stylus on an aluminum cantilever, it offers an upgrade from the Concorde Music Bronze model. Its unique design allows easy installation on S-shaped tonearms without tools, making it practical and user-friendly for vinyl enthusiasts.

Iconic Design with a Story

Originating from the original Concorde launch, this cartridge carries a legacy as one of the most recognizable in the audio world. Its screwless, wire-free mounting system earned a Danish industrial design award, establishing it as a lasting icon in the industry.

Precision in Every Groove

The Nude Shibata stylus stands out with its narrow and long contact surface, closely resembling the original cutting stylus. This design ensures accurate sound reproduction, minimal distortion, and extended frequency response for detailed playback.

Specialized Internal Suspension

The cartridge’s needle suspension uses Ortofon’s exclusive rubber compounds, produced in-house and developed by their research team. This internal suspension is crucial for delivering high-quality performance and durability.

Clear and Dynamic Soundstage

Equipped with Ortofon’s four-coil generator system and silver-plated oxygen-free copper wiring, the cartridge achieves excellent channel balance and separation. With a 6 mV output, it delivers natural sound clarity and captures every detail with precision.

Easy Installation and Compatibility

The Concorde Music Black fits effortlessly onto all S-shaped tonearms thanks to its bayonet mount. No tools are needed, so setup is straightforward and convenient for users of all levels.

Upgradeable Stylus Options

This cartridge supports a full upgrade path within the Concorde Music series, including the Stylus Concorde Music Black LVB 250. Replacing the stylus is simple—just remove the old one and insert the new, keeping the stylus guard on during installation to protect the needle.

Features

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5 cm/s: 6 mV
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 18 dB
  • Frequency response: 20 Hz – 20 kHz, +2 / 0 dB
  • Tracking ability at 315 Hz (recommended tracking force): 80 µm
  • Dynamic lateral compliance: 15 µm/mN
  • Stylus type: Shibata diamond on aluminum cantilever
  • Stylus tip radius: r/R 6/50 µm
  • Recommended tracking force: 1,8 g
  • Tracking angle: 20°
  • Internal impedance (DC resistance): 1,27 kΩ
  • Cartridge color: black/black
  • Cartridge weight: 18 g
  • Recommended load resistance: 47 kΩ
  • Internal inductance: 815 mH
  • Recommended load capacitance: 150–300 pF
