Additional information

PID

1036487

Color

Black

Country of Origin

Malaysia

Product depth (mm)

345

Product width (mm)

435

Product height (mm)

135

Product weight (g)

13 500

Integrated Phono Preamplifier

No

Audio channel amount

2

Bluetooth

No

Voice Control

None

The Onkyo M-80 is a 2-channel Class AB power amplifier that delivers strong and controlled sound for demanding listening situations. It is especially suitable for those who want more power and precision than basic amplifiers offer. The M-80 provides ample power to speakers and keeps the sound controlled even in dynamic music tracks.

Power and Sound Quality

The M-80 produces 150 W of power per channel at an 8-ohm load and up to 200 W at a 4-ohm load, making it suitable for demanding speakers and larger listening rooms. The wide frequency response of 5 Hz – 100 kHz ensures precise and clear sound reproduction features.

Connectivity and Usage

The amplifier has both RCA and balanced XLR inputs, making it compatible with various hi-fi systems and preamplifiers. The 12 V trigger input allows automatic startup along with other devices, simplifying system operation.

Construction and Appearance

The Onkyo M-80 is made from durable materials such as aluminum side panels and a steel top panel, giving the amplifier a sturdy and refined feel. The chassis construction is robust, supporting the device’s longevity and reliability.

Usage Scenarios

This power amplifier is suitable for home use when both power and sound quality are desired. It works well in medium and larger listening rooms and can drive more demanding speakers steadily.

Features

  • Audio output channels: 2.0 channels
  • Peak power per channel: 150 W (8 ohm), 200 W (4 ohm)
  • Amplifier class: Class AB
  • Total harmonic distortion (THD): 0.07%
  • Frequency range: 5 Hz – 100,000 Hz (+1 / -3 dB)
  • Speaker load: 4–16 ohms
  • Speaker connection types: XLR and RCA
  • Line inputs (RCA): 1 pair
  • Connectivity technology: Wired
  • Power supply type: AC
  • Power consumption: 445 W in use, less than 0.3 W in standby
  • On/off switch: Yes
  • Materials: Aluminum side panels, steel top panel
  • Dimensions: width 435 mm, height 135 mm, depth 345 mm
  • Weight: 13.5 kg
  • 12 V trigger input 3.5 mm
  • Fanless design

Package Contents

  • Onkyo M-80 power amplifier
  • User manual
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

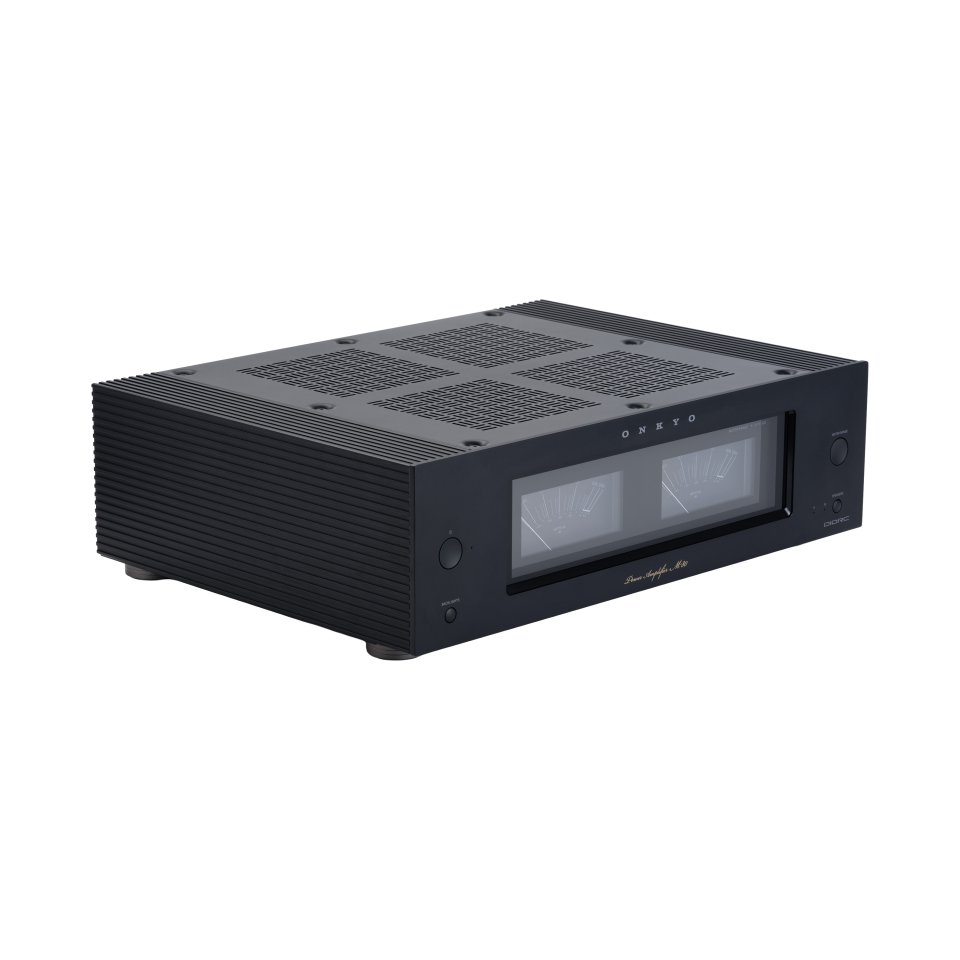

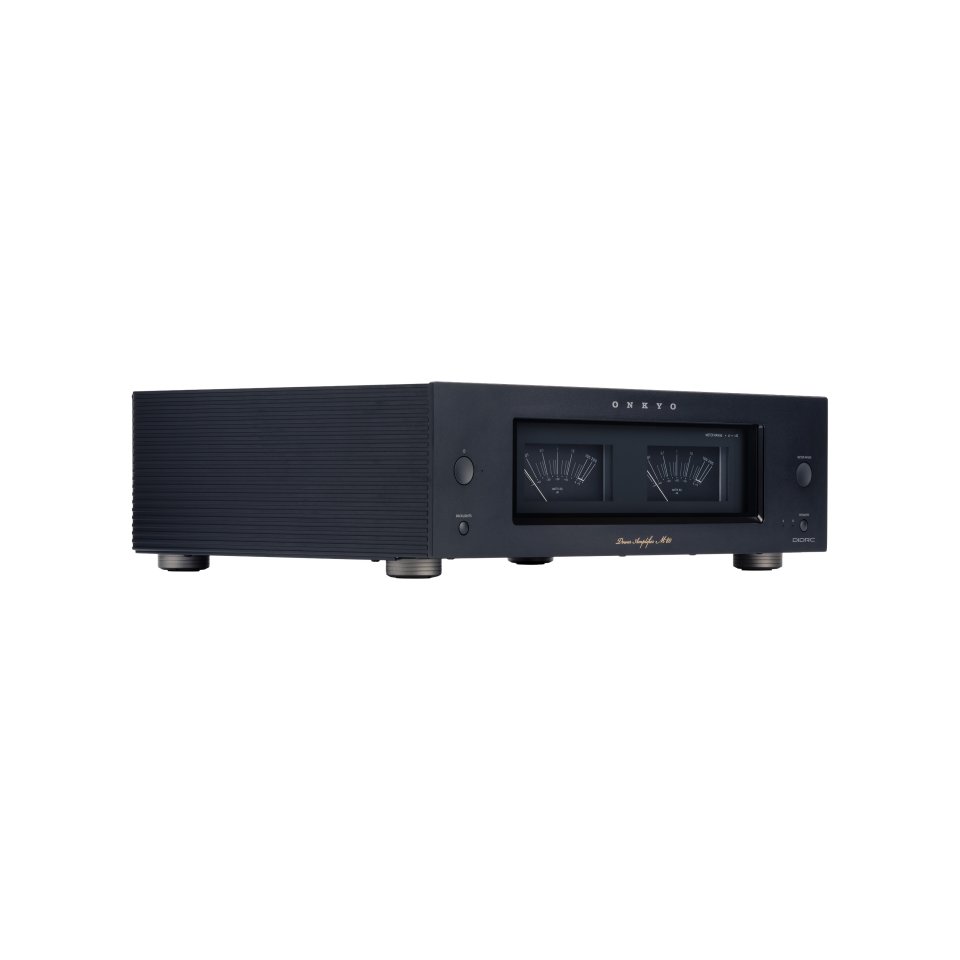

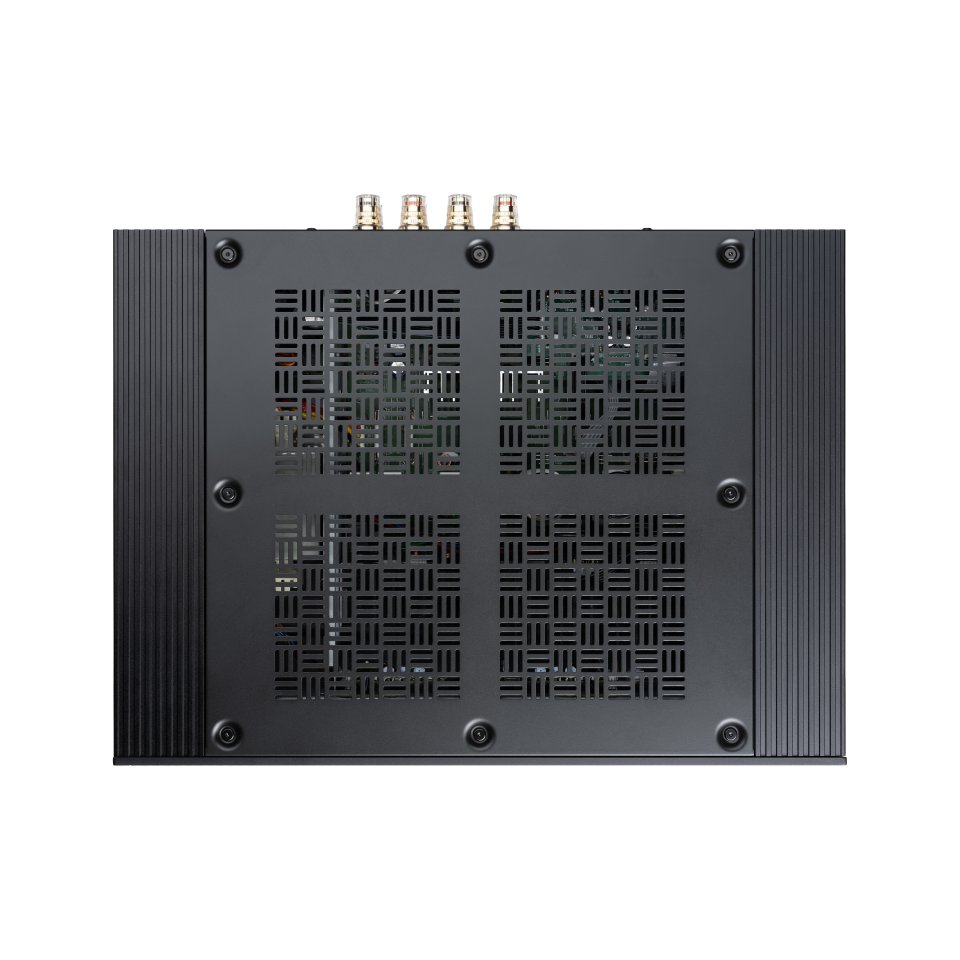

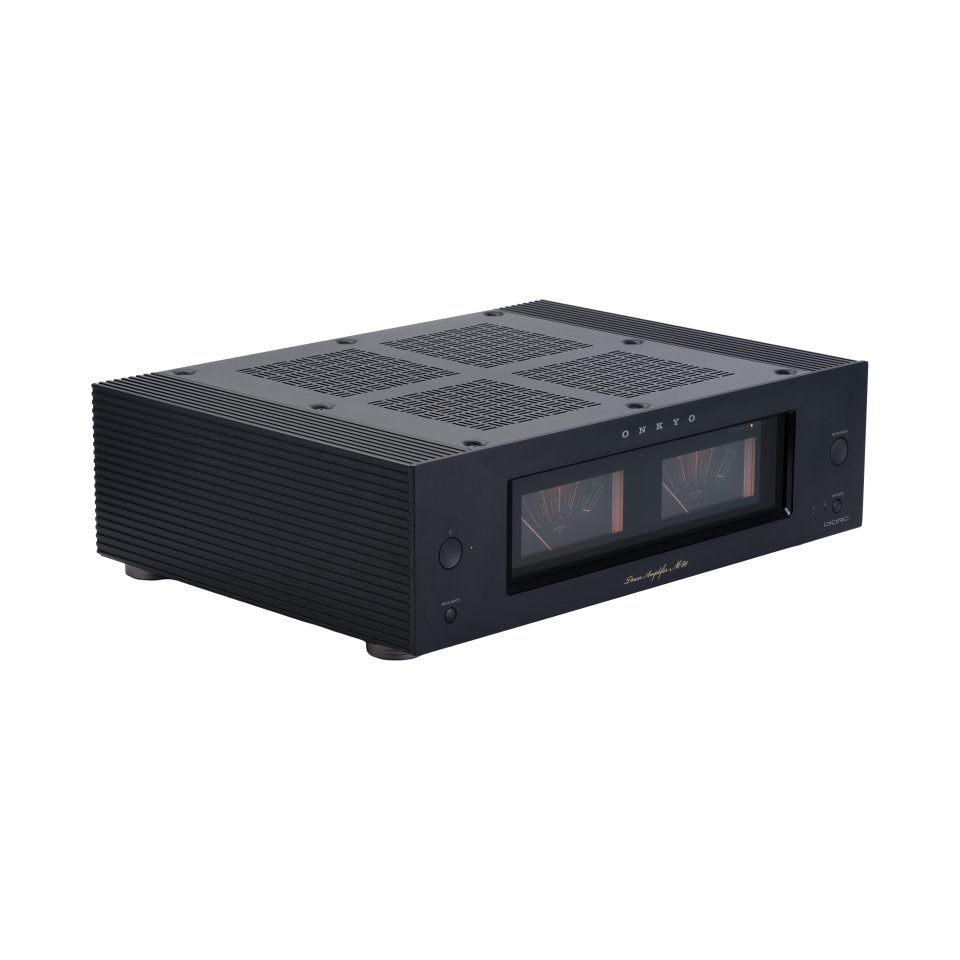

Onkyo M-80 Amplifier

1,597.11
sis. KM 24%
  • Plenty of power for speakers
  • Tight bass, better control
  • Clean, big, and dynamic sound
  • Balanced XLR and RCA inputs
  • Sturdy frame structure
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: M80BMMM
EAN kood: 4573211155761, 2220010364871

The Onkyo M-80 is a 2-channel Class AB power amplifier that delivers strong and controlled sound for demanding listening situations. It is especially suitable for those who want more power and precision than basic amplifiers offer. The M-80 provides ample power to speakers and keeps the sound controlled even in dynamic music tracks.

Power and Sound Quality

The M-80 produces 150 W of power per channel at an 8-ohm load and up to 200 W at a 4-ohm load, making it suitable for demanding speakers and larger listening rooms. The wide frequency response of 5 Hz – 100 kHz ensures precise and clear sound reproduction features.

Connectivity and Usage

The amplifier has both RCA and balanced XLR inputs, making it compatible with various hi-fi systems and preamplifiers. The 12 V trigger input allows automatic startup along with other devices, simplifying system operation.

Construction and Appearance

The Onkyo M-80 is made from durable materials such as aluminum side panels and a steel top panel, giving the amplifier a sturdy and refined feel. The chassis construction is robust, supporting the device's longevity and reliability.

Usage Scenarios

This power amplifier is suitable for home use when both power and sound quality are desired. It works well in medium and larger listening rooms and can drive more demanding speakers steadily.

Features

  • Audio output channels: 2.0 channels
  • Peak power per channel: 150 W (8 ohm), 200 W (4 ohm)
  • Amplifier class: Class AB
  • Total harmonic distortion (THD): 0.07%
  • Frequency range: 5 Hz – 100,000 Hz (+1 / -3 dB)
  • Speaker load: 4–16 ohms
  • Speaker connection types: XLR and RCA
  • Line inputs (RCA): 1 pair
  • Connectivity technology: Wired
  • Power supply type: AC
  • Power consumption: 445 W in use, less than 0.3 W in standby
  • On/off switch: Yes
  • Materials: Aluminum side panels, steel top panel
  • Dimensions: width 435 mm, height 135 mm, depth 345 mm
  • Weight: 13.5 kg
  • 12 V trigger input 3.5 mm
  • Fanless design

Package Contents

  • Onkyo M-80 power amplifier
  • User manual
