H5 Flow (2024) case enhances airflow and graphics card cooling with a perforated power supply cover, mesh panels, and updated 360 mm radiator support along with support for a 410 mm long graphics card – all in a compact mid-tower form factor.

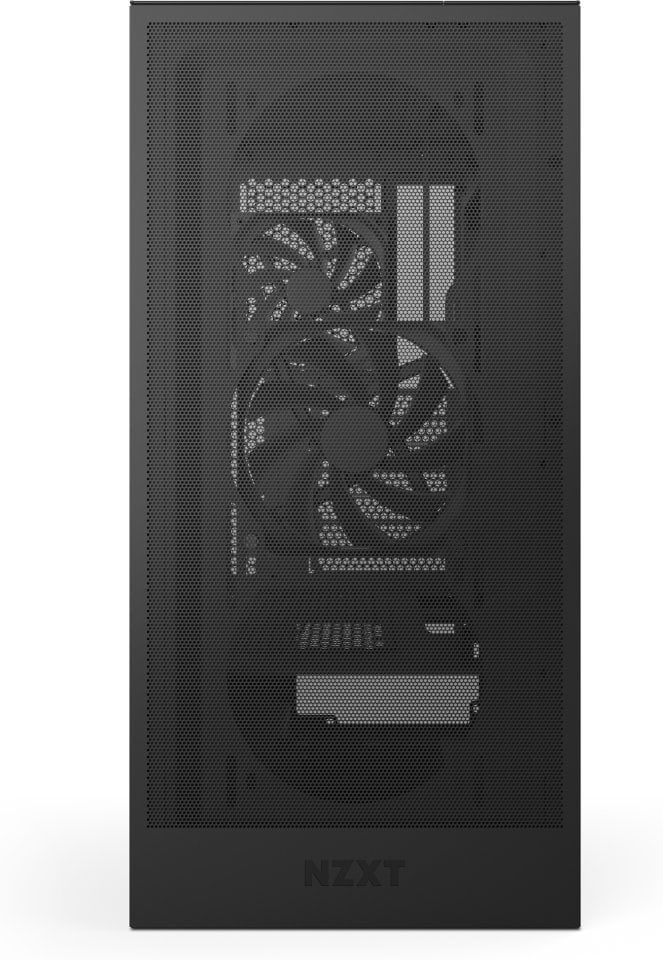

The power supply shroud is perforated on the sides and bottom, allowing optimal air intake from two 120 mm fans (not included). It supports up to a 360 mm radiator at the front and a 240 mm radiator at the top, providing efficient liquid cooling options. The ultra-fine mesh on the top, front, and side panels maximizes airflow and effectively filters dust.

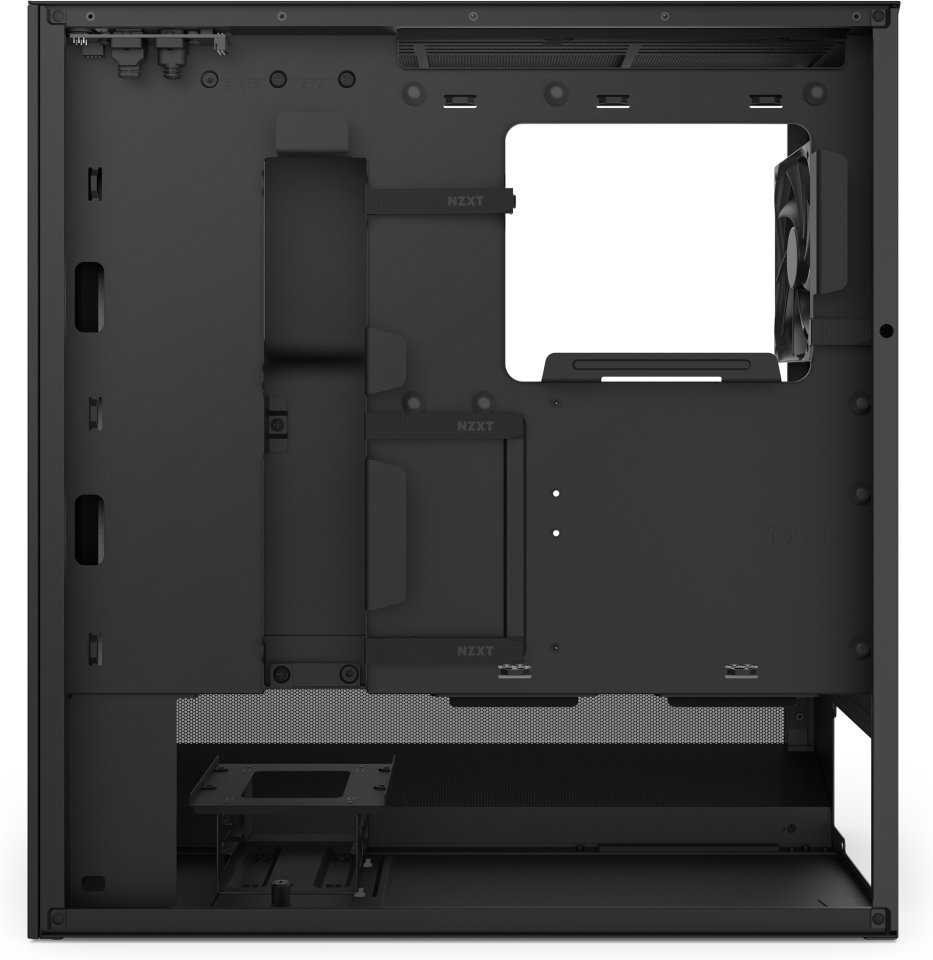

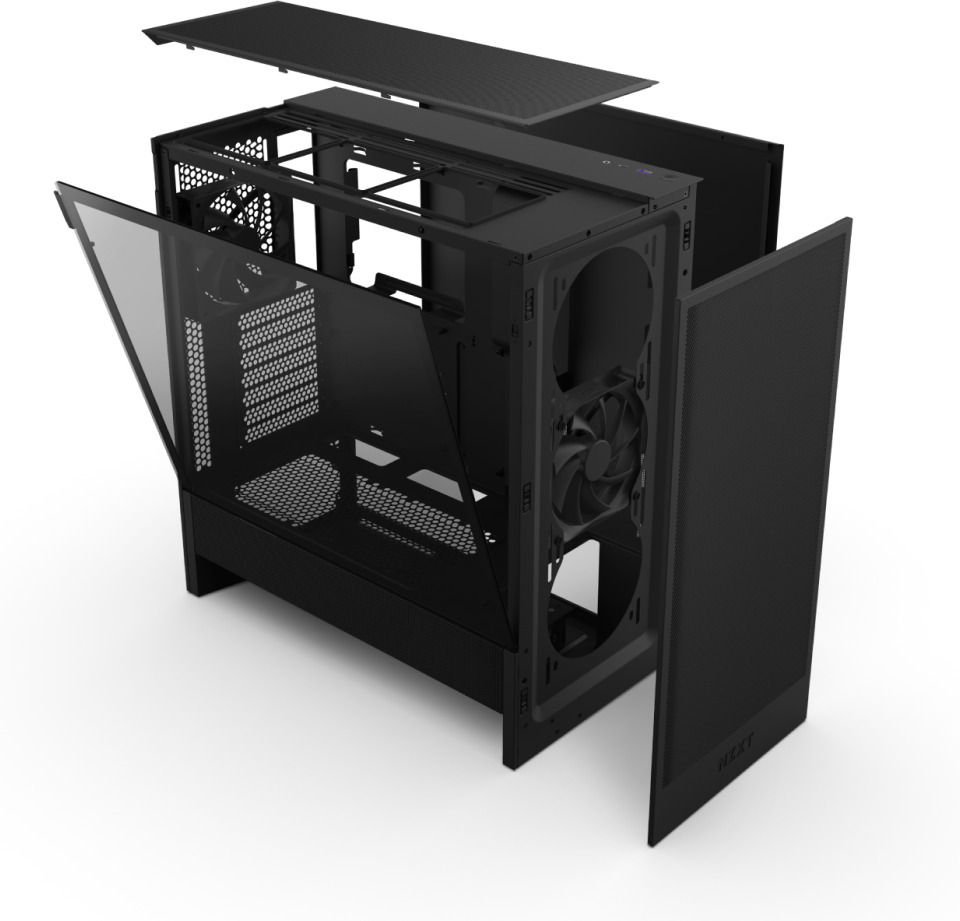

Cable routing and hiding is effortless with wide channels, hooks, and straps. The front, side, and top panels can be easily opened without tools, and the thick steel construction ensures long-lasting durability. It also includes two 120 mm Quiet Airflow (CV) fans that deliver excellent performance.

Features:

• Case type: Mid Tower, ATX
• Material: SGCC steel, tempered glass
• 2.5″ bays: 2
• 3.5″ bays: 1
• 5.25″ bays: –
• Front panel: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x headset audio jack, power
• Expansion slots: 7
• Maximum CPU cooler height: 170 mm
• Maximum graphics card length: 410 mm
• Maximum front radiator thickness: 45 mm
• Maximum power supply length: 200 mm
• Cable management: 28.7 mm space
• Dimensions: 465 x 225 x 430 mm
• Weight: 7.28 kg
• Motherboard support: Mini-ITX, Micro-ATX, ATX, EATX (up to 277 mm)
• Includes 2 pre-installed F120Q (Case Version) fans

Fan mounts:

• Front: 3 x 120 mm / 2 x 140 mm (1 x 120 mm installed)
• Top: 2 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm (installed)
• Bottom: 2 x 120 mm

Liquid cooling support:

• Front: up to 360 mm
• Top: up to 240 mm (280 mm with low-profile memory)
