Extremely quiet and reliable modular power supply with 80 PLUS Gold certification. NZXT C-series power supplies offer over 90% efficiency, which means the power supply consumes less electricity and produces less heat. NZXT C-series power supplies use only Japanese capacitors, enabling a long service life. The power supply also includes protection against overvoltage and undervoltage, excessive current consumption, temperature, and short circuits, keeping other components safe.

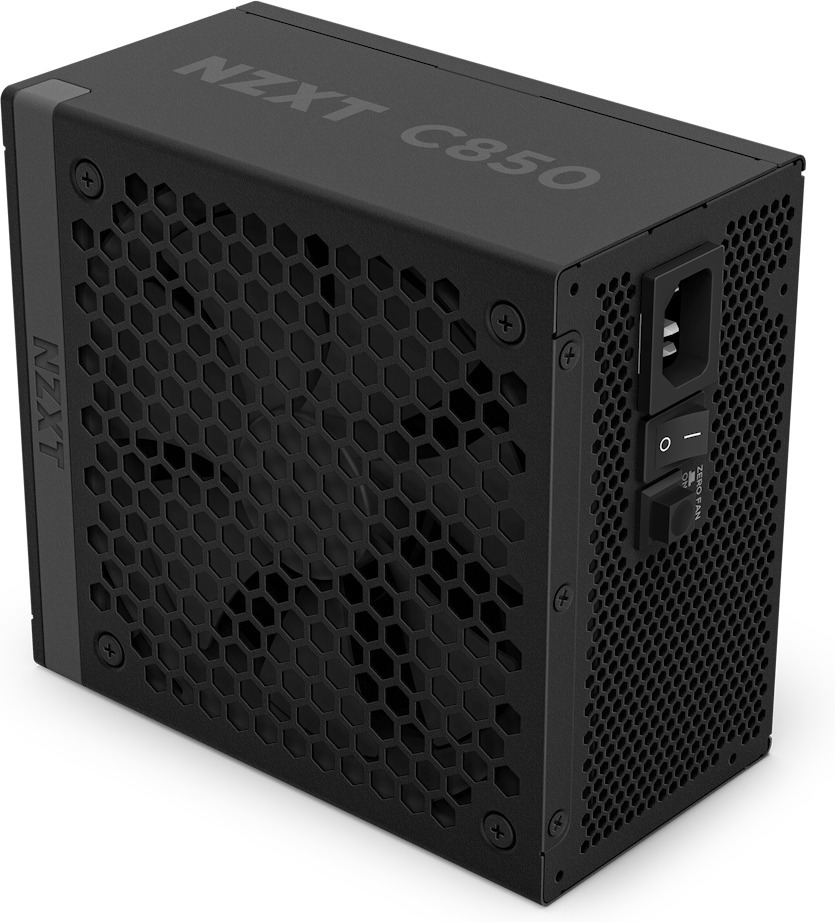

Pressing a button activates Zero RPM Fan mode, which completely stops the fan when the load is low. As power consumption increases, the power supply’s 135 mm fan starts, keeping the power supply cool and stable even during intense gaming sessions.

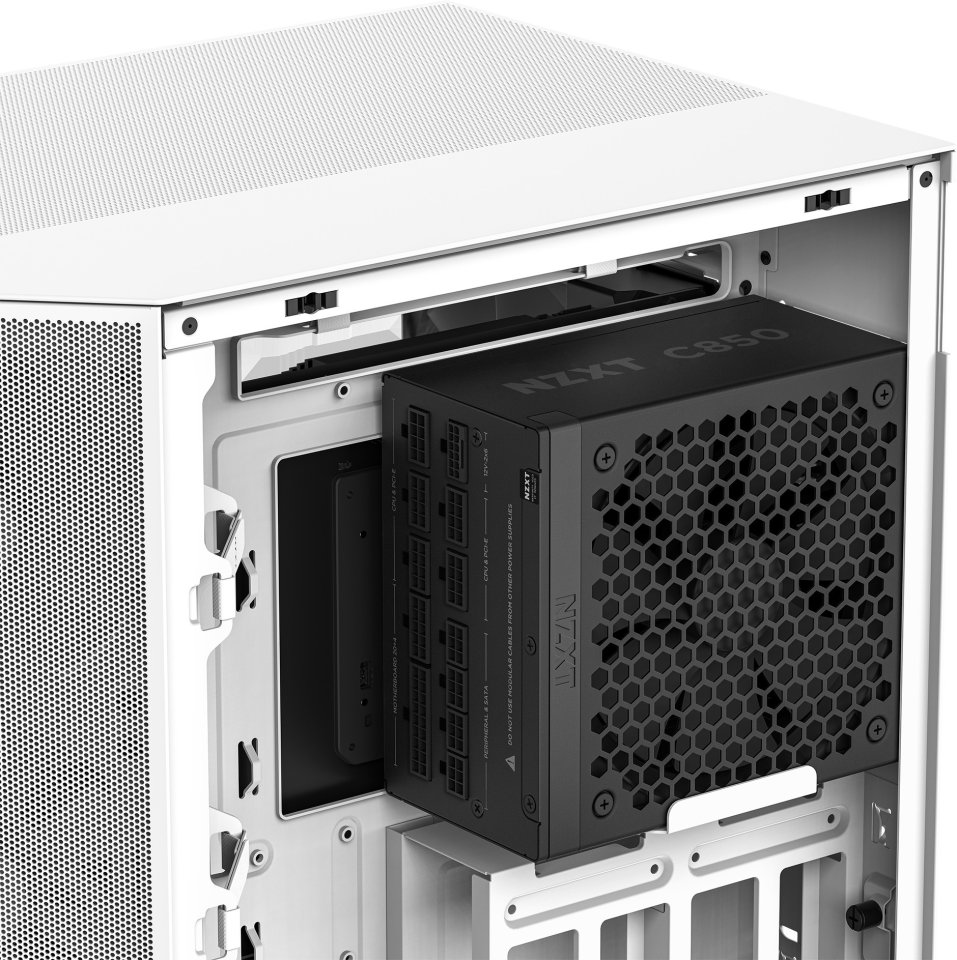

The modular design allows you to use only the cables you really need. This makes installation easier and results in a neat appearance inside the case.

Utilizing the ATX v3.1 power supply standard, the 16-pin 12V-2×6 connector delivers up to 600 watts of power to NVIDIA 40-series graphics cards through a single cable while maintaining highly efficient and quiet performance.

Features:

• Power: 850 W (+5V: 22 A, +3.3V: 22 A, +12V: 70.83 A, -12V: 0.3 A, +5Vsb: 3.0 A)
• 80 Plus Gold certified
• PCIe Gen 5.1 ready
• ATX12V version: 3.1
• EPS12V version: 2.92
• Modularity: Fully modular

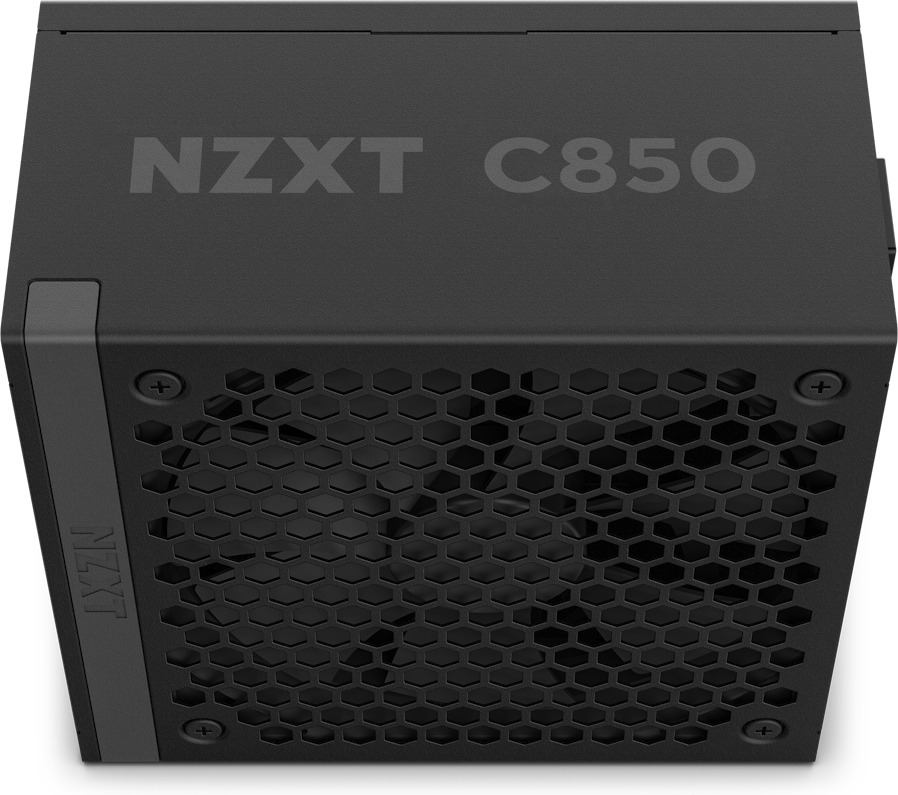

• Fan size: 135 mm
• Fan: 0 – 2300 ± 10% RPM, 93.02 CFM, 44.5 dBA, Fluid Dynamic Bearing (FDB)
• Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection)
• Dimensions: 150 x 160 x 86 mm

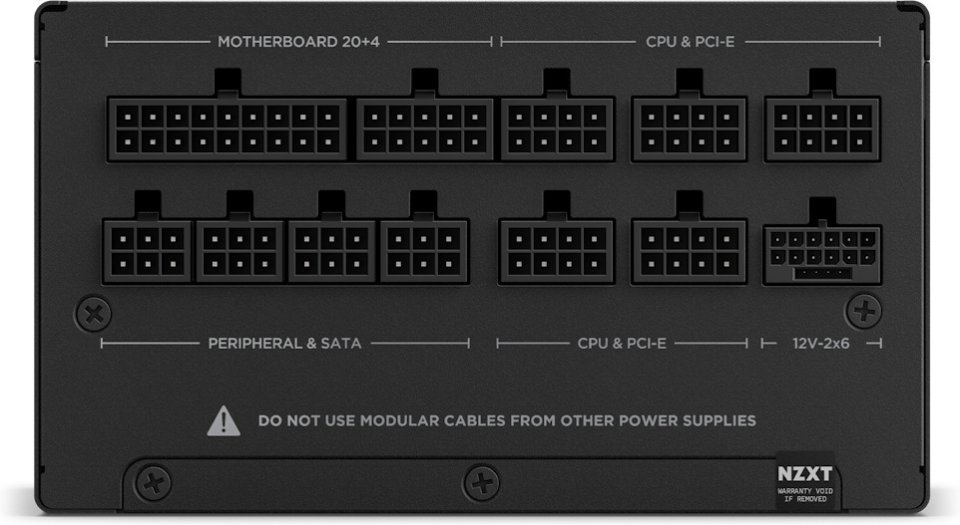

Connections:

• 1 x ATX 24-pin
• 1 x CPU 4+4-pin
• 1 x CPU 8-pin
• 3 x PCIe 6+2-pin
• 1 x PCIe 12V-2×6 16-pin (12+4)
• 12 x SATA
• 4 x Peripheral
