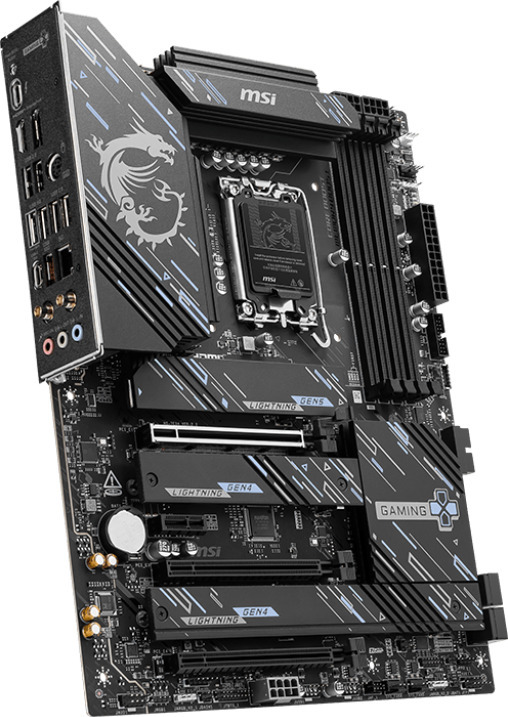

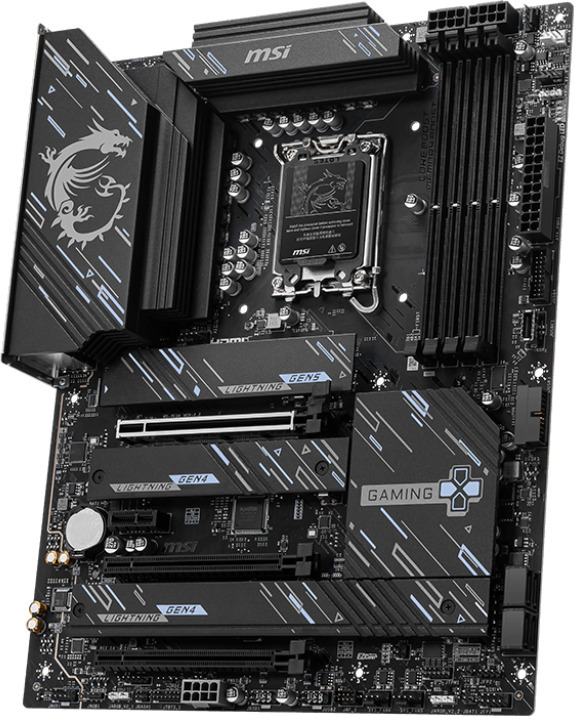

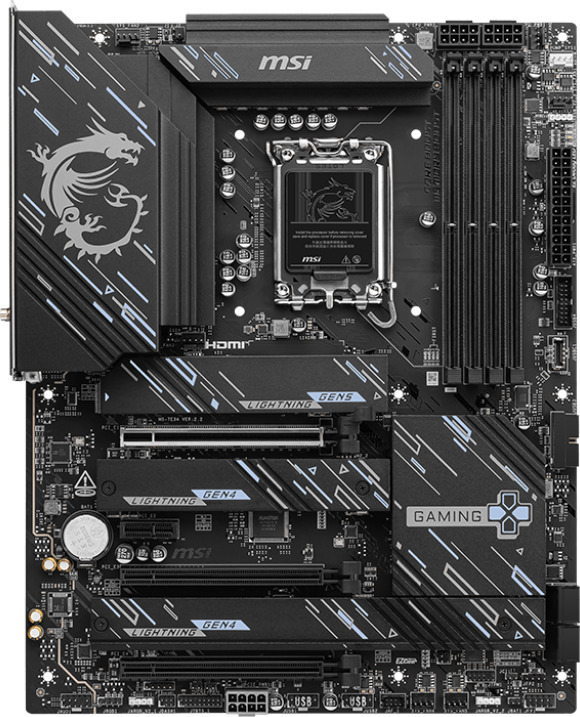

Z890 GAMING PLUS WIFI is an Intel Z890 chipset motherboard with an LGA 1851 socket for Intel Core Ultra (Series 2) processors. MSI Z890 series motherboards are designed for long-lasting durability and feature an extensive list of impressive features such as DDR5 memory support, PCIe 5.0, and fast Wi-Fi 7, all highly valued by gamers.

Z890 GAMING PLUS WIFI is developed to unleash the full gaming potential of the Intel Z890 chipset by combining top-tier hardware system support and premium durability. The motherboard is an excellent ATX platform for overclocking memory, processor, and graphics card.

The GAMING series specializes in water cooling. The motherboards include strategically placed cooler connectors, including a dedicated pump fan connector.

– Supports Intel Core Ultra (Series 2) processors.

– Supports DDR5 memory, dual-channel DDR5 9200+ MT/s (OC).

– Ultra performance: 14+1+1+1 Duet Rail power delivery system, Core Boost, and a 6-layer PCB made of thick copper using server-grade materials.

– Frozr Guard: Enlarged heatsink with heat pipes, MOSFET thermal pads, additional component thermal pads, and M.2 Shield Frozr ensure high performance and uninterrupted gaming experience.

– Lightning-fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.

– Ultra connectivity: Thunderbolt 4, 5G LAN, and Wi-Fi 7 solutions provide secure, stable, and fast network and data transfer connections.

– Audio Boost: Studio-grade sound quality that guarantees the most immersive gaming experience.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (243.84 x 304.8 mm)
• Memory slots (pcs): 4
• Memory type: DDR5 (9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Un-buffered
• Maximum memory capacity (GB): 256
• Network interfaces: Intel Killer E5000 5Gbps LAN, WiFi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4
• Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion slots

• 3 x PCI-E x16 slots (supports x16/x1/x4)
• 1 x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage interfaces

• 4 x SATA 6G
• 4 x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

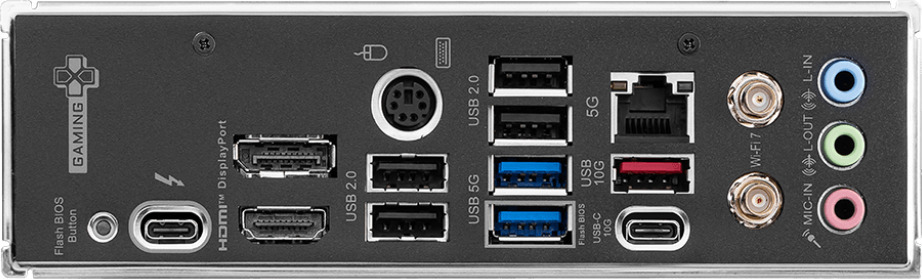

Rear panel connectors

• DisplayPort
• Keyboard / Mouse
• 2 x USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• 3 x Audio Connectors
• Flash BIOS Button
• Thunderbolt 4 40Gbps (Type-C)
• HDMI
• 2 x USB 2.0
• 2 x USB 5Gbps Type A ports
• USB 10 Gbps Type C ports
• USB 10 Gbps Type A ports

Internal connectors

• 1 x Thunderbolt5 card connector (JTBT5, supports RTD3)
• 1 x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x Power Connector (PCIE_PWR 8pin)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 5 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Tuning Controller connector (JDASH)
• 3 x Addressable V2 RGB LED connectors (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin header (Supports TPM 2.0)
• 4 x USB 2.0 ports
• 4 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C port
