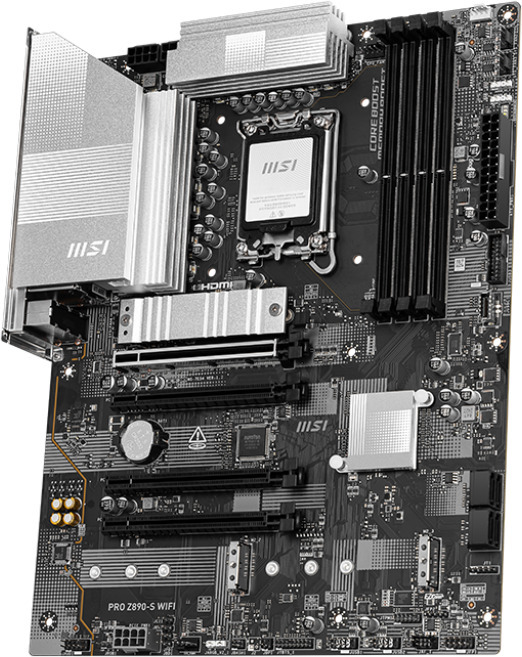

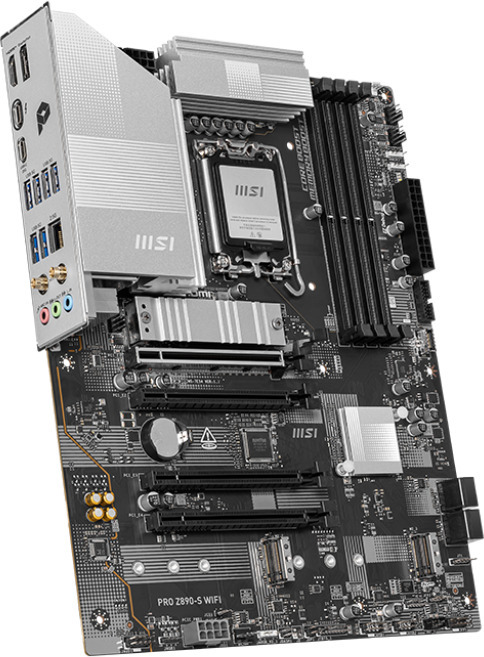

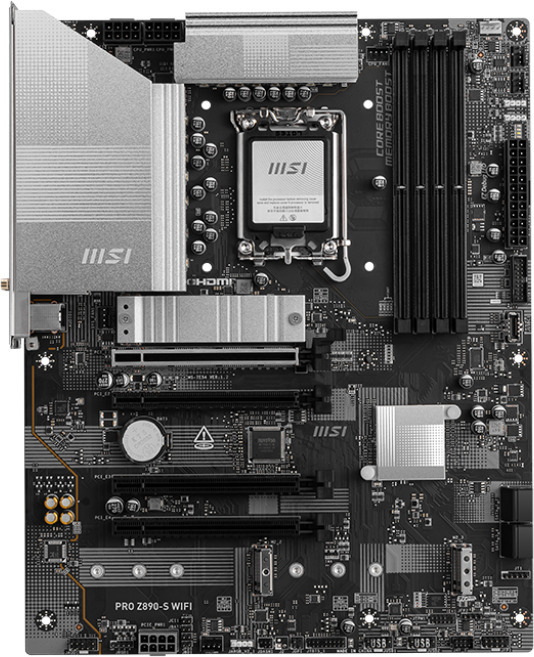

PRO Z890-S WIFI offers a simple design and a harmonious silver color scheme that blends stylishly with both white and black PC builds. The motherboard features several top MSI features, such as Wi-Fi 7 with EZ antennas, 5G LAN, PCIe 5.0 M.2, EZ M.2 Shield Frozr II, and additional PCIe power delivery. PRO-S WIFI is fully ready for Intel Core Ultra (Series 2) processors.

The PRO series is designed for professionals of all levels who value performance and quality. The series supports productivity and efficiency and is a reliable choice for demanding multitasking.

– Supports Intel Core Ultra (Series 2) processors.

– Supports DDR5 memory, dual-channel DDR5 8600+ MT/s (OC).

– Ultra performance: 12+1+1+1 Duet Rail power delivery system, Core Boost, and a 6-layer thick copper PCB made from server-grade materials.

– Frozr Guard: Enlarged heatsink with heat pipes, MOSFET thermal pads, additional component thermal pads, and M.2 Shield Frozr ensure high performance and uninterrupted gaming experience.

– Lightning-fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.

– Ultra connectivity: 2.5G LAN and Wi-Fi 7 solution provide secure, stable, and fast network and data transfer connections.

– Audio Boost: Studio-grade sound quality that guarantees the most immersive gaming experience.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (243.84 x 304.8 mm)
• Memory slots (pcs): 4
• Memory type: DDR5 (8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Un-buffered
• Maximum memory capacity (GB): 256
• Network interfaces: 1 x Realtek 8125D 2.5G LAN, WiFi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4
• Sound card: Realtek ALC897 Codec, 7.1-Channel USB High-Definition Audio

Expansion slots

• 4 x PCI-E x16 slots
• PCI_E1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Storage connections

• 4 x SATA 6G
• 3 x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242

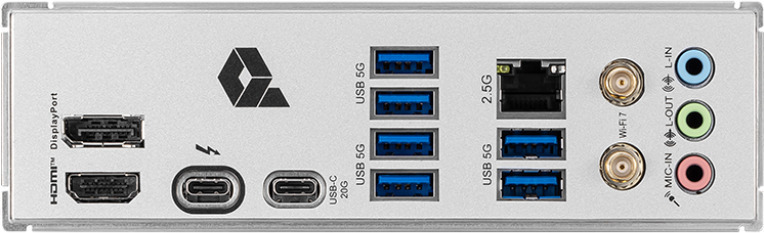

Rear panel connectors

• DisplayPort
• 4 x USB 5Gbps Type-A
• 2.5G LAN
• Wi-Fi / Bluetooth
• 3 x Audio Connectors
• HDMI
• Thunderbolt 4 40Gbps (Type-C)
• USB 20Gbps Type-C
• 2 x USB 5Gbps Type-A

Internal connectors

• 1 x Thunderbolt5 card connector (JTBT5, support RTD3)
• 1 x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x Power Connector (PCIE_PWR 8pin)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 4 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Tuning Controller connector (JDASH)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin header (Support TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports
