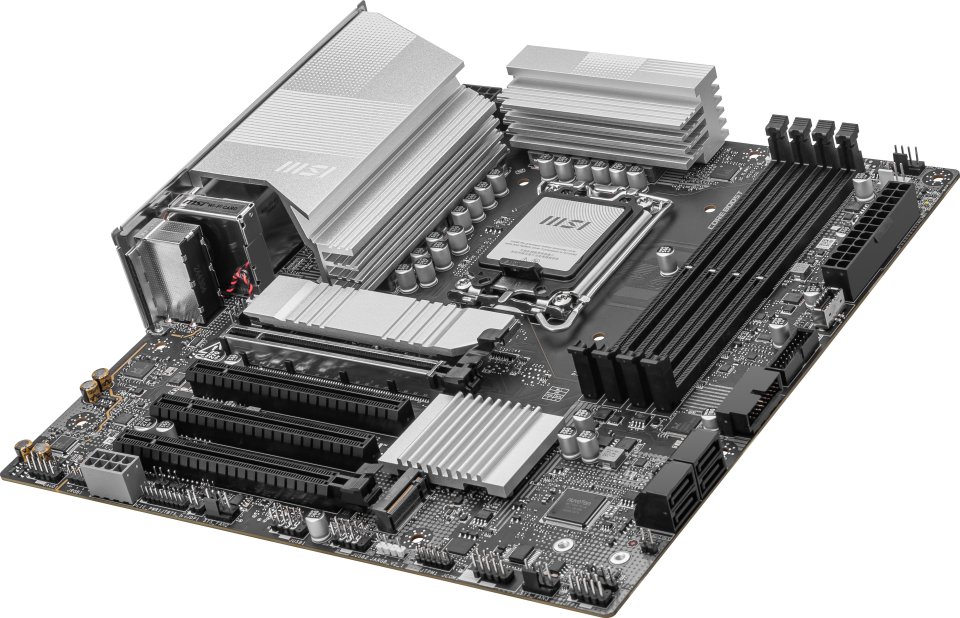

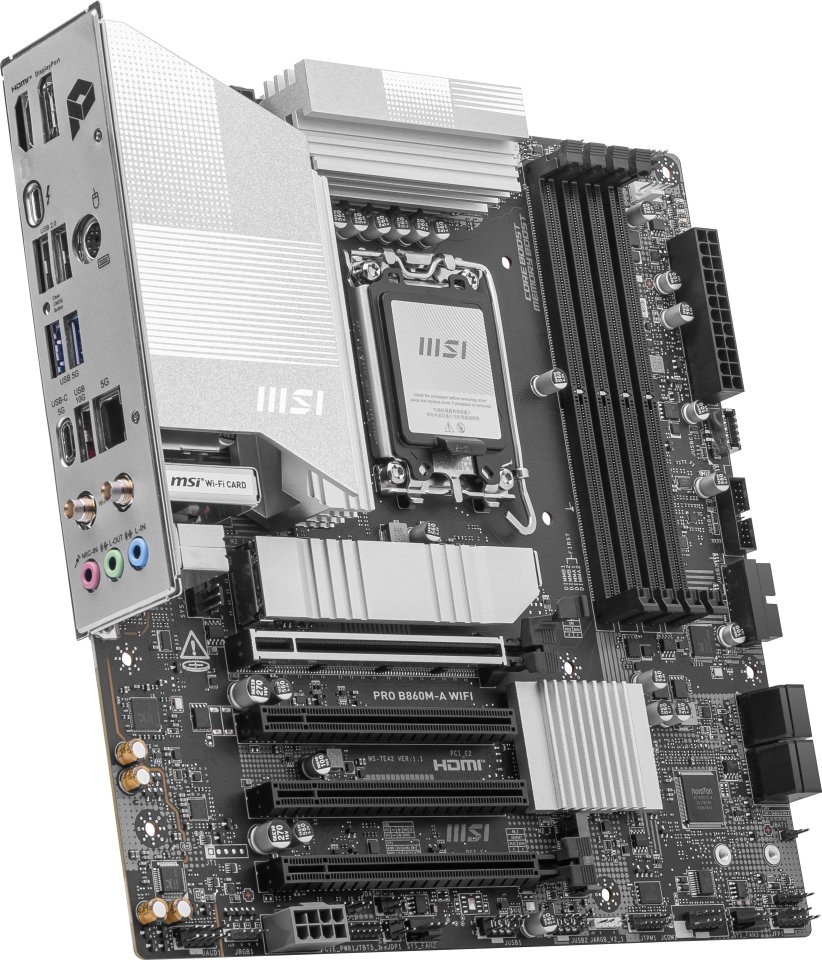

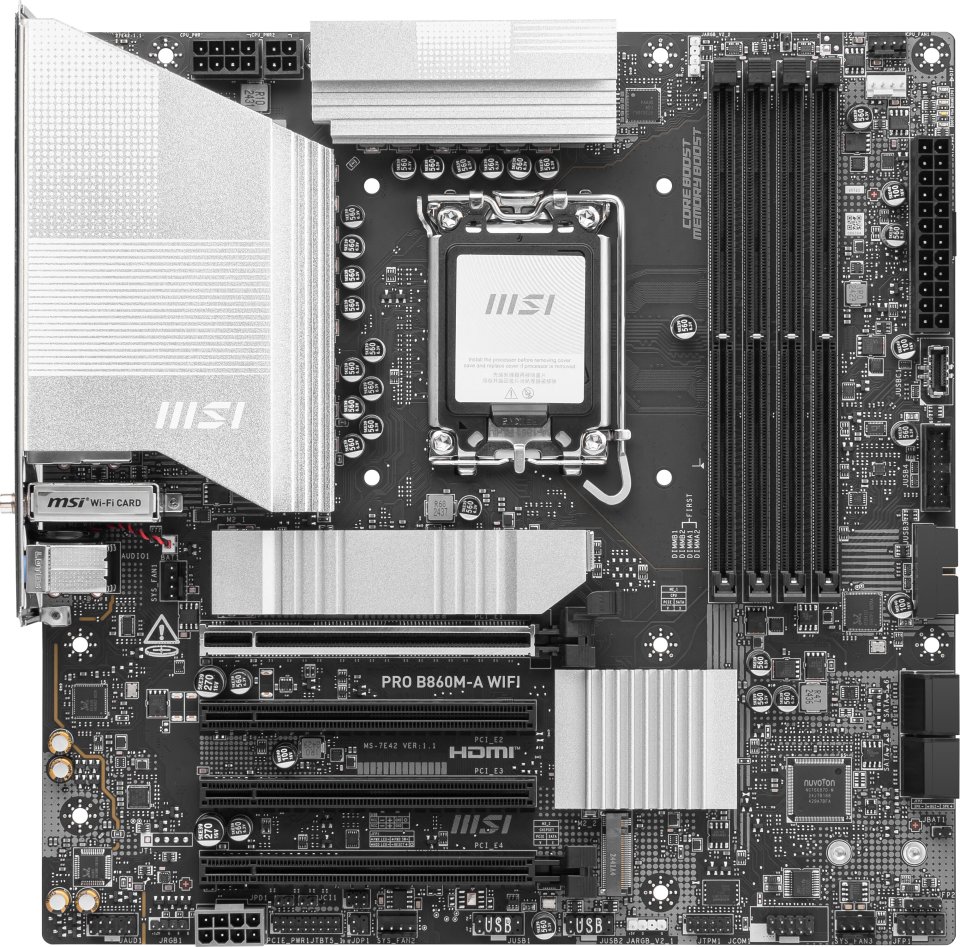

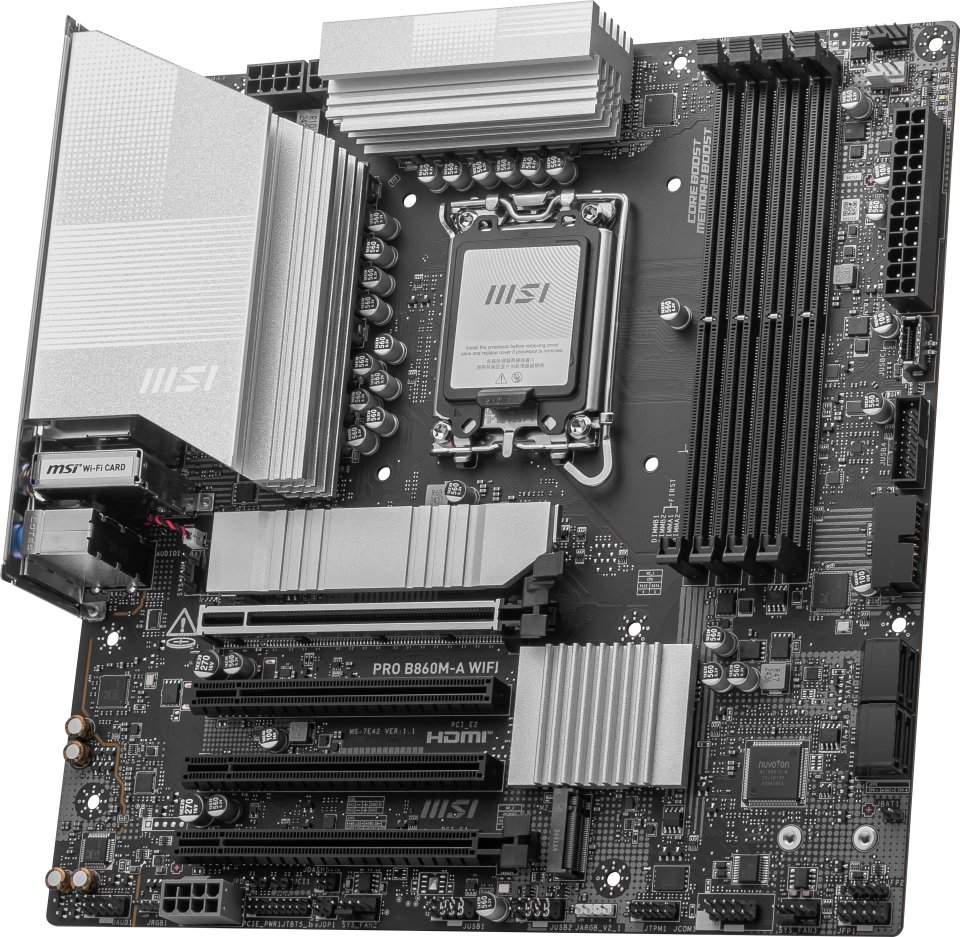

MSI PRO B860M-A WIFI is a reliable and powerful motherboard, ideal for business use and demanding users. It supports Intel Core Ultra processors and features numerous connectors and functionalities, making it an excellent choice for a wide range of applications. The PRO B860M-A WIFI offers efficient power delivery and comprehensive cooling solutions, ensuring smooth operation even under heavy use. Its multiple connections, such as Thunderbolt 4 and fast LAN, provide extensive connectivity options. You can easily connect multiple displays, peripherals, and storage devices. The PRO B860M-A WIFI is designed to be user-friendly and dependable, featuring several functions that simplify installation and use. The pre-installed I/O shield facilitates installation and enhances protection.

Features

• Thunderbolt® 4 port: Thunderbolt 4 brings true 40 Gb/s speeds to USB-C, 8K display support, device daisy-chaining, and USB 4.0 compatibility.
• 5G network solution: Premium 5G LAN for an improved network experience.
• Wi-Fi 7: The latest wireless solution achieving transfer speeds up to 5.8 Gbps.
• EZ M.2 Shield Frozr II: New tool-free design makes installing or removing M.2 SSD and Shield Frozr easier.
• EZ PCIe Clip II: Allows easy removal of the graphics card by pressing a tail-shaped lock with one finger, even in tight case spaces.
• Latest DDR memory: Significant DDR performance improvement with the newest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speeds.
• Extended cooling design: MSI’s extended PWM heatsink and enhanced circuit design ensure even high-end processors run at full speed.

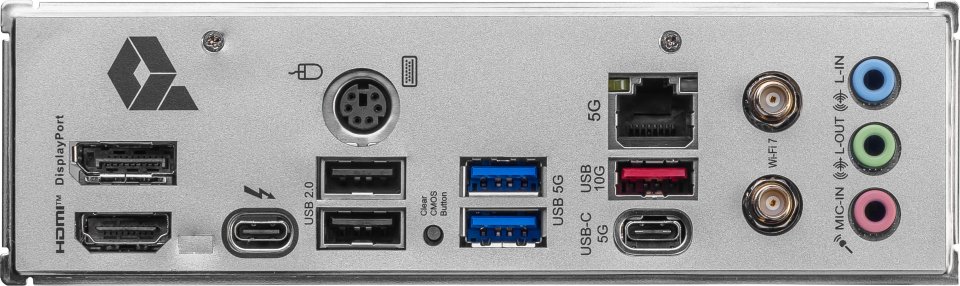

• Pre-installed I/O shield: Better EMI protection and easier installation.
• Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts system fan operation accordingly.

Technical specifications:

• Model name: PRO B860M-A WIFI
• Processor support: Supports Intel® Core™ Ultra processors (12th Gen)
• Processor socket: LGA 1851
• Chipset: Intel® B860 chipset
• Expansion slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots
• Display outputs: Thunderbolt™ 4 (Type-C), supports 4K@60Hz via HDMI™ 2.1 standard, DisplayPort 1.4 (Requires processor graphics)
• Memory support: 4 DIMM slots, dual-channel DDR5 – 8600+ MT/s (OC)
• Storage: 1 x M.2 Gen5 x4 128 GB/s slot, 1 x M.2 Gen4 x4 64 GB/s slot, 1 x M.2 Gen4 x2 32 GB/s slot, 4 x SATA 6 Gb/s ports
• Thunderbolt™ 4: 1 x USB Type-C up to 40 Gb/s, charging support up to 5V/3A, 15W
• USB ports: 2 x USB 10 Gb/s (1 Type-A + 1 Type-C), 7 x USB 5 Gb/s (6 Type-A + 1 Type-C), 6 x USB 2.0
• LAN: Realtek® 8126 5G
• WiFi / Bluetooth: Intel WiFi 7, Bluetooth 5.4
• Audio: 8-channel (7.1) HD Audio with Audio Boost feature
