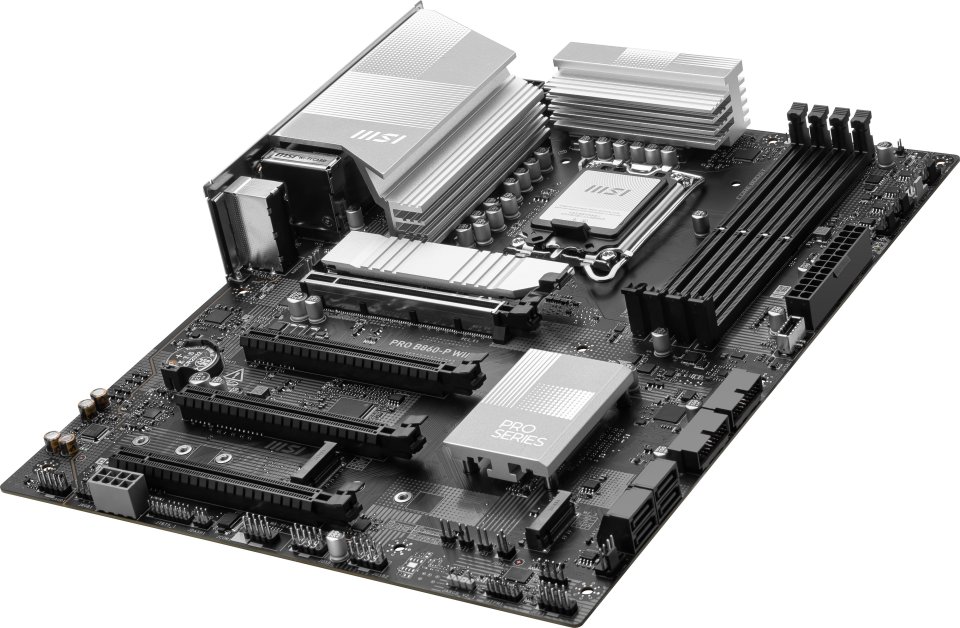

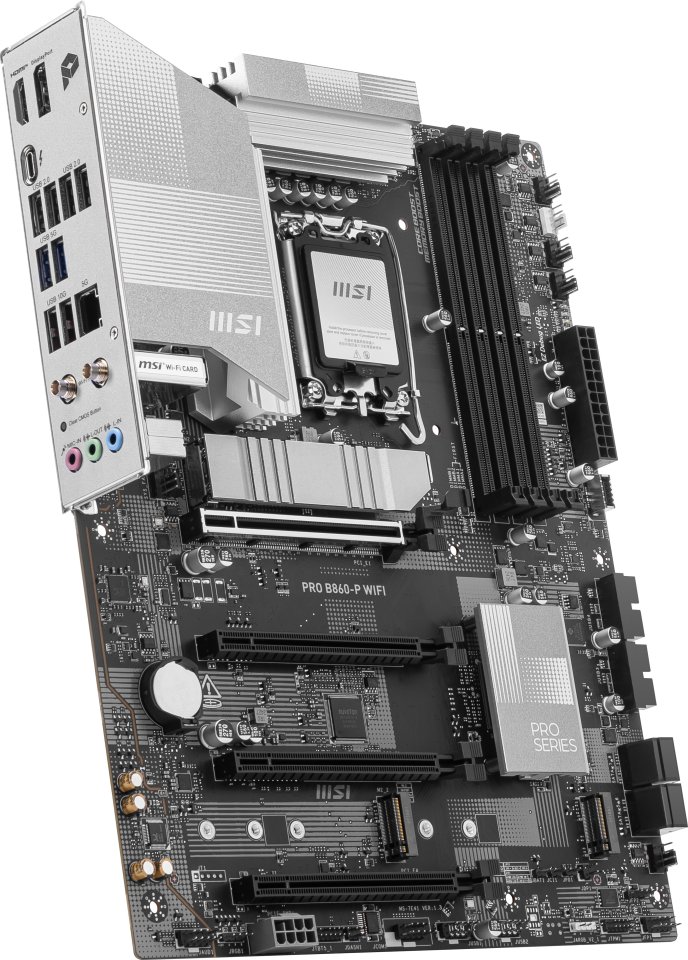

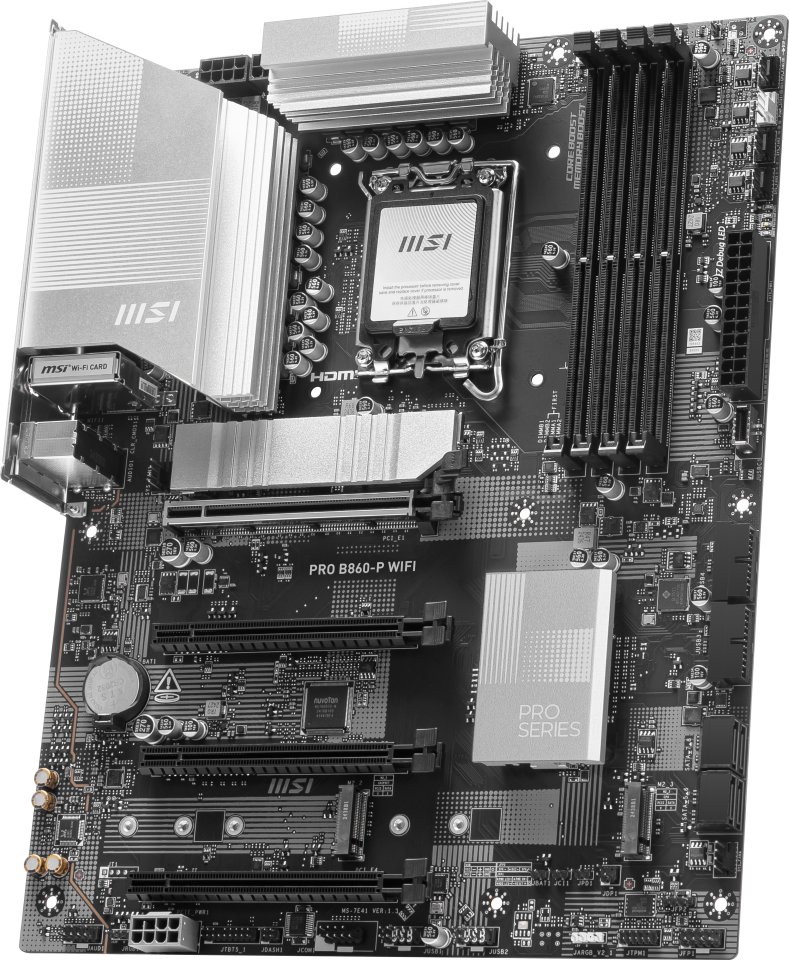

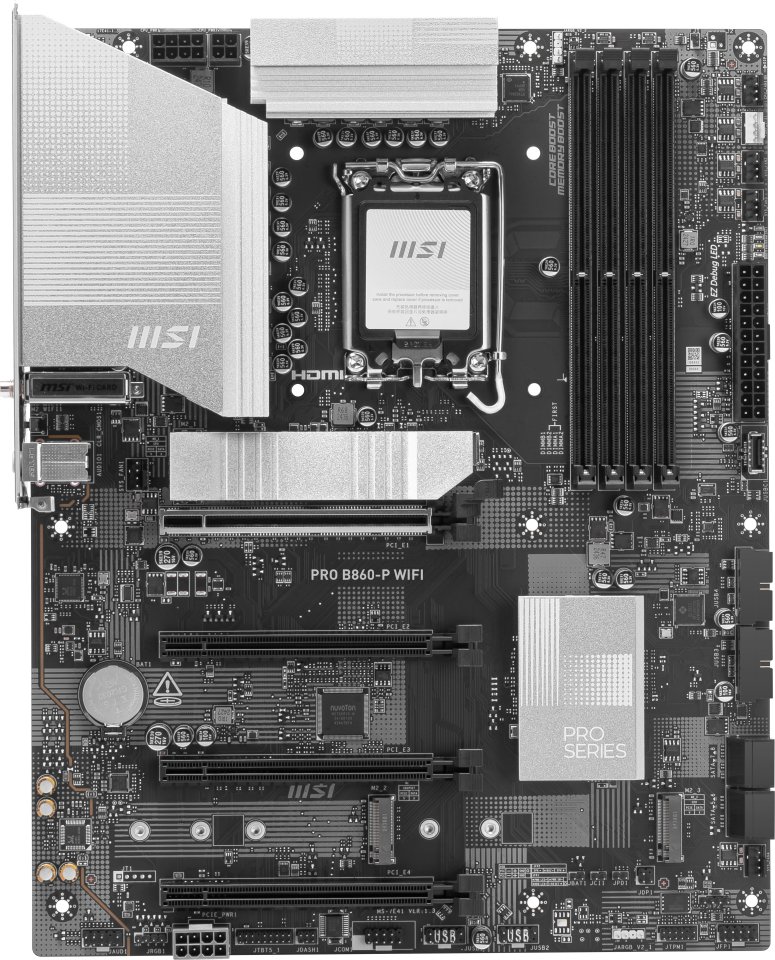

MSI PRO B860-P WIFI is a reliable and powerful motherboard, ideal for business use and demanding users. It supports Intel Core Ultra processors and features numerous ports and functionalities, making it an excellent choice for various applications. The PRO B860-P has efficient power delivery and comprehensive cooling solutions that ensure smooth operation even under heavy use. Its multiple connections, such as Thunderbolt 4, WiFi 7, and fast LAN, provide extensive connectivity options. You can easily connect multiple displays, peripherals, and storage devices. The MSI PRO B860-P is designed to be user-friendly and dependable, with several features that simplify installation and use. Pre-installed I/O shielding facilitates installation and enhances protection.

Features

• Thunderbolt® 4 port: Thunderbolt 4 brings true 40 Gb/s speeds to Thunderbolt USB-C, 8K display support, device chaining, and USB 4.0 compatibility.
• 5G network solution: Premium 5G LAN for an improved network experience.
• Wi-Fi 7: The latest wireless solution achieving up to 5.8 Gbps transfer speeds.
• EZ M.2 Shield Frozr II: New tool-less design makes installing or removing M.2 SSDs and Shield Frozr easier.
• EZ PCIe Clip II: Allows easy removal of the graphics card by pressing a tail-like latch with one finger, even in tight case spaces.
• Latest DDR memory: Significant improvement in DDR performance with the newest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
• Extended cooling structure: MSI’s extended PWM heatsink and improved circuit design ensure even high-end processors operate at full speed.
• Pre-installed I/O shielding: Better EMI protection and easier installation.
• Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts system fan operation accordingly.

Technical specifications:

• Model name: PRO B860-P WIFI
• Processor support: Supports Intel® Core™ Ultra processors (series 2)
• Processor socket: LGA 1851
• Chipset: Intel® B860 chipset
• Expansion slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots
• Display outputs: Thunderbolt™ 4 (Type-C), supports 4K@60Hz HDMI™ 2.1 standard, DisplayPort 1.4 (requires processor graphics)
• Memory support: 4 DIMM slots, dual-channel DDR5 – 8600+ MT/s (OC)
• Storage: 1 x M.2 Gen5 x4 128 GB/s slot, 1 x M.2 Gen4 x4 64 GB/s slot, 1 x M.2 Gen4 x2 32 GB/s slot, 4 x SATA 6 Gb/s ports
• Thunderbolt™ 4: 1 x USB Type-C up to 40 Gb/s, charging support up to 5 V/3 A, 15 W

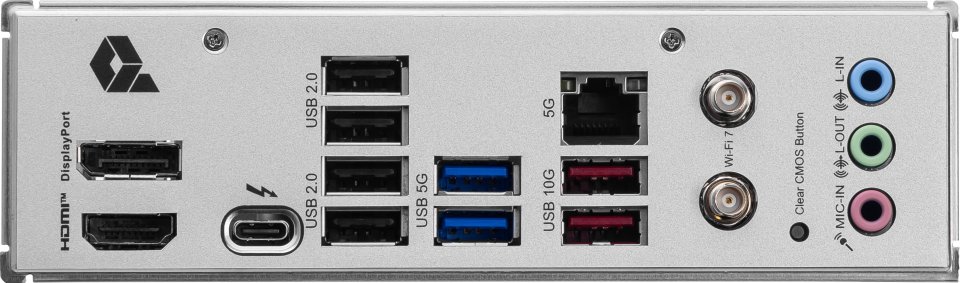

• USB ports: 3 x USB 10 Gb/s (2 Type-A + 1 Type-C), 6 x USB 5 Gb/s (6 Type-A), 8 x USB 2.0
• LAN: Realtek° 8126 5G
• WiFi / Bluetooth: Intel WiFi 7, Bluetooth 5.4
• Audio: 8-channel (7.1) HD Audio with Audio Boost feature
