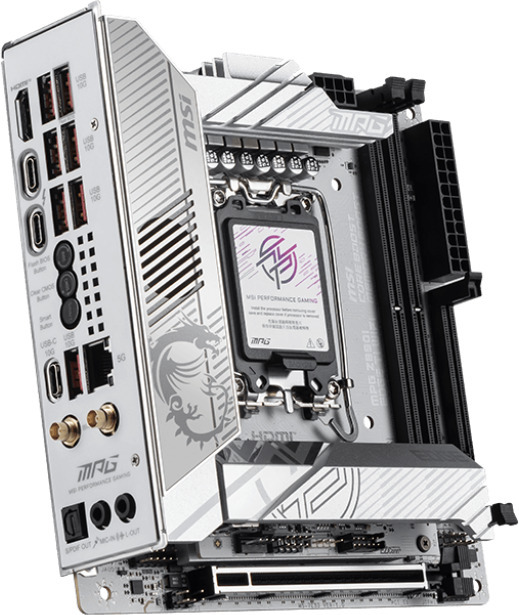

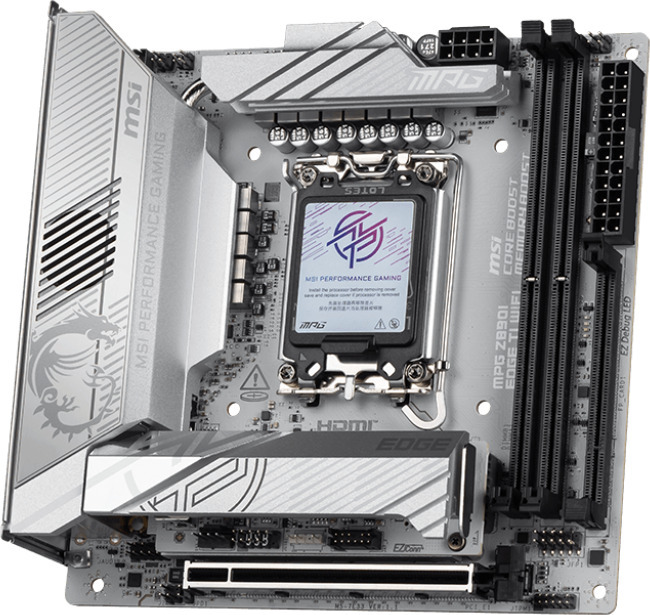

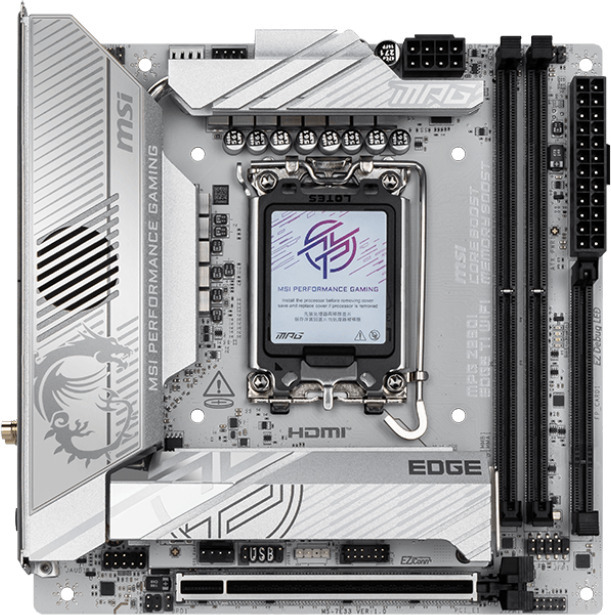

MSI MPG Z890 EDGE WIFI TI is a motherboard equipped with the Intel Z890 chipset and LGA 1851 socket for Intel Core Ultra (Series 2) processors. The motherboard features a silver-white color scheme, giving the product a distinctive look. In addition to being stylish, it is also powerful.

The MPG series showcases trendy gaming products by presenting extremely unique styles and expressing an attitude towards the challenges of the gaming world. Thanks to exceptional performance and style, the MPG series defines the future of gaming fashion.

– Supports Intel Core Ultra (Series 2) processors.

– Supports DDR5 memory, dual-channel DDR5 8600+ MT/s (OC).

– Ultra-performance: 10+1+1+1 Duet Rail power delivery system, Core Boost, and a 14-layer thick copper PCB made from server-grade materials.

– Frozr Guard: Enlarged heatsink with heat pipes, MOSFET thermal pads, additional component thermal pads, and M.2 Shield Frozr ensure high performance and uninterrupted gaming experience.

– Lightning-fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.

– Ultra connectivity: Thunderbolt 4, 5G LAN, and Wi-Fi 7 solution provide secure, stable, and fast network and data transfer connections.

– Audio Boost 5: Studio-grade sound quality guaranteeing the most immersive gaming experience.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: Mini-ITX (170 x 170 mm)
• Memory slots (pcs): 2
• Memory type: DDR5 (8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Un-buffered
• Maximum memory capacity (GB): 128
• Network connections: 1 x Intel Killer E5000B 5G LAN, WiFi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4
• Sound card: Realtek ALC4080 Codec, 7.1-Channel USB High-Definition Audio

Expansion slots

• PCI_E1 x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Storage connections

• 4 x SATA 6G
• 4 x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280 devices

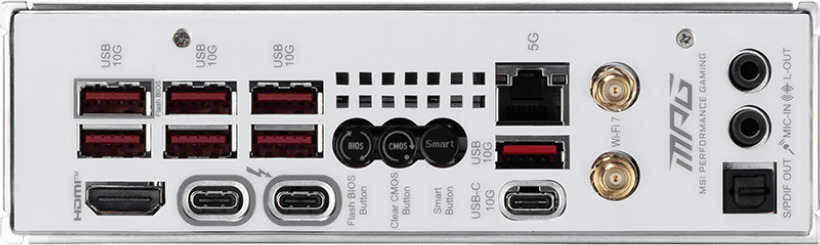

Rear panel connections

• 6 x USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 5G LAN
• Wi-Fi / Bluetooth
• 2 x Audio Connectors
• HDMI
• 2 x Thunderbolt 4
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• Optical S/PDIF Out

Internal connections

• 1 x Power Connector (ATX_PWR)
• 1 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 1 x System Fan
• 1 x EZ Conn-header (JAF_2)
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Thermal Sensor connectors (T_SEN)
• 1 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x TPM pin header (Support TPM 2.0)
• 2 x USB 2.0 ports
• 2 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports
