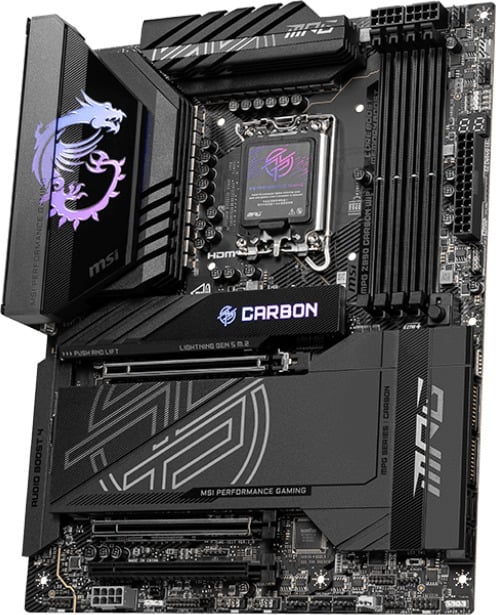

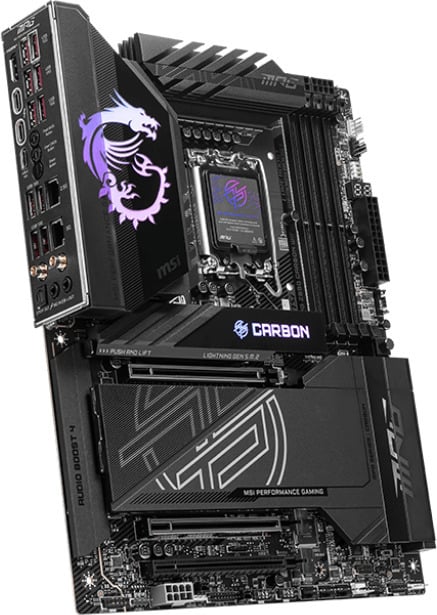

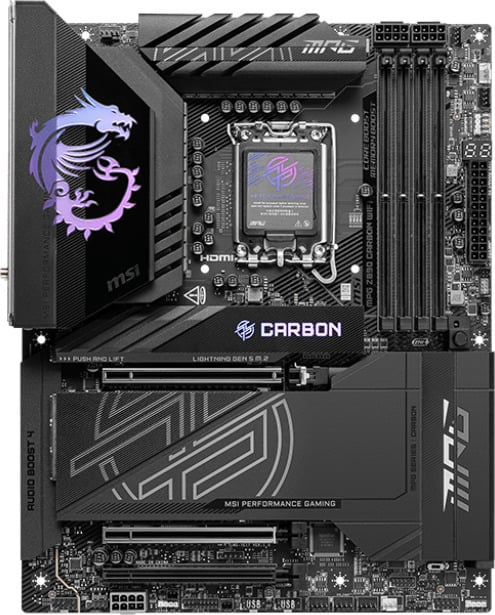

MPG Z890 CARBON WIFI combines a carbon black color scheme and stylish patterning with Mystic Light RGB lighting, creating an impressive and unique look. Its top-tier features include 5G LAN, fast Wi-Fi 7 connection, 40 Gbps USB, additional PCIe power delivery, and the latest EZ DIY solutions.

MSI’s MPG GAMING series is designed for gamers who demand both strong performance and modern design. Each product represents premium aesthetics and vibrant colors that embody MPG’s commitment to excellent design. Optimized configurations offer a visually striking and efficient gaming experience.

– Supports Intel Core Ultra (Series 2) processors.

– Supports DDR5 memory, dual-channel DDR5 9200+ MT/s (OC).

– Ultra performance: 20+1+1+1 Duet Rail power delivery system, Core Boost, and an 8-layer thick copper PCB made from server-grade materials.

– Frozr Guard: Enlarged heatsink with heat pipes, MOSFET thermal pads, additional component thermal pads, and M.2 Shield Frozr ensure high performance and uninterrupted gaming experience.

– Lightning-fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.

– Ultra connectivity: Thunderbolt 4, 5G LAN + 2.5G LAN, and Wi-Fi 7 solution provide secure, stable, and fast network and data transfer connections.

– Audio Boost 4: Studio-grade sound quality that guarantees the most immersive gaming experience.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (243.84 x 304.8 mm)
• Memory slots (pcs): 4
• Memory type: DDR5 (9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Un-buffered
• Maximum memory capacity (GB): 256
• Network interfaces: 1 x Intel Killer E5000B 5G LAN, Intel I226V 2.5G LAN, Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4
• Sound card: Realtek ALC1220P Codec, 7.1-Channel USB High-Performance Audio

Expansion slots

• 3 x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage connections

• 4 x SATA 6G
• 4 x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
  M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

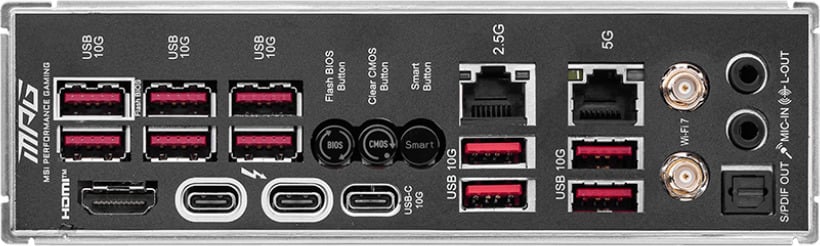

Rear panel connections

• 6 x USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 2.5G LAN
• 5G LAN
• 2 x Audio Connectors
• HDMI
• 2 x USB 40Gbps Type-C
• 2 x USB 10Gbps Type-C
• USB 10Gbps Type-A
• Wi-Fi / Bluetooth
• Optical S/PDIF Out

Internal connections

• 1 x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x Power Connector (PCIE_PWR 8pin)
• 1 x Front Type-C Quick Charge Connector (PD_PWR1)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 5 x System Fan
• 1 x EZ Conn-header (JAF_2)
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Water Flow connector
• 1 x Front Audio (JAUD)
• 1 x Thermal Sensor connectors (T_SEN)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin header (Support TPM 2.0)
• 4 x USB 2.0 ports
• 4 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports
