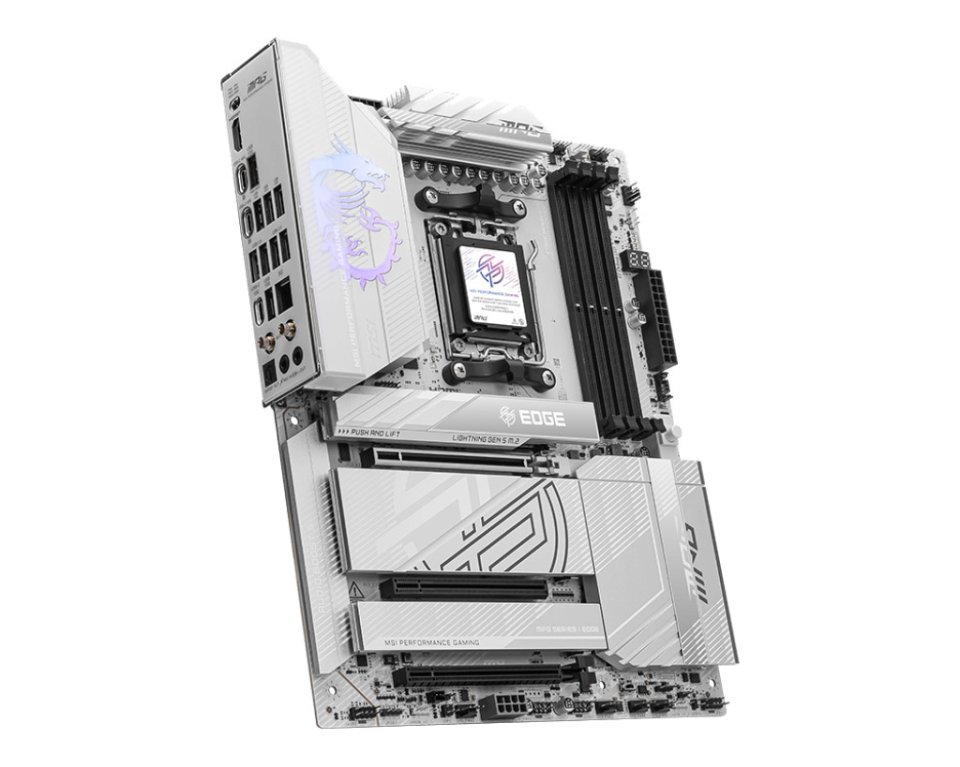

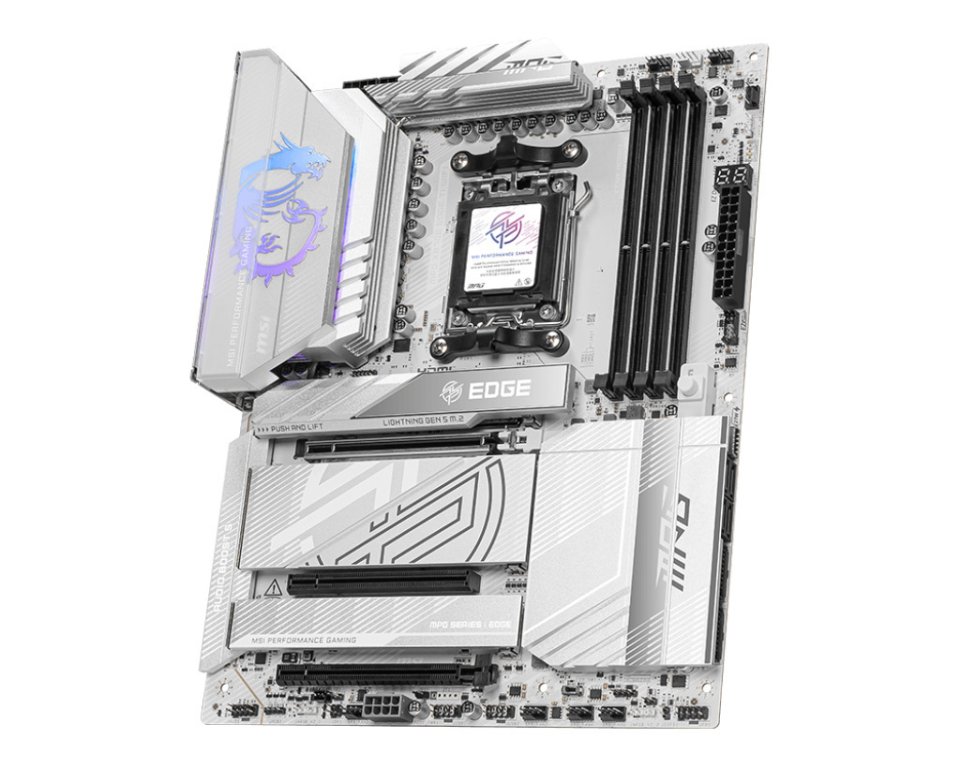

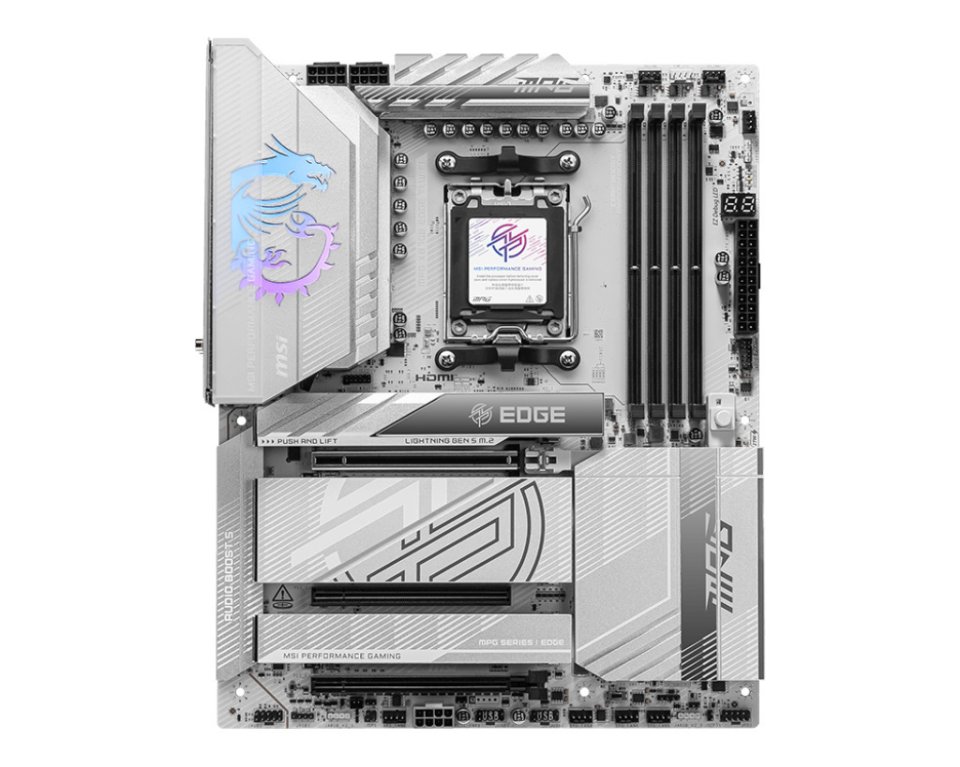

MPG X870E EDGE TI WIFI is a striking motherboard that combines performance and aesthetics. It is designed for AMD’s latest Ryzen processors and offers everything needed for a top-tier gaming experience. Enjoy fast data transfer, the latest connections, and a stylish white design that stands out.

This motherboard does not disappoint. It provides efficient power delivery, supports ultra-fast DDR5 memory, and multiple PCIe 5.0 expansion cards. Additionally, there are plenty of ports available, such as USB4 with 40 Gbps speed and ultra-fast 5G LAN. The MPG X870E EDGE TI WIFI is an excellent choice for gamers, content creators, and anyone who demands the best possible performance from their computer.

Features:

• Premium Thermal Design: MOSFET heatsink with heat pipe and high-quality 7W/mK MOSFET thermal pads.
• EZ PCIe Release: Simple button to lock and unlock the PCIe slot.
• EZ M.2 Shield Frozr II: Tool-free design for easy installation and removal of M.2 SSDs and Shield Frozr.
• Lightning Gen 5: PCIe 5.0 solution with up to 128Gb/s bandwidth.
• Latest DDR5 memory: Enhancements with DDR5 memory and MSI Memory Boost technology.
• Four M.2 slots: Maximum storage capacity.
• Fast USB 40G: Built-in USB 4 port with 40Gbps transfer speed.
• 5G network solution: Premium 5G LAN for an improved network experience.
• Wi-Fi 7: Latest wireless solution achieving speeds up to 5.8Gbps.
• Audio Boost 5: Isolated audio with high-quality audio processor for the best gaming experience.

Technical specifications:

• Processor support: AMD Ryzen™ 9000 / 8000 / 7000 series processors
• Processor socket: AMD Socket AM5
• Chipset: AMD X870E
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Display outputs: Supports 8K@60Hz HDMI™ 2.1 FRL, 2x USB4 Type-C display outputs (requires processor graphics)
• Memory: 4 DIMM, Dual Channel DDR5 – 8400+MT/s (OC)
• Storage: 2x M.2 Gen5 x4 128Gbps, 2x M.2 Gen4 x4 64Gbps, 4x SATA 6Gbps

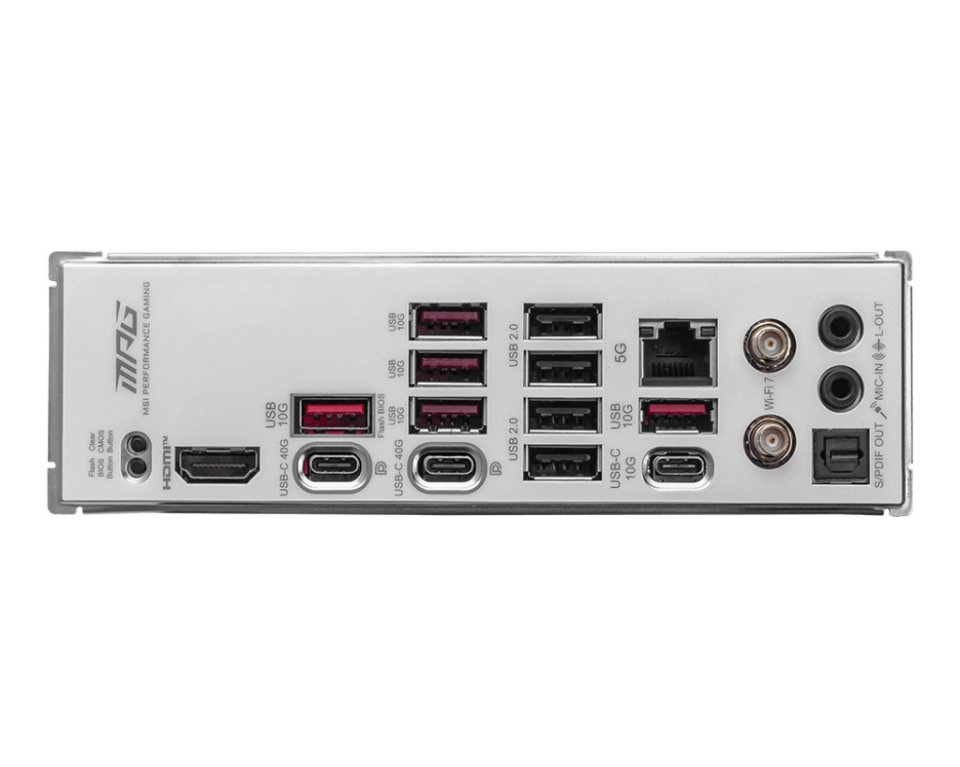

• USB ports: 2x USB 40Gbps (2 Type-C), 1x USB 20Gbps (1 Type-C), 6x USB 10Gbps (1 Type-C + 5 Type-A), 4x USB 5Gbps (4 Type-A), 8x USB 2.0 Type-A
• Network: Realtek® 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
• Audio: 8-channel (7.1) HD Audio with Audio Boost 5
