MSI B850 GAMING PLUS WIFI is an excellent motherboard for gamers and other demanding users seeking a reliable and high-performance platform for their AMD Ryzen processor. It offers plenty of connectivity options, efficient power delivery, and many features that make gaming and other uses smoother and more enjoyable. The motherboard includes several fast interfaces, such as PCIe 5.0 and 3 x M.2 slots, ensuring fast data transfer and short loading times. Wi-Fi 7 support guarantees a fast and reliable wireless network connection, while the 5G LAN port provides a stable and fast wired connection.

Features:

• Lightning Gen 5: The latest PCIe 5.0 solution with bandwidth up to 128 GB/s for maximum transfer speeds.
• EZ M.2 Shield Frozr II: New tool-free design makes installing or removing M.2 SSDs and the Shield Frozr much easier.
• 3 x M.2 slots: The motherboard has 3 x M.2 slots, one of which is a PCIe 5.0 solution, reinforced with M.2 Shield Frozr.
• EZ PCIe Clip II: Allows easy removal of the graphics card by pressing the tail lock with one finger, even in tight case spaces.
• Extended cooling: MSI’s extended PWM heatsink and improved circuit design ensure that even high-end processors run at full speed.
• Latest DDR5 memory: A big step in DDR performance improvement with the latest DDR5 memory and MSI Memory Boost technology.
• 5G network solution: Premium 5G LAN offers a better networking experience.

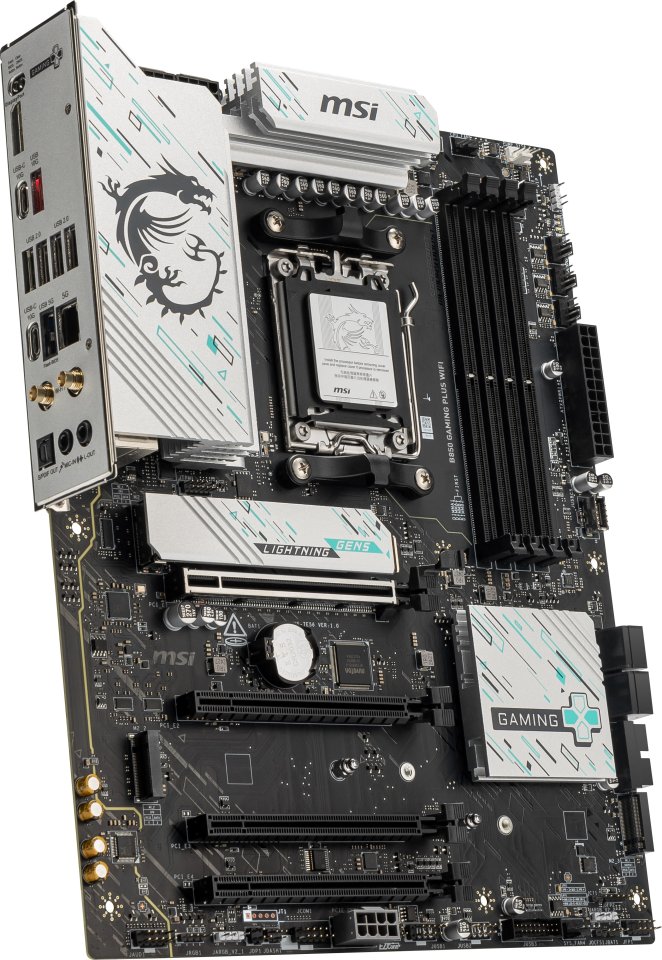

• Pre-installed I/O shield: Better EMI protection and easier installation.
• Wi-Fi 7: The latest wireless solution with a new 320 MHz channel, achieving a maximum transfer speed of 5.8 Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
• Audio Boost: Reward your ears with studio-grade audio that delivers the most immersive sound experience.

Technical specifications:

• Processor support: AMD Ryzen™ 9000 / 8000 / 7000 series processors
• Processor socket: AMD Socket AM5
• Chipset: AMD B850
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
• Display outputs: Supports 4K@60Hz HDMI™ 2.1 FRL, DisplayPort 1.2 HBR (requires processor graphics)
• Memory: 4 DIMM, Dual Channel DDR5 – 8200+ MT/s (OC)
• Storage: 1 x M.2 Gen5 x4 128 GB/s, 1 x M.2 Gen4 x4 64 GB/s, 1 x M.2 Gen4 x2 32 GB/s, 4x SATA 6 Gb/s

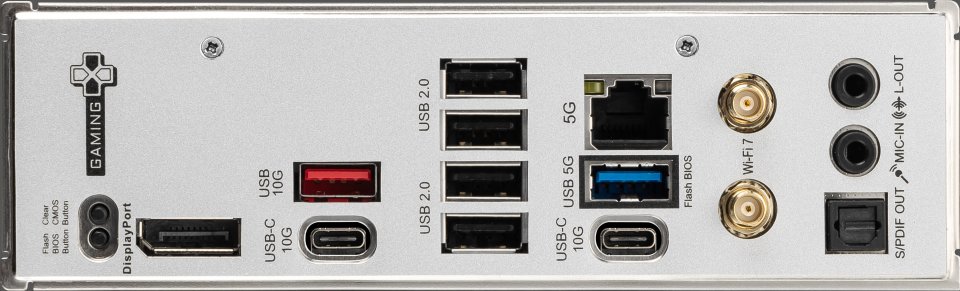

• USB ports: 3 x USB 10 Gb/s (1 Type-C + 1 Type-A), 6 x USB 5 Gb/s (5 Type-A + 1 Type-C), 8x USB 2.0 Type-A
• Network: Realtek 5G LAN, Wi-Fi 7, Bluetooth 5.4
• Audio: 8-channel (7.1) HD Audio with Audio Boost 5
