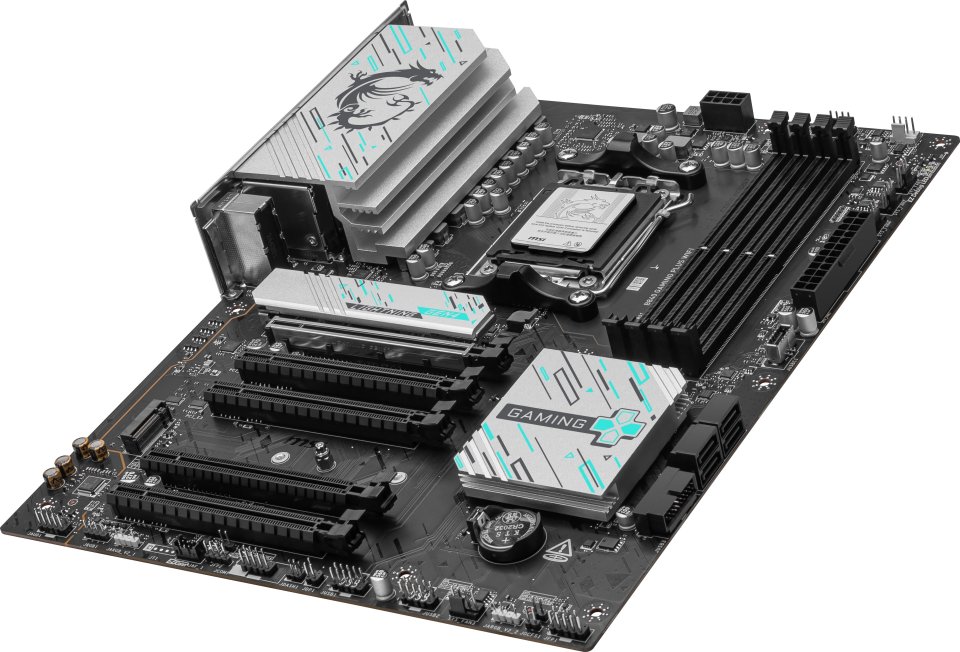

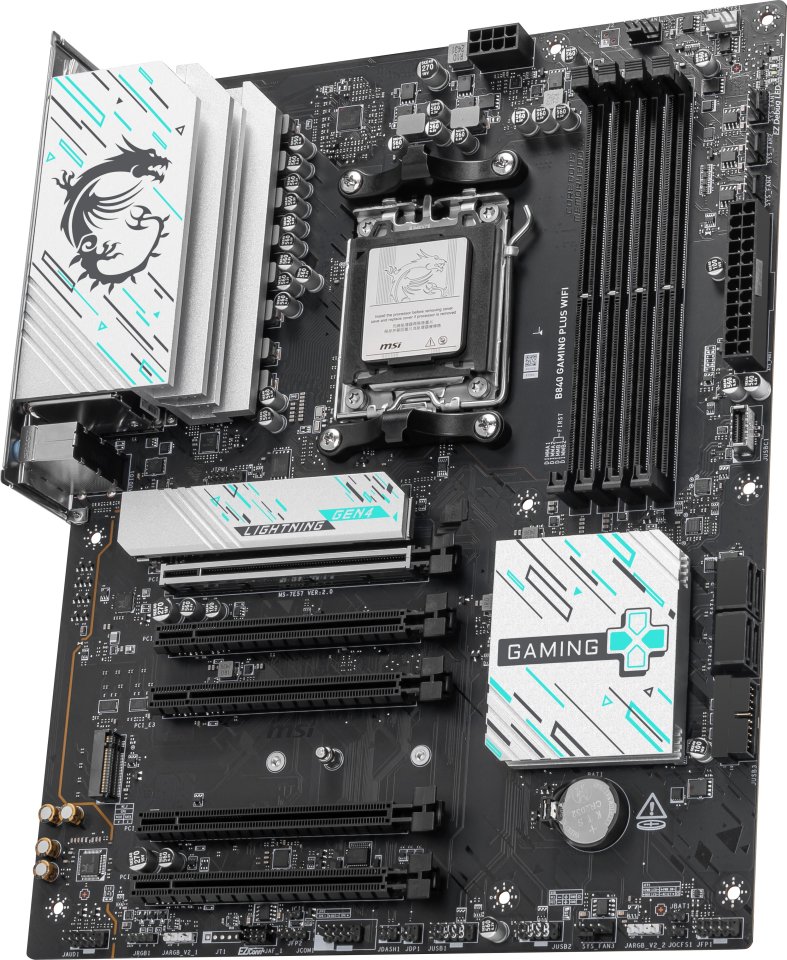

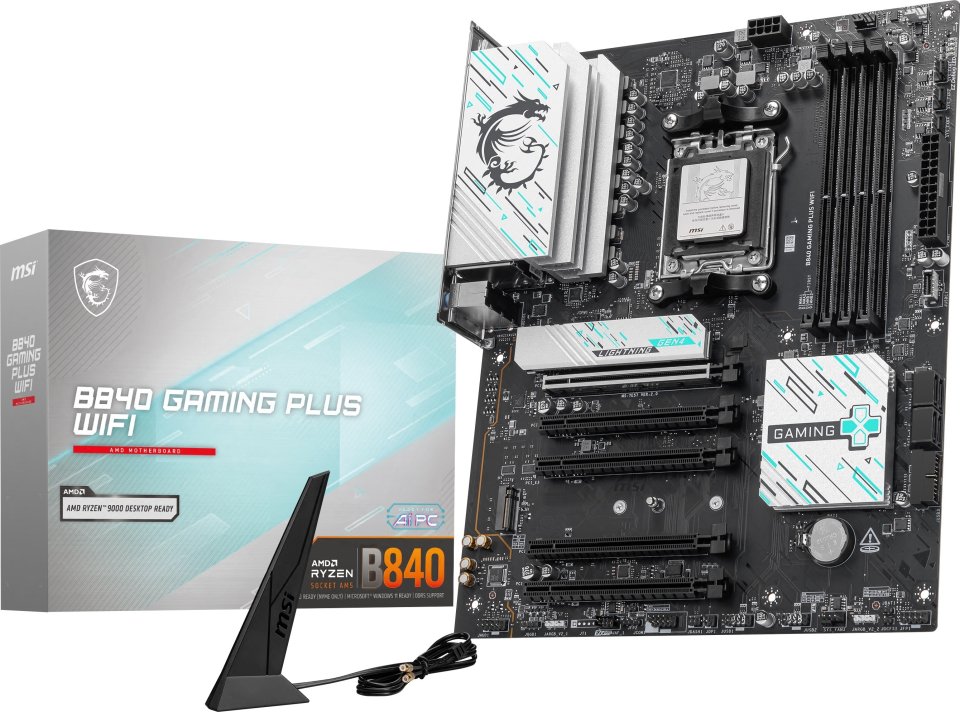

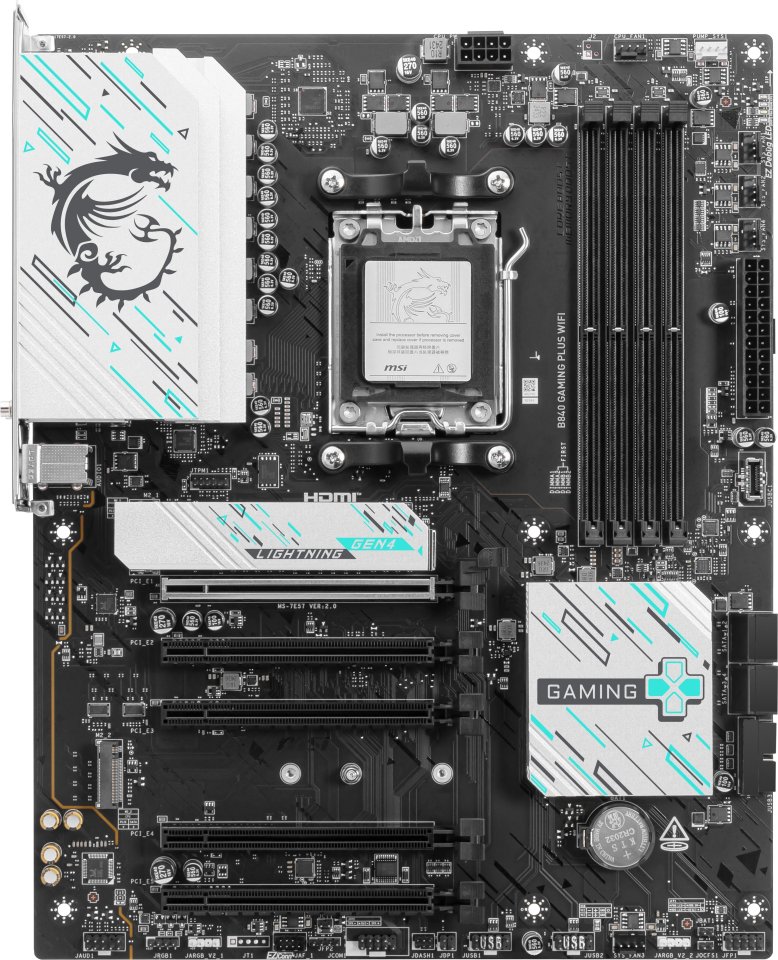

MSI B840 GAMING PLUS WIFI is an excellent choice for gamers looking for a reliable and high-performance motherboard for an AMD Ryzen-based gaming PC. The new Wi-Fi 7 technology guarantees ultra-fast and low-latency network connectivity, while the Lightning Gen4 solution enables lightning-fast data transfer. The B840 GAMING PLUS WIFI features several enhancements designed to improve your gaming experience. Enhanced power delivery and cooling solutions ensure that the processor and other components operate optimally even in demanding gaming scenarios. Convenient features like EZ M.2 Shield Frozr II and EZ PCIe Clip II make assembling and upgrading your system easier.

Features:

• Wi-Fi 7: The latest wireless solution with a new 320 MHz channel, achieving a maximum transfer speed of 5.8 Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
• Latest DDR5 memory: A major leap in DDR performance with the newest DDR memory and MS Memory Boost technology.
• Lightning Gen4 solution: Gen4 PCI-E and M.2 solution with up to 64 GB/s bandwidth for maximum transfer speeds.
• Extended cooling: MSI’s enhanced PWM cooling and improved circuit design ensure that even high-end processors run at full speed.
• EZ M.2 Shield Frozr II: New tool-free design makes installing or removing M.2 SSDs and Shield Frozr much easier.
• EZ PCIe Clip II: Allows easy removal of the graphics card by pressing the lock with one finger, even in tight case spaces.

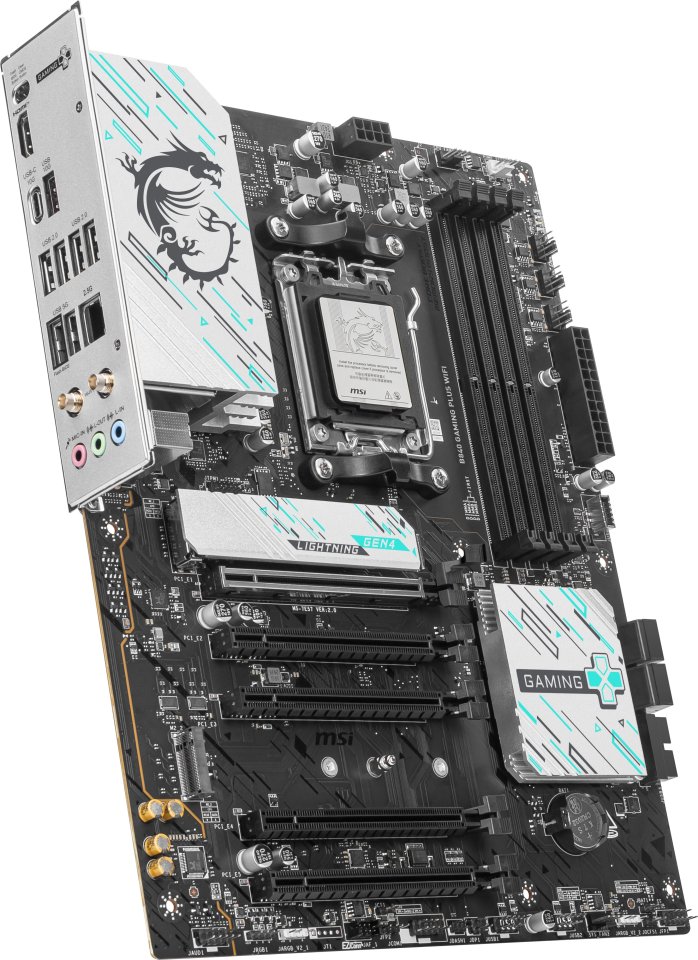

• Pre-installed I/O shield: Better EMI protection and easier installation.
• 2.5G network solution: Premium 2.5G LAN providing a better network experience.
• Two M.2 slots: Built-in M.2 connectors for maximum storage performance with Lightning Gen 4 solution.
• Audio Boost: Reward your ears with studio-grade sound delivering the most immersive audio experience.

Technical specifications:

• Processor support: AMD Ryzen™ 9000 / 8000 / 7000 series processors
• Processor socket: AMD Socket AM5
• Chipset: AMD B840
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 3x PCIe 3.0 x1
• Display outputs: Supports 8K@60Hz HDMI™ 2.1 FRL, 2x USB4 Type-C display outputs (requires processor graphics)
• Memory: 4 DIMM, Dual Channel DDR5 – 8400+ MT/s (OC)
• Storage: 2x M.2 Gen4 x4 64 Gbps, 4x SATA 6 Gbps

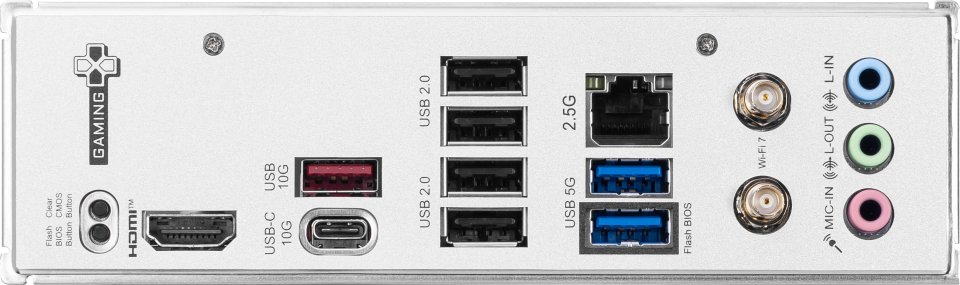

• USB ports: 2x USB 10 Gbps (1 Type-C + 1 Type-A), 5x USB 5 Gbps (4 Type-A + 1 Type-C), 8x USB 2.0 Type-A
• Network: Realtek 2.5G LAN, Wi-Fi 7, Bluetooth 5.4
• Audio: 8-channel (7.1) HD Audio with Audio Boost 5
