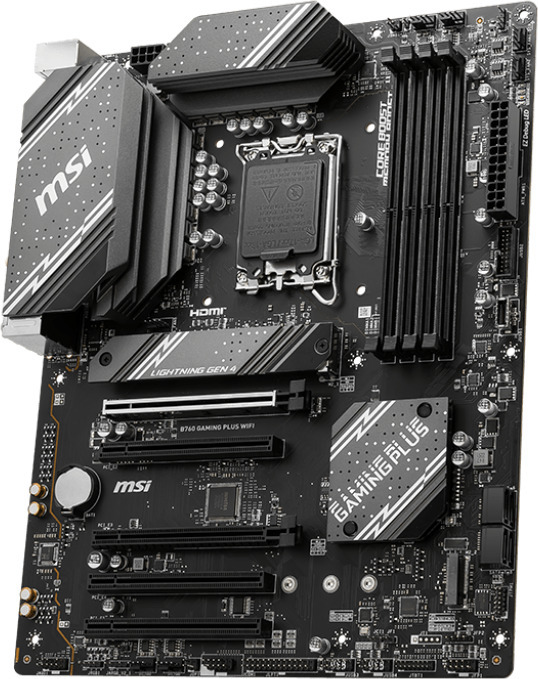

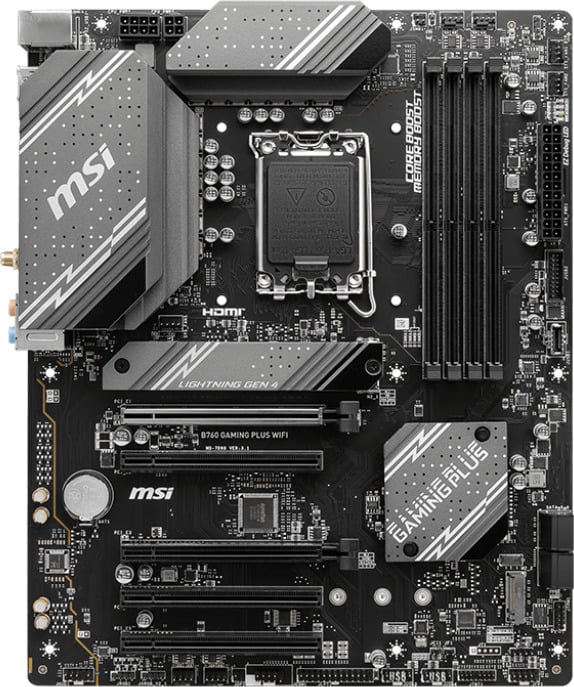

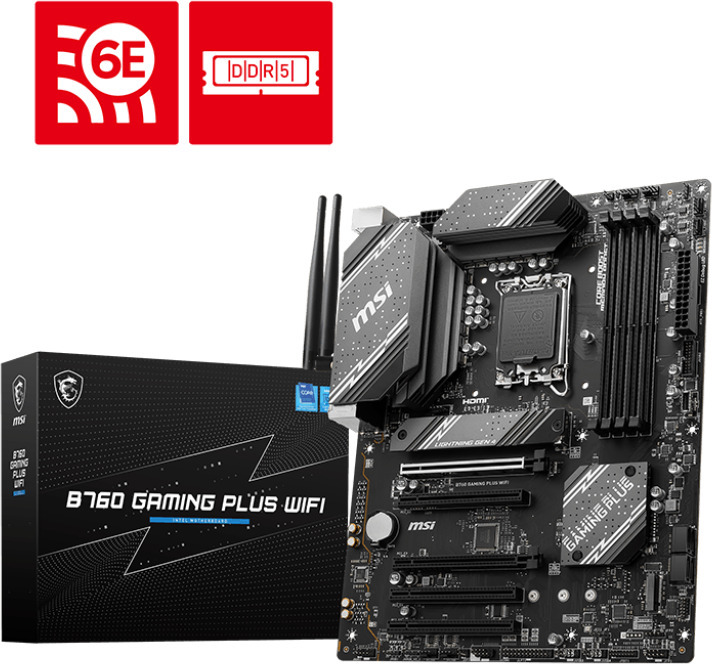

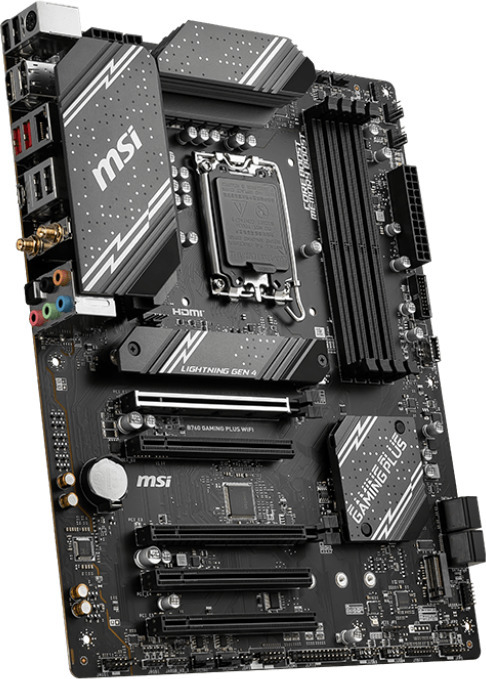

MSI B760 GAMING PLUS WIFI is an ATX motherboard for 12th and 13th generation Intel processors with the Intel B760 chipset, offering great features for gamers. It supports DDR5 memory (up to 6800+ MHz with overclocking) and includes, among others, five fast PCIe 5.0 slots and two Lightning Gen 4 x4 M.2 slots. The 6-layer PCB is made from server-grade material, ensuring better performance and long-lasting system stability without compromises.

The 12+1+1 phase power supply with two 8-pin CPU power connectors ensures the motherboard is ready for heavy gaming loads. 2.5G LAN and Intel Wi-Fi 6E provide stable and fast connections for professional and multimedia use. Audio Boost enhancement with studio-quality sound completes the gaming experience.

Features:

• Chipset: Intel B760
• Processor socket: LGA 1700
• Processor support: 12th and 13th generation Intel Core, Pentium Gold, and Celeron
• Motherboard size: ATX (243.84 x 304.8 mm)
• Memory slots (pcs): 4
• Memory type: DDR5, 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Maximum memory capacity (GB): 192
• Network connections: Realtek RTL8125BG 2.5G LAN, Intel Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Bluetooth 5.3
• Sound card: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

Expansion slots

• 5x PCI-E x16 slot
  ▫ PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  ▫ PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  ▫ PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  ▫ PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  ▫ PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage connections

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots
  M.2_1 Source (From CPU)
  ▫ Supports up to PCIe 4.0 x4, 22110/2280/2260/2242
  M.2_2 Source (From Chipset)
  ▫ Supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242

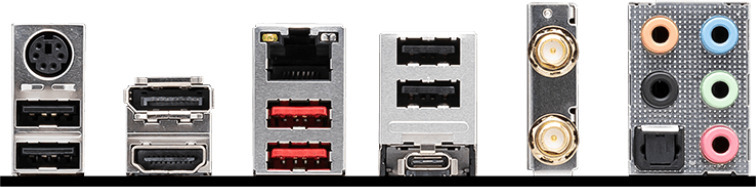

Rear panel connections

• 1 x Keyboard / Mouse
• 1 x DisplayPort
• 1 x 2.5G LAN
• 4 x USB 2.0
• 1 x Wi-Fi / Bluetooth
• 5 x Audio Connectors
• 1 x HDMI
• 2 x USB 3.2 Gen 2 10Gbps (Type-A)
• 1 x USB 3.2 Gen 2 10Gbps (Type-C)
• 1 x S/PDIF-OUT

Internal connections

• 1 x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 5 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Printer Port (JLPT)
• 1 x Com Port (JCOM)
• 1 x TBT connector (JTBT, supports RTD3)
• 2 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin header (Supports TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 3.2 Gen1 Type A ports
• 1 x USB 3.2 Gen1 Type C port
