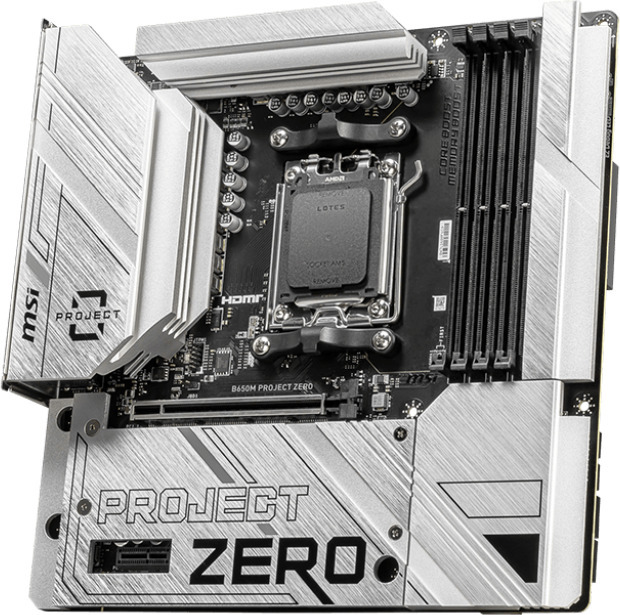

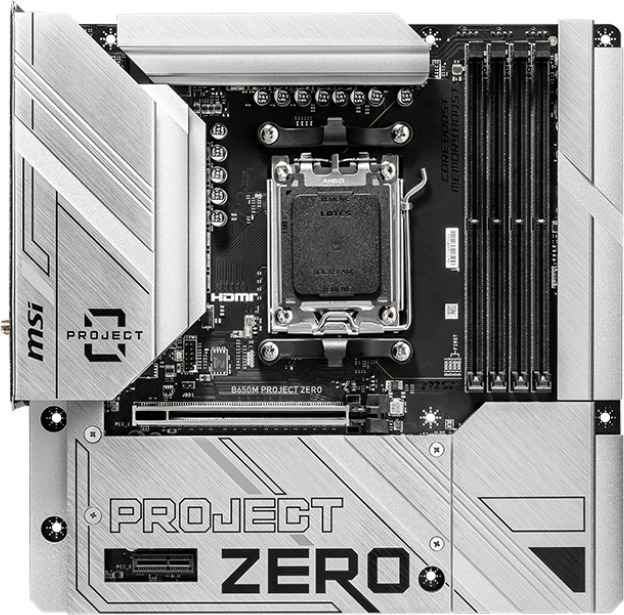

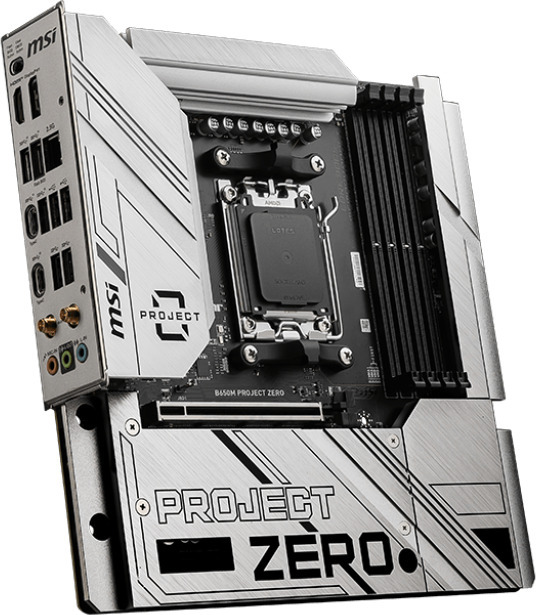

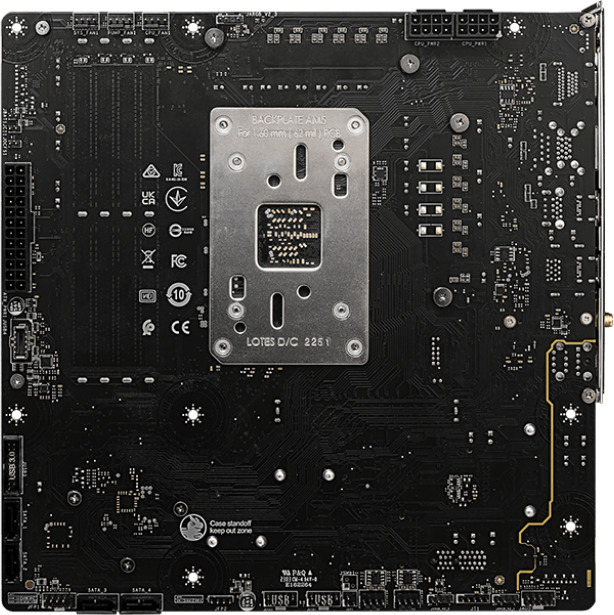

MSI B650M PROJECT ZERO model hides power connectors, fan connectors, and other connectors behind the motherboard. This provides a cleaner front view, highlighting and fully showcasing the aesthetic design of the motherboard, liquid cooler, and graphics card.

DDR5 memory support – A huge step in improving DDR performance with the latest DDR5 memory and MSI Memory Boost technology.

Lightning Gen 4 – The motherboard is equipped with a PCIe 4.0 solution, whose 64 GB/s bandwidth guarantees fast transfer speeds.

2.5G LAN and Wi-Fi 6E – Enhanced network solution for professionals and multimedia use. Provides a secure, stable, and fast network connection.

USB 20G – Built-in USB 3.2 2×2 port offers 20 Gbps transfer speeds.

Premium cooling – Coated MOSFET heatsink with heat pipe, high-quality 7 W/mK MOSFET thermal pads, and internal M.2 Shield Frozr.

NOTE: Please ensure your case compatibility with the PROJECT ZERO motherboard.

Features:

• Chipset: AMD B650M
• Processor socket: AM5
• Processor support: AMD Ryzen 9000 / 8000 / 7000 series processors
• Motherboard size: mATX (243.84 x 243.84 mm)
• Memory slots (pcs): 4
• Memory type: DDR5 (7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz)
• Maximum memory capacity (GB): 256 GB
• Network connections: Realtek RTL8125BG LAN, Intel Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Bluetooth 5.3
• Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion slots:

• 1x PCI-E x16 slot
  – Supports x16 (For Ryzen 9000 / 7000 Series processors)
  – Supports x8 (For Ryzen7 8700G and Ryzen5 8600G processors)
  – Supports x4 (For Ryzen5 8500G processor)
• 1 x PCI-E x1 slot
  – PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  – PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage connections:

• 4 x SATA 6G
• 2 x M.2
  – M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  – M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices

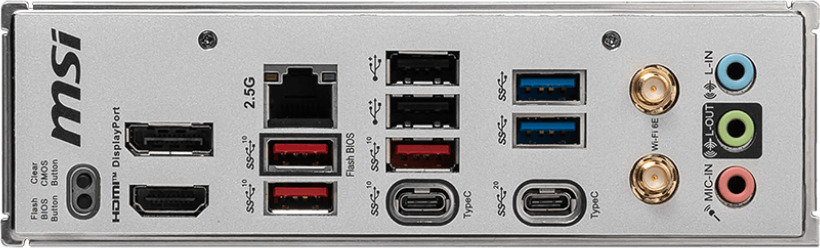

Rear panel connections:

• DisplayPort
• 2.5G LAN
• 2 x USB 2.0
• 2 x USB 5 Gbps (Type-A)
• Wi-Fi / Bluetooth
• 3 x Audio connectors
• Flash BIOS Button
• Clear CMOS Button
• HDMI
• 10 x USB 10 Gbps (Type-A)
• USB 10 Gbps (Type-C)
• USB 20 Gbps (Type-C)

Internal connectors:

• 1x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 3 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x TPM pin header (Supports TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 5 Gbps Type A ports
• 1 x USB 10 Gbps Type C port
