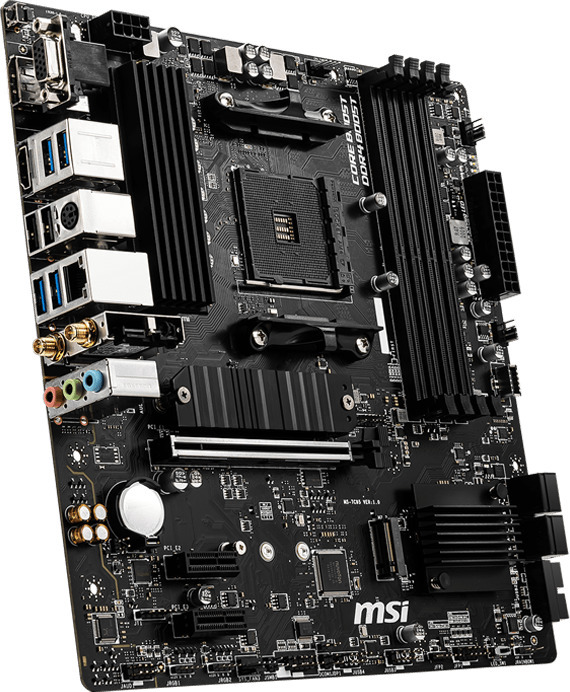

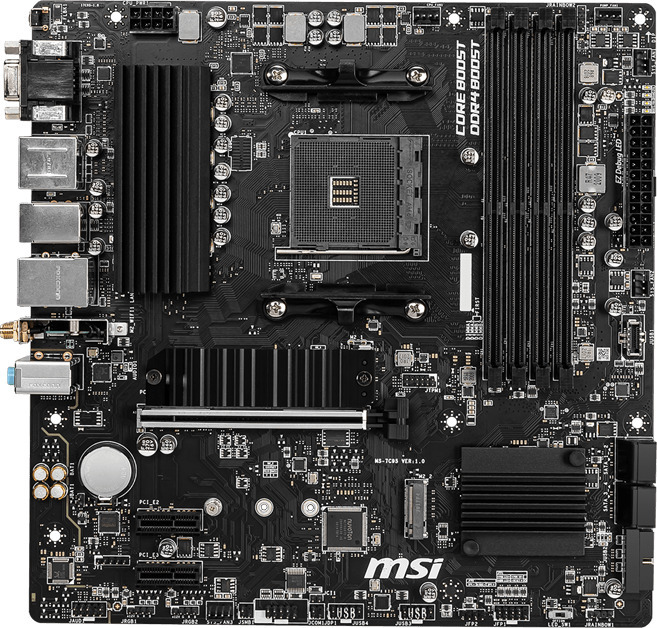

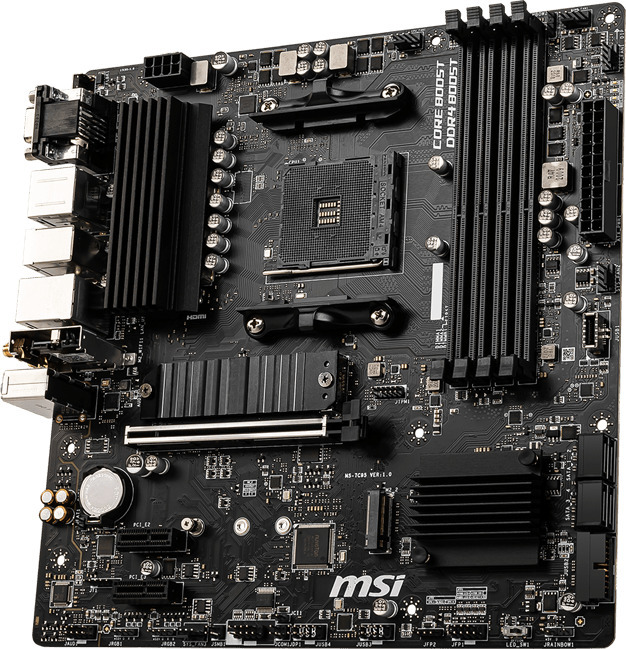

The MSI B550M PRO-VDH WIFI is an AM4 socket motherboard equipped with the AMD B550 chipset for AMD Ryzen processors. MSI PRO-VDH series motherboards are a cost-effective yet high-quality option, for example, for business use.

Supports AMD Ryzen 5000 and 3000 series processors (NOTE: does not support 2000-, 3200G-, or 3400G processors!).

Lightning Gen4
New PCI-E Gen4 technology, with a maximum transfer rate of up to 64 GB/s.

Core Boost
Premium design and optimized power delivery support more cores and provide better performance.

Audio Boost 5
Isolated audio with a high-quality audio processor and amplifier ensures an immersive gaming experience.

Reinforced copper PCB
Improved PCB design promotes heat dissipation and performance reliability.

MSI B550M PRO-VDH WIFI features:

• Chipset: AMD B550
• Processor socket: AM4
• Processor support: Ryzen 3000-, 4000-, and 5000-series processors (Does not support 3000-series G models with integrated graphics!)
• Motherboard size: microATX
• Memory slots (pcs): 4
• Memory type: DDR4, maximum memory capacity (GB): 128
• Network interfaces: Realtek RTL8111HN 1Gbps LAN, WiFi 5 + Bluetooth 4.2
• Sound card: Realtek ALC892/ALC897 7.1-Channel High Definition Audio

Expansion slots:

• 1 x PCIe 4.0 x16
• 2 x PCIe 4.0 x1

Internal connectors:

• 4 x SATA3 6 Gb/s ports
• 2 x M.2 Gen4 x4 PCIe (M-Key)
• 1 x 24-pin ATX
• 1 x 8-pin ATX 12V
• 2 x USB 2.0 (optional support for four additional USB 2.0 ports)
• 1 x USB 3.2 Gen 1 5 Gb/s (optional support for two USB 3.2 Gen 1 5 Gb/s ports)
• 1 x USB 3.2 Gen 2 5 Gb/s Type-C
• 1 x 4-pin CPU fan, 1 x 4-pin water pump, 3 x 4-pin system fans
• 1 x Front panel audio
• 2 x System panel
• 1 x Chassis Intrusion
• 1 x TPM module connector
• 1 x Clear CMOS jumper

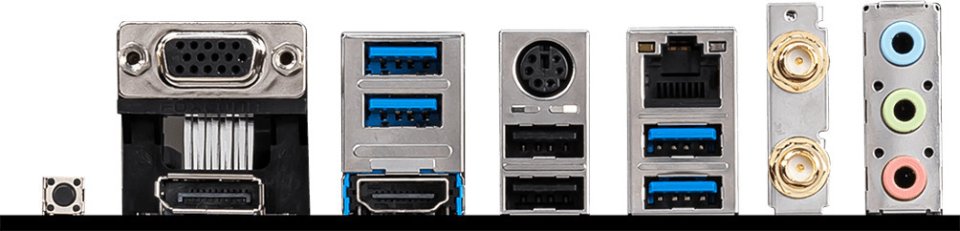

Rear panel connectors

• 4 x USB 3.2 Gen1 5 Gb/s (Type-A)
• P/S2 shared keyboard/mouse port
• WiFi/BT antenna
• 1G LAN
• HD Audio connectors
• Clear CMOS
• 2 x USB 2.0 Ports
• HDMI, VGA, and DisplayPort ports (only active if the Ryzen processor has integrated graphics)
