Marmitek Split 612 UHD 2.0 HDMI splitter

Marmitek Connect 612 UHD 2.0 HDMI Splitter

This HDMI splitter allows you to transmit an HDMI signal from your computer or set-top box to two display devices. Enjoy the same content on different screens simultaneously! The Split 612 UHD 2.0 is compatible with Ultra HD 4K60 resolution (3840 x 2160/60 Hz) and supports HDR, Deep Color, and 4:4:4 chroma color reproduction. You can easily select the maximum video resolution through the EDID switch, enabling the use of two different resolution display devices at the same time without any hassle. The high-quality metal casing effectively prevents interference.

Features:

• Share one HDMI signal to two TVs or projectors
• Experience the latest Ultra HD content and watch Netflix or Blu-ray movies in 4K format on two screens while maintaining exceptional contrast and vibrant colors
• Ideal for presentations or sharing signals to another room
• Eliminates the need to swap HDMI cables when you want to watch movies or play games on another display
• Supports Ultra HD 4K60 resolution (3840 x 2160/60 Hz), dynamic image reproduction (HDR), as well as Deep Color and 4:4:4 chroma color reproduction
• Compatible with Dolby Atmos, DTS:X, and other common audio formats

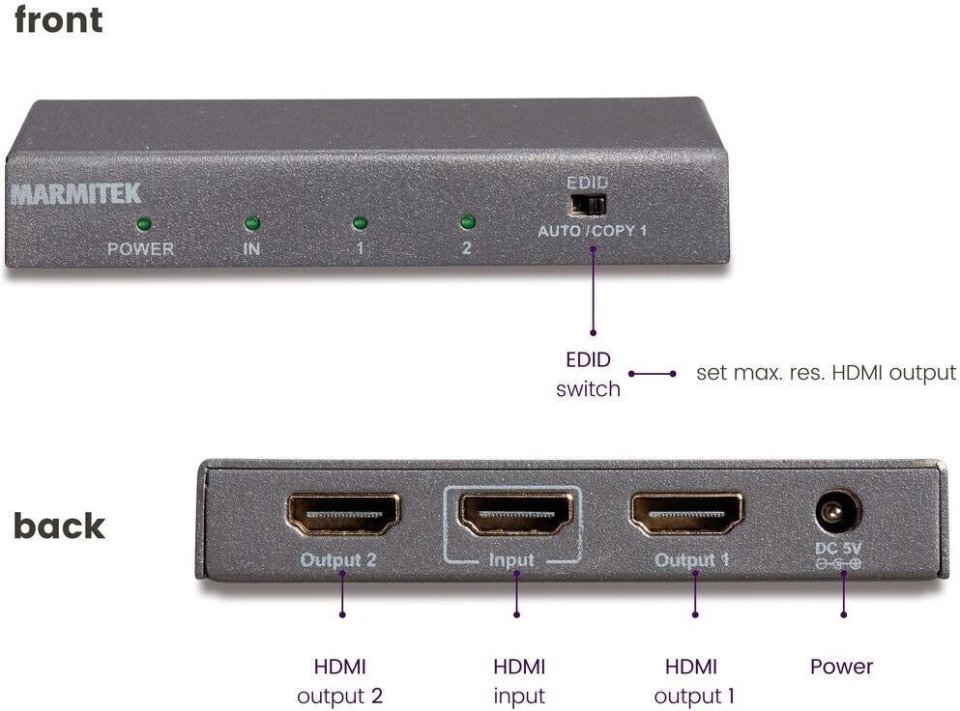

• Conveniently set the maximum video resolution for the HDMI output using the EDID switch
• No interference thanks to the high-quality metal housing
• Built-in signal booster and corrector to prevent potential signal loss
• Supports HDCP 2.2 protected 4K Ultra HD content

Technical Specifications

• AV Input: 1 x HDMI
• AV Output: 2 x HDMI
• Video Resolution: max. 2160@60Hz
• PC Resolution: max. 2560x2048
• 3D Formats: all 3D formats
• Video Bandwidth: max. 18 Gbps
• HDMI Standard: HDMI 2.0b, CEC, EDID, DVI
• HDCP Standard: HDCP 1.4/2.2
• Color Formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2
• Color Depth: max. 36-bit
• HDMI Audio: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1, and PCM stereo

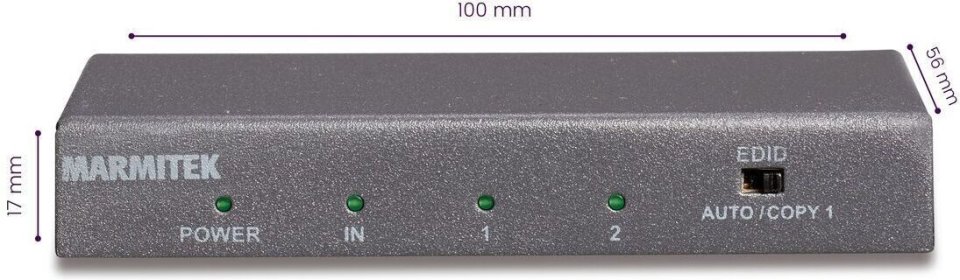

• Dimensions (H x W x D): 17 x 100 x 56 mm
• Weight: 158 grams
• Operating Temperature: +0 ... +40 °C
• Operating Humidity: 20% - 90%
• Power Supply: 100-240 VAC 50/60 Hz, 5 VDC adapter

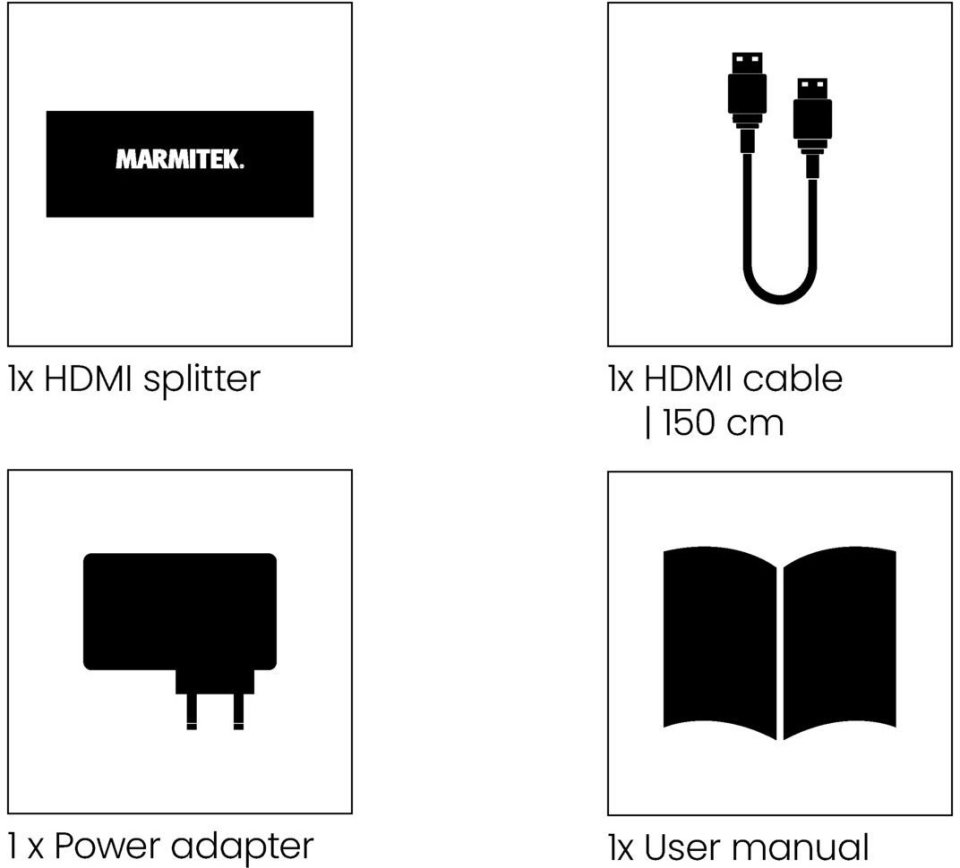

The package includes, in addition to the splitter:

• HDMI cable, length 150 cm
• Power adapter
• User manual.
