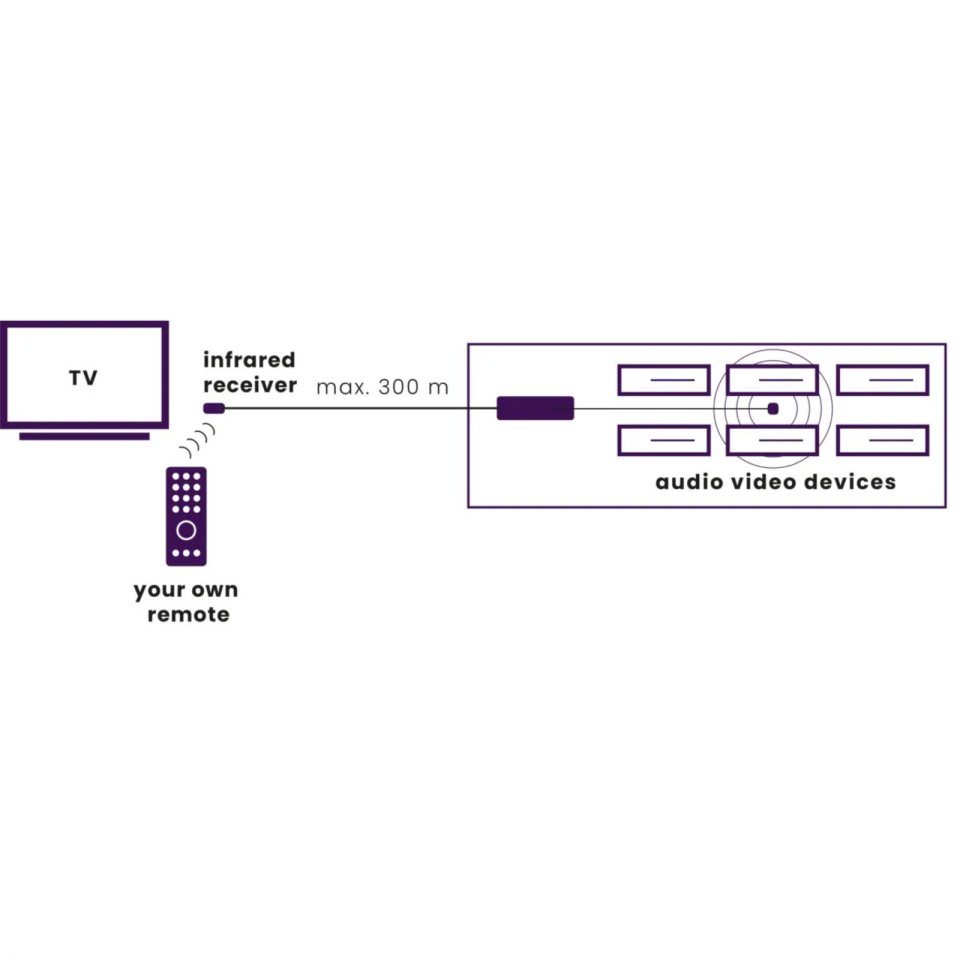

The Marmitek IR Control 10 XTRA is a professional-grade infrared remote control extender system designed for versatile and efficient IR signal transmission. It includes a central unit, up to six infrared receivers, two IR emitters, and an IR transmitter eye. Except for the small receiver eye, the entire system can be installed out of sight. This advanced model allows IR signals to be transmitted up to 300 meters via UTP cable.

The system can also send a status signal back to the receiver eye with an integrated LED indicator when your AV equipment powers on. This lets you know your devices are ready without any guesswork.

Flexible Installation

You can connect an unlimited number of devices and hide them completely, except for the small IR receiver. The IR LED emitters can be placed anywhere inside a cabinet, controlling all devices within their line of sight. The IR eyes can be directly attached to the IR receivers of AV devices for precise signal delivery.

Compatibility and Use

The system supports nearly all brands and models, including newer IR code formats like RC-MM. It works well near flat-screen TVs and even in indirect sunlight, making it suitable for various home entertainment setups.

Easy Setup

Thanks to innovative infrared technology, installation is straightforward and quick. The long cable lengths provide flexibility in positioning components where they are most effective, keeping your setup neat and organized.

Clear Status Indicators

The IR receiver includes LED indicators: a purple light to confirm command reception and a green light to show when your AV equipment is powered and ready. This feedback helps you monitor your system’s status at a glance.

Package Contents

The set includes the central unit, one IR receiver with a 3-meter cable, two IR emitters with 3-meter cables, one IR transmitter with two adhesive eyes and a 3-meter cable, an AVR cable (3 meters), a power adapter, and a user manual.

Features

• Supports unlimited hidden devices
• Complete system can be placed out of sight except for the small IR receiver
• Quick and simple installation with advanced infrared technology
• IR LED emitters can be positioned inside cabinets to control all devices in view
• IR eyes can be attached directly to AV device IR receivers
• Compatible with most brands and models, including new IR code formats like RC-MM
• Suitable for use near flat-screen TVs and in indirect sunlight

Technical Specifications

• IR Receiver: Frequency range 30-60 kHz, reception range ±10 m, reception angle 90° (+45°/-45°), cable length 300 cm (extendable up to 300 m), command reception indicator (purple LED), AV device status indicator (green LED), dimensions 11 x 40 x 13 mm

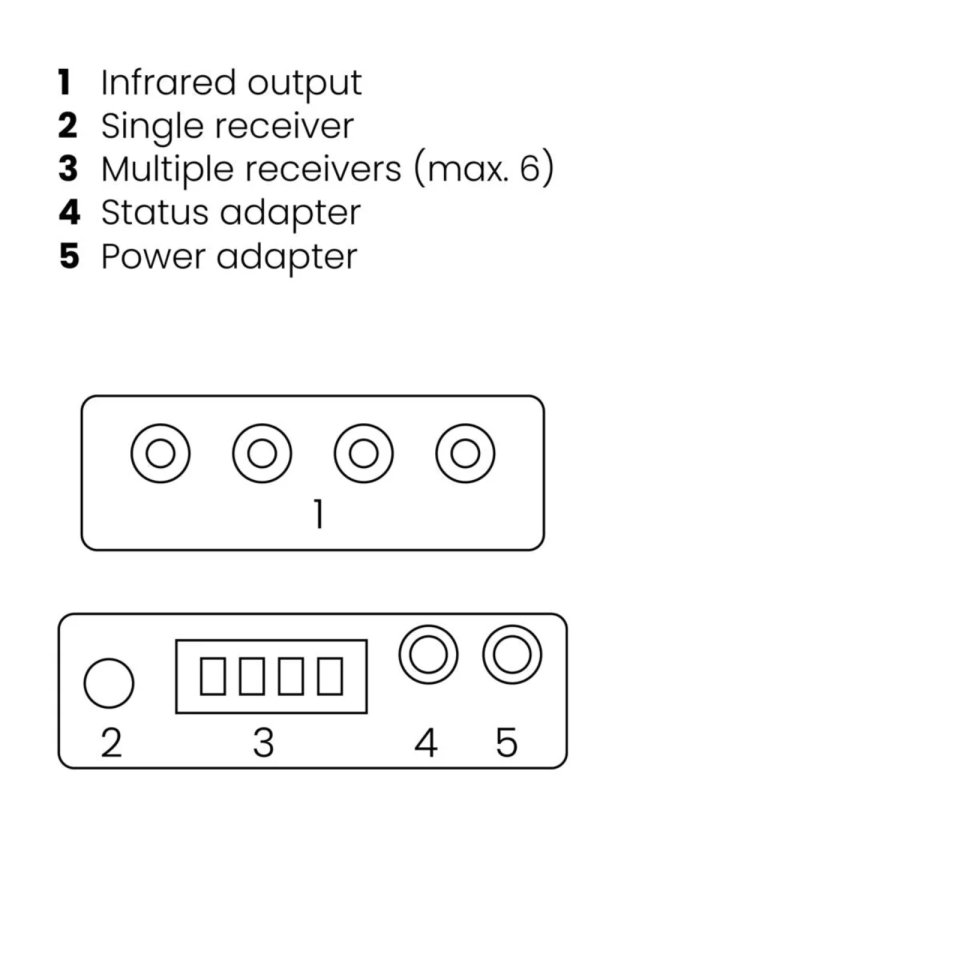

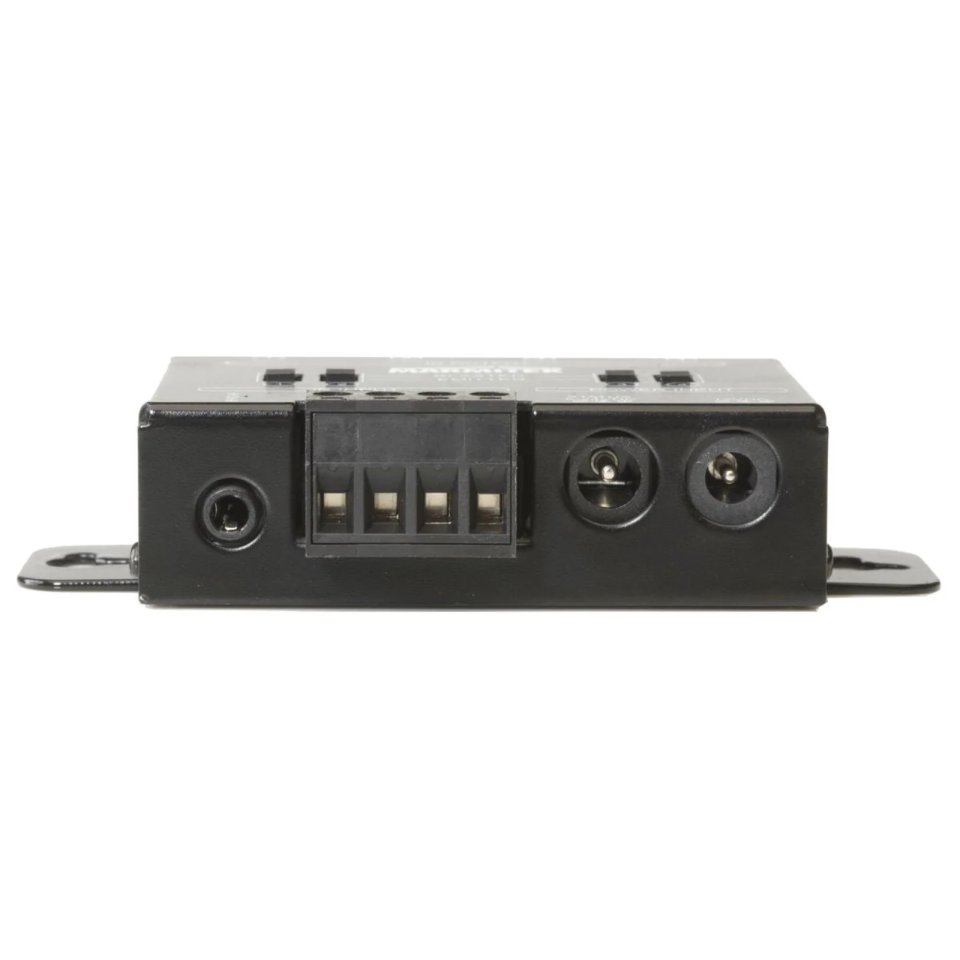

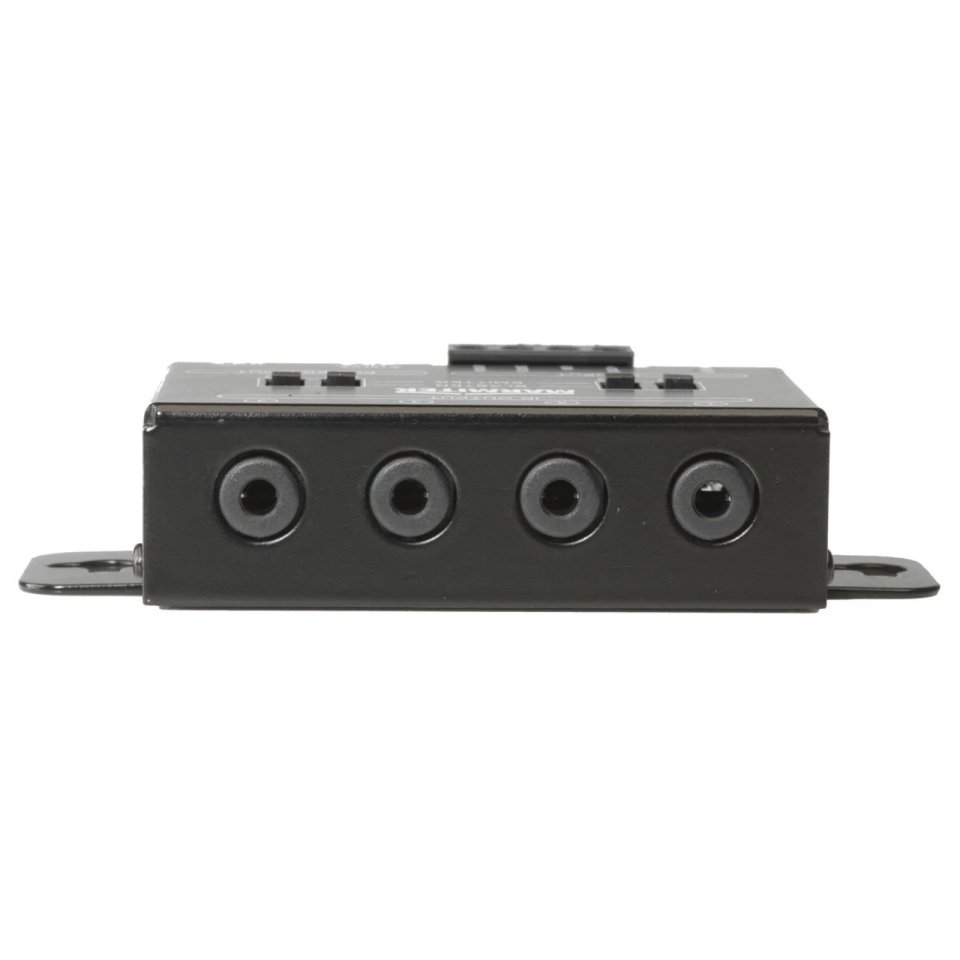

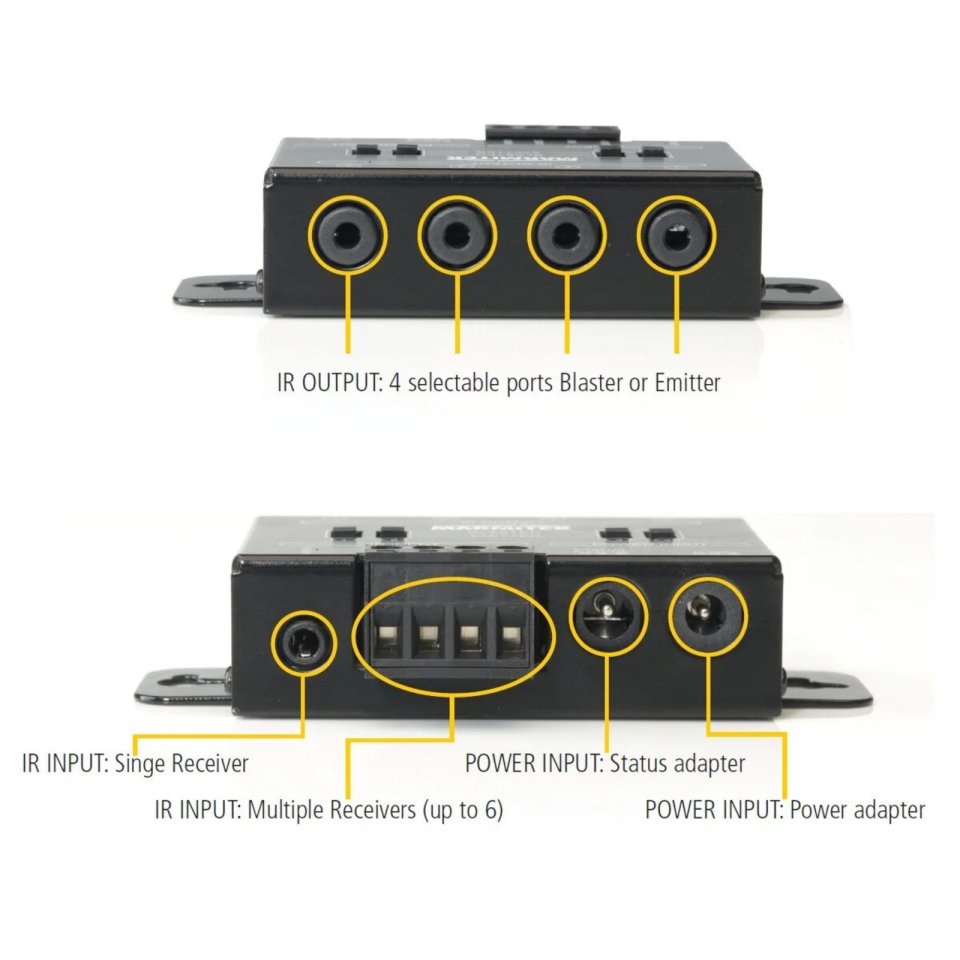

• Central Unit: IR input 1x 3.5 mm connector (stereo), 1x screw terminal (max. 6 receivers), IR output 4x 3.5 mm connectors (mono), dimensions 20 x 95 x 46 mm
• Power: 100-240 VAC 50/60 Hz, 12 VDC adapter included, status power from AV devices: 5-24 VDC / 5-12 VAC
• IR Emitter: LED infrared transmitter, transmission distance 2 m, cable length 300 cm
• IR Eye: Adhesive LED eye, cable length 300 cm

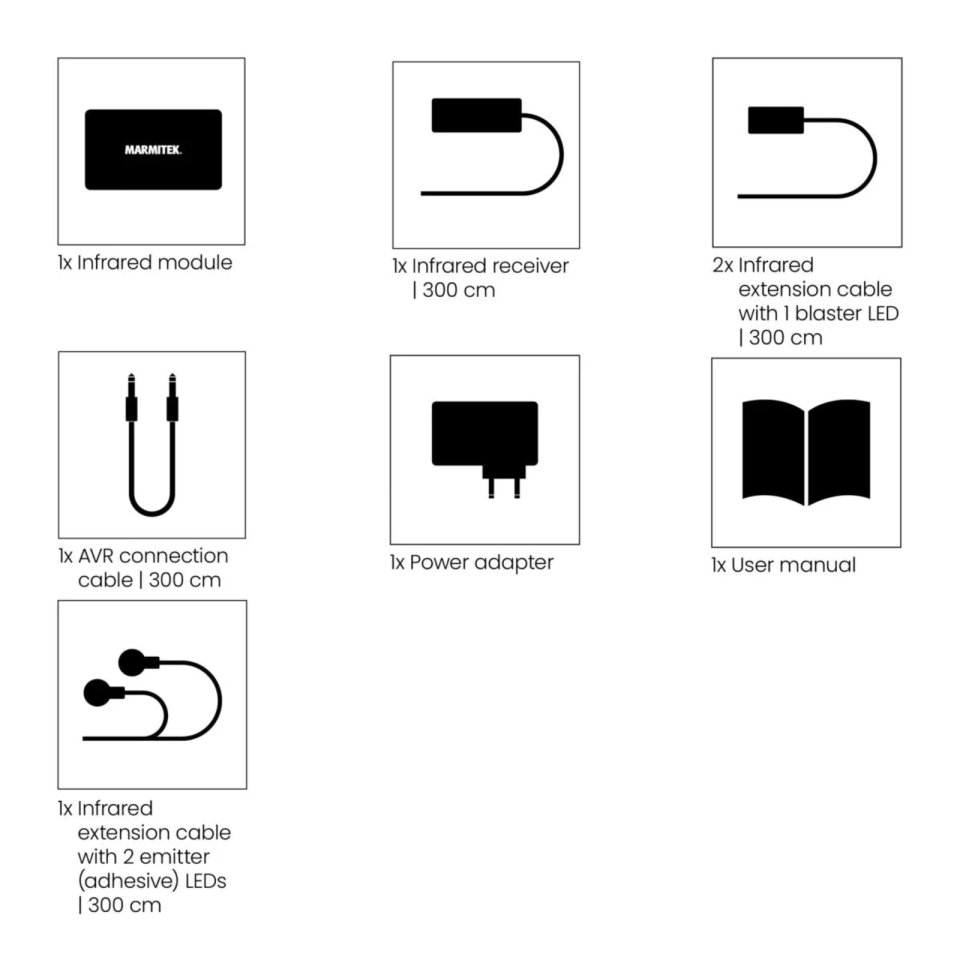

Package Contents

• Central unit
• 1x IR receiver with 300 cm cable
• 2x IR emitters with 300 cm cables
• 1x IR transmitter with 2 adhesive eyes and 300 cm cable
• AVR cable, 300 cm
• Power adapter
• User manual
