Marmitek Connect AE14 ARC HDMI to HDMI + Optical Audio splitter

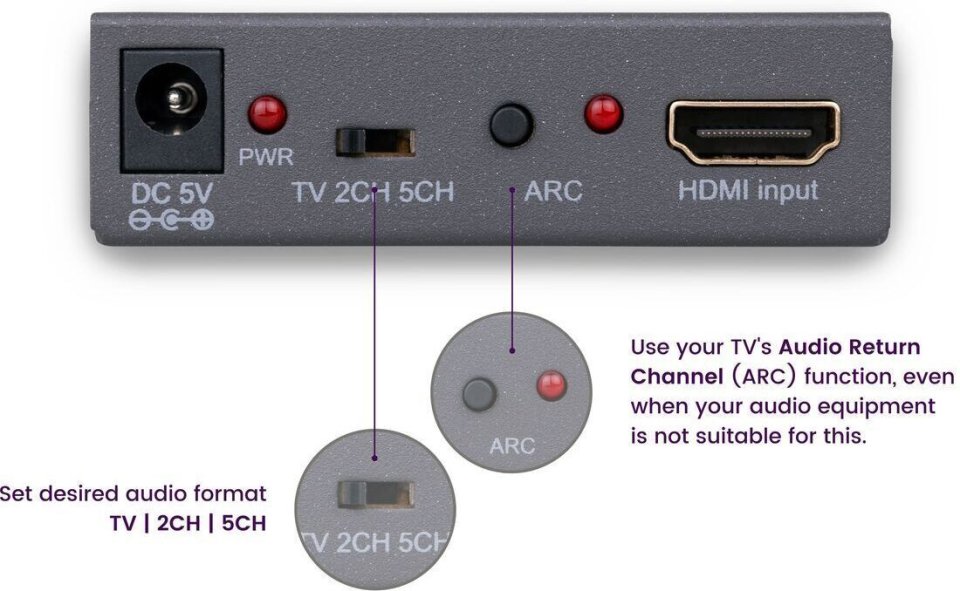

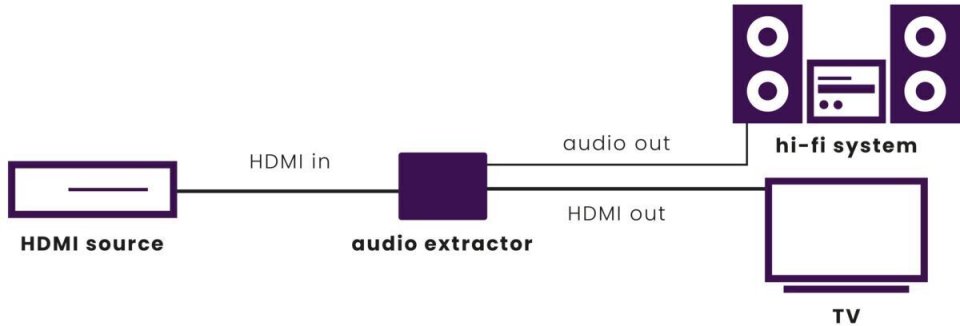

With this HDMI audio extractor, you can easily connect the sound from your TV's built-in digital tuner, Smart TV apps (like Netflix and YouTube), and external HDMI sources to your home theater system, amplifier, or soundbar using either analog or digital (optical, coaxial) connections. It's perfect for those times when you want to get audio from specific HDMI sources without needing to turn on the TV (think Apple TV 4, Chromecast, Wii U, media players). Plus, you can take advantage of the TV's Audio Return Channel (ARC) feature, even if your audio system isn’t fully compatible with it.

Note: Does not support eARC return channel. When watching Yle channels, you may need to change the TV's audio output to PCM or Stereo settings.

Note: HDMI CEC support is only for passthrough. Not suitable for active speakers without their own volume control.

Features:

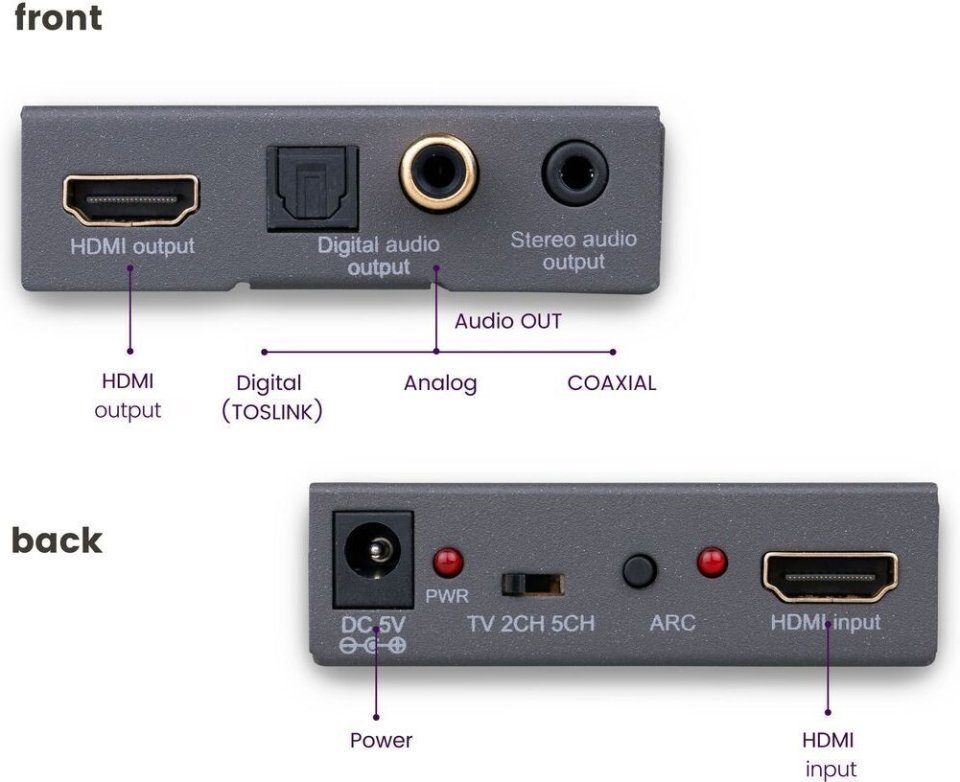

• AV input: 1x HDMI
• AV output: 1x HDMI
• Digital audio output: 1x Toslink (optical) and 1x coaxial
• Analog audio output: 3.5 mm stereo plug connection
• Recommended maximum HDMI cable length for connection: 15 m
• Video resolution: 4K (max. 3840x2160 @ 30 Hz)
• 3D formats: all 3D formats
• Video bandwidth: max. 10.2 Gbps
• HDMI standard: HDMI 1.4, CEC, ARC, EDID, DVI
• HDCP standard: HDCP 1.4/2.2
• Color formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2
• Color depth: max. 36-bit
• Digital audio output formats: DTS 5.1, Dolby Digital/AC3, and PCM 2.0 CH
• Analog audio output: stereo
• Dimensions (HxWxD): 20 x 70 x 68 mm
• Weight: 130 grams
• Operating temperature: +0 ... +70 °C
• Operating humidity: 10% - 85%

Included in the package:

• Power adapter
• User manual
