| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1028012 |
| Product depth (mm) | 80 |
| Product height (mm) | 23 |
| Product weight (g) | 45 |
| Product width (mm) | 51 |
| Manufacturer address | Hondsruglaan 93, 5628 DB, Eindhoven, The Netherlands |
| Manufacturer's email address | |
| Manufacturer name | Vogel's Products B.V. |

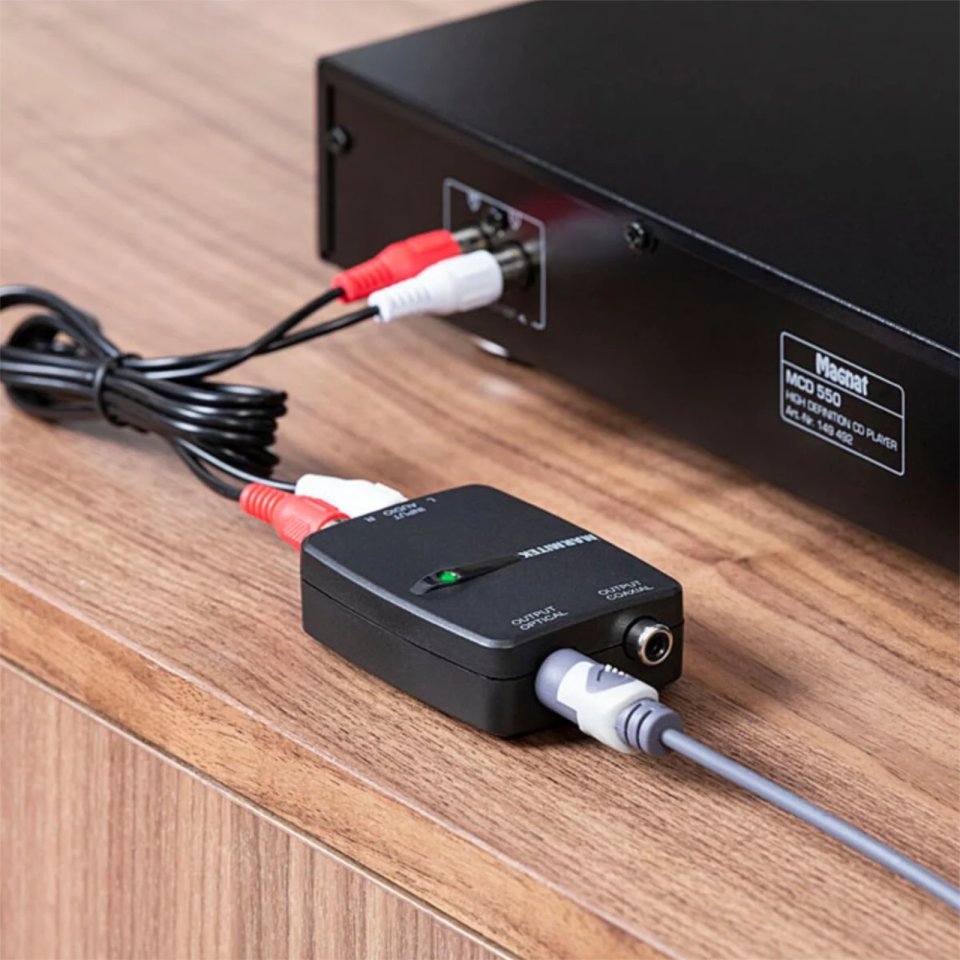

The Marmitek Connect AD12 E is a handy audio converter that transforms an analog stereo signal into a digital one. It is specifically designed for those whose amplifier, soundbar, or active speakers have insufficient or no analog audio inputs. This allows you, for example, to connect a turntable with a phono preamp to an audio system equipped with a digital input. This device makes compatibility easy and expands the usability of old analog equipment in modern systems.

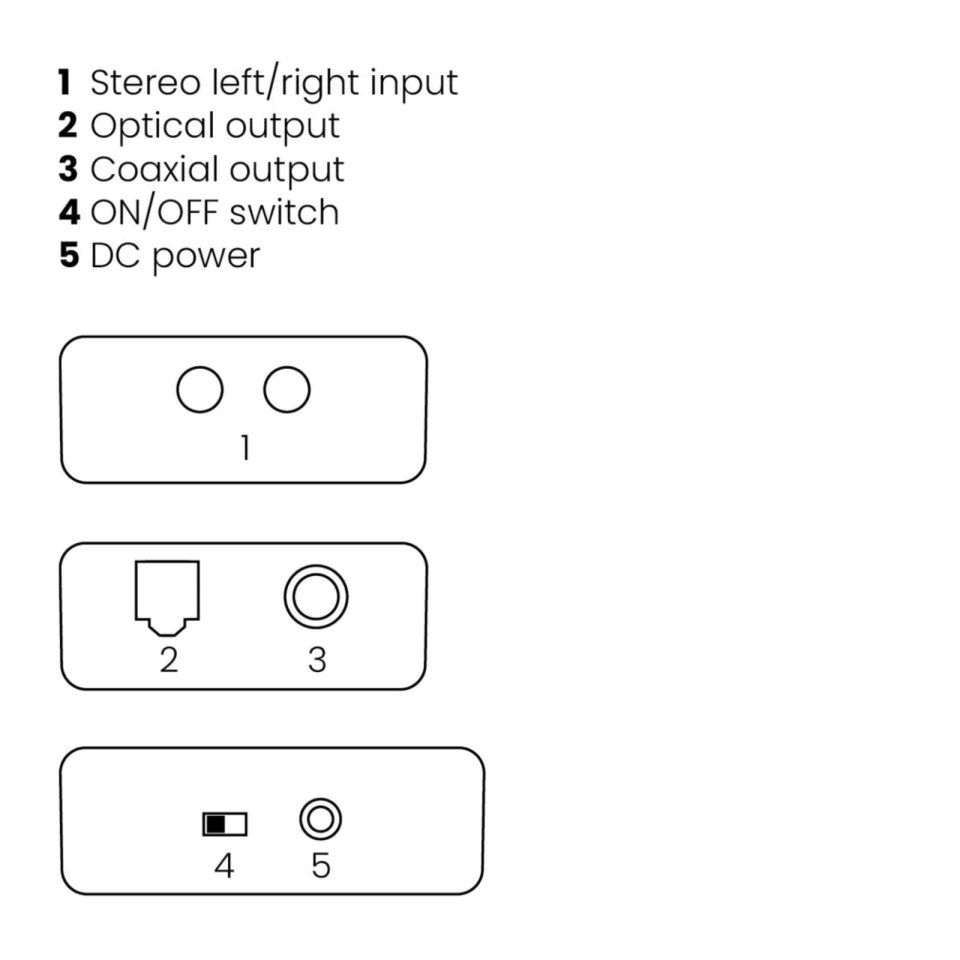

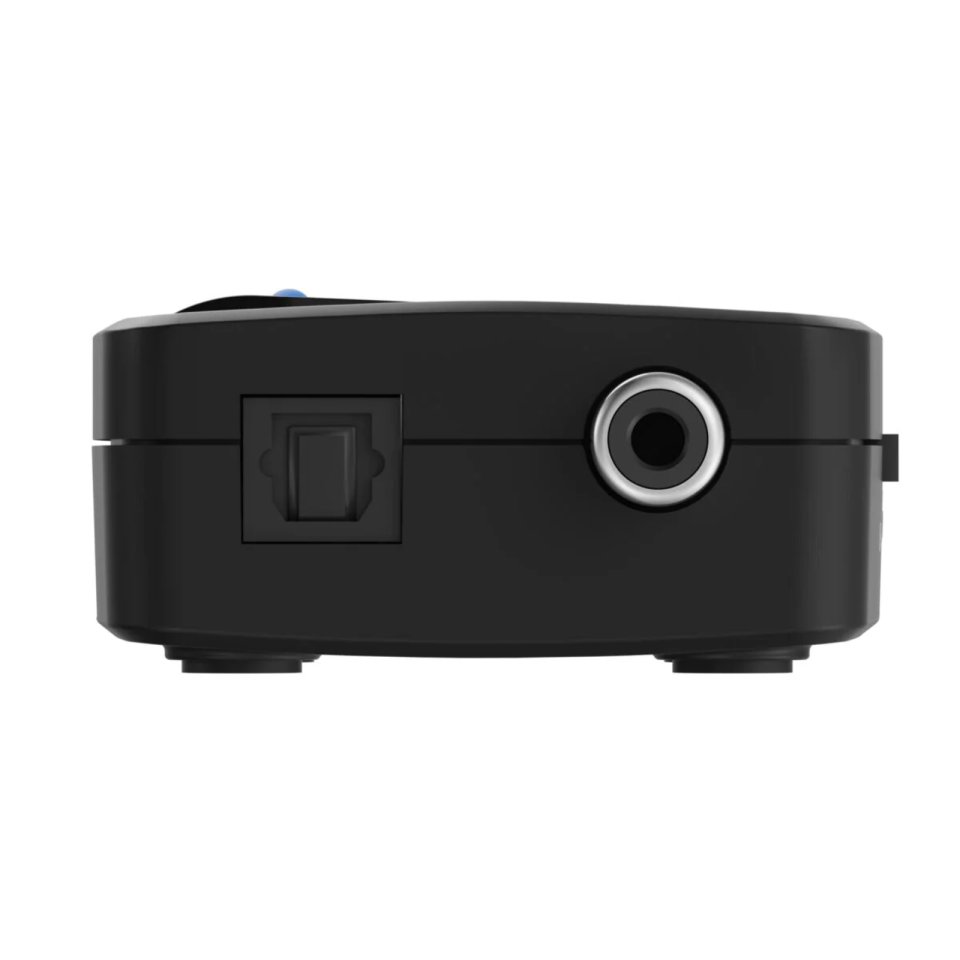

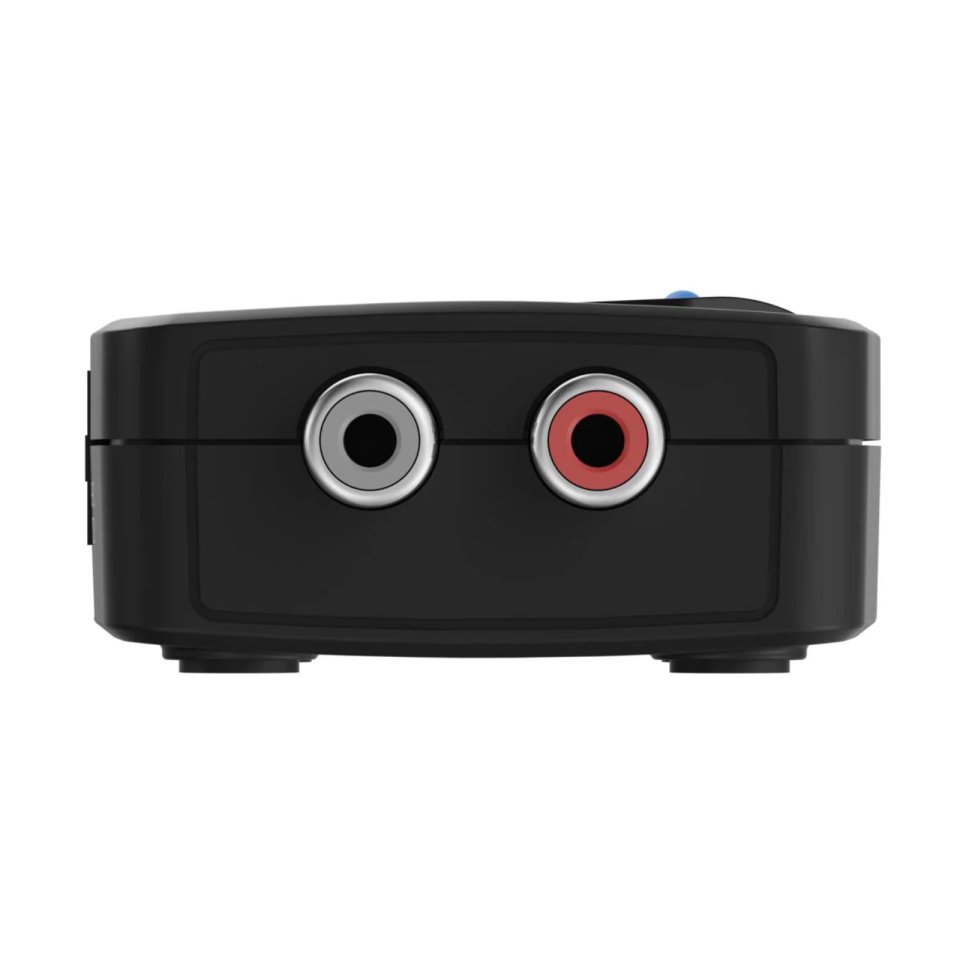

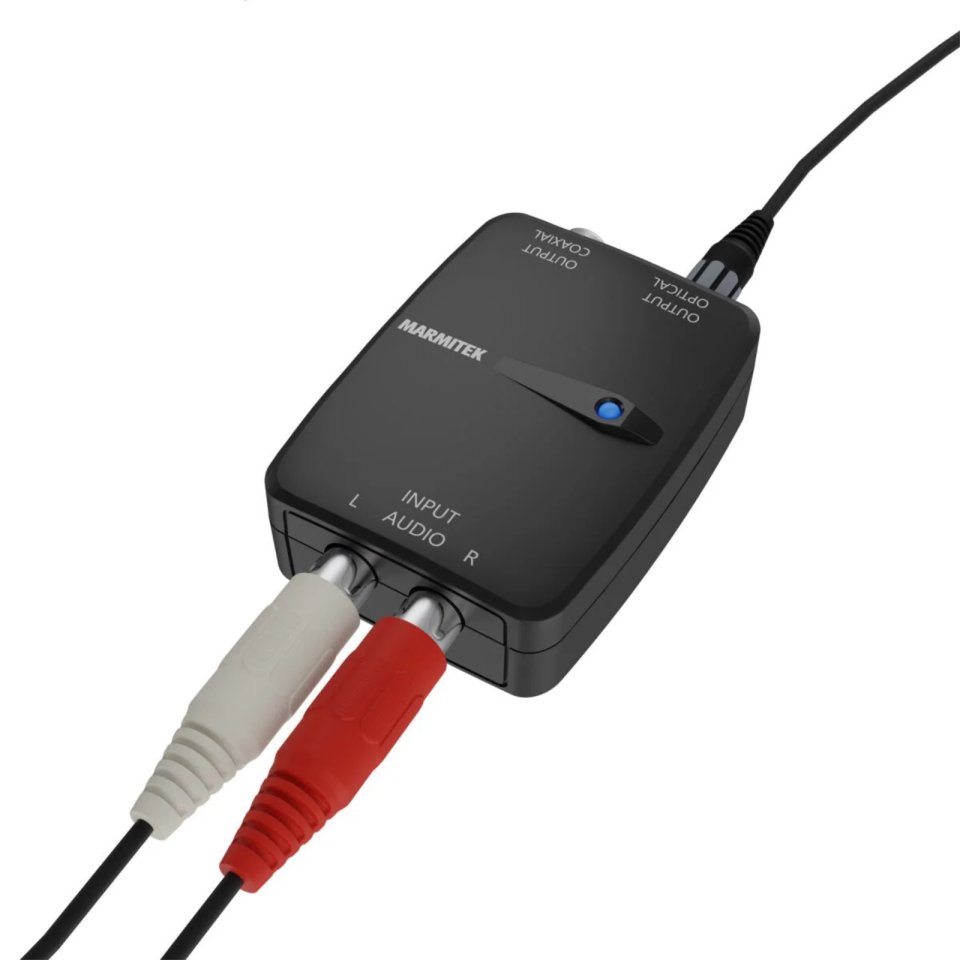

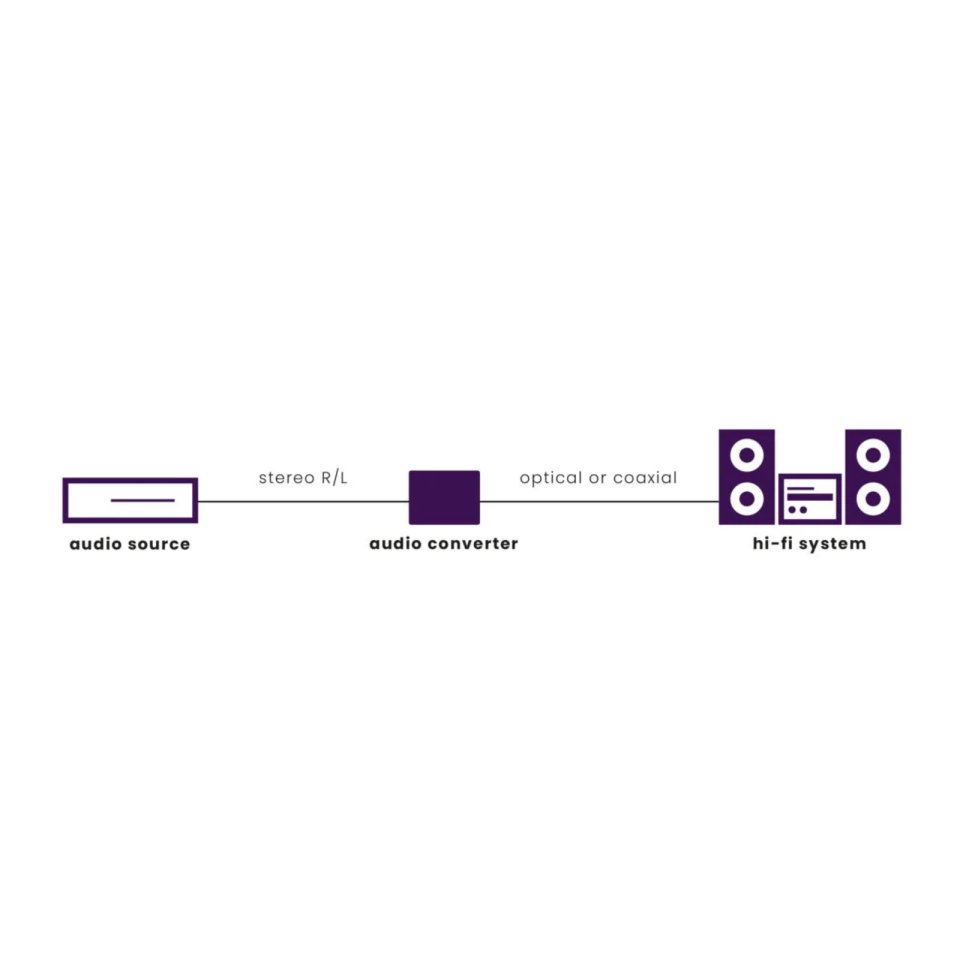

The AD12 E converts an analog stereo signal (2 x RCA) into a digital audio signal that can be transmitted via either an optical Toslink connection or a coaxial RCA connection. This enables, for example, connecting a turntable to a digital amplifier or speaker even if they lack analog inputs. The device supports simultaneous audio output from both outputs, allowing you to use both optical and coaxial digital connections at the same time.
The Marmitek Connect AD12 E uses a high-quality ADC chip that ensures clean and accurate audio conversion. The digital signal is in LPCM format, with a 48 kHz sampling rate and 24-bit depth, meeting common audio industry standards. The sound quality is enhanced by low noise (signal-to-noise ratio ≥ 80 dB) and excellent channel separation (90 dB). The frequency response covers the entire audible range of 20 Hz – 20 kHz ± 3 dB, delivering natural sound reproduction.

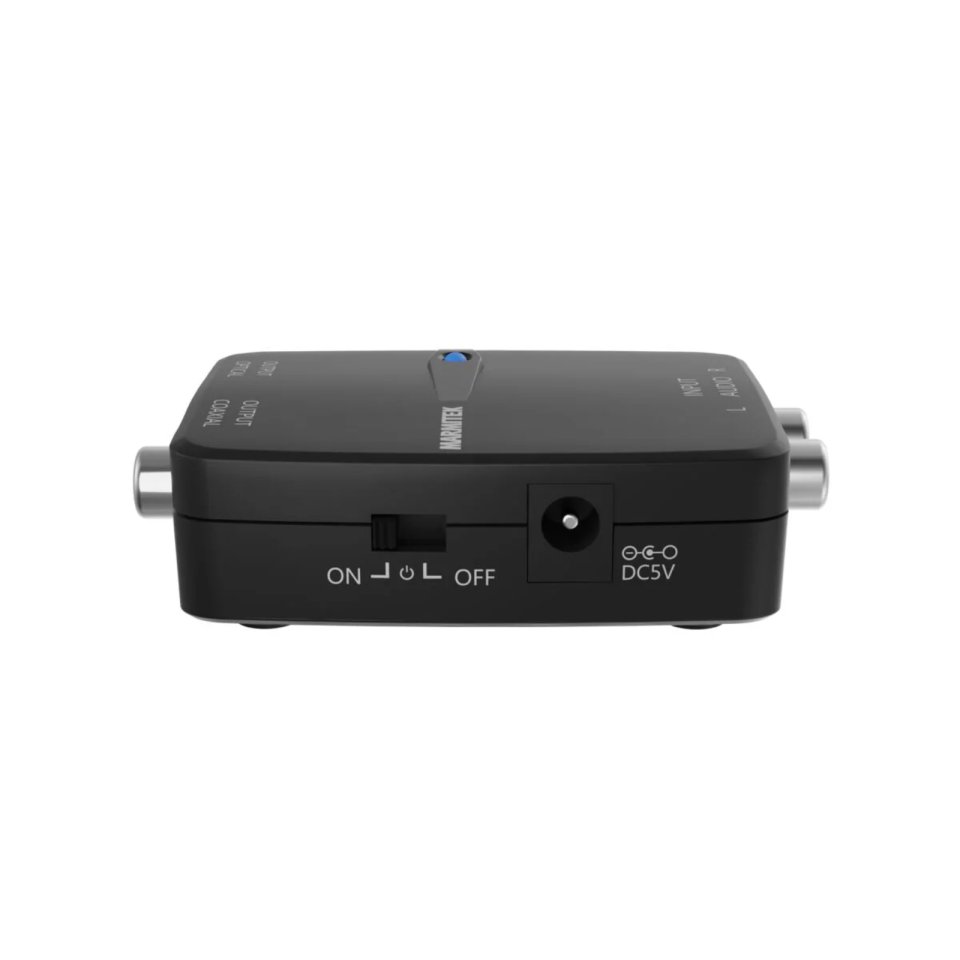

The device is compact, measuring 23 x 51 x 80 mm and weighing only 45 grams, so it fits easily into any audio system or home theater setup. It is powered by a 100-240 VAC 50/60 Hz supply and comes with a 5 VDC adapter, making power supply easy and safe.
The AD12 E is designed especially for situations where there are few or no analog audio inputs. It is ideal for turntables with built-in or separate phono preamps and enables their connection to modern devices equipped with digital inputs. This way, old devices can work seamlessly with new technology.
