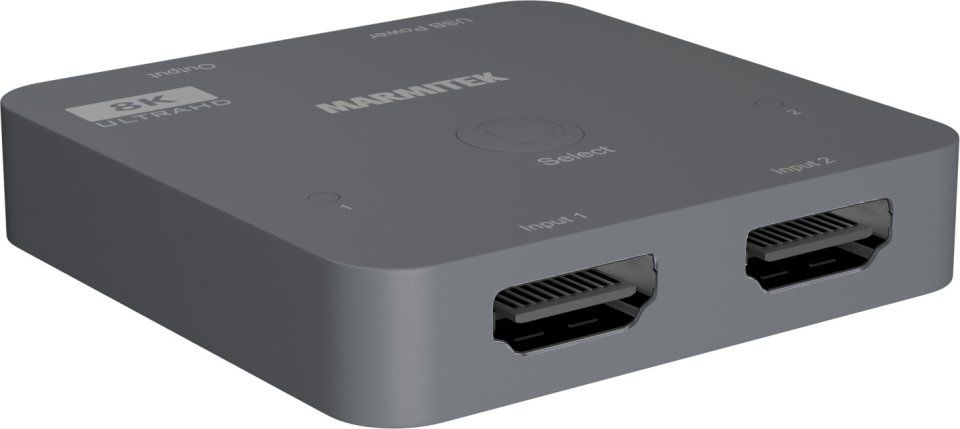

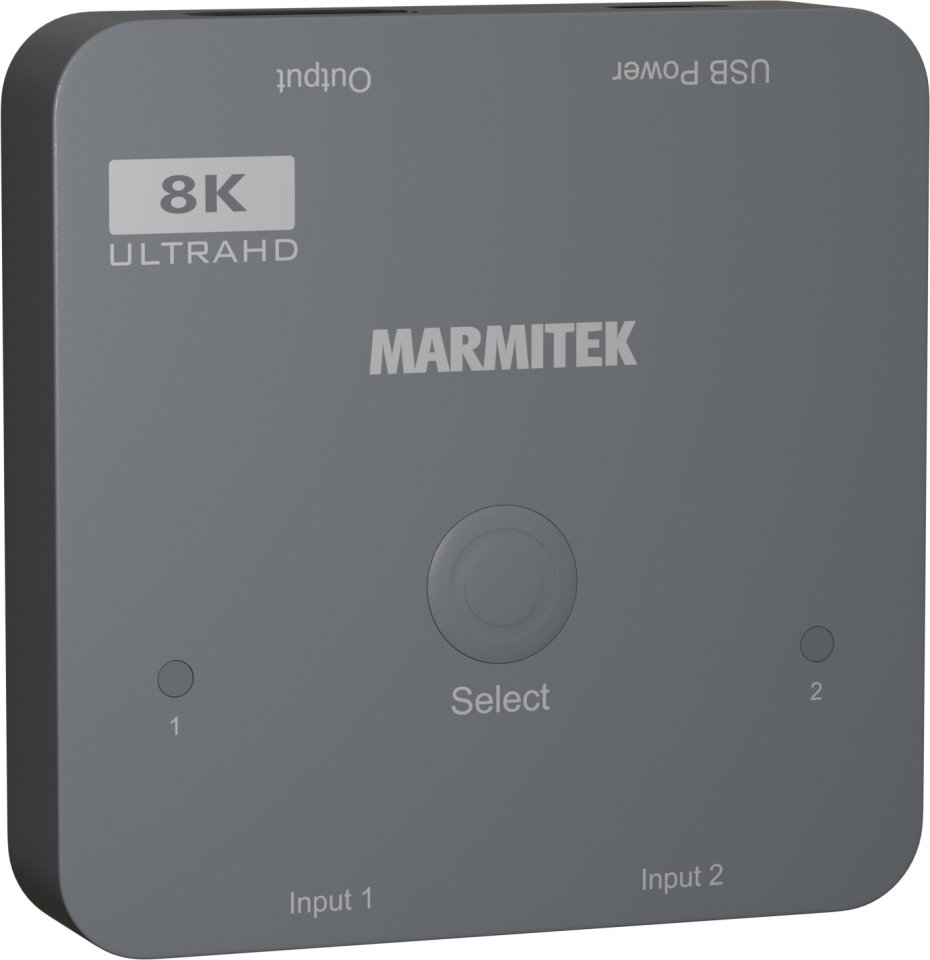

Marmitek Connect 720 8K60 and 4K120 2.1 HDMI Switch

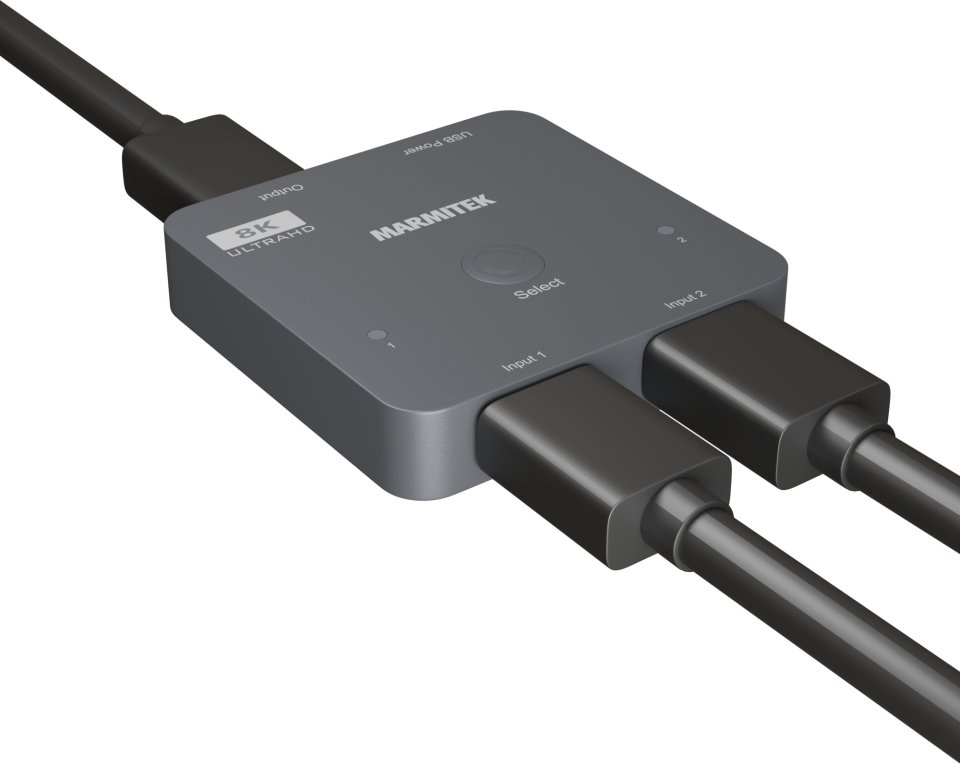

This HDMI switch allows you to connect 2 devices (8K or 4K) to your TV or projector using a single cable. The Connect 720 is compatible with Ultra HD 8K60 (7680 x 4320/60Hz) and 4K120 (3840 x 2160/120Hz) resolutions, HDR, Deep Color, and 4:4:4 chroma subsampling. Additionally, this HDMI switch supports essential gaming features like VRR, ALLM, QMS, and QFT. This makes the Connect 720 perfect for connecting your Xbox Series X or PlayStation 5 simultaneously.

Features:

• Ideal for connecting gaming consoles like PlayStation 5 and Xbox X/S, Blu-ray players, digital TV decoders, and media players
• Supports the latest Ultra HD 8K60 resolution (7680 x 4320/60Hz), dynamic HDR, Deep Color, and 4:4:4 chroma subsampling
• Compatible with Dolby Atmos and DTS:X as well as all other common audio formats
• Supports 4K120Hz resolution for gaming consoles, including variable refresh rate (VRR), automatic low latency mode (ALLM), Quick Frame Transport (QFT), and Quick Media Switching (QMS)
• Automatically switches between connected sources

Technical Specifications:

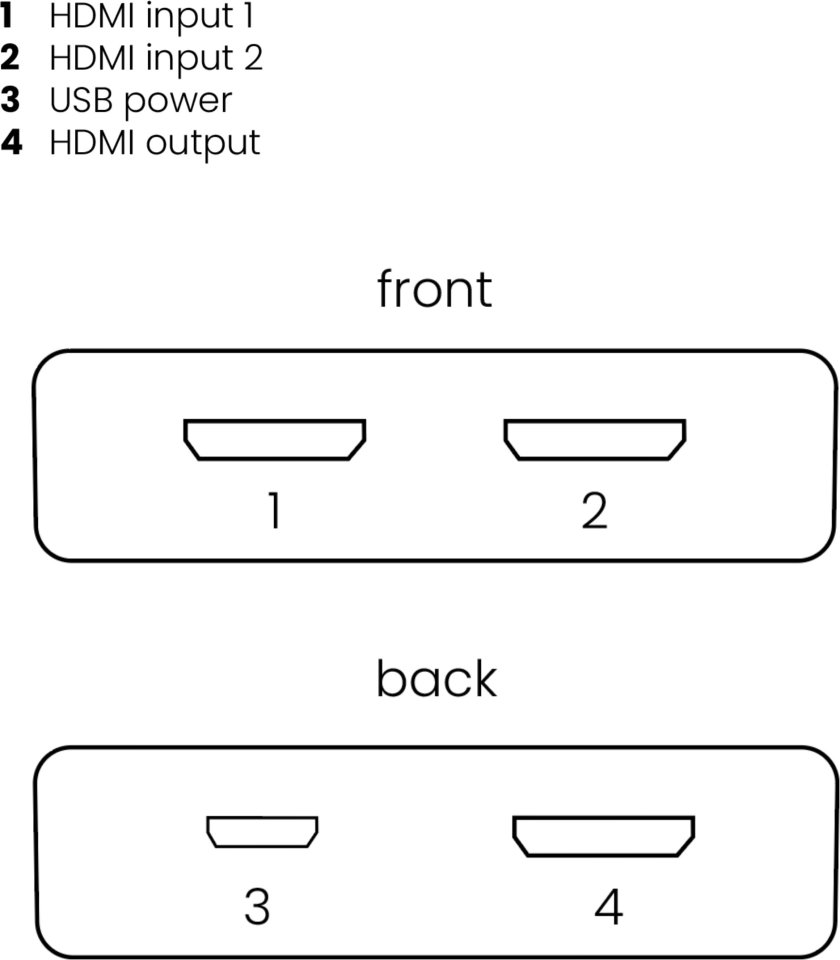

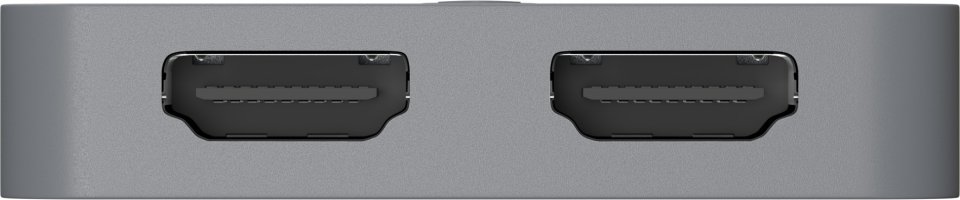

• AV Input: 2 x HDMI

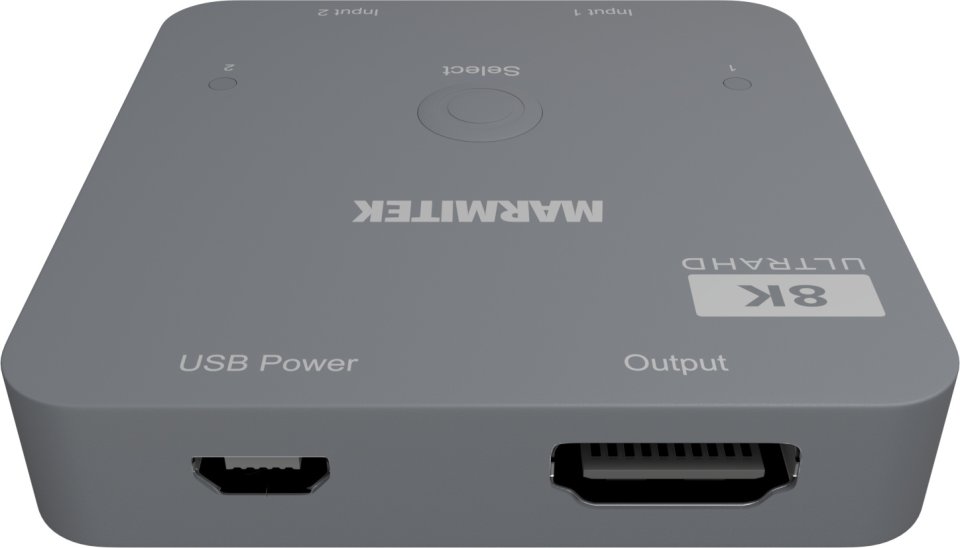

• AV Output: 1 x HDMI
• Video Resolution: max. 8K 60Hz, 4K 120Hz
• PC Resolution: max. 7680 x 4320 / 60Hz
• Video Bandwidth: max. 48 Gbps
• HDMI Standard: HDMI 2.1, CEC, EDID, DVI, Deep Color 36 bit, x.v. Colour, VRR, ALLM, QFT, QMS
• HDCP Standard: HDCP 2.3, 2.2 and 1.4
• Color Formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2
• HDMI Audio: DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos, Dolby Digital/AC3, LPCM7.1 and PCM 2.0CH
• Dimensions (H x W x D): 12 x 60 x 60 mm
• Weight: 30 g
• Power Supply: 5 VDC

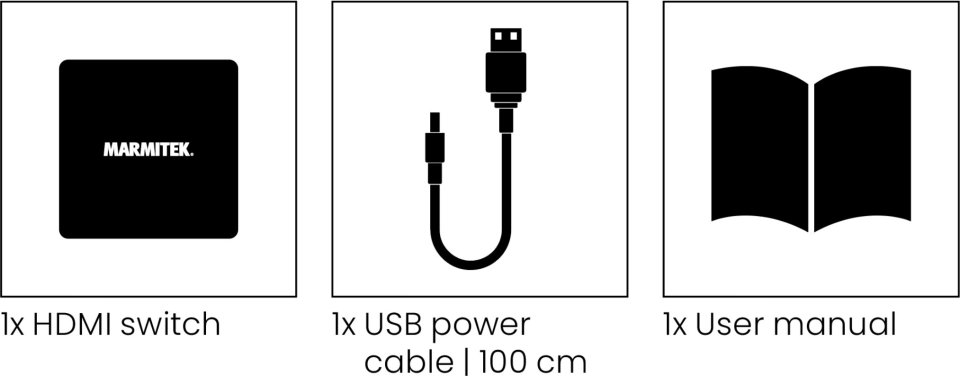

Package Includes:

• USB cable
• User manual
