SKU verkkokauppa-657415

Additional information

Country of Origin

United States

PID

657415

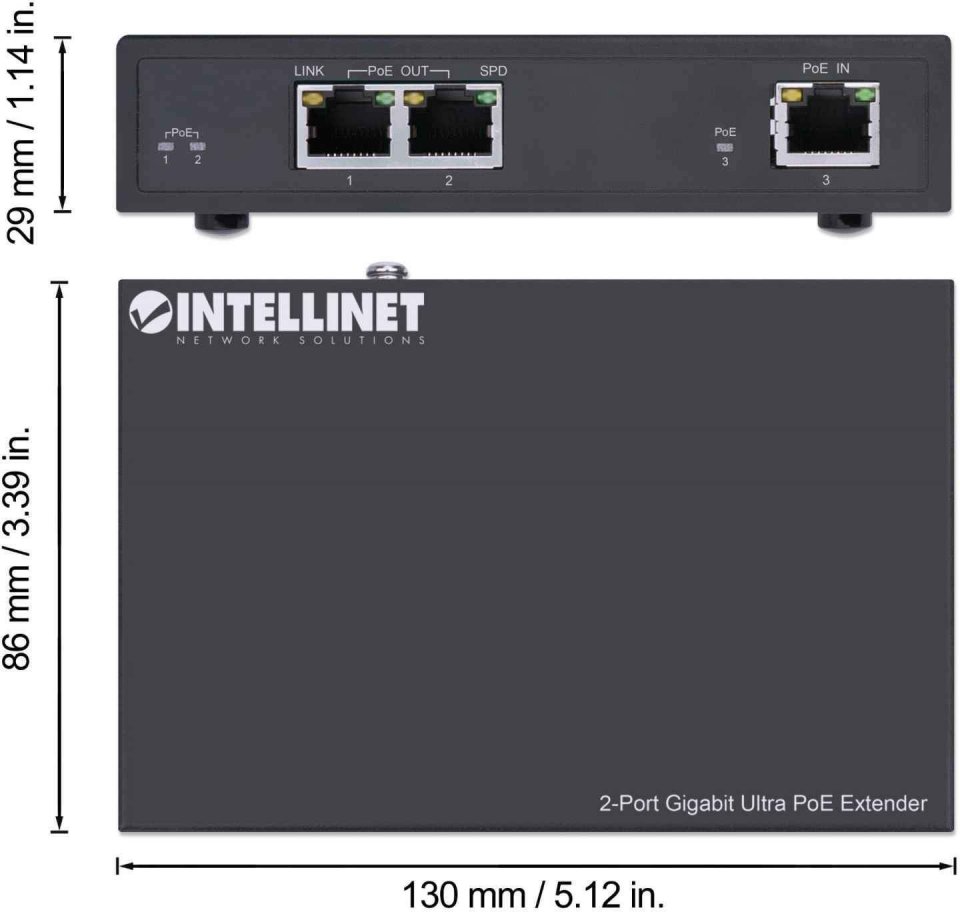

Product depth (mm)

86

Product height (mm)

29

Product weight (g)

331

Product width (mm)

130

Electronic address of single contact point

Frank.Niedermair@ic-intracom.com

Manufacturer address

Löhbacher Str. 7, 58553 Halver, Germany

Manufacturer's email address

info@ic-intracom.com

Manufacturer name

IC Intracom Vertriebs GmbH

EU Responsible Person

Frank Niedermair

This PoE extender continues to supply power and data to target devices up to 100 meters away. It effectively doubles the maximum connection distance between the PoE source and the device from one hundred meters to two hundred. It powers and feeds data from a single PoE injector or switch to two PoE devices, such as surveillance cameras, wireless access points, or VoIP phones.

Features:

  • Connections: 1 x RJ45 10/100/1000 Mbps 48 V IEEE 802.3af/at port, 2 x RJ45 10/100/1000 Mbps PoE ports
  • Supported Standards: IEEE 802.3af (Power over Ethernet), IEEE 802.3at (High-Power PoE+ Power over Ethernet), IEEE 802.3 (10Base-T Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet)
  • Delivers up to 60W to two connected PoE devices, with a maximum of 30W per port.
  • Supports data transfer speeds of 10/100/1000 Mbps.
  • Total PoE power budget of 60 Watts.
  • Saves time and money by delivering data and power through existing network cables.
  • PoE technology ensures that power is sent only to IEEE 802.3at / af compatible devices; non-PoE devices receive only data.
  • Short-circuit, overload, and over-voltage protection.
  • Grounding point to protect devices from external electrical shocks.
  • No additional power supply required, as it draws power directly from the PoE source.
  • Compatible with IEEE 802.3bt / at / af compliant PoE injectors and PoE switches (PSE).
  • Compatible with IEEE 802.3at / af compliant power supplies (PD).
  • Operates as a PoE-powered 3-port Gigabit switch with PoE passthrough.
  • Switching capacity of 6 Gb/s.
  • Supports up to 9 kB jumbo frames.
  • Supports 2048 MAC address space.
  • LED indicators for PoE and data.
  • Quiet operation, fanless design.
  • Compact metal housing.
  • Three-year warranty.
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Intellinet 2-port Gigabit 60W Ultra PoE (PoE++) extender

100.43
sis. KM 24%
  • PoE 802.3af / 802.3at
  • 60W PoE budget
  • Metal casing
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 561600
EAN kood: 0766623561600, 2220006574154

This PoE extender continues to supply power and data to target devices up to 100 meters away. It effectively doubles the maximum connection distance between the PoE source and the device from one hundred meters to two hundred. It powers and feeds data from a single PoE injector or switch to two PoE devices, such as surveillance cameras, wireless access points, or VoIP phones.

Features:

  • Connections: 1 x RJ45 10/100/1000 Mbps 48 V IEEE 802.3af/at port, 2 x RJ45 10/100/1000 Mbps PoE ports
  • Supported Standards: IEEE 802.3af (Power over Ethernet), IEEE 802.3at (High-Power PoE+ Power over Ethernet), IEEE 802.3 (10Base-T Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet)
  • Delivers up to 60W to two connected PoE devices, with a maximum of 30W per port.
  • Supports data transfer speeds of 10/100/1000 Mbps.
  • Total PoE power budget of 60 Watts.
  • Saves time and money by delivering data and power through existing network cables.
  • PoE technology ensures that power is sent only to IEEE 802.3at / af compatible devices; non-PoE devices receive only data.
  • Short-circuit, overload, and over-voltage protection.
  • Grounding point to protect devices from external electrical shocks.
  • No additional power supply required, as it draws power directly from the PoE source.
  • Compatible with IEEE 802.3bt / at / af compliant PoE injectors and PoE switches (PSE).
  • Compatible with IEEE 802.3at / af compliant power supplies (PD).
  • Operates as a PoE-powered 3-port Gigabit switch with PoE passthrough.
  • Switching capacity of 6 Gb/s.
  • Supports up to 9 kB jumbo frames.
  • Supports 2048 MAC address space.
  • LED indicators for PoE and data.
  • Quiet operation, fanless design.
  • Compact metal housing.
  • Three-year warranty.
