SKU verkkokauppa-937135 Categories , , , ,

Additional information

Color

White

Country of Origin

Czech Republic

PID

937135

Product depth (mm)

1 800

Product height (mm)

1 100

Product weight (g)

21 000

Product width (mm)

500

Manufacturer address

Merimiehenkuja 10, 01670 Vantaa, Finland

Manufacturer's email address

http://www.insera.fi

Manufacturer name

Moves You Oy

Lightweight aluminum frame electric bike for everyday use and leisure

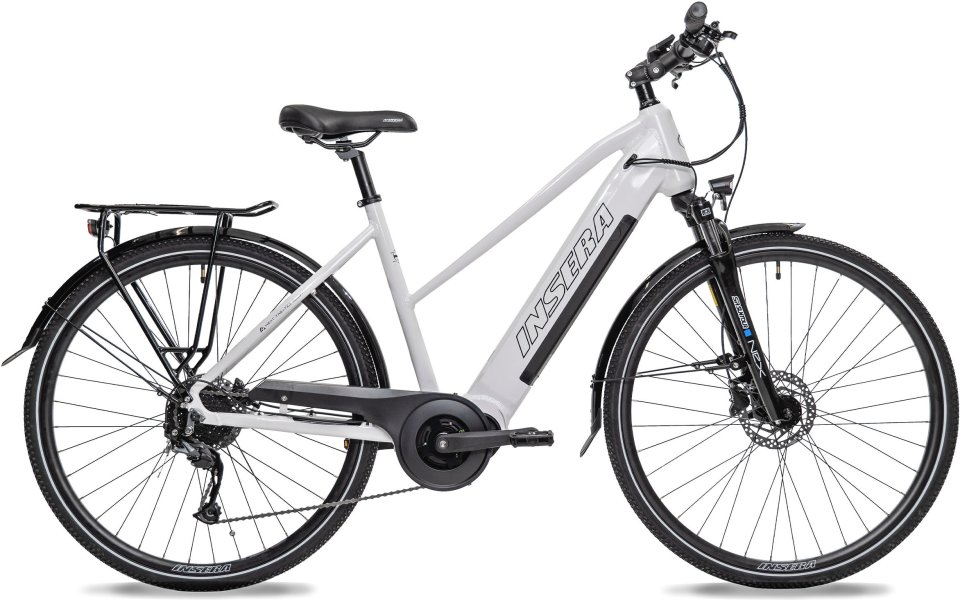

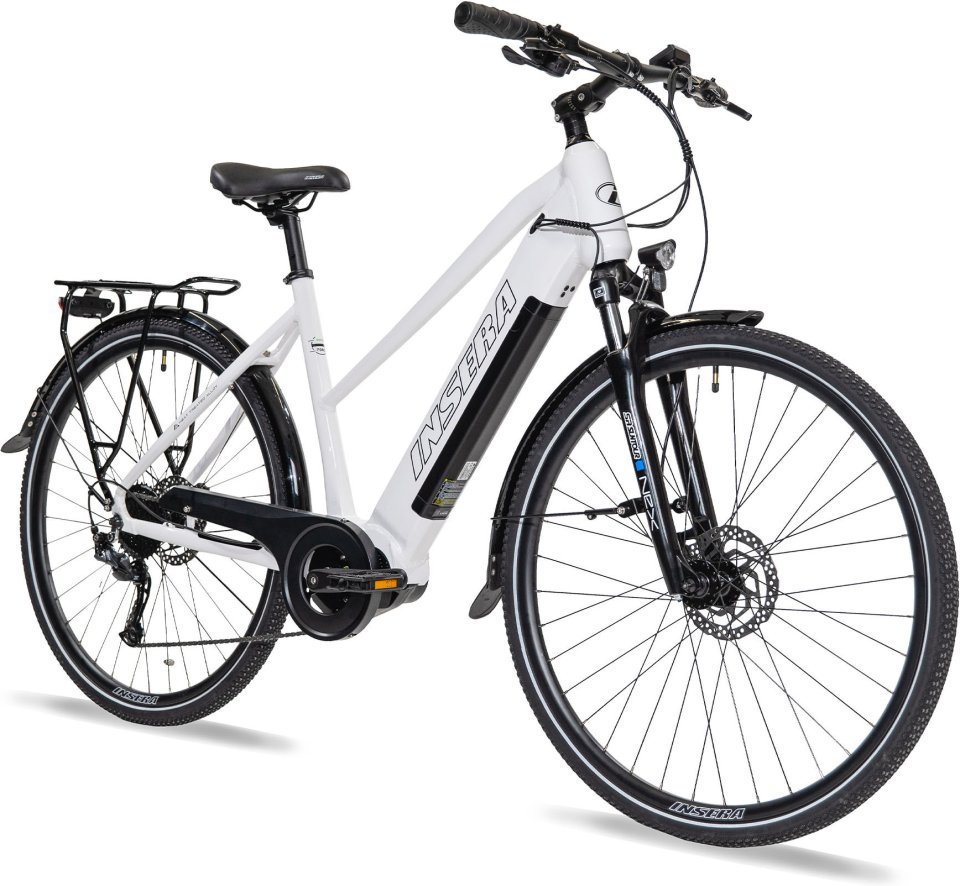

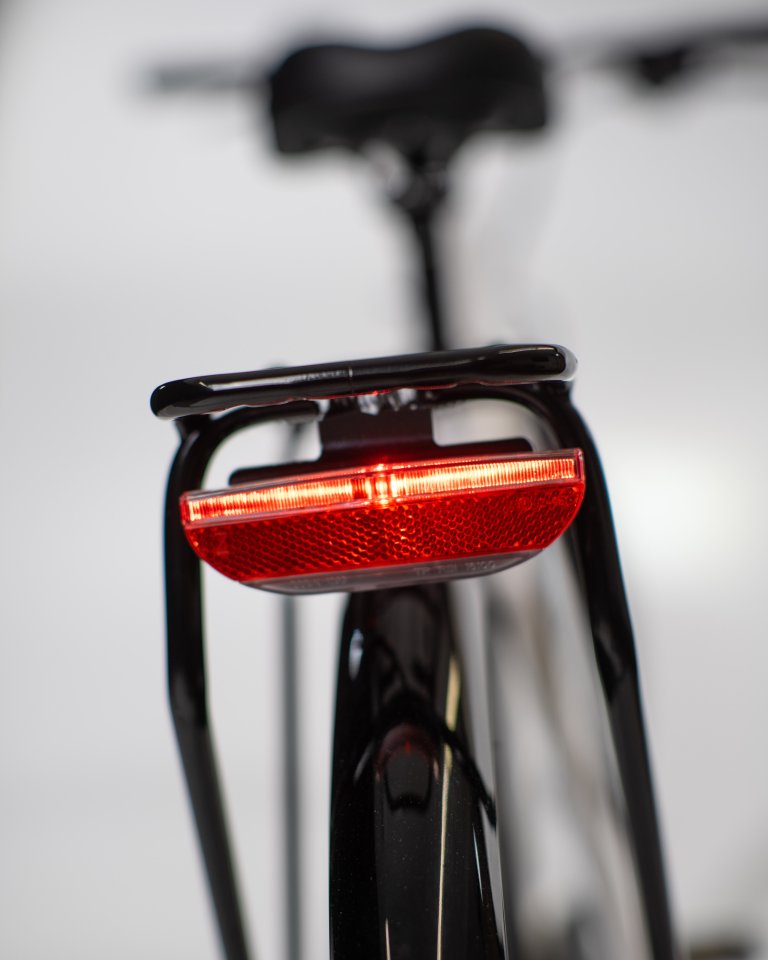

Insera e-Reflex is a Shimano 9-speed touring/hybrid electric bike designed in Finland. The lightweight and sturdy aluminum frame and 28″ rolling tires bring stability and speed to your ride. The 50 cm frame size fits users with a height of 155 – 175 cm. Additionally, the bike comes standard with front and rear lights as well as a sturdy kickstand. Insera e-Reflex is a value-conscious choice for those who cycle a lot.

Gear system, battery, and brakes

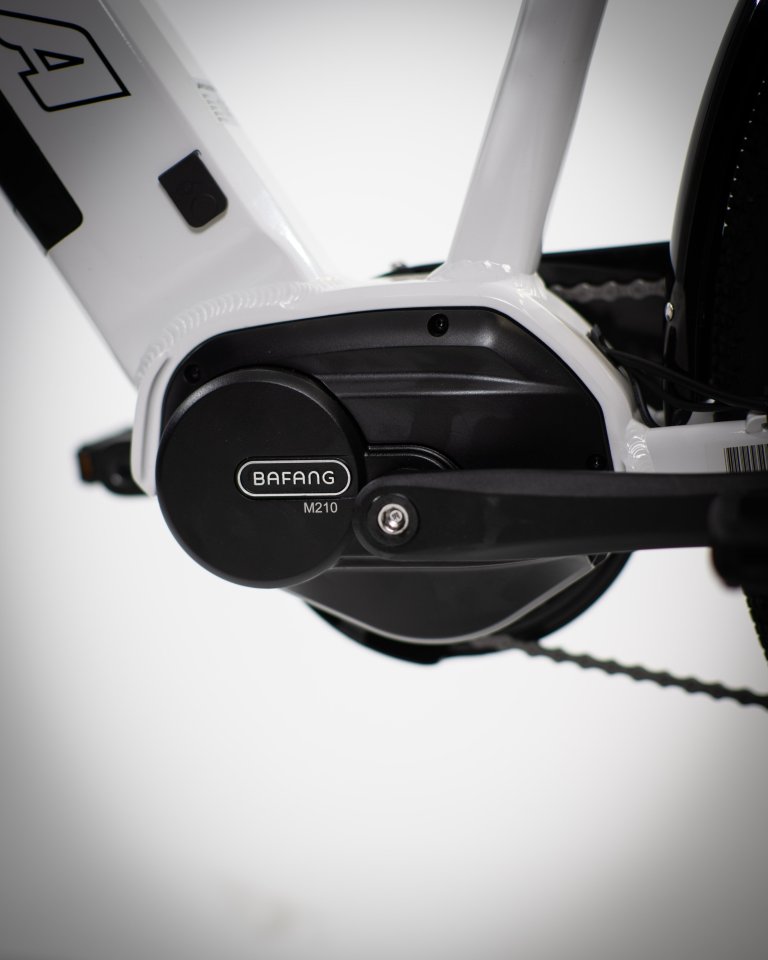

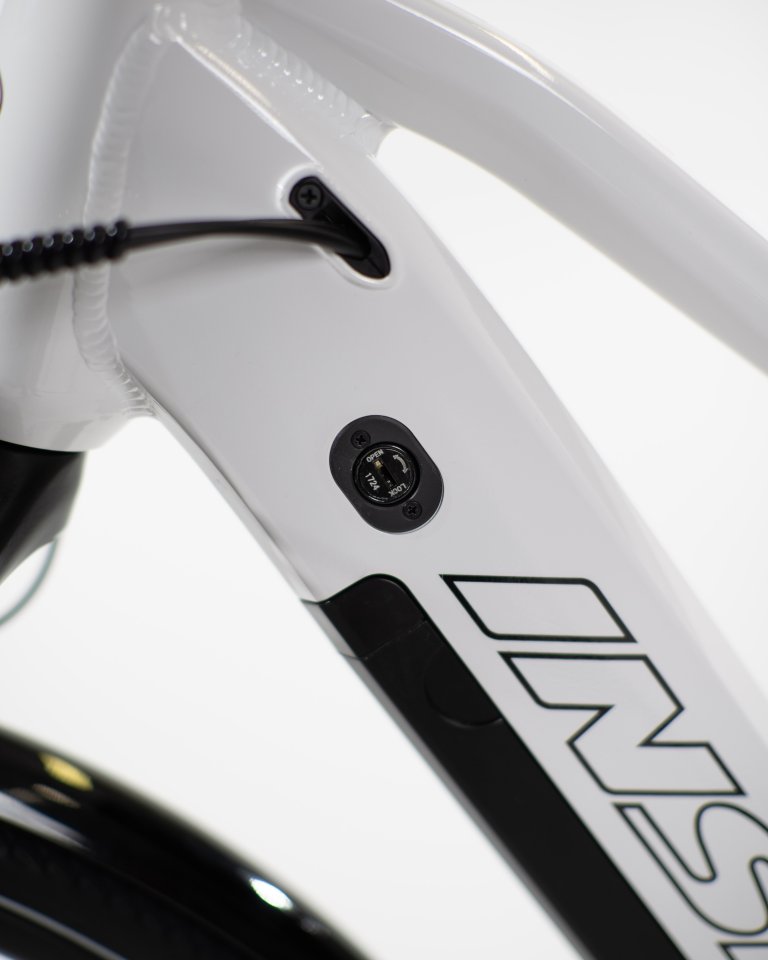

The electric assist is provided by a reliable Bafang M210 70Nm mid-motor. The Panasonic cells and the frame-integrated Phylion 540Wh battery (15Ah) take you on trips of over 100 km on a single charge. The range depends on prevailing conditions and the level of assist you use.

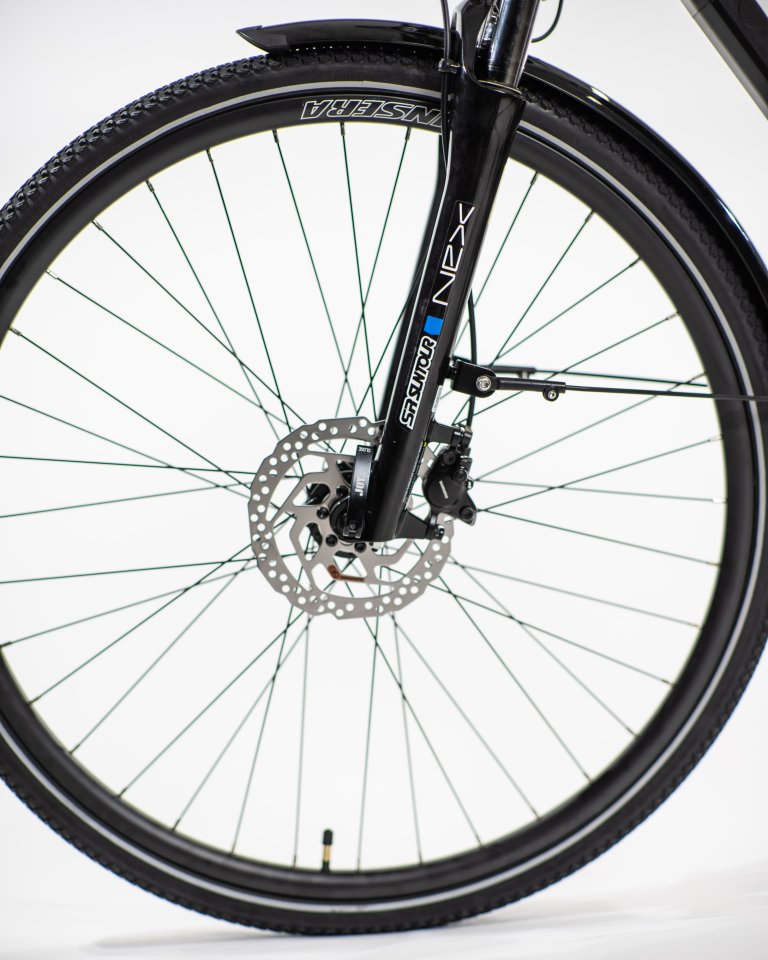

The Suntour suspension fork provides comfort on both smooth and uneven terrain, maximizing riding comfort in every situation. Shimano hydraulic disc brakes stop you safely even in demanding conditions.

Features:

  • Frame size: 50 cm
  • User height recommendation: 155 – 175 cm

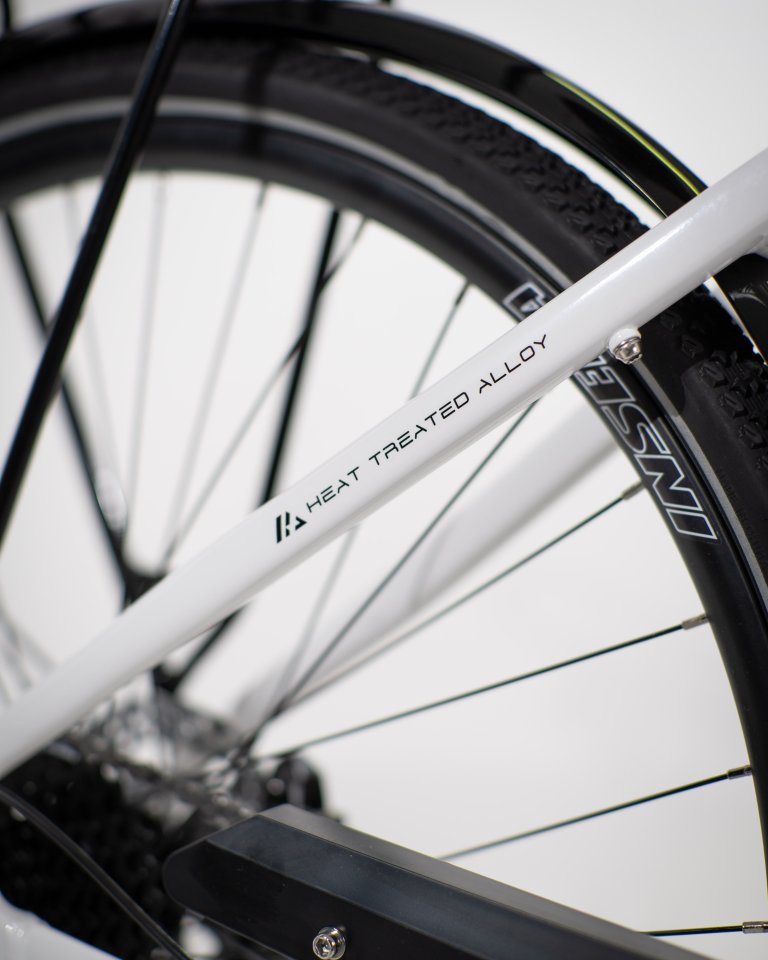

  • Frame material: Aluminum
  • Front fork: Suntour 700C SF-NEX DS
  • Handlebar stem: Aluminum adjustable angle
  • Gear system: Shimano Altus M200 Shadow 9sp
  • Gear shifter: Shimano Altus 9sp
  • Brakes: Shimano BR-MT200 hydraulic disc brakes
  • Brake levers: Shimano BR-MT200
  • Crankset: Bafang 38T 170 mm
  • Chain: KMC Z9
  • Cassette: Shimano HG200 11-32T
  • Rims: Stars Double Wall aluminum 36h
  • Tires: CST 42-622
  • Pedals: Feimin rubber grip
  • Seat post: Aluminum 30.4 mm
  • Kickstand: Yes
  • Motor: Bafang M210 70Nm mid-motor
  • Battery: Phylion GX-20 36V 15Ah 540Wh Samsung cells (integrated into frame)
  • Charger: Phylion 36V 2A

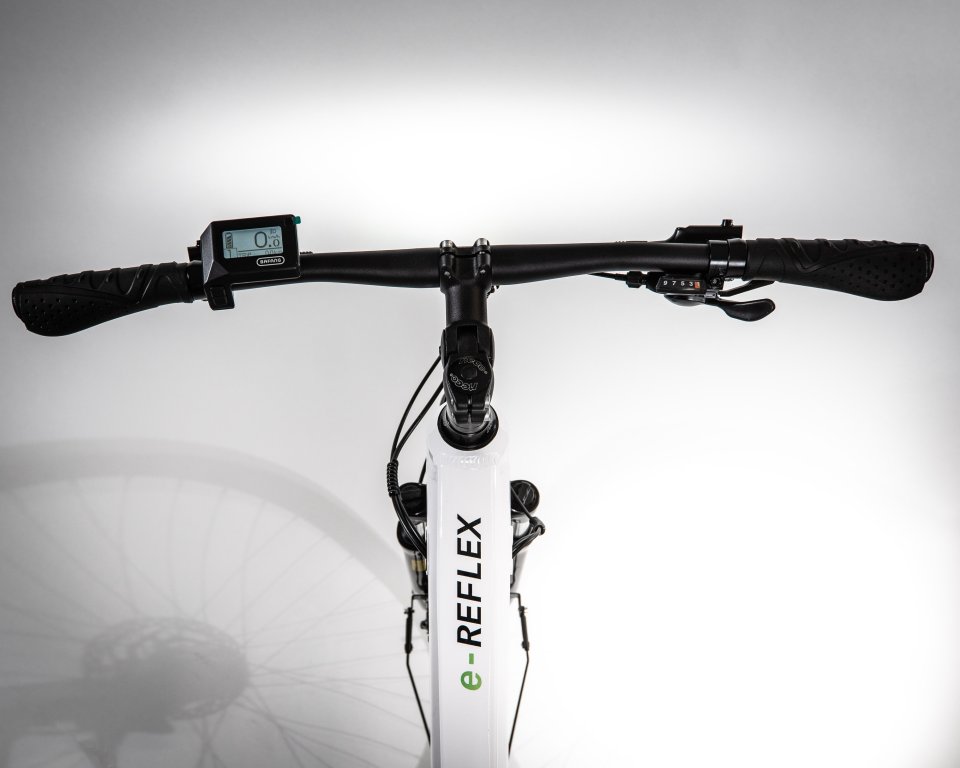

  • Display: Bafang DP C220.CAN
  • Electric bike operating temperature: Outdoor Temperatures: -20 ~ 45
  • Weight: 21 kg

Bike delivery and setup

The bike is carefully packed in a factory box and partially assembled to ensure it arrives safely.

The assembly level may vary slightly depending on the model, but the bike can usually be made ride-ready with a few simple steps, such as attaching the pedals and adjusting the saddle and handlebars. The brakes and gear system may also require adjustment.

Detailed instructions for assembling the bike can be found in the instructional video on this page, in the guide that comes with the bike, or on the manufacturer’s website.

Please note that the necessary tools are not included in the package. If you need help with assembly, you can always turn to a professional bike service.

Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Insera e-Reflex Electric Bicycle 28″ 9-Speed, 50 cm

1,872.39
sis. KM 24%

5 in stock

  • Aluminum-framed hybrid electric bike
  • Up to 100 km on a single charge
  • Integrated battery (540 Wh)
  • Lights in front and behind
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 224EREF2850
EAN kood: 6429811054011, 2220009371354

Lightweight aluminum frame electric bike for everyday use and leisure

Insera e-Reflex is a Shimano 9-speed touring/hybrid electric bike designed in Finland. The lightweight and sturdy aluminum frame and 28" rolling tires bring stability and speed to your ride. The 50 cm frame size fits users with a height of 155 – 175 cm. Additionally, the bike comes standard with front and rear lights as well as a sturdy kickstand. Insera e-Reflex is a value-conscious choice for those who cycle a lot.

Gear system, battery, and brakes

The electric assist is provided by a reliable Bafang M210 70Nm mid-motor. The Panasonic cells and the frame-integrated Phylion 540Wh battery (15Ah) take you on trips of over 100 km on a single charge. The range depends on prevailing conditions and the level of assist you use.

The Suntour suspension fork provides comfort on both smooth and uneven terrain, maximizing riding comfort in every situation. Shimano hydraulic disc brakes stop you safely even in demanding conditions.

Features:

  • Frame size: 50 cm
  • User height recommendation: 155 – 175 cm
  • Frame material: Aluminum
  • Front fork: Suntour 700C SF-NEX DS
  • Handlebar stem: Aluminum adjustable angle
  • Gear system: Shimano Altus M200 Shadow 9sp
  • Gear shifter: Shimano Altus 9sp
  • Brakes: Shimano BR-MT200 hydraulic disc brakes
  • Brake levers: Shimano BR-MT200
  • Crankset: Bafang 38T 170 mm
  • Chain: KMC Z9
  • Cassette: Shimano HG200 11-32T
  • Rims: Stars Double Wall aluminum 36h
  • Tires: CST 42-622
  • Pedals: Feimin rubber grip
  • Seat post: Aluminum 30.4 mm
  • Kickstand: Yes
  • Motor: Bafang M210 70Nm mid-motor
  • Battery: Phylion GX-20 36V 15Ah 540Wh Samsung cells (integrated into frame)
  • Charger: Phylion 36V 2A
  • Display: Bafang DP C220.CAN
  • Electric bike operating temperature: Outdoor Temperatures: -20 ~ 45
  • Weight: 21 kg

Bike delivery and setup

The bike is carefully packed in a factory box and partially assembled to ensure it arrives safely.

The assembly level may vary slightly depending on the model, but the bike can usually be made ride-ready with a few simple steps, such as attaching the pedals and adjusting the saddle and handlebars. The brakes and gear system may also require adjustment.

Detailed instructions for assembling the bike can be found in the instructional video on this page, in the guide that comes with the bike, or on the manufacturer's website.

Please note that the necessary tools are not included in the package. If you need help with assembly, you can always turn to a professional bike service.
