The HyperX Audio Mixer is designed for streamers and content creators who need precise control over their audio sources. This compact USB mixer lets you blend three audio inputs: an XLR microphone input, a 3.5 mm microphone input, and a stereo 3.5 mm line input. Its simple and intuitive controls help you adjust sound levels without interrupting your recording with complicated buttons.

Versatile Connections and Easy Setup

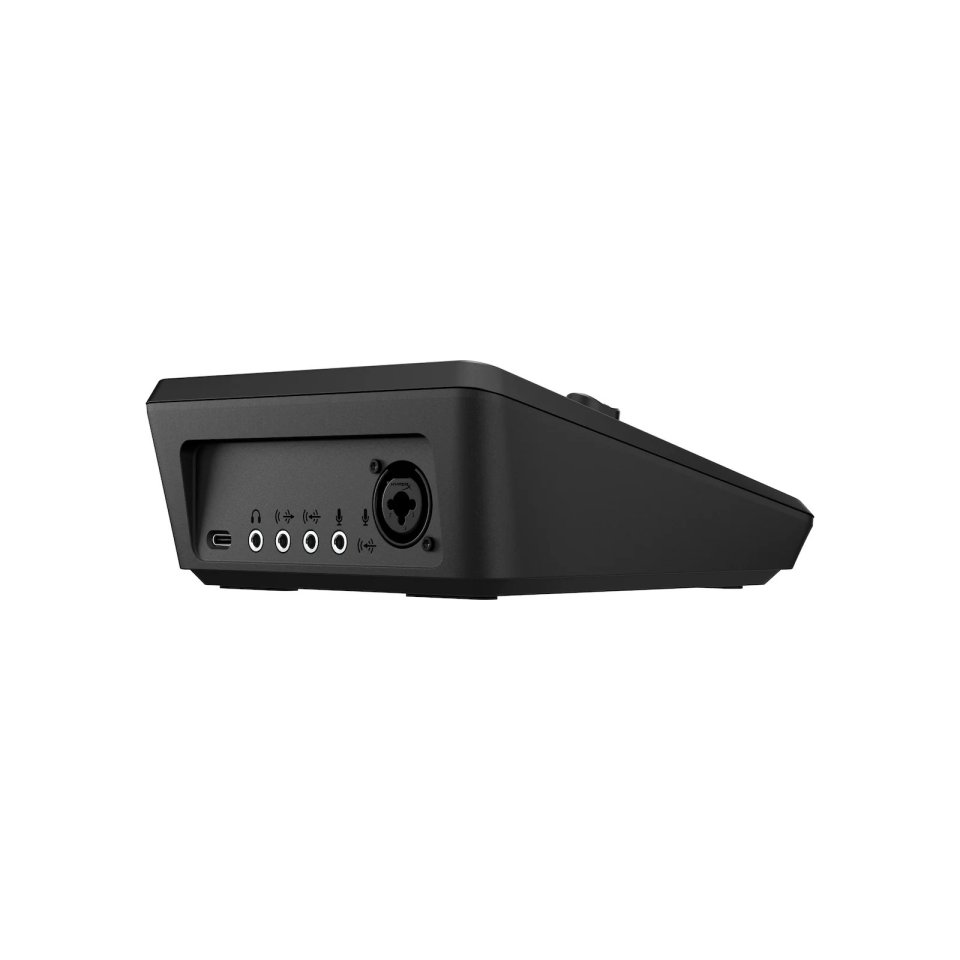

The mixer features a combo XLR and ¼” TRS microphone input, plus separate 3.5 mm microphone and line inputs. A USB-C port connects the device to your computer quickly, working on a plug-and-play basis without complex installation. It supports 24-bit / 96 kHz recording for clear, professional audio quality.

Precise Sound Control

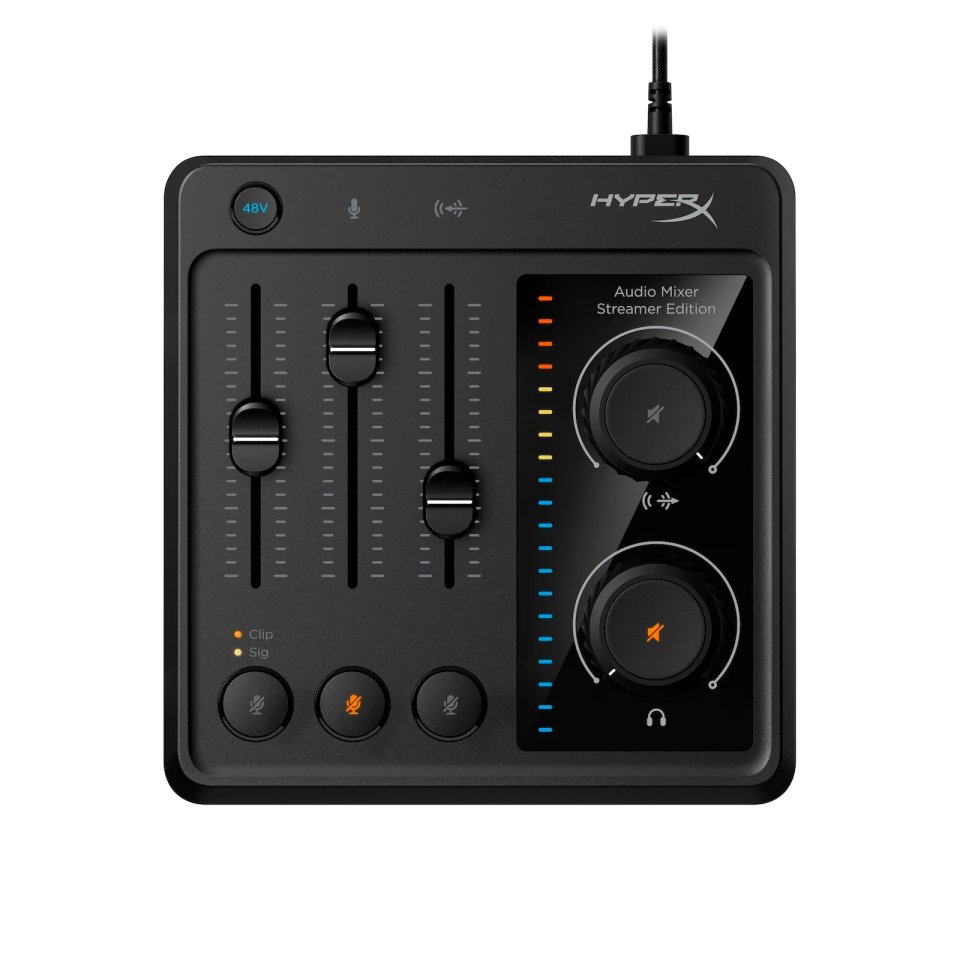

Three sliders manage volume levels, along with separate volume controls for headphones and line outputs, allowing you to balance microphone, game, and chat audio perfectly. The mixer also includes mute buttons and a 48V phantom power switch compatible with most XLR microphones like the HyperX ProCast.

Compact Size and Compatibility

The HyperX Audio Mixer is lightweight and compact, fitting easily on your desk or streaming setup. It works with Windows 10 (build 1703 and later) and macOS, making it suitable for various working environments.

Features

• Frequency response: 20 – 20,000 Hz
• Output impedance: 32 – 600 Ω
• Microphone inputs: 1 x XLR / ¼” TRS combo, 1 x 3.5 mm
• USB ports: 1 x USB-C (USB 2.0, UAC 2.0)
• Audio bit depth: 16- and 24-bit
• Gain range: 1 – 50 dB for XLR/¼” TRS mic, -12 dB – 34 dB for 3.5 mm mic
• Total harmonic distortion + noise (THD+N): under 1% on all inputs
• Phantom power: 48 V switchable
• Headphone output: 3.5 mm, max power ≥ 22 mW
• Noise level: below -88 dBFS (XLR/¼” TRS), below -91 dBFS (3.5 mm)
• Physical dimensions: 144 x 140 x 59 mm
• Power consumption: 5 V, 500 mA (USB)
