Hollyland Pyro H – Wireless HDMI Transmitter for 4K Video Production

The Pyro H transmitter is a professional-grade wireless video transmitter that offers UHD 4K30 video transmission with a range of up to 400 meters and an ultra-low latency of 60 ms. It is specifically designed for production environments requiring reliable and high-quality HDMI video transmission without cables.

Top-tier Performance

The transmitter supports HDMI input and HDMI Loopout output, allowing the signal to be passed to another display device without quality loss. Dual-band technology (2.4 GHz & 5 GHz) ensures a stable connection with minimal interference.

Broadcast Mode and Smart Channel Scan

In broadcast mode, the transmitter can send signals to up to four receivers. Smart Channel Scan automatically selects the best frequency channel, ensuring interference-free transmission.

Connections

• DC input: 2.0 mm center connector
• HDMI input: HDMI 1.4b
• HDMI Loopout: HDMI 1.4b
• USB-C: USB 2.0 OTG
• Antenna: SMA male

Technical Specifications

• Latency: 0.06 s (tested with 1080p60 signal in laboratory)
• Range: 400 m (1,300 ft) in open, interference-free environment
• Bandwidth: 20 MHz (Broadcast mode: 40 MHz)
• Transmission power: < 23 dBm
• Operating frequencies:
  • 5 GHz: 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.850 GHz
  • 2.4 GHz: 2.412–2.484 GHz
• Input and output formats (HDMI)
  • 720p50/59.94/60
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
  • 4K30/25/24
• HDMI loopout formats:
  • 720p50/60
  • 1080i50/60
  • 1080p24/25/30
  • 1080p50/60
  • 4K30/25/24
• Power supply: USB-C: 5 V/2 A (not supported in Broadcast mode), Battery operation: 6.8–8.4 V, DC voltage range: 6–16 V
• Power consumption: < 7 W
• Weight: 192 g
• Dimensions (W × D × H): 109 × 62.3 × 33.4 mm

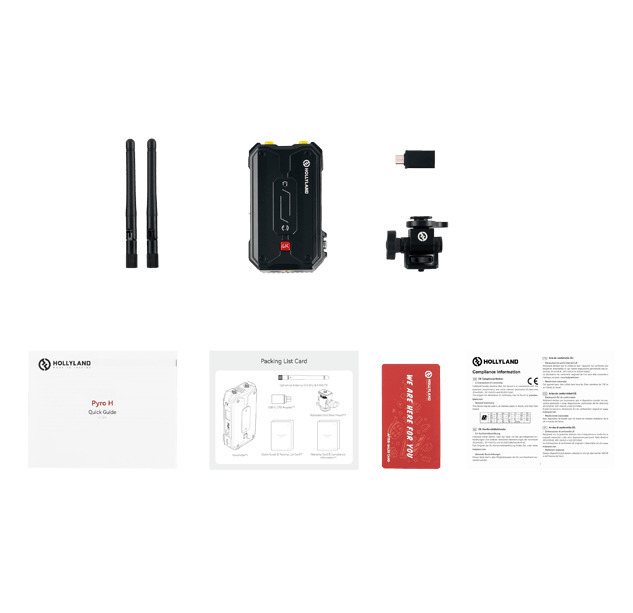

Package Contents

• 1x Pyro H Wireless Video Transmitter
• 2 cylindrical antennas (2.4 GHz & 5 GHz)
• Adjustable shoe mount
• USB-C OTG adapter
• Quick guide
• Warranty card
