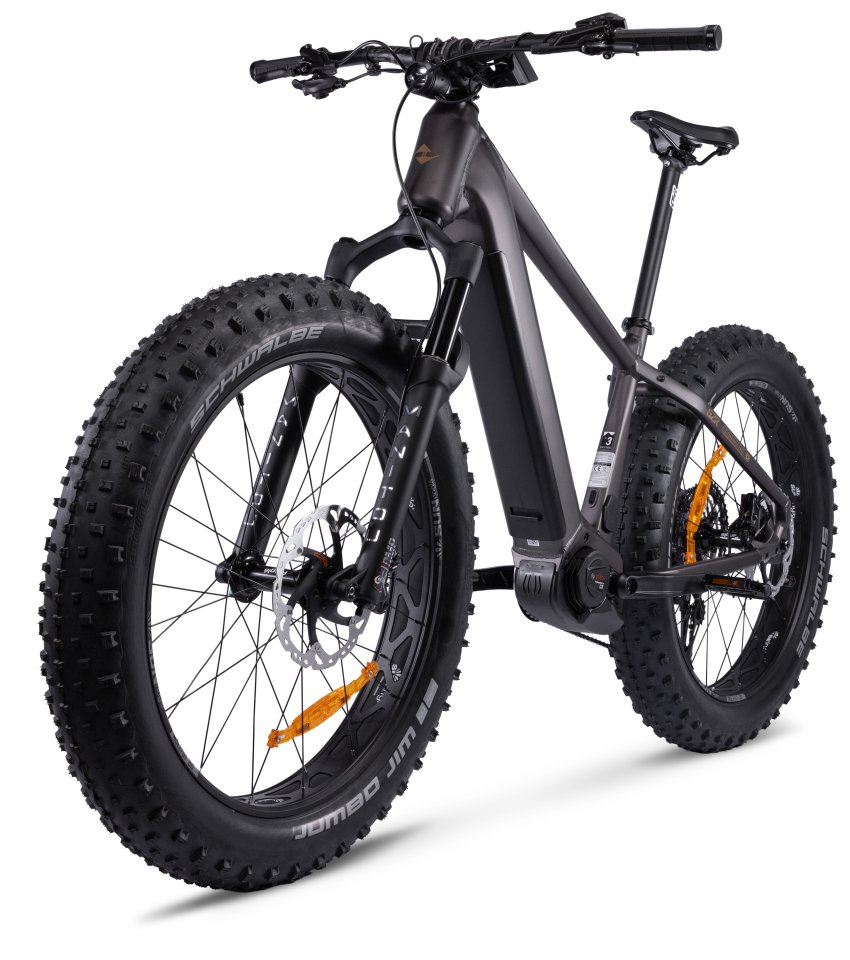

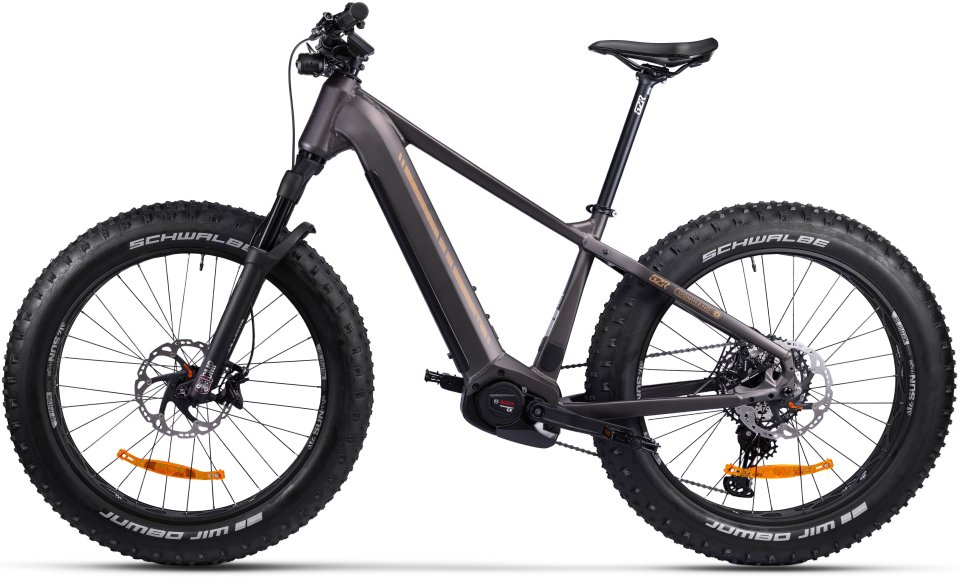

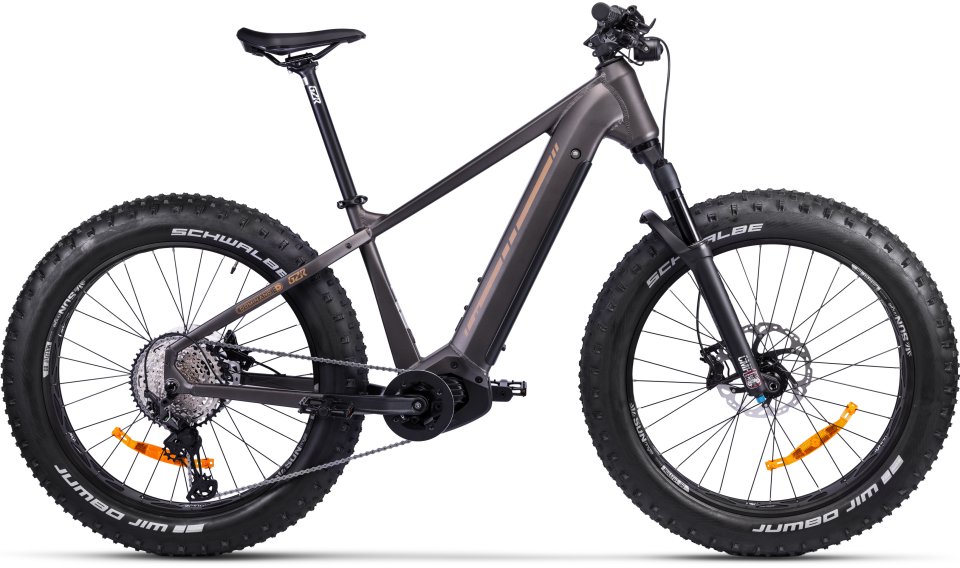

GZR Dominanc-e offers riding enjoyment all year round

The GZR Dominanc-e guarantees a riding experience you didn’t even expect. The powerful, reliable, and torqueful Bosch Performance CX 4gen motor ensures not only a long range but also propulsion that others try to imitate. The motor provides better responsiveness and the ability to control assistance, delivering better grip for 4″ tires while maintaining the bike’s agility. The powerful Bosch 625 Wh battery offers a range of up to 150 kilometers. The Bosch Kiox display can function as an electronic lock when needed and takes connectivity to a new level.

The drivetrain relies on XT’s reliable solutions with gear ratios suitable for electric bikes. The Manitou Mastodon Comp front fork absorbs bumps and smooths riding on uneven terrain. Powerful four-piston hydraulic disc brakes bite effectively on 203 mm rotors and stop reliably even from high speeds.

Technical specifications

• Frame size: 17″
• Recommended rider height: 165 -178 cm
• Frame: aluminum 6061, hydroformed
• Fork: Manitou Mastodon Comp, 15 mm, 150 mm

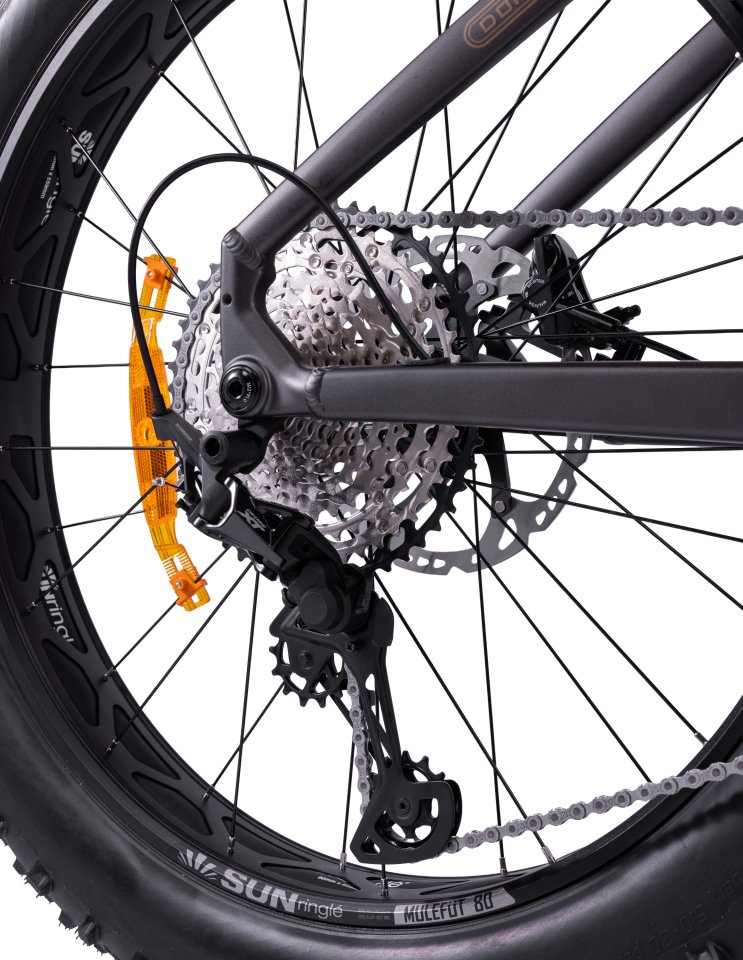

• Rear derailleur: Shimano Deore XT
• Shifters: Shimano Deore XT
• Cranks: SAMOX 170 mm, 30 mm offset, ISIS
• Cogs: Shimano 12-speed
• Chain: KMC
• Brake levers: Shimano Deore BL-M501

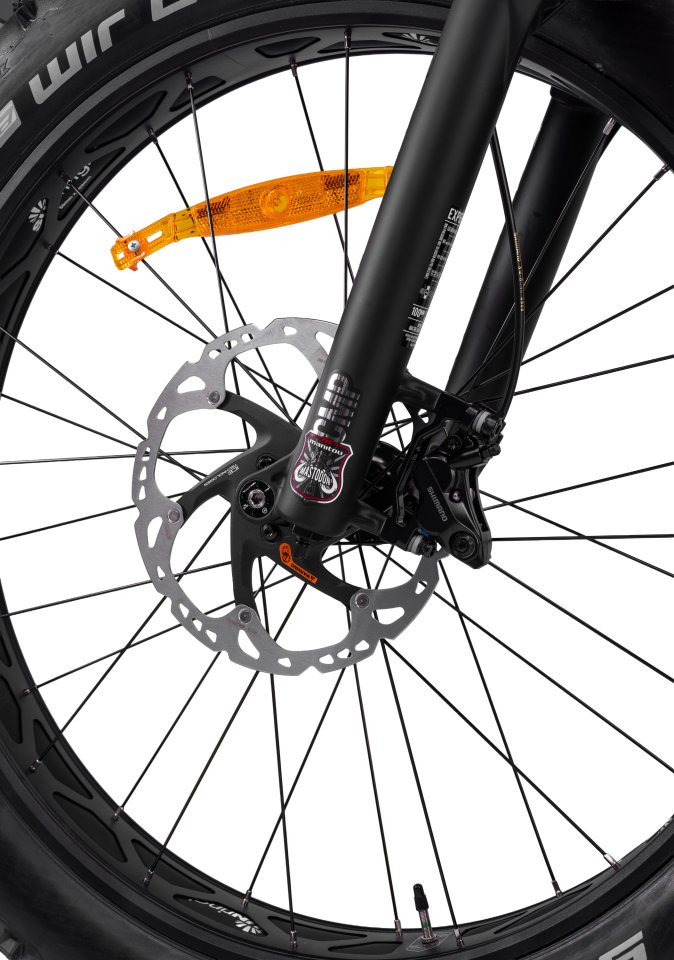

• Brake (front): Shimano Deore BR-M520 four-piston
• Brake (rear): Shimano Deore BR-M520 four-piston
• Brake rotors: Shimano SM-RT86 203 mm
• Tires: Schwalbe Jumbo Jim Performance 26 x 4.8”
• Rims: Sunringlé Mulefut 80 SL, tubeless ready
• Front hub: 150 mm, Sunringle SRC-F, 15 mm thru axle
• Rear hub: 197 mm, Sunringle SRC-R, 12 mm thru axle
• Spokes: black 2.0 mm
• Handlebar: FSA Comet Low Riser HB-XC-3191-05760, 760×15, 31.8 mm
• Grips: Velo

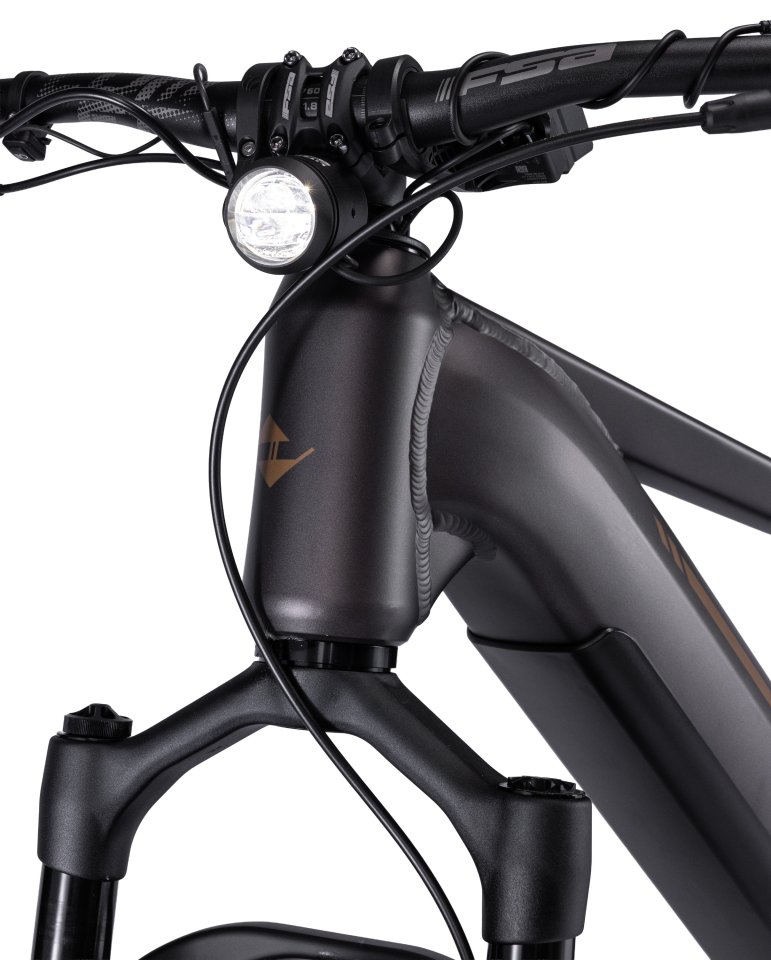

• Front light: Litemove AE-200 electric bike front light
• Stem: FSA V-Drive 60 MM
• Headset bearings: FSA SRS Center No.69/62/Cup/SRS-1 1 1/8″ integrated headset bearings

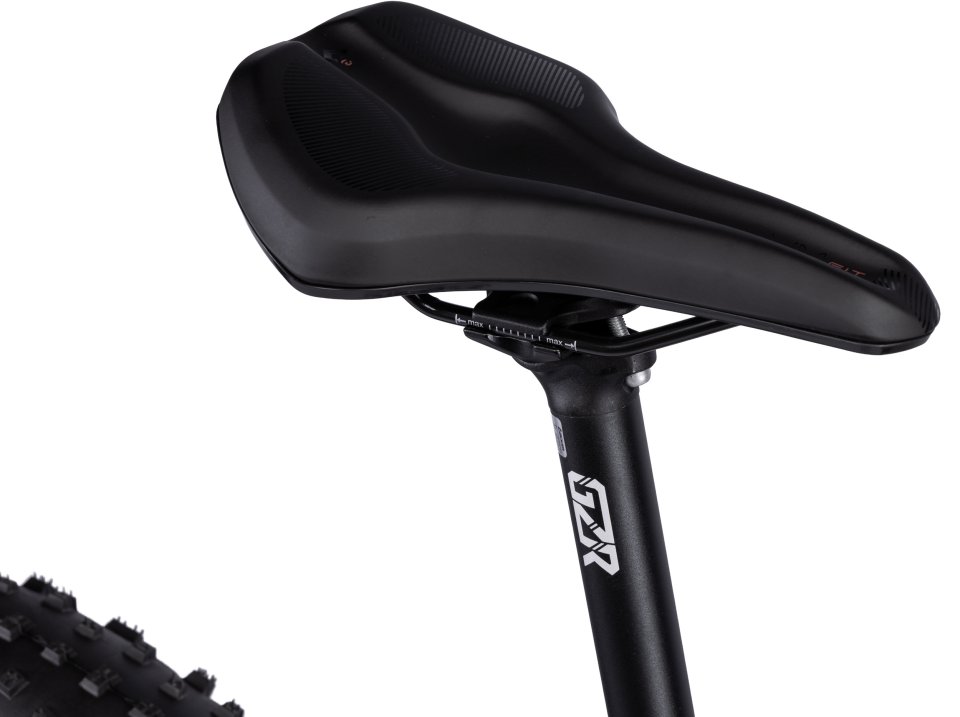

• Seatpost: GZR 30.9 x 400 mm
• Pedals: Flat pedals
• Maximum allowed load: 120 kg
• Weight without pedals: 22.5 kg

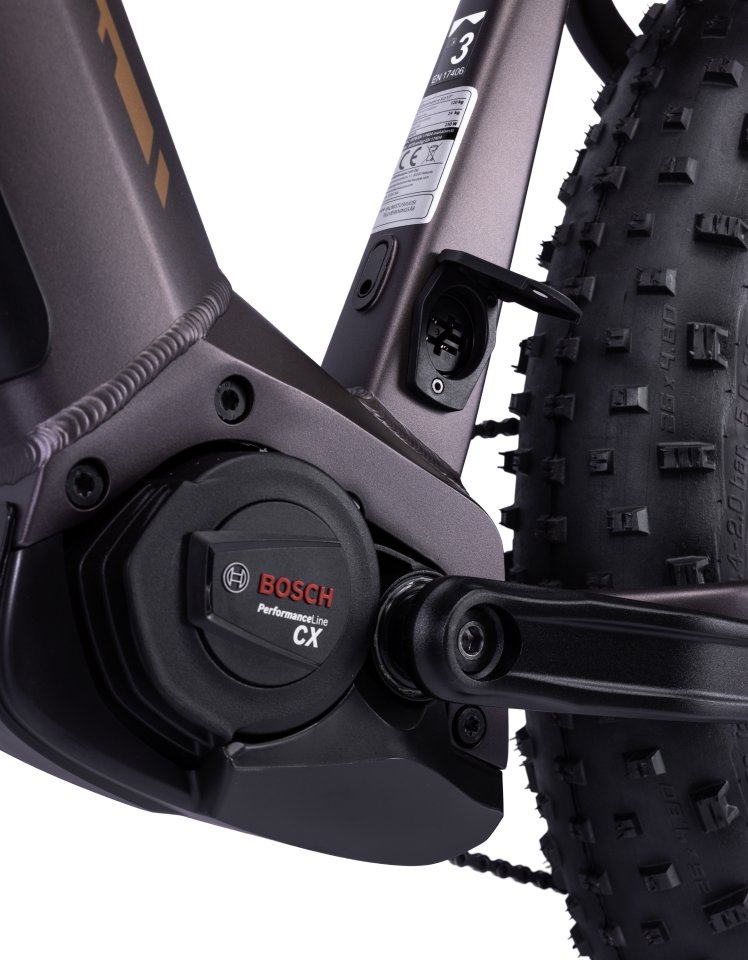

• Motor: Bosch Performance CX 4gen motor
• Battery: Bosch Powerpack 625 Wh
• The battery locks onto the bike and can be removed with a key for charging

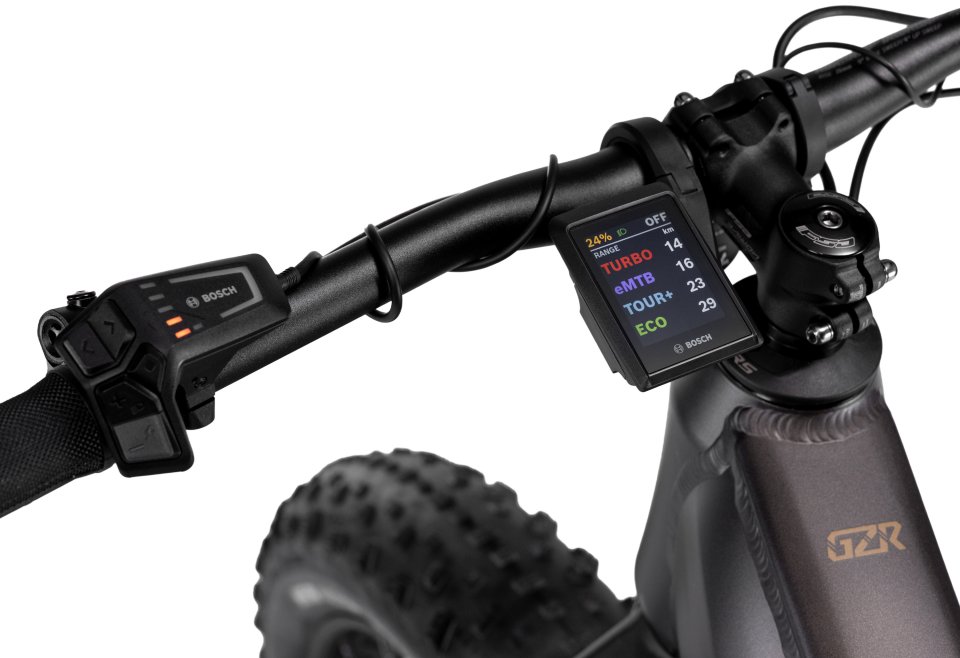

• Display: Bosch Kiox
• Electric range up to 100–150 km in eco mode, see details at https://www.bosch-ebike.com/en/service/range-assistant/
• Charger included, charging time 3–6 hours
• Five-level assistance selector
• Torque sensor

Note! Product availability and technical specifications may vary. The manufacturer reserves the right to make changes in colors, materials, components, and models.

Bike delivery and setup

The bike is delivered in factory packaging, almost fully assembled. Unless otherwise stated in the product information, the assembly level is 95%, meaning most parts are pre-installed. The bike can be made ride-ready with a few simple steps.

What you need to do before your first ride:

• Install the pedals – Apply a little grease or oil to the pedal threads before installation. Make sure the right and left pedals go on the correct sides. Start tightening by hand and finish with a tool. Tighten carefully.
• Check brakes and gears – Although brakes and gears are adjusted at the factory, we recommend checking their functionality before riding.
• Install small parts – The bell, reflectors, and other small parts are usually delivered separately. Remember to install them for safe riding.
• Read the assembly instructions – You can find more tips in our general guide!

Assembly levels at a glance:

• 98% – “Ready to ride”

  To install: front wheel, pedals, seatpost. The stem must be turned and tightened. Brakes and gears are factory adjusted.

• 95% – Basic assembly

  To install: front wheel, pedals, seatpost, handlebar. Check tightness of bolts and nuts. Brakes and gears require fine-tuning.

• 90% – Partially assembled

  To install: front wheel, pedals, seatpost, handlebar, fenders, and possibly a basket. Brakes and gears are likely not adjusted.

First service

We recommend the bike’s first service after 100–300 km of riding at a professional bike service shop.
