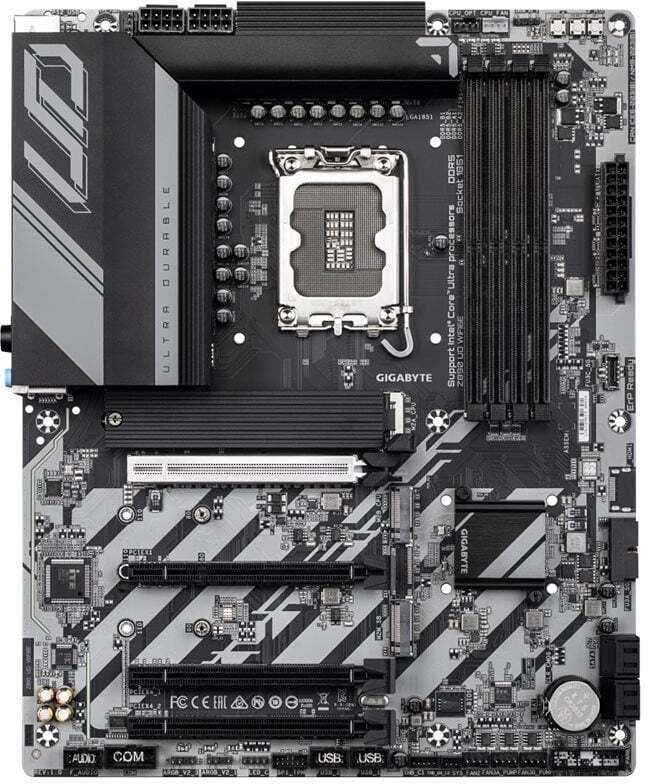

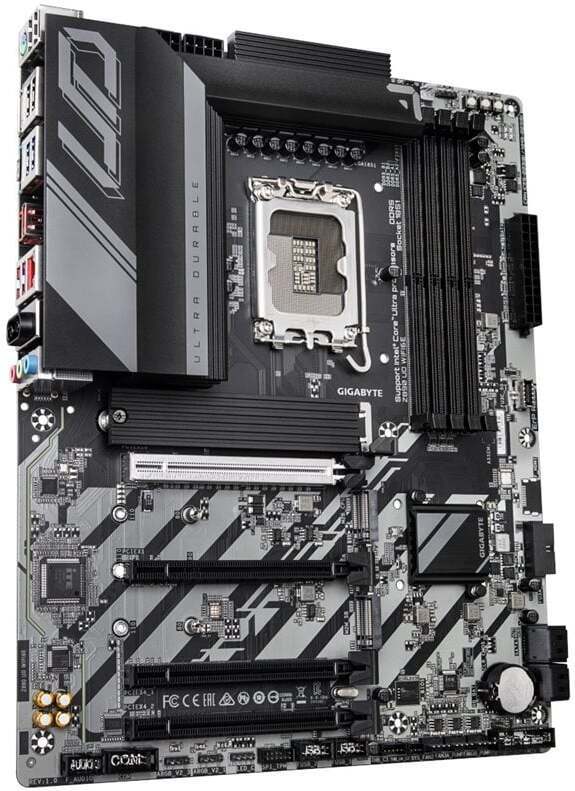

Gigabyte Z890 UD WIFI6E is a high-quality ATX motherboard based on the Intel Z890 chipset and supports the LGA 1851 socket. The Z890 series is designed to be compatible with Intel Core Ultra (Series 2) processors.

Z890 motherboards offer AI-PC features, an updated power solution, the latest storage standards, and excellent connectivity options that ensure optimal gaming performance.

– Supports Intel Core Ultra (Series 2) processors.

– 12+1+2 phase power delivery.

– Dual-channel DDR5: 4 x DIMM memory slots with Intel XMP memory module support, 8800(OC) MT/s.

– Extremely fast storage: 3 x M.2 slots, 1 x PCIe 5.0 x4.

– Fast network connections: 2.5GbE LAN and Wi-Fi 6E.

– Extended connectivity: USB4 Type-C port with DP-Alt Mode support, DisplayPort.

– User-friendly BIOS interface: Multiple themes, AIO fan control, and Q-Flash auto-scan in BIOS and software.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (12.0 x 9.6 in)
• Memory slots (qty): 4
• Memory type: DDR5 (8800(OC) /8600(OC) / 8400(OC) /8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s), Dual Channel, ECC/non-ECC, un-buffered
• Maximum memory capacity (GB): 256
• Network interfaces: Realtek 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.4
• Sound card: Realtek ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel

Expansion slots:

• CPU
  1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset
  2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Storage interfaces:

• 4 x SATA 6Gb/s ports
• 4 x M.2
  1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

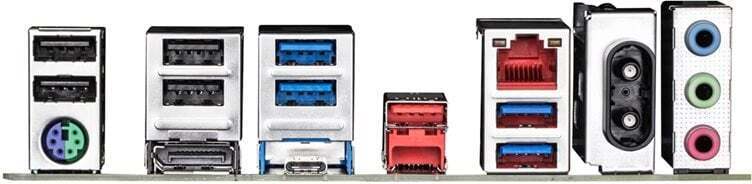

Rear panel connectors

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort (Note)
• 4 x USB 3.2 Gen 1 ports
• 1 x USB4 USB Type-C port (DisplayPort (Note))
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

Internal connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 2 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x power button
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper
