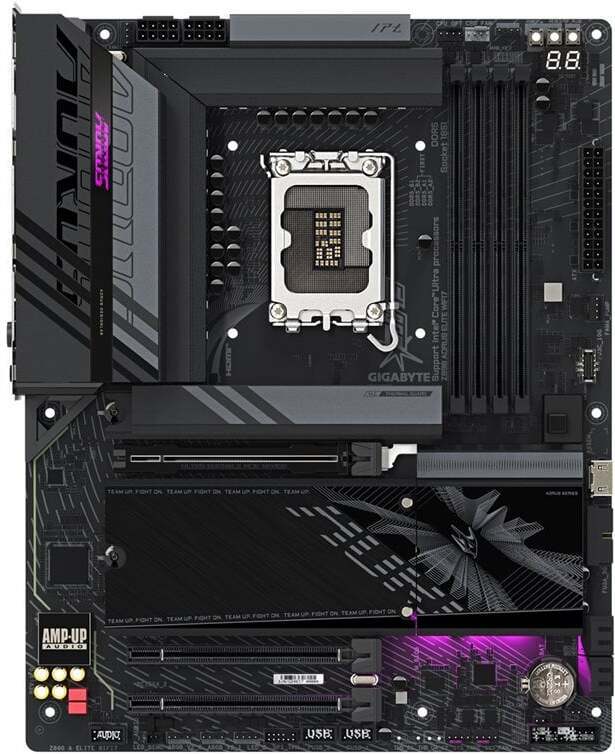

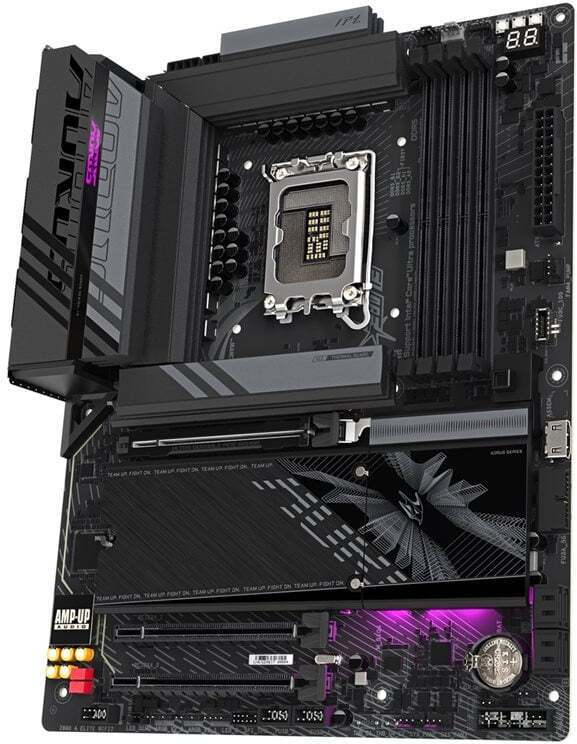

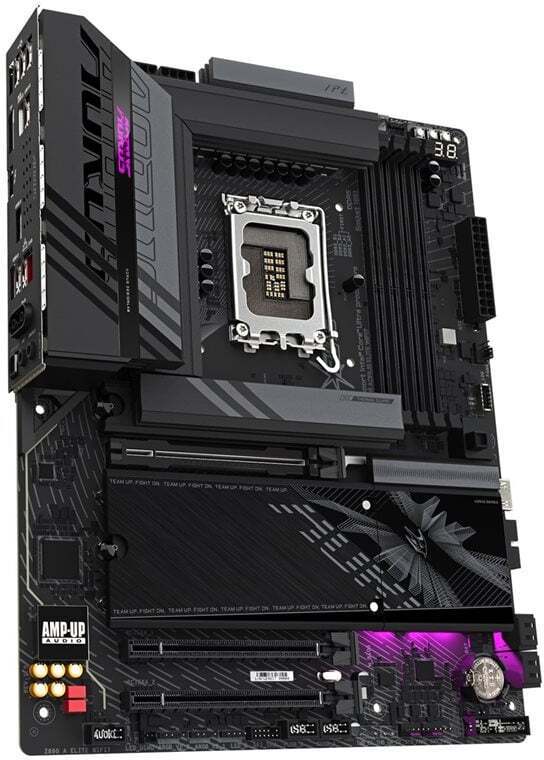

Gigabyte AORUS ELITE WIFI7 is a high-quality ATX motherboard based on the Intel Z890 chipset and supports the LGA 1851 socket. The Z890 series is designed to be compatible with Intel Core Ultra (Series 2) processors.

Z890 motherboards offer AI-PC features, an updated power solution, the latest storage standards, and excellent connectivity options that ensure optimal gaming performance.

– Supports Intel Core Ultra (Series 2) processors.

– 16+1+2 phase power delivery.

– Dual-channel DDR5: 4 x DIMM memory slots with Intel XMP memory module support, 9200(OC) MT/s.

– Ultra-fast storage: 4 x M.2 slots, 1 x PCIe 5.0 x4.

– Fast network connections: 2.5GbE LAN and Wi-Fi 7 with a directional Ultra-high gain antenna.

– Expanded connectivity: Thunderbolt 4 Type-C port with DP-Alt Mode support.

– User-friendly BIOS interface: Multiple themes, AIO fan control, and Q-Flash auto-scan in BIOS and software.

Features:

• Chipset: Intel Z890
• Processor socket: LGA 1851
• Processor support: Intel Core Ultra (Series 2)
• Motherboard size: ATX (12 x 9.6 in)
• Memory slots (pcs): 4
• Memory type: DDR5 (9200(OC) / 9066(OC) / 8933(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600MT/s), Dual Channel, ECC/non-ECC, un-buffered
• Maximum memory size (GB): 256
• Network interfaces: Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4
• Sound card: Realtek ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel

Expansion slots:

• CPU
  1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset
  2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage connections:

• 4 x SATA 6Gb/s ports
• 5 x M.2
  1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

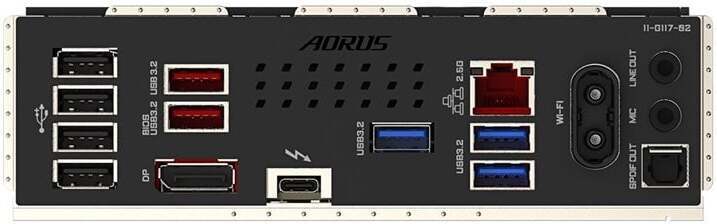

Rear panel connections

• 1 x Intel Thunderbolt 4 connector (USB Type-C port)
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 1 x DisplayPort (Note)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Internal connections

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port (Note)
• 1 x power button
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper
