| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1031816 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 2 010 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

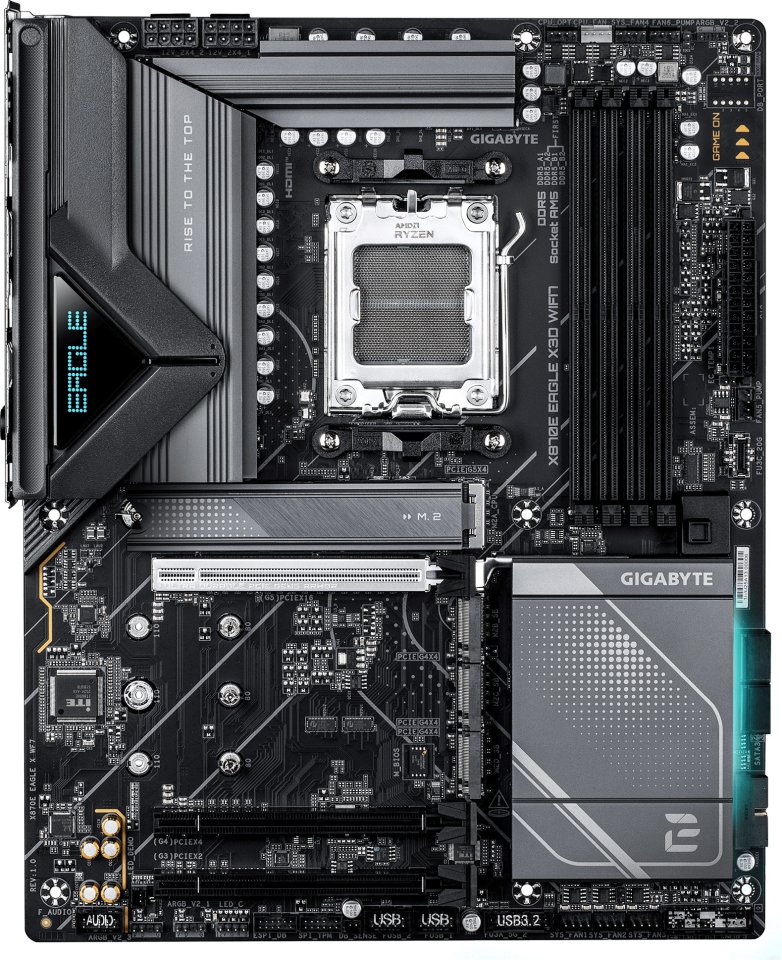

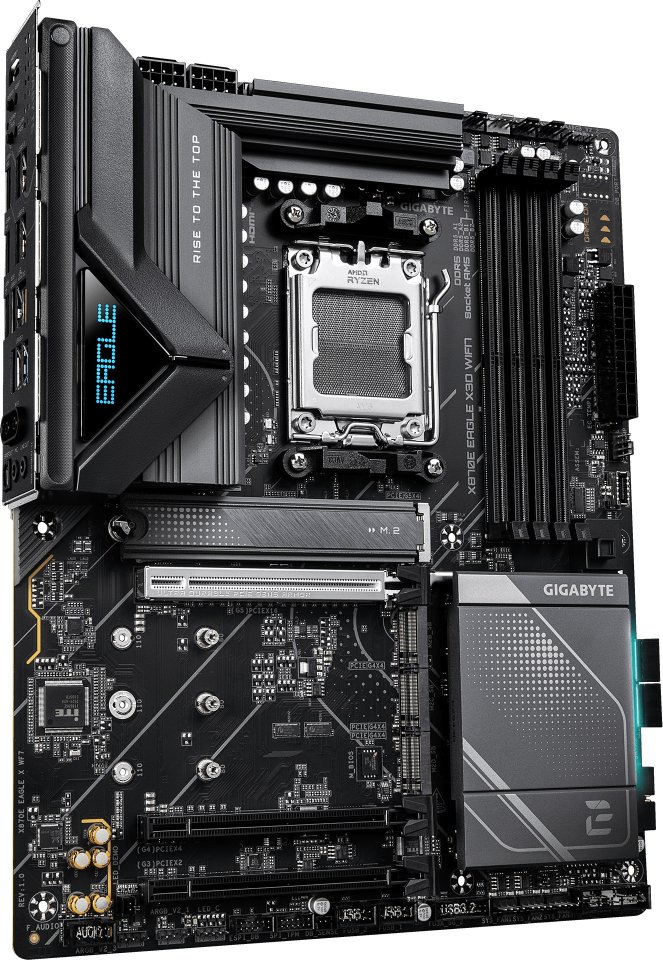

The Gigabyte X870E EAGLE X3D WIFI7 AM5 motherboard provides a robust platform for the latest generation AMD Ryzen processors and DDR5 memory. It is designed for gamers and demanding users who need a powerful, versatile, and modern motherboard with comprehensive connectivity and support for the latest technologies. This ATX-sized motherboard supports high memory clock speeds, multiple storage options, and top-tier networking features that ensure a smooth user experience.
The motherboard is compatible with AMD Ryzen 7000, 8000, and 9000 series processors, which fit the AM5 socket. This guarantees the latest performance improvements and long service life. The motherboard chipset is AMD X870E, supporting the latest PCI Express 5.0 bus and providing efficient power delivery with two 8-pin EPS power connectors. Cooling is handled by a passive solution, and there are multiple fan headers, including two for CPU fans and three for water pumps.
The Gigabyte X870E EAGLE X3D WIFI7 supports DDR5-SDRAM memory type, four DIMM slots, and dual-channel memory with a maximum capacity of 256 GB (64 GB per slot). Memory clock speeds reach up to 9000 MHz, enabling extremely fast and efficient memory usage. On the storage side, there are four M.2 slots supporting PCI Express 5.0 and 4.0 standards, as well as four SATA III connectors. RAID support is available for levels 0, 1, 5, and 10, offering flexibility and security for storage needs.

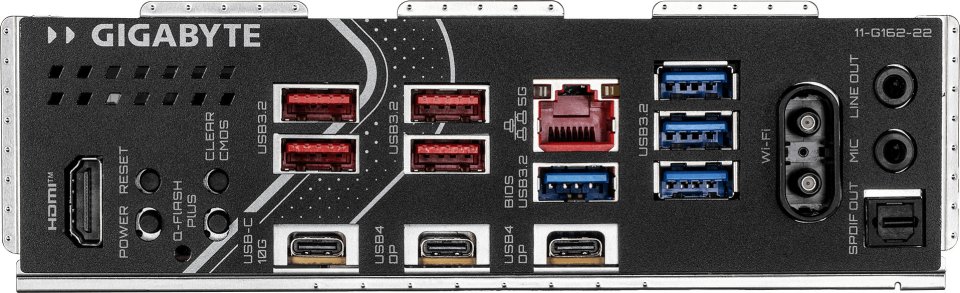

The motherboard offers a wide range of USB ports: two USB 2.0 ports, six USB 3.2 Gen 1/Gen 2 ports (including one USB-C), and two USB4 Gen 2×2 ports. Display connections include an HDMI 2.1 port and DisplayPort 1.4, supporting resolutions up to 4096 x 2304 pixels. Network connections are handled via 2.5 Gb and 5 Gb Ethernet with a Realtek RTL8126 controller, as well as Wi-Fi 7 (802.11be) standard with a Qualcomm QCNCM865 controller. Bluetooth 5.4 is also supported. Audio is powered by the Realtek ALC1220-VB chip, offering 7.1-channel sound and an optical S/PDIF output.
The motherboard includes a TPM connector for security, multiple temperature and noise detection sensors, and RGB LED headers for lighting control. The BIOS is UEFI AMI type with 512 Mbit memory. Operating system support covers Windows 11 x64. The package includes antennas for Wi-Fi connections, screws to facilitate installation, and a CR2032 battery for the BIOS. The warranty is three years.
7 in stock
