| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1031807 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 3 730 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

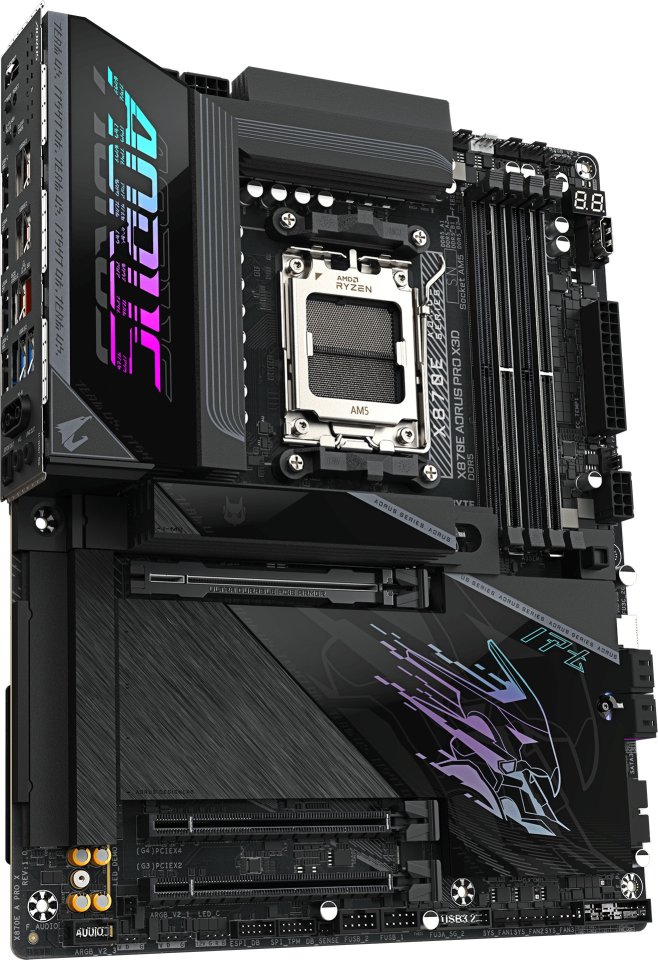

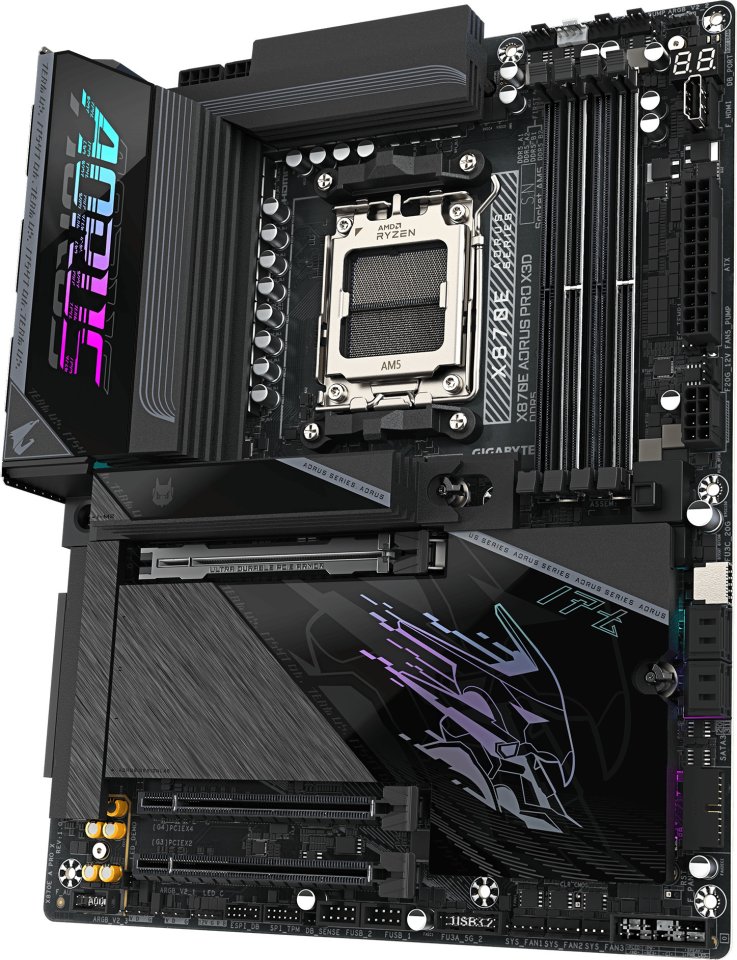

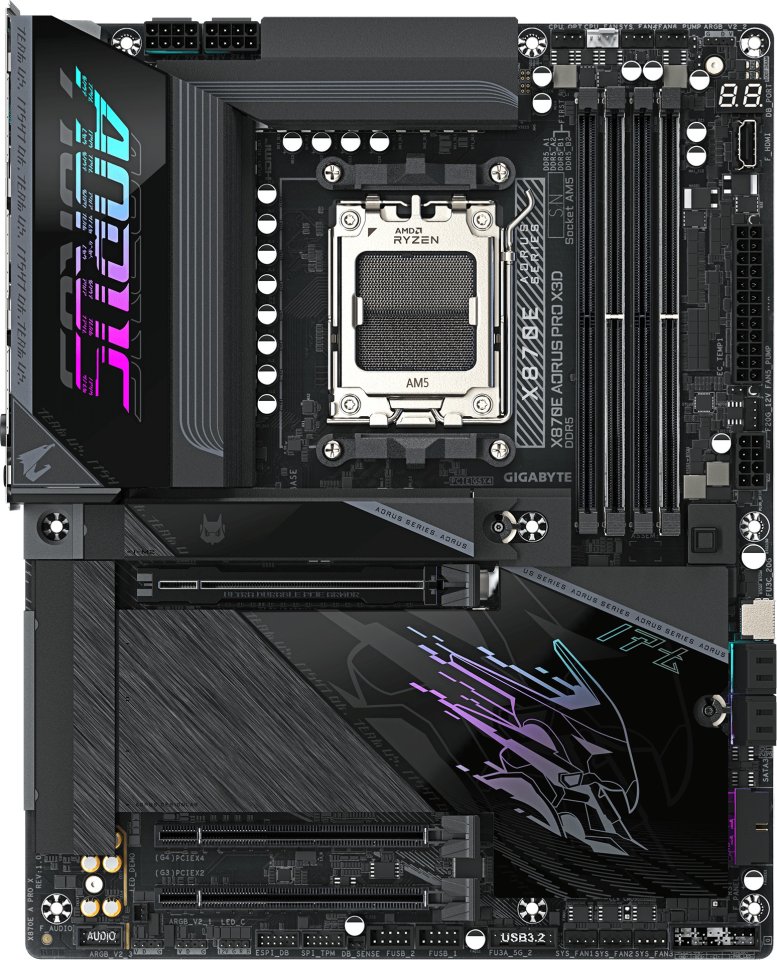

The Gigabyte X870E Aorus PRO X3D AM5 motherboard offers a powerful and versatile platform for AMD Ryzen processors. It supports the latest Ryzen 7000, 8000, and 9000 series processors on the AM5 socket and enables top-tier performance with DDR5 memory. The motherboard is suitable for gamers and demanding users who need a fast and reliable platform with extensive storage and connectivity options.
The motherboard is designed for the AM5 socket and supports AMD Ryzen 7000, 8000, and 9000 series processors, ensuring compatibility with the latest processor technologies. It has four memory slots supporting DDR5-SDRAM memory type. The maximum internal memory can be up to 256 GB, and the memory channels operate in dual-channel mode. Memory speeds can reach up to 9000 MHz, allowing for fast and efficient memory usage.
The Gigabyte X870E Aorus PRO X3D offers versatile storage options. It supports both HDD and SSD drives, with connections including four M.2 slots and four SATA III ports. The M.2 slots support PCI Express 4.0 and 5.0 versions, enabling extremely fast data transfer. RAID support for levels 0, 1, 5, and 10 enhances storage system performance and reliability.

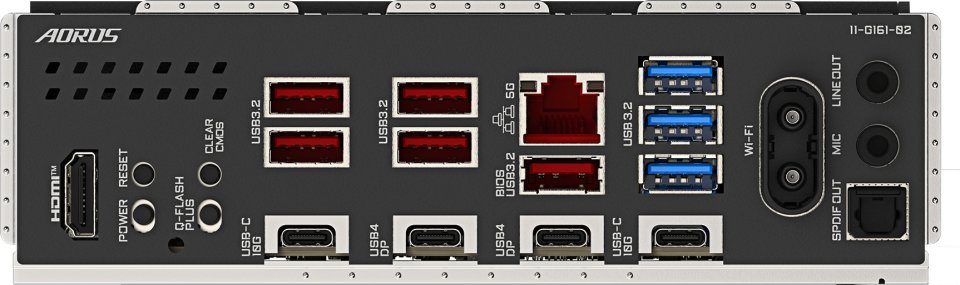

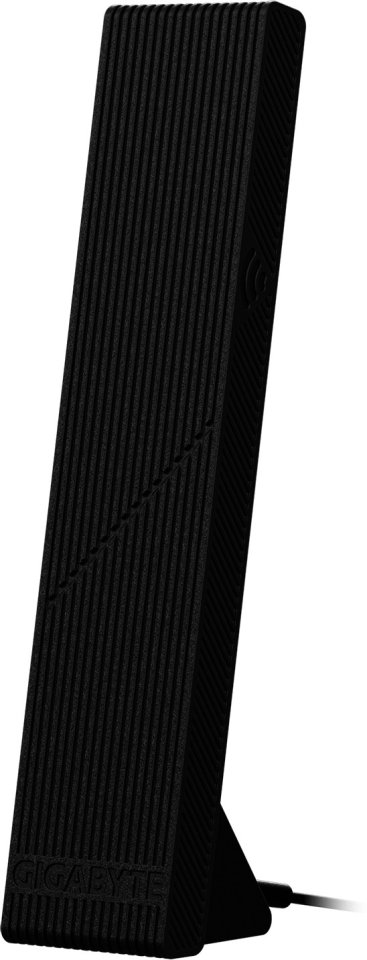

The motherboard features a wide range of USB ports: 2 USB 2.0 ports, 2 USB 3.2 Gen 1 ports, 5 USB 3.2 Gen 2 Type-A ports, 2 Type-C ports, and 2 USB4 Gen 2×2 ports. Additionally, there is an HDMI 2.1 port and a DisplayPort 1.4, supporting up to 4096 x 2304 pixel resolution. Network connections are handled by 2.5 and 5 Gigabit Ethernet ports with a Realtek RTL8126 controller, as well as Wi-Fi 7 wireless connectivity with a Qualcomm QCNCM865 controller. Bluetooth 5.4 is also integrated.
The motherboard features passive cooling and multiple connectors for fans and water pumps, allowing efficient heat management. Two CPU fan connectors and six chassis fan connectors are available. RGB LED lighting is implemented with four LED pins, enabling customizable lighting effects. Additionally, the motherboard includes temperature and noise detection sensors and a TPM connector for security. The BIOS is UEFI AMI type, with 512 Mbit memory, a Clear CMOS button, and a jumper.
1 in stock
The Gigabyte X870E Aorus PRO X3D AM5 motherboard offers a powerful and versatile platform for AMD Ryzen processors. It supports the latest Ryzen 7000, 8000, and 9000 series processors on the AM5 socket and enables top-tier performance with DDR5 memory. The motherboard is suitable for gamers and demanding users who need a fast and reliable platform with extensive storage and connectivity options.
The motherboard is designed for the AM5 socket and supports AMD Ryzen 7000, 8000, and 9000 series processors, ensuring compatibility with the latest processor technologies. It has four memory slots supporting DDR5-SDRAM memory type. The maximum internal memory can be up to 256 GB, and the memory channels operate in dual-channel mode. Memory speeds can reach up to 9000 MHz, allowing for fast and efficient memory usage.
The Gigabyte X870E Aorus PRO X3D offers versatile storage options. It supports both HDD and SSD drives, with connections including four M.2 slots and four SATA III ports. The M.2 slots support PCI Express 4.0 and 5.0 versions, enabling extremely fast data transfer. RAID support for levels 0, 1, 5, and 10 enhances storage system performance and reliability.
The motherboard features a wide range of USB ports: 2 USB 2.0 ports, 2 USB 3.2 Gen 1 ports, 5 USB 3.2 Gen 2 Type-A ports, 2 Type-C ports, and 2 USB4 Gen 2x2 ports. Additionally, there is an HDMI 2.1 port and a DisplayPort 1.4, supporting up to 4096 x 2304 pixel resolution. Network connections are handled by 2.5 and 5 Gigabit Ethernet ports with a Realtek RTL8126 controller, as well as Wi-Fi 7 wireless connectivity with a Qualcomm QCNCM865 controller. Bluetooth 5.4 is also integrated.
The motherboard features passive cooling and multiple connectors for fans and water pumps, allowing efficient heat management. Two CPU fan connectors and six chassis fan connectors are available. RGB LED lighting is implemented with four LED pins, enabling customizable lighting effects. Additionally, the motherboard includes temperature and noise detection sensors and a TPM connector for security. The BIOS is UEFI AMI type, with 512 Mbit memory, a Clear CMOS button, and a jumper.
