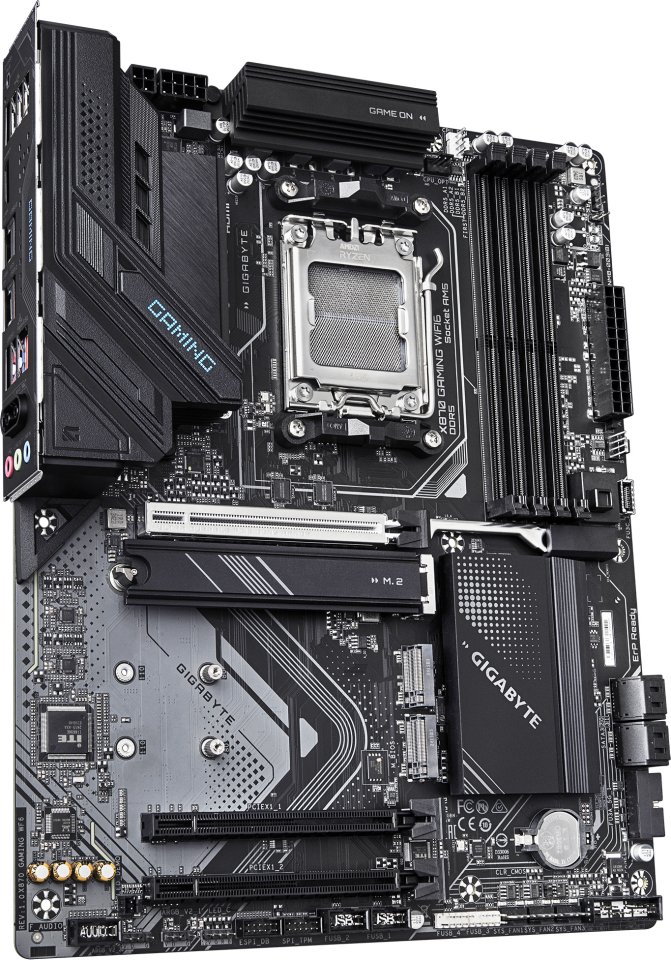

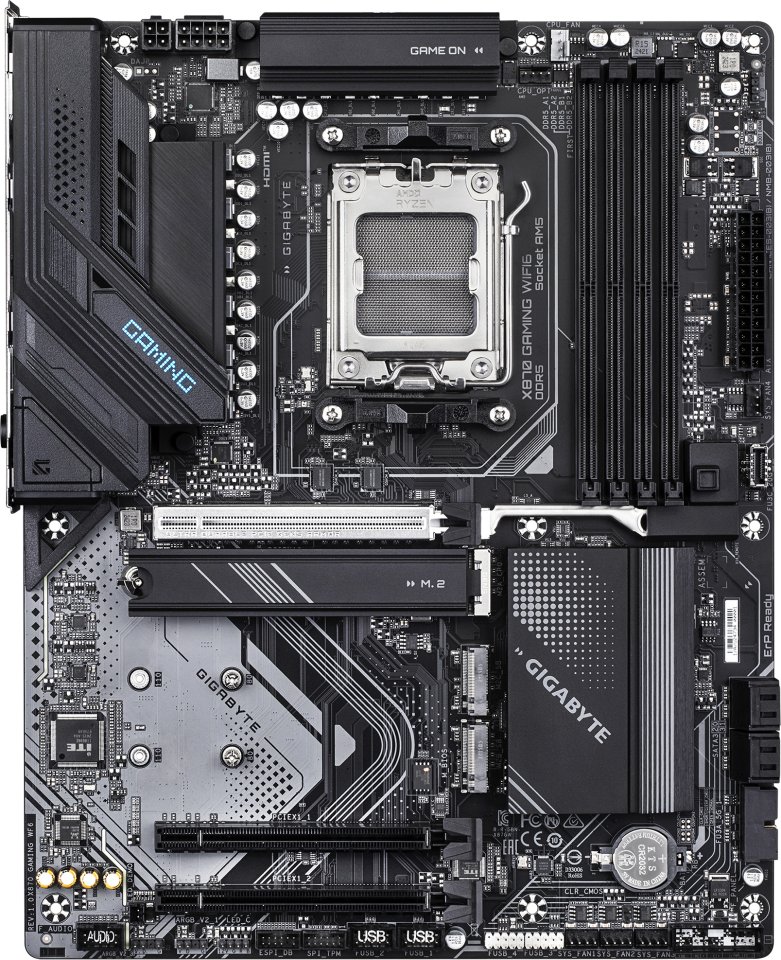

Gigabyte X870 GAMING WIFI6 is a high-quality and durable AM5 socket ATX motherboard for 7000/8000/9000 series Ryzen processors.

X870 motherboards offer AI-PC features, an upgraded power solution, the latest storage standards, and excellent connectivity options that ensure optimal gaming performance.

– AMD AM5 socket: Supports AMD Ryzen 9000 / 8000 / 7000 series processors.

– 8+2+2 phase power delivery.

– Dual-channel DDR5: 4 x DIMM memory slots with AMD EXPO memory module support, 8200(OC) MT/s.

– Ultra-fast storage: 3 x M.2 slots, 1 x PCIe 5.0 x4.

– Fast network connections: 2.5GbE LAN and Wi-Fi 6.

– Extended connectivity: Two USB4 Type-C ports with DP-Alt Mode support, HDMI.

– User-friendly BIOS interface: Multiple themes, AIO fan control, and Q-Flash auto-scan in BIOS and software.

Features:

• Chipset: AMD X870
• Processor socket: AM5
• Processor support: AMD Ryzen 7000 / 8000 / 9000 series
• Motherboard size: ATX (12 x 9.6 inches)
• Memory slots (pcs): 4
• Memory type: DDR5 (8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s), Dual Channel, non-ECC, unbuffered
• Maximum memory capacity (GB): 256
• Network connections: Realtek 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth 5.3
• Sound card: Realtek ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel

Expansion slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 mode
• AMD Ryzen 8000 Phoenix 1 series processors
  1 x PCIe 4.0 x8 mode
• AMD Ryzen 8000 Phoenix 2 series processors
  1 x PCIe 4.0 x4 mode
• AMD X870 Chipset


  2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage connections:

• 4 x SATA 6Gb/s ports
• 3 x M.2
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2
  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2

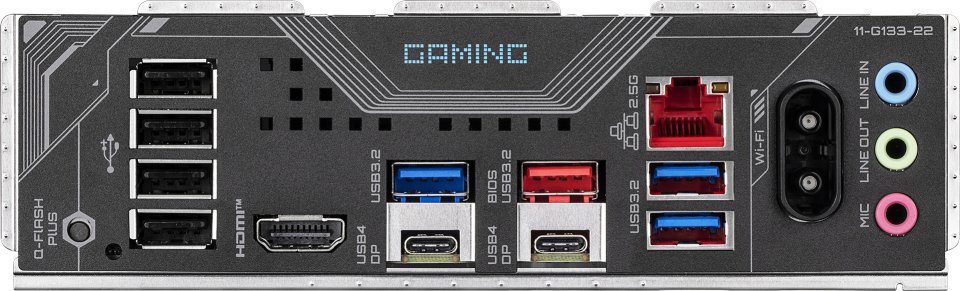

Rear panel connections

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port (Note)
• 2 x USB4 USB Type-C ports (DisplayPort (Note))
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Internal connections

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 3 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header
• 4 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset jumper
• 1 x Clear CMOS jumper
