| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1031819 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 2 420 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870 |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

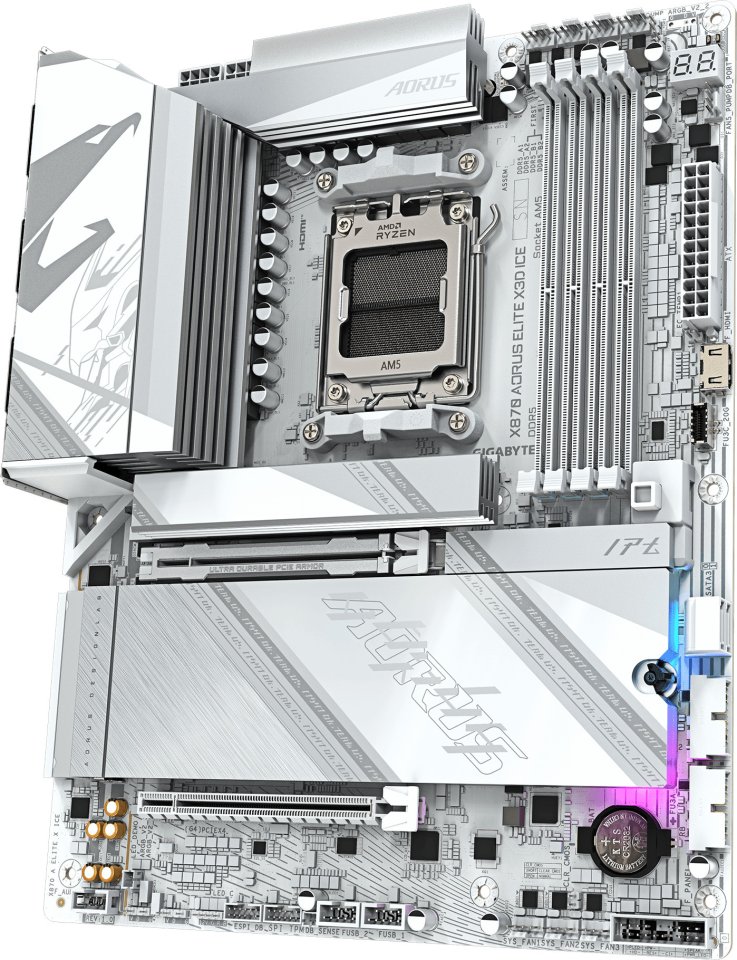

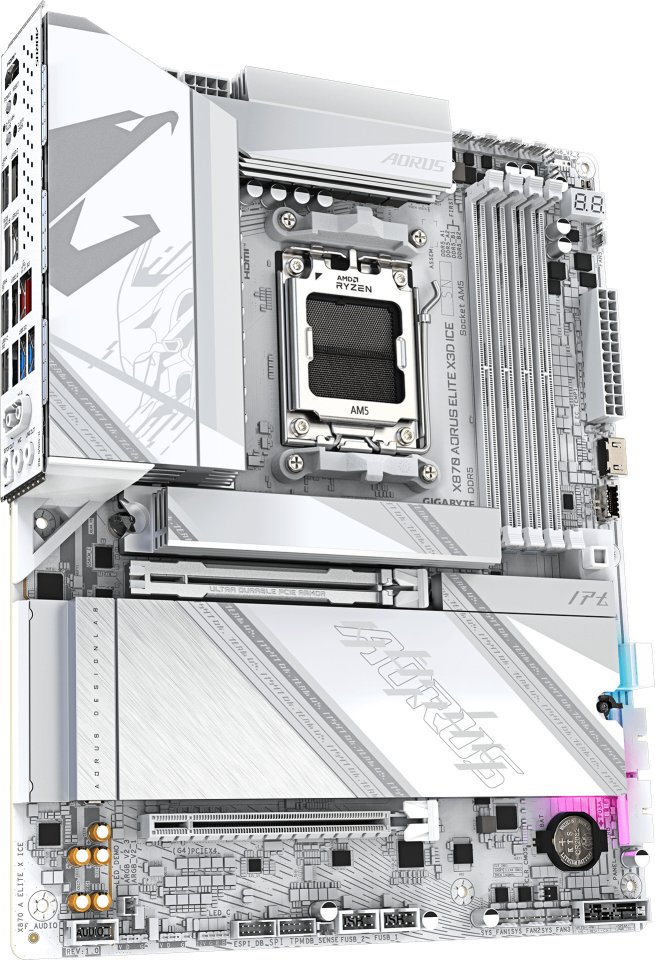

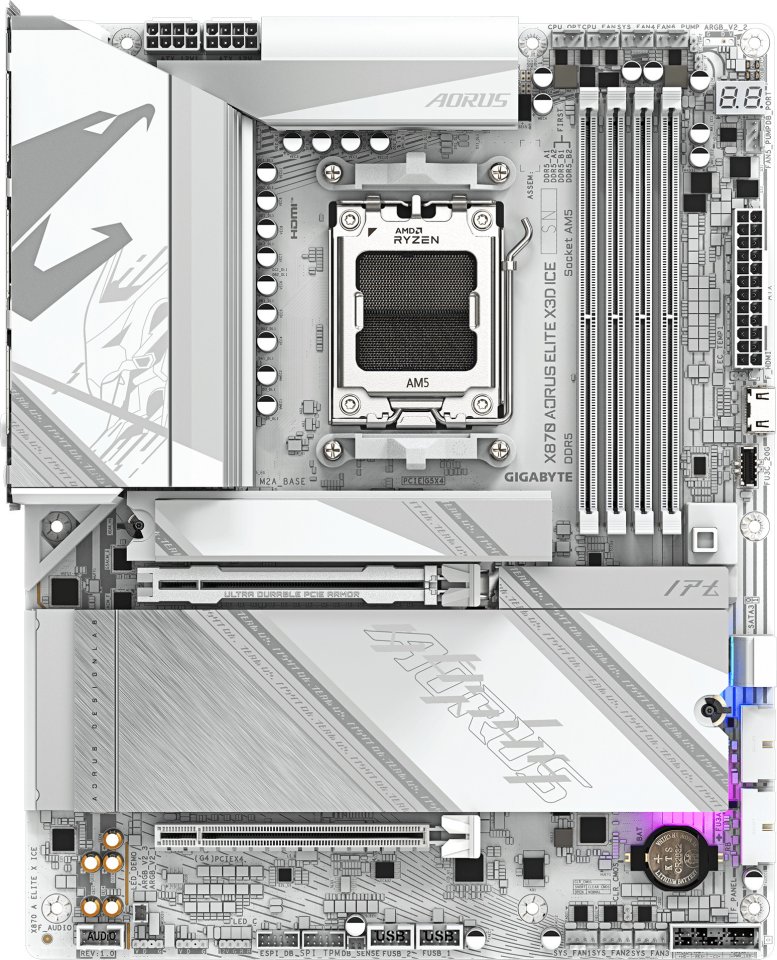

The Gigabyte X870 AORUS ELITE X3D ICE is an ATX-sized motherboard that offers compatibility with the latest AMD Ryzen processors. It is designed for users who need a powerful and versatile platform for high-end performance. The motherboard supports fast DDR5 memory and provides extensive connectivity and storage options, making it suitable for both gaming and demanding work tasks.
The motherboard supports AMD’s Ryzen 7000, 8000, and 9000 series processors with an AM5 socket, ensuring compatibility with the latest processor technologies. There are four memory slots supporting DDR5 SDRAM at speeds up to 9000 MHz. The motherboard can accommodate up to 256 GB of memory, sufficient for the most demanding applications. The memory operates in dual-channel mode and supports non-ECC memory types.
The Gigabyte X870 AORUS ELITE X3D ICE offers versatile storage connections, including four M.2 slots supporting PCIe 4.0 and PCIe 5.0 standards. Additionally, there are two SATA III connectors, and RAID support for levels 0, 1, 5, and 10 enables building a secure and fast storage solution. The motherboard supports a total of six storage drives, both HDD and SSD types.

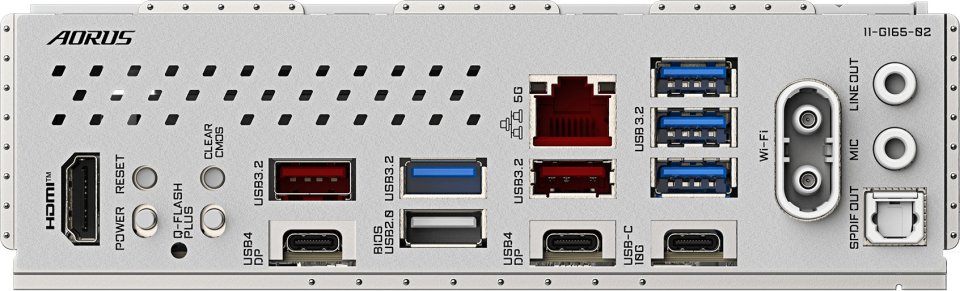

Network connections are versatile and fast: the motherboard features 2.5 Gb and 5 Gb Ethernet ports with a Realtek RTL8126 controller. Wireless connectivity is provided by Wi-Fi 7 (802.11be) with a Qualcomm QCNCM865 controller, and Bluetooth version 5.4. There are numerous USB 2.0, USB 3.2 Gen 1 and Gen 2 ports, as well as USB4 Gen 2×2 ports. For graphics card connections, HDMI 2.1 and DisplayPort 1.4 are available.
The motherboard has a passive cooling solution that keeps components cool without extra noise. There are a total of eight fan headers: two for CPU fans, six for chassis fans, and three for water pump connectors. Additionally, temperature and noise detection sensors assist in system monitoring. RGB LED lighting is implemented with four pin headers, allowing versatile lighting settings.
3 in stock
The Gigabyte X870 AORUS ELITE X3D ICE is an ATX-sized motherboard that offers compatibility with the latest AMD Ryzen processors. It is designed for users who need a powerful and versatile platform for high-end performance. The motherboard supports fast DDR5 memory and provides extensive connectivity and storage options, making it suitable for both gaming and demanding work tasks.
The motherboard supports AMD's Ryzen 7000, 8000, and 9000 series processors with an AM5 socket, ensuring compatibility with the latest processor technologies. There are four memory slots supporting DDR5 SDRAM at speeds up to 9000 MHz. The motherboard can accommodate up to 256 GB of memory, sufficient for the most demanding applications. The memory operates in dual-channel mode and supports non-ECC memory types.
The Gigabyte X870 AORUS ELITE X3D ICE offers versatile storage connections, including four M.2 slots supporting PCIe 4.0 and PCIe 5.0 standards. Additionally, there are two SATA III connectors, and RAID support for levels 0, 1, 5, and 10 enables building a secure and fast storage solution. The motherboard supports a total of six storage drives, both HDD and SSD types.
Network connections are versatile and fast: the motherboard features 2.5 Gb and 5 Gb Ethernet ports with a Realtek RTL8126 controller. Wireless connectivity is provided by Wi-Fi 7 (802.11be) with a Qualcomm QCNCM865 controller, and Bluetooth version 5.4. There are numerous USB 2.0, USB 3.2 Gen 1 and Gen 2 ports, as well as USB4 Gen 2x2 ports. For graphics card connections, HDMI 2.1 and DisplayPort 1.4 are available.
The motherboard has a passive cooling solution that keeps components cool without extra noise. There are a total of eight fan headers: two for CPU fans, six for chassis fans, and three for water pump connectors. Additionally, temperature and noise detection sensors assist in system monitoring. RGB LED lighting is implemented with four pin headers, allowing versatile lighting settings.
