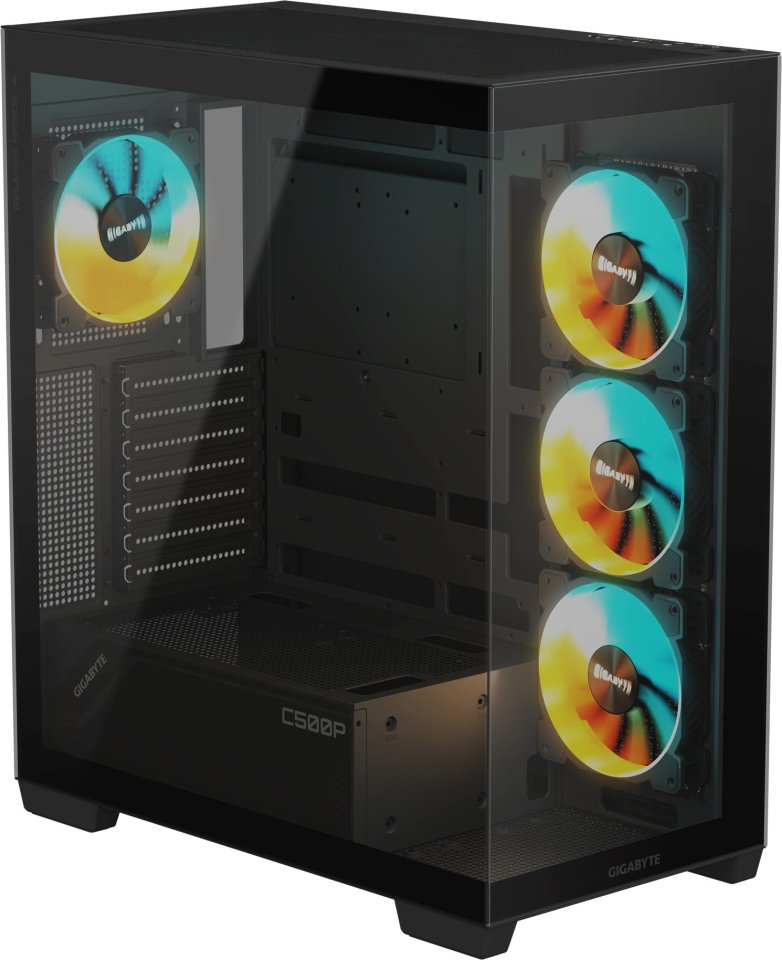

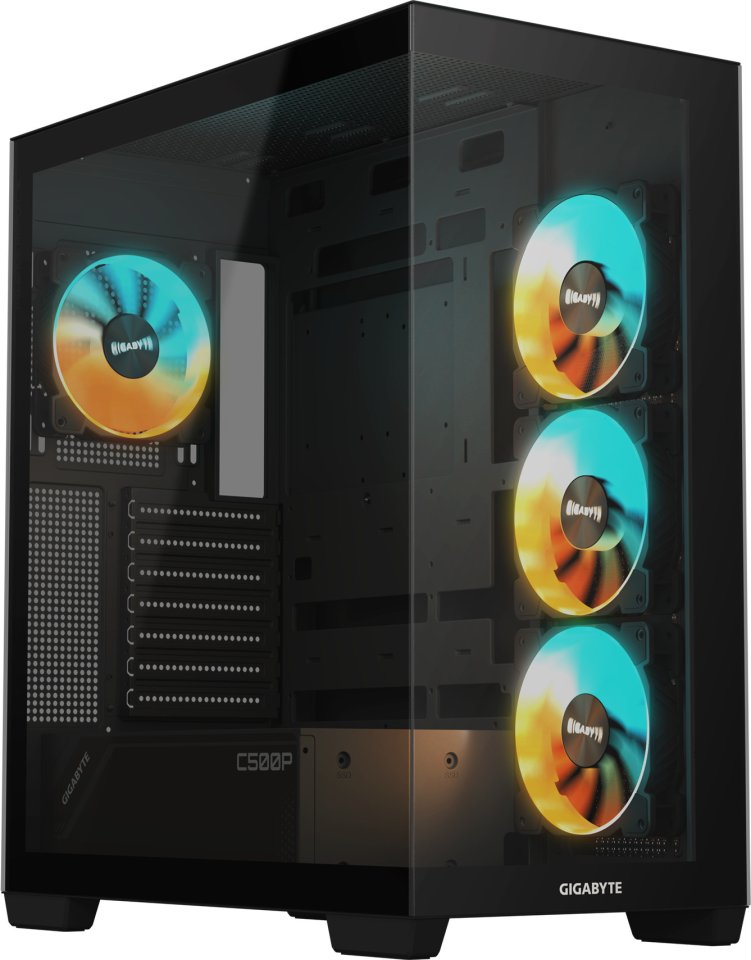

Gigabyte Panoramic Stealth GB-C500P ST is an ATX Mid Tower case combining stylish design and efficient ventilation, bringing a new dimension to PC building. The panoramic tempered glass on the front and side panels offers stunning views of the internal components, while the optimized airflow design keeps the system cool.

Modern RGB lighting and ventilation

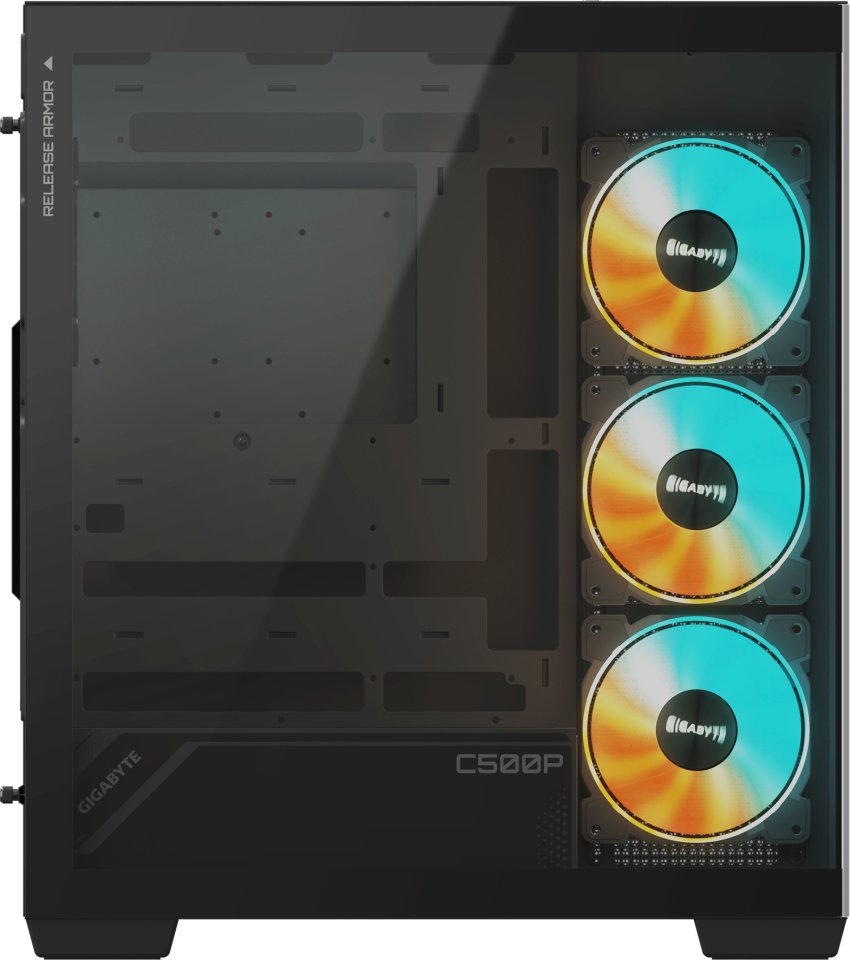

The case comes with four pre-installed ARGB fans that create impressive lighting and effective ventilation. RGB Fusion support with an ARGB connector hub allows lighting synchronization with other Gigabyte components. The fans are positioned on the side and rear to ensure optimal airflow in all situations.

Versatile installation options

The case supports Back-Connect motherboard design and is compatible with the Gigabyte Stealth series. Vertical GPU installation is possible with five slot spaces, giving the striking component the attention it deserves. The case accommodates GPUs up to 410 mm long and CPU coolers up to 176 mm tall.

Comprehensive connectivity and cooling options

The I/O panel features a USB 3.2 Gen2 Type-C connector and two USB 3.0 ports. Radiators can be installed on the top, side, and rear, with a maximum supported size of 360 mm. Dust filters on the top, side, and bottom keep the interior clean.

Technical specifications

• Case type: ATX mid tower
• Supported motherboards: Mini ITX / Micro ATX / ATX
• Dimensions: H=501 W=235 D=430 mm
• Expansion slots: 7 pcs
• 3.5″ drive bays: 2 pcs
• 2.5″ drive bays: 1 + 2 pcs (replaces 3.5″ bays)
• Fan support: Top 120 mm×3 / 140 mm×2, Bottom 120 mm×3, Side 120 mm×3, Rear 120 mm×1 / 140 mm×1
• Radiator support: Top max 360 mm, Side max 360 mm, Rear max 140 mm
• Maximum CPU cooler height: 176 mm
• Maximum GPU length: 410 mm
• Maximum PSU length: 200 mm
• Weight: 8.1 kg

Package contents

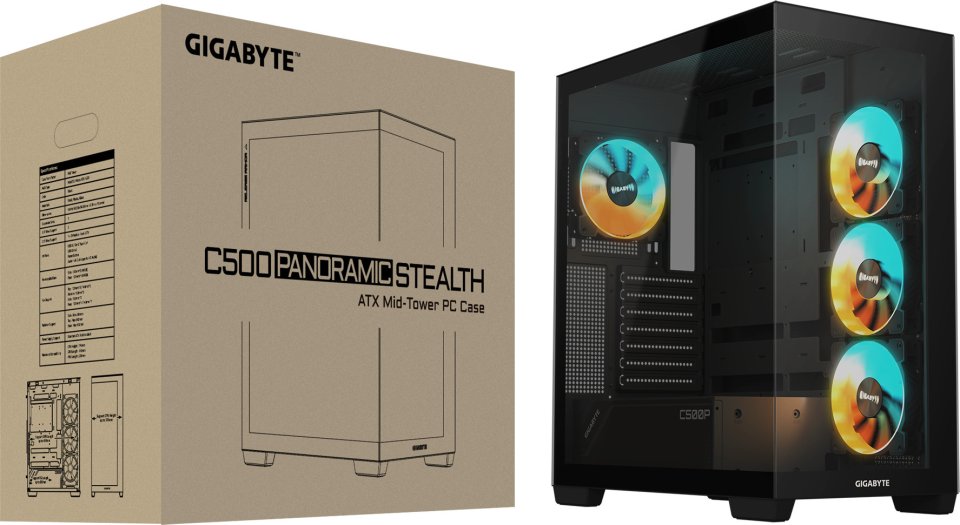

• Gigabyte Panoramic Stealth GB-C500P ST case
• User manual
• Installation accessory kit
