| Color | Brown |
|---|---|
| Country of Origin | China |
| PID | 1038695 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 990 |
| Product width (mm) | 244 |
| WiFi | No |
| Motherboard Chipset | Intel B760 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | LGA 1700 |
| Maximum supported memory (Gt) | 128 |
| Number of RAM slots | 4 |
| Supported RAM | DDR4 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

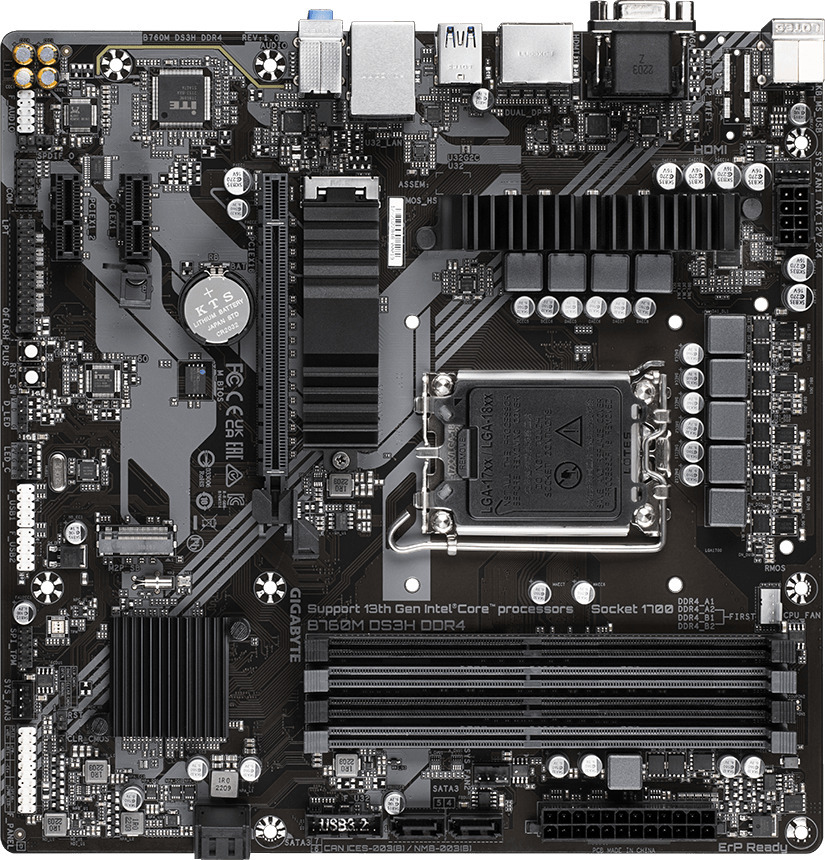

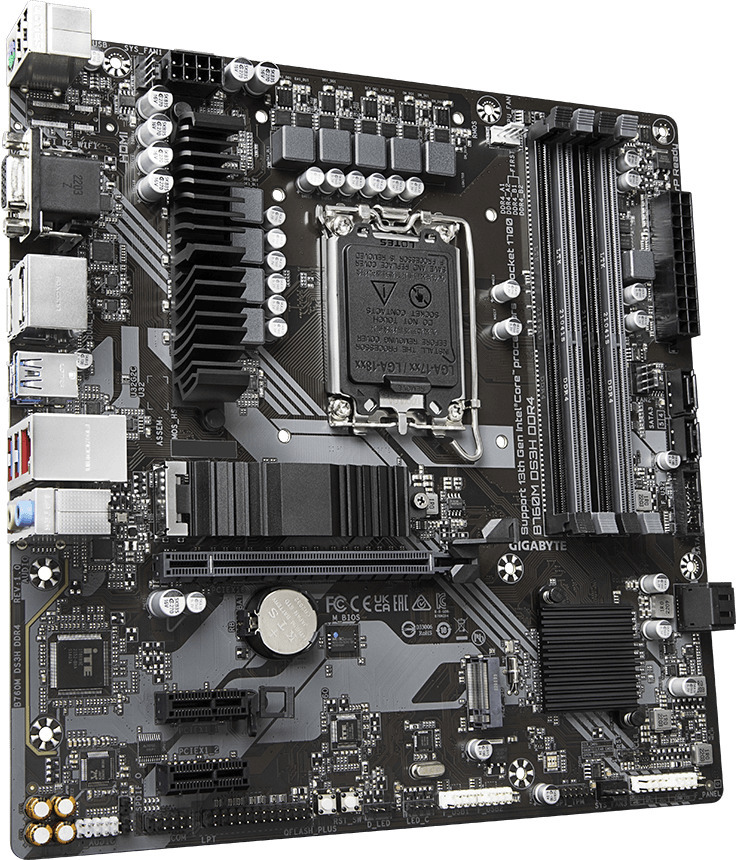

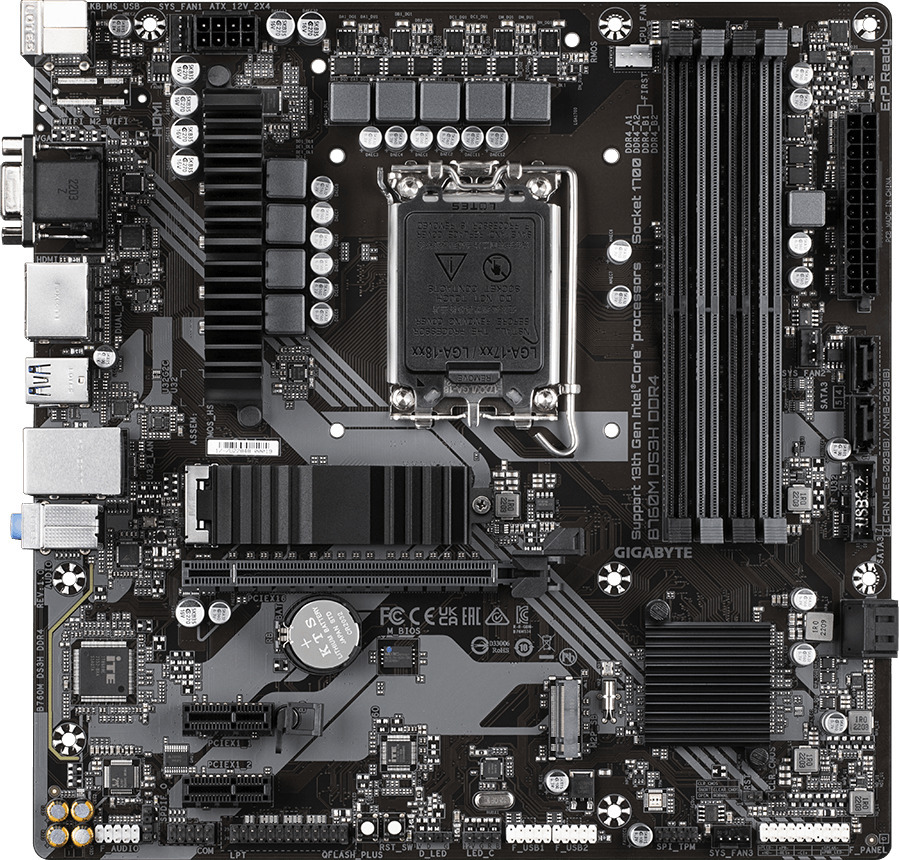

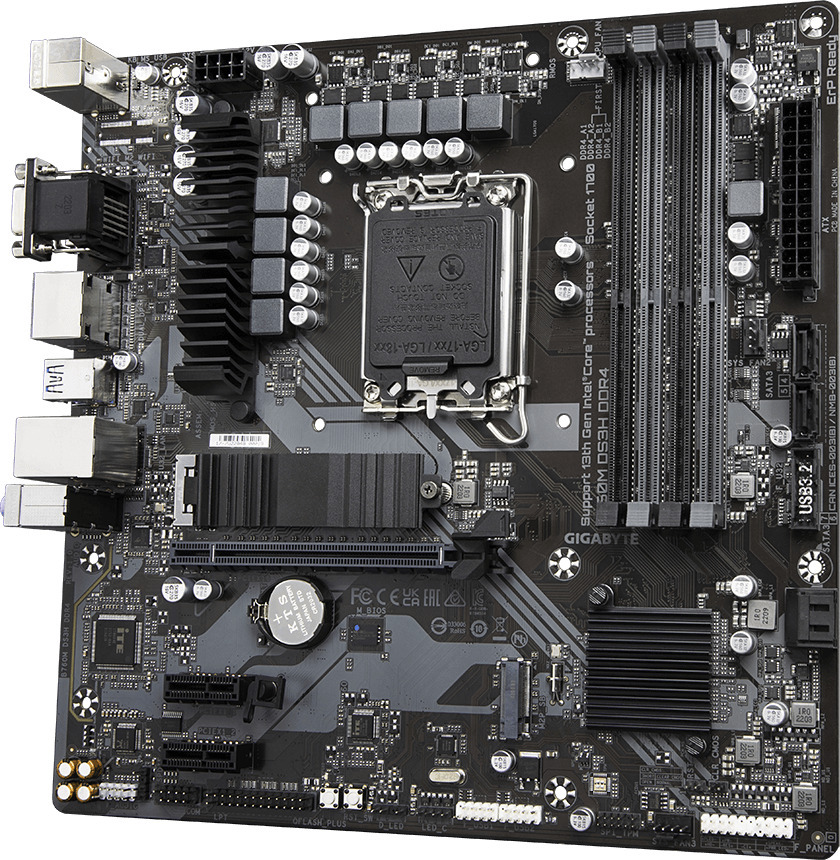

The GIGABYTE B760M DS3H DDR4 is a micro ATX motherboard designed for Intel’s 12th and 13th generation processors with an LGA 1700 socket. It supports a wide range of Intel processors from Core i3 to i9, as well as Pentium Gold and Celeron models. The motherboard allows up to 128 GB of DDR4 memory across four DIMM slots, supporting dual-channel memory operation and versatile clock speeds up to 5333 MHz.
There are a total of six drive bays, four of which are SATA III connectors and two M.2 slots that support both SSD and HDD drives. RAID functions (levels 0, 1, 5, and 10) enable flexible storage management and redundancy.

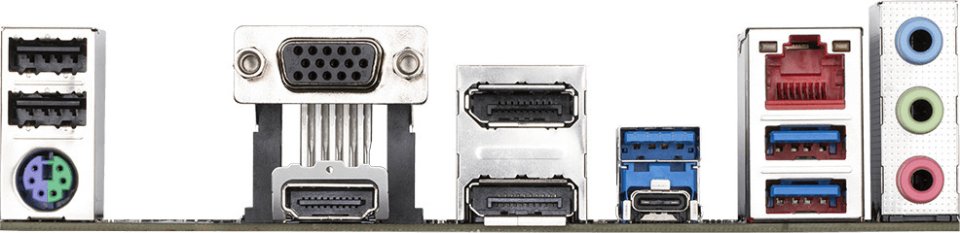

The motherboard features multiple USB ports, including USB 3.2 Gen 2 Type-C and several USB 3.2 Gen 1 and USB 2.0 ports. Display connections include HDMI, DisplayPorts, and VGA, supporting up to four simultaneous displays at 4K resolution. Network connectivity is provided via 2.5 Gb Ethernet.
Audio supports a 7.1-channel system, and the motherboard includes multiple fan connectors to enable system thermal management. Additionally, there is an RGB LED pin header for enhanced lighting effects.
The motherboard includes UEFI AMI BIOS, a TPM connector for security, and a Clear CMOS jumper. It supports Windows 10 and 11 operating systems and is designed for a PC platform with ATX power connectors and versatile connectivity options.
3 in stock
