| Color | Brown |
|---|---|
| Country of Origin | China |
| PID | 1038698 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 1 560 |
| Product width (mm) | 305 |
| WiFi | No |
| Motherboard Chipset | Intel B760 |
| Motherboard form factor | ATX |
| Processor Socket | LGA 1700 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

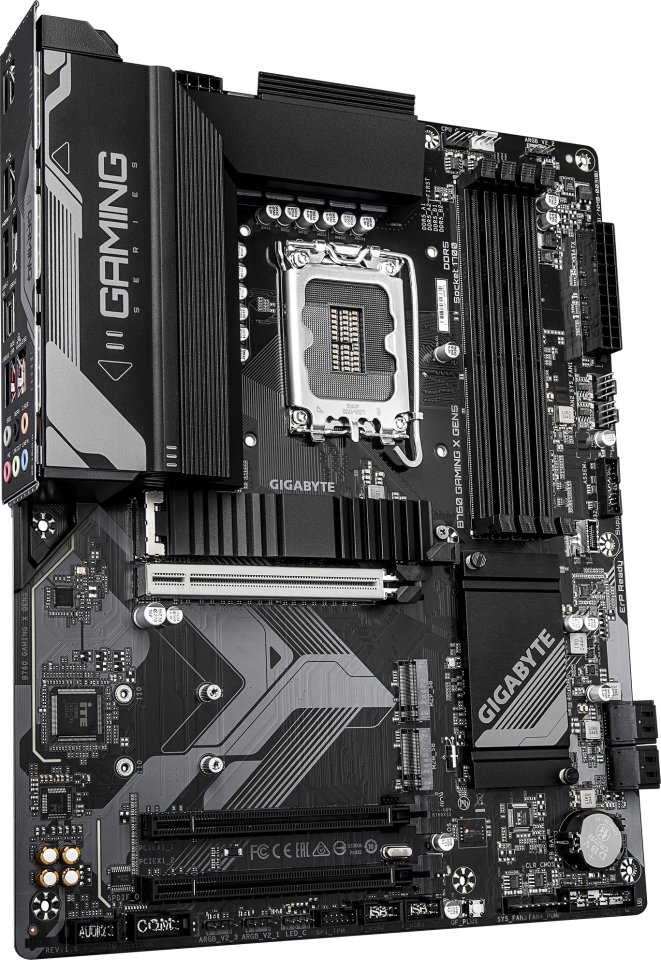

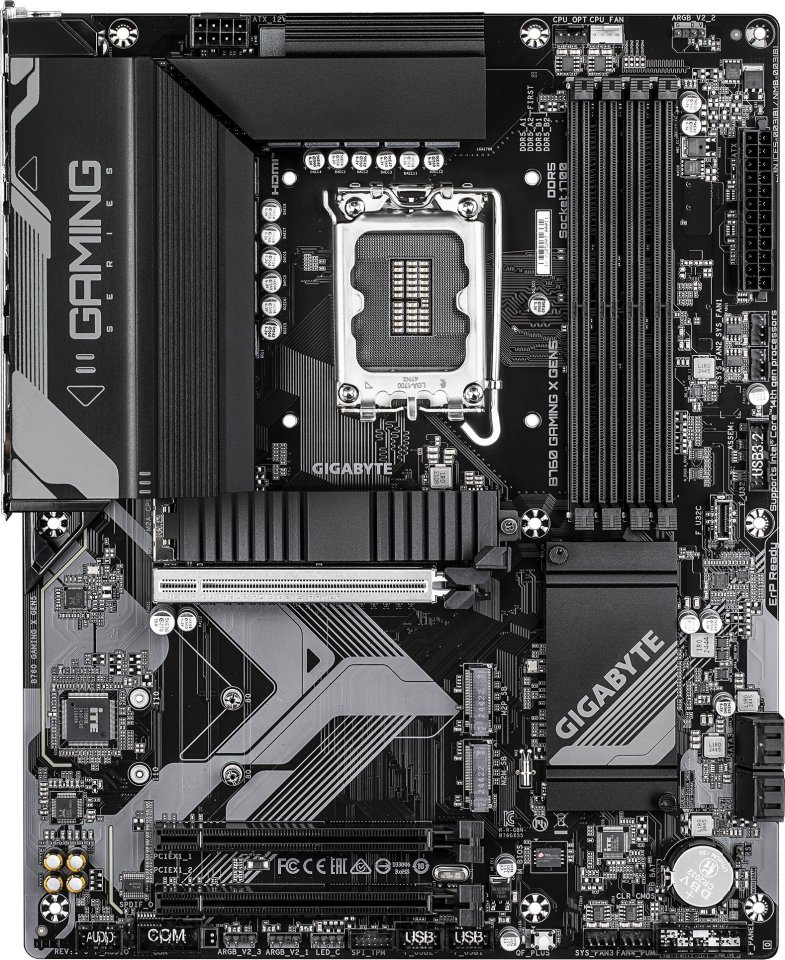

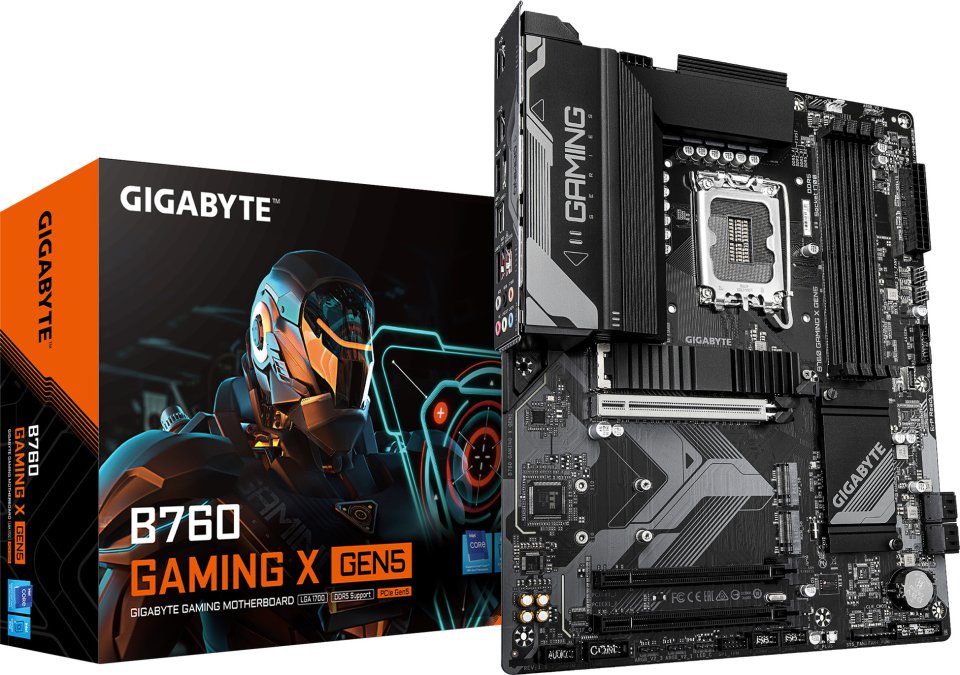

The GIGABYTE B760 GAMING X GEN5 is an ATX-sized motherboard designed for Intel processors with an LGA 1700 socket. It supports 12th, 13th, and 14th generation Intel Core, Pentium, and Celeron processors, offering versatile options for gaming and efficient work. The motherboard uses the Intel B760 chipset and supports DDR5 memory with speeds up to 5600 MHz, with a maximum capacity of 256 GB across four DIMM slots.
The motherboard has four DIMM slots for DDR5 memory operating in dual-channel mode. It supports both ECC and non-ECC memory, allowing for memory stability when needed. Storage options are extensive: three M.2 slots with PCIe 4.0 connectivity and four SATA III ports enable building fast and versatile storage. RAID 0, 1, 5, and 10 support adds flexibility to the storage system.

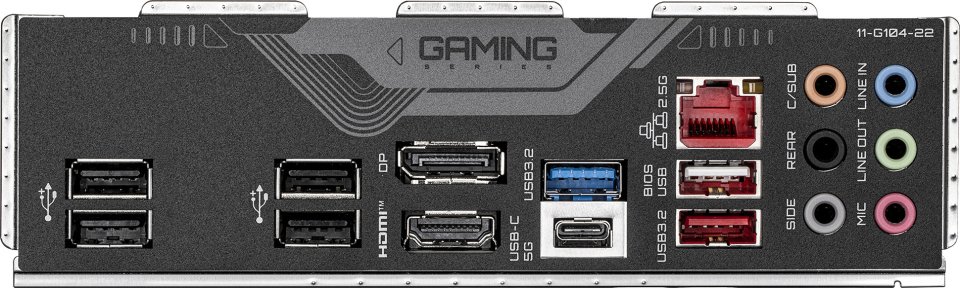

There are three PCI Express slots in total: one PCIe 5.0 x16 and two PCIe 3.0 x16, providing space for powerful graphics cards and other expansion cards. Connectivity is abundant, including USB 3.2 Gen 2 and Gen 1 ports, HDMI 2.1, and DisplayPort 1.2. Networking is handled by a 2.5 Gb Ethernet Realtek RTL8125 controller.
The motherboard features a passive cooling solution, multiple fan headers, and water pump connectors supporting versatile cooling configurations. System status can be monitored for fans, temperatures, and voltages. A TPM header enhances security options. RGB LED lighting is included, with four RGB pin headers allowing customizable lighting effects.
The motherboard supports 64-bit versions of Windows 10 and 11. The BIOS is of the UEFI AMI type with 256 Mbit storage capacity. A Clear CMOS jumper facilitates resetting settings. The product includes a CR2032 battery for the BIOS.
3 in stock
