Gigabyte motherboards support AMD’s latest Ryzen 5000 series processors and are backward compatible with Ryzen 4000 and 3000 series processors.

Gigabyte 500 series motherboards maximize the computer’s potential with AMD StoreMI technology, which accelerates traditional storage solutions by reducing boot time and thus improving the user experience. This easy-to-use utility combines the speed of SSDs and the large capacity of hard drives into a single drive, enhancing the device’s read/write speeds to match those of SSDs.

Features:

• Chipset: AMD B550
• Processor socket: AMD Socket AM4
• Processor support: Ryzen 5000, 4000, 3000
• Motherboard size: ATX, 30.5 x 24.4 cm
• Memory slots (pcs): 4
• Memory type: DDR4, dual channel
• Maximum memory capacity (GB): 128
• Network card: Realtek® GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Sound card: Realtek® ALC887 codec
• RGB Fusion
• Smart Fan 5
• Operating system support: Win 10 64 bit

Expansion slots

• 1 x PCI Express x16 slot (PCIEX16)
• 1 x PCI Express x16 slot (PCIEX2)
• 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3)

Storage connections

• 4 x SATA 6 Gb/s ports
• 2 x M.2 Socket 3

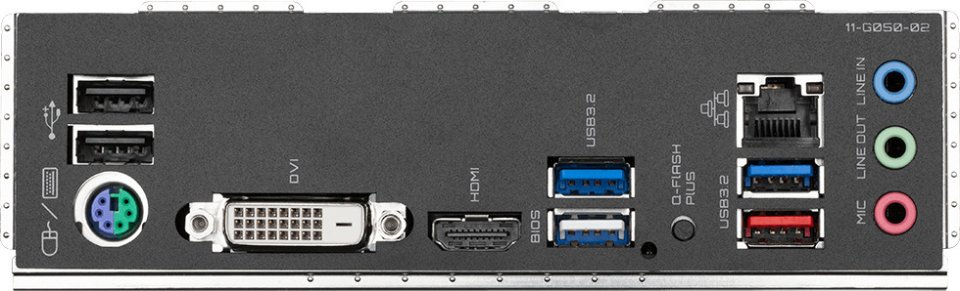

Rear panel connections

• 3 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A
• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse
• 1 x HDMI
• 1 x DVI-D
• 1 x RJ-45
• 1 x Q-Flash Plus button
• 3 x Audio jacks

Internal connections

• 1 x 24-pin ATX Main Power connector
• 1 x 8-pin ATX +12V Power connector
• 2 x M.2 Socket 3
• 4 x SATA 6 Gb/s ports
• 1 x CPU Fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 Type-C header
• 2 x USB 2.0/1.1 headers
• 1 x Clear CMOS jumper
• 1 x TPM header
