| Color | Brown |
|---|---|
| Country of Origin | China |
| PID | 1038686 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product weight (g) | 1 250 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 6 (802.11ax) |
| Motherboard Chipset | AMD B550 |
| Motherboard form factor | ATX |
| Processor Socket | AM4 |
| Maximum supported memory (Gt) | 128 |
| Number of RAM slots | 4 |
| Supported RAM | DDR4 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |
The GIGABYTE B550 EAGLE WIFI6 is an ATX-sized motherboard designed for AMD’s AM4 socket Ryzen 3000, 4000, and 5000 series processors. It offers versatile connectivity and supports powerful DDR4 memory up to 128 GB. The motherboard features the B550 chipset, which enables PCIe 4.0 support and provides excellent expansion options for both storage and graphics cards.
The motherboard supports AMD Ryzen processors with the AM4 socket, including the latest 5000 series models. It has one PCIe 4.0 x16 slot for a graphics card and four PCIe 3.0 x1 slots for additional cards. This ensures sufficient performance and expandability for a variety of use cases.
There are four memory slots supporting DDR4 memory at speeds up to 3200 MHz. You can install up to a total of 128 GB of memory. Storage options include two M.2 slots, one of which supports the PCIe 4.0 standard, and four SATA III ports. RAID 0, 1, and 10 support allows flexible management of storage space.

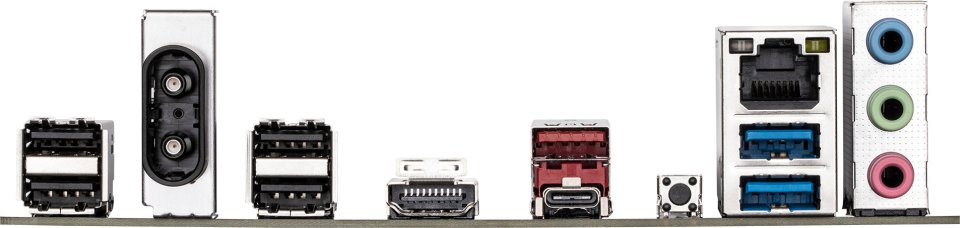

The motherboard includes integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.3, providing modern wireless connections. The Gigabit Ethernet port ensures a stable wired network connection. There are multiple USB ports, including USB 3.2 Gen 2 Type-A and Type-C connectors. The HDMI 2.1 port enables high-quality video output.
The motherboard’s cooling solutions are passive, and it includes several fan connectors as well as a water pump connector. RGB LED lighting allows customization of the appearance. The TPM connector offers additional security, and the UEFI AMI BIOS supports modern management features.
The GIGABYTE B550 EAGLE WIFI6 works with 64-bit versions of Windows 10 and Windows 11 operating systems. It is designed for PC use, and its ATX form factor fits most mid-sized and large cases.
