Gigabyte AORUS ELITE P1000W ICE power supply is ready for future gaming PCs thanks to ATX 3.1 standard and PCIe Gen 5.0 compatibility. This 1000-watt power supply provides enough power for the most demanding setups and is compatible with the latest ATX 3.1 standard.

Efficiency and reliability
80 PLUS Platinum certification guarantees excellent energy efficiency, reaching 92 percent under typical load. It is equipped with 100% Japanese capacitors inside, ensuring long-lasting and stable operation. The heart of the power supply is a powerful single +12V rail that distributes power evenly to all components.

Quiet and compact

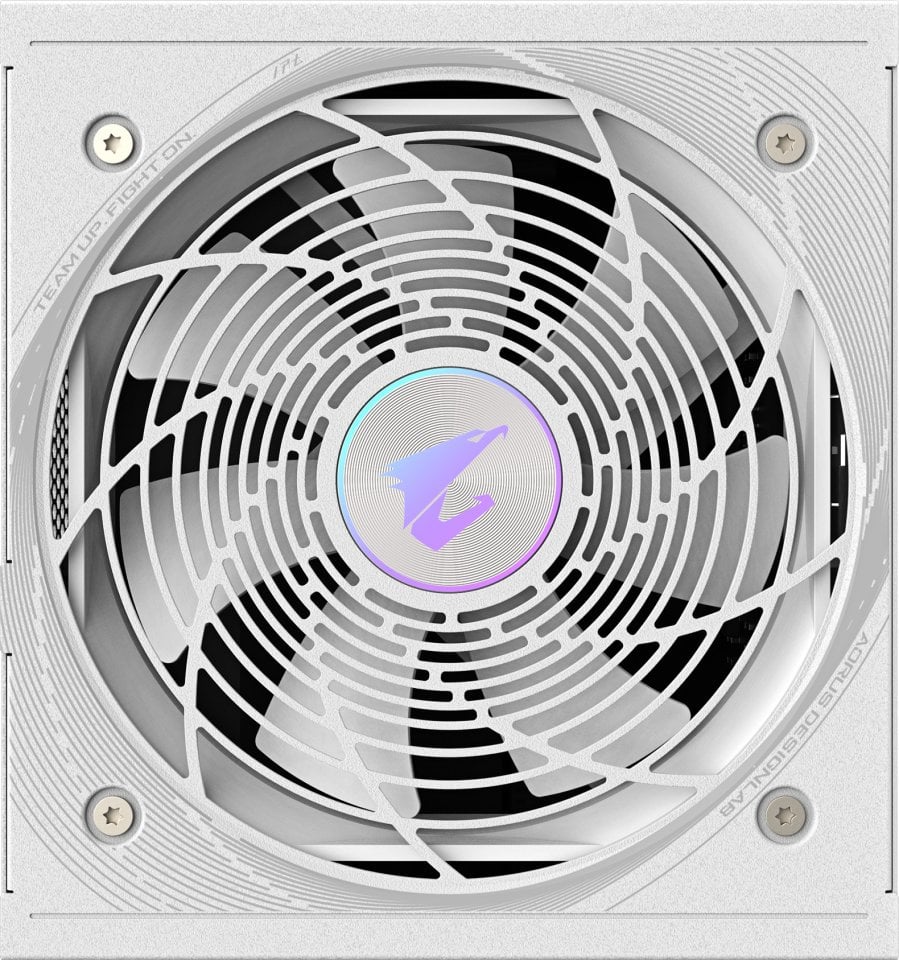

The 120 mm intelligent FDB fan (Fluid Dynamic Bearing) keeps temperatures under control quietly and efficiently. The compact design allows installation even in smaller cases, and the power is sufficient for large setups.

Modular flexibility

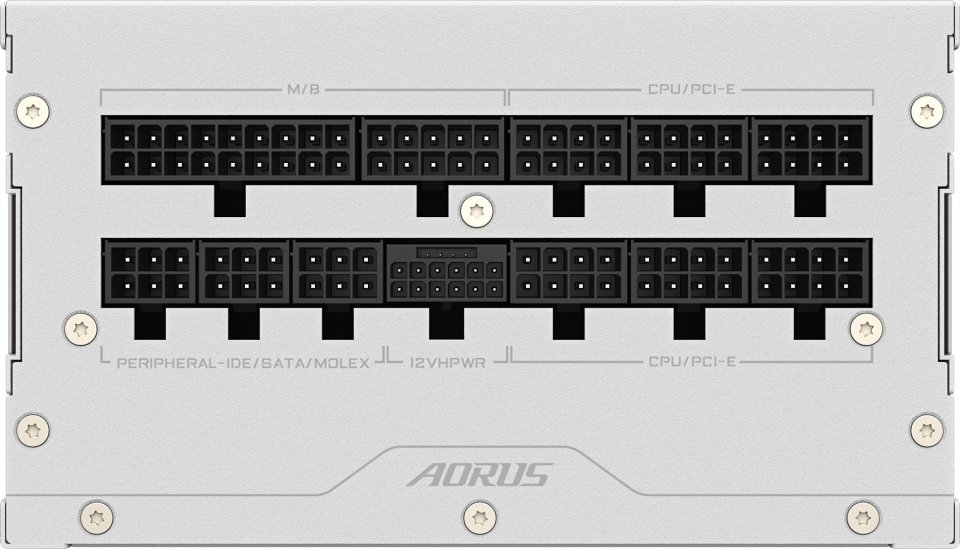

The fully modular design allows you to connect only the cables you need, improving airflow inside the case and making the installation look neat. All cables are white and flat, making them perfect for modern gaming PCs.

Comprehensive protection and warranty
The versatile protection system includes OVP, OPP, SCP, UVP, OCP, and OTP protections, keeping both the power supply and other components safe. A 10-year warranty is included.

Features
• ATX 3.1 and PCIe Gen 5.0 readiness
• 80 PLUS Platinum certification
• 100% Japanese capacitors
• Fully modular design
• 120 mm intelligent FDB fan
• Compact design
• Powerful single +12V rail
• 10-year warranty

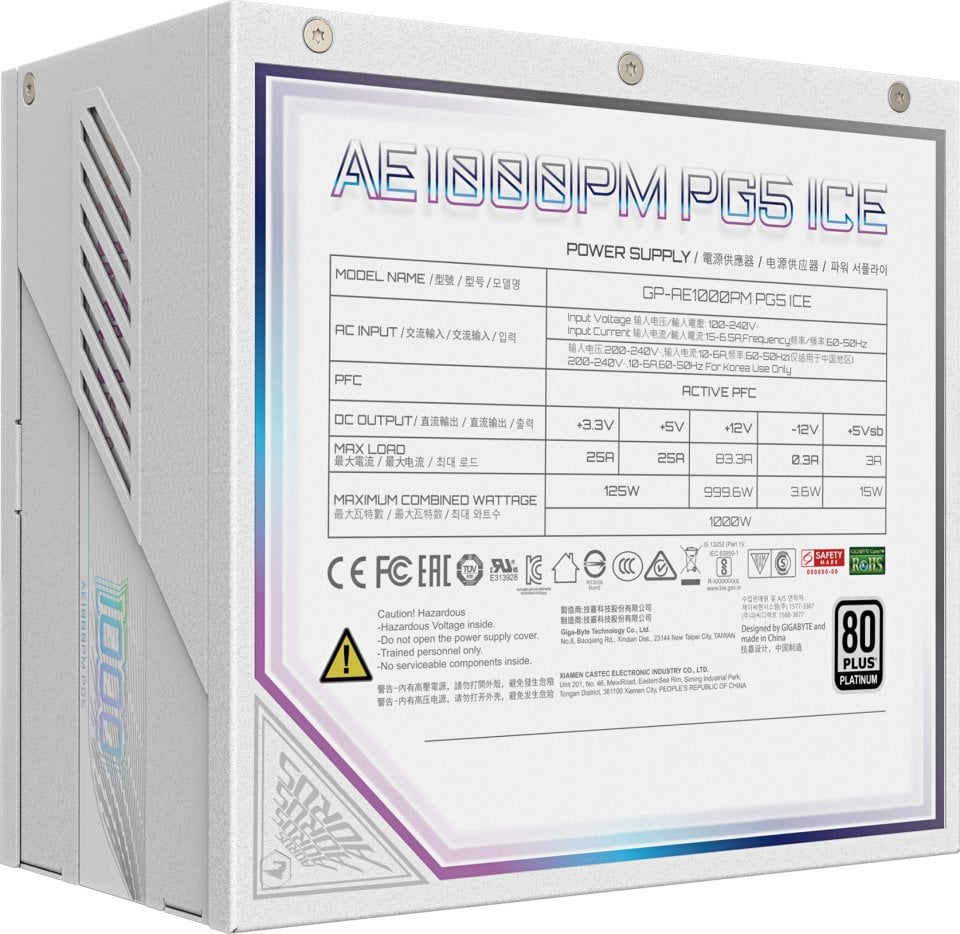

Technical specifications
• Model: GP-AE1000PM PG5 ICE
• Type: Intel Form Factor ATX 12V v3.1
• Input voltage: 100-240 Vac (full range)
• Input current: 15-6.5A
• Input frequency: 60-50 Hz
• Output power: 1000 W
• Dimensions: 150 x 140 x 86 mm
• Efficiency: 92% at typical load
• MTBF: >100,000 hours
• Protections: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good signal: 100-150 ms
• Hold Up Time: >16 ms
• Cable type: Flat white
