| Color | Brown |
|---|---|
| Country of Origin | China |
| PID | 1038674 |
| Product depth (mm) | 244 |
| Product height (mm) | 35 |
| Product width (mm) | 244 |
| WiFi | No |
| Motherboard Chipset | AMD A620 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 192 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

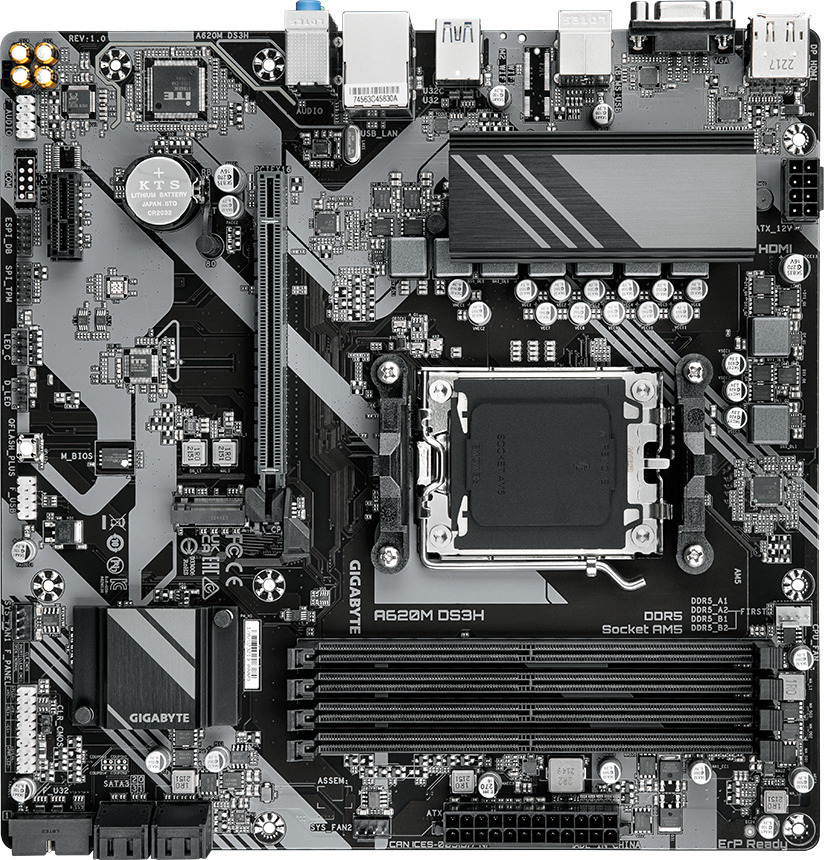

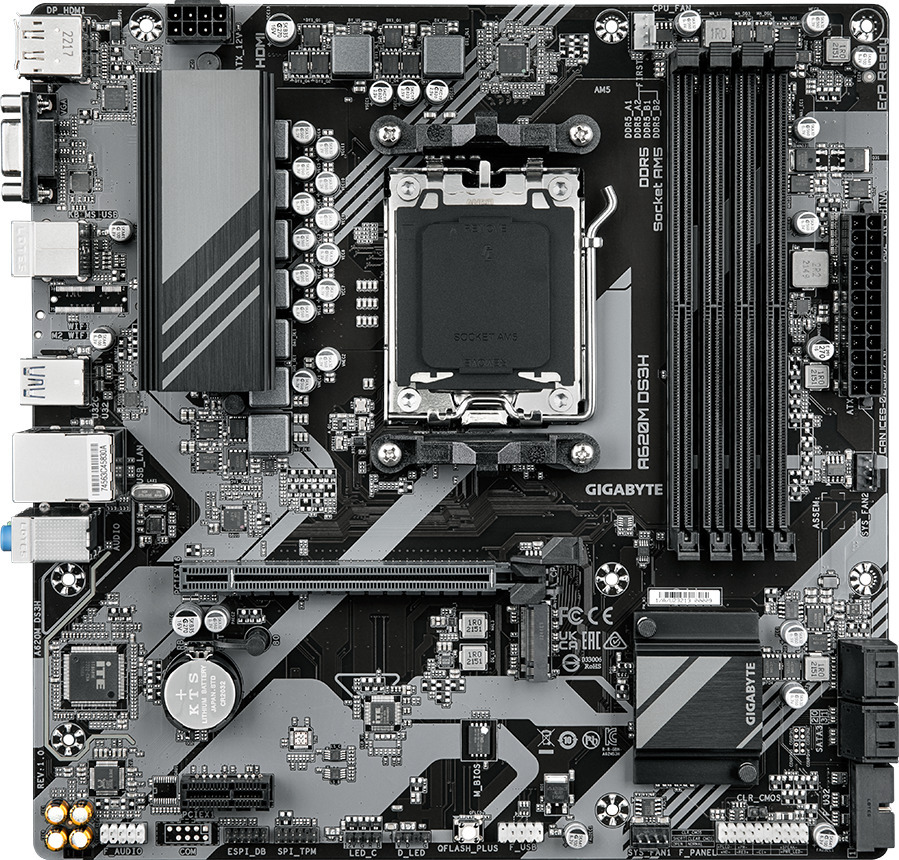

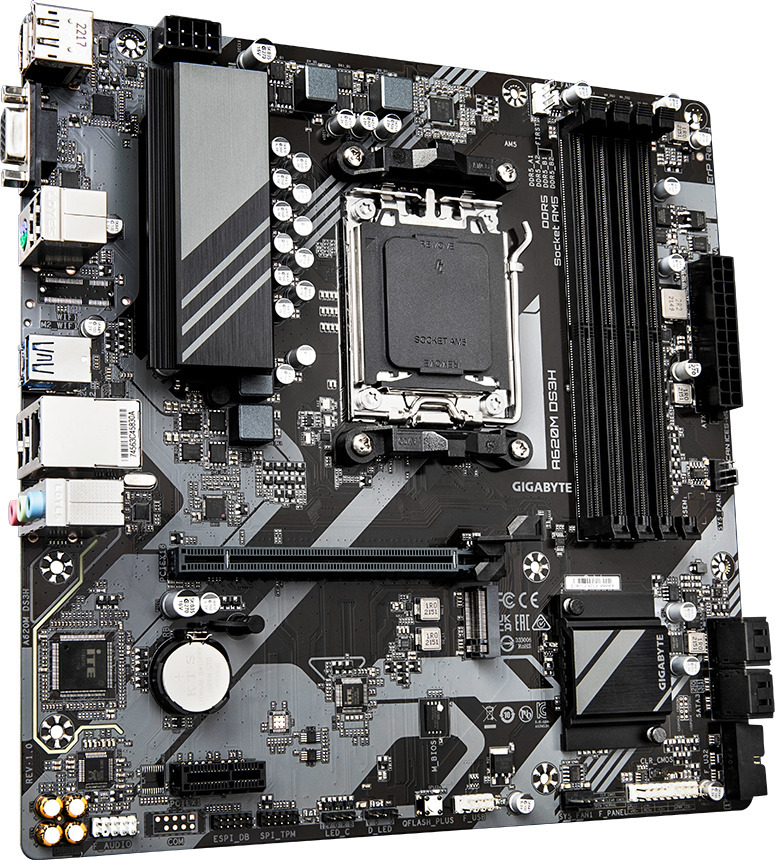

The GIGABYTE A620M DS3H is a micro ATX motherboard that provides a stable platform for AMD Ryzen 7000 series processors. It supports the AM5 socket, quad-channel DDR5 memory, and offers versatile connectivity along with reliable basic functions for a modern PC build. The overall design is intended for comprehensive and high-performance use in both daily work and hobby setups.
The motherboard utilizes the AMD A620 chipset and is compatible with AMD Ryzen 7000 series CPUs. It features the AM5 processor socket and supports up to 192 GB of internal memory across four DIMM slots. The dual-channel DDR5 architecture, Non-ECC support, and memory speeds up to 7600 MHz create a strong foundation for a fast and responsive system.
The GIGABYTE A620M DS3H offers versatile storage options. One M.2 (M) slot and four SATA III connectors allow flexible use of both SSD and HDD drives. RAID 0, 1, and 10 support provide options for enhanced performance or data security.

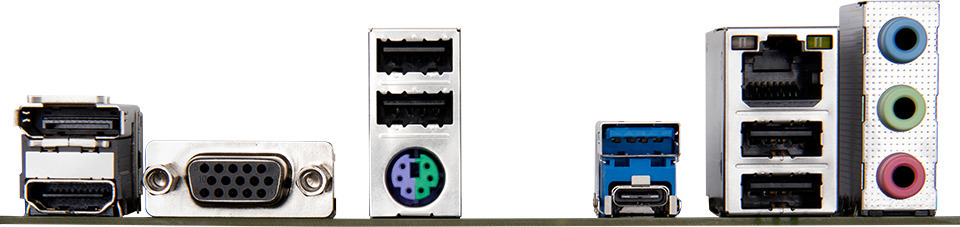

The motherboard includes a comprehensive selection of ports for practical configuration. The USB port offering covers both USB 2.0 and USB 3.2 Gen 1 connections, and video outputs provide solutions for various display setups with HDMI 2.1, DisplayPort 1.4, and VGA connectors. Gigabit Ethernet handles network connectivity.
The motherboard offers 7.1-channel audio support and an RGB LED header, along with several system management functions to monitor temperatures, fan operation, and voltage levels. It also includes a TPM connector, CPU and EPS power connectors, and a Clear CMOS jumper. The BIOS is UEFI AMI type and supports Windows 10 x64 and Windows 11 x64 operating systems.
The micro ATX form factor (244 × 244 × 35 mm) makes the motherboard compatible with a wide range of cases. Included accessories are SATA cables and a CR2032 battery, and software includes Norton® Internet Security (OEM) and LAN bandwidth management software.
