| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1038671 |
| Product depth (mm) | 198 |
| Product height (mm) | 35 |
| Product width (mm) | 233 |
| WiFi | No |
| Motherboard Chipset | AMD A520 |
| Motherboard form factor | Micro-ATX |
| Processor Socket | AM4 |
| Maximum supported memory (Gt) | 64 |
| Number of RAM slots | 2 |
| Supported RAM | DDR4 |
| Batteries included | Yes |
| Battery type | CR2032 |
| Electronic address of single contact point | |
| Manufacturer address | No.6, Baoqiang Road, Xindian Dist, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | GIGABYTE TECHNOLOGY CO. LTD |
| EU Responsible Person | Brian Chen |

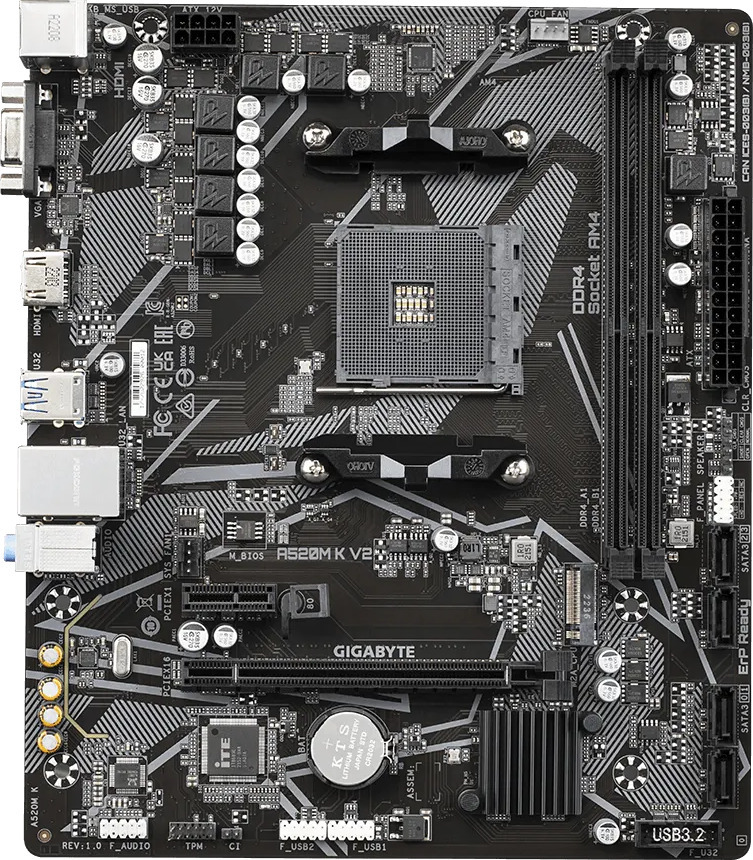

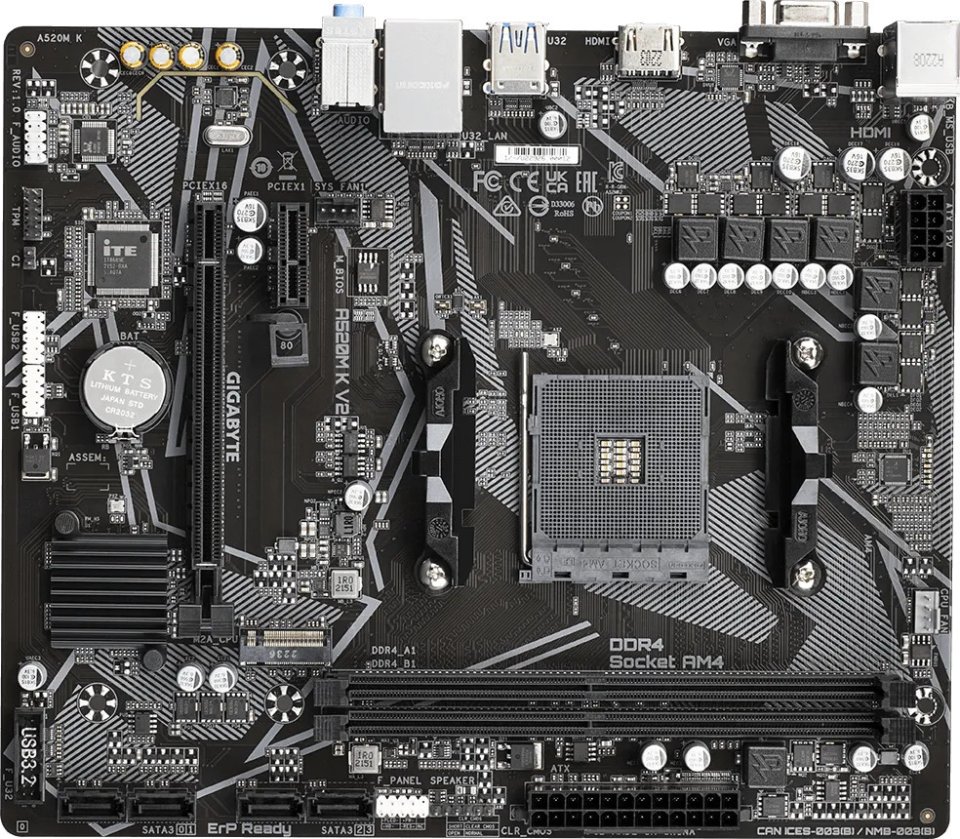

The GIGABYTE A520M K V2 is a micro ATX motherboard that supports AMD Ryzen 3000 and 5000 series processors with an AM4 socket. It is based on the AMD A520 chipset, providing a stable platform for home and basic gaming use. The motherboard supports dual-channel DDR4 memory up to 64 GB and offers versatile storage options with SATA III and M.2 connectors.
The motherboard supports a wide range of AMD Ryzen processors with the AM4 socket, including the latest 5000 series models. There are two DDR4 memory slots that support speeds up to 5100 MHz when overclocked. ECC memory is also supported, enhancing system stability.
The GIGABYTE A520M K V2 offers one M.2 slot for fast SSDs and four SATA III connectors for traditional hard drives and SSDs. RAID 0, 1, and 10 support allows versatile storage configuration. Expansion slots include one PCI Express x16 slot for a graphics card and one PCI Express x1 slot for other add-on cards.

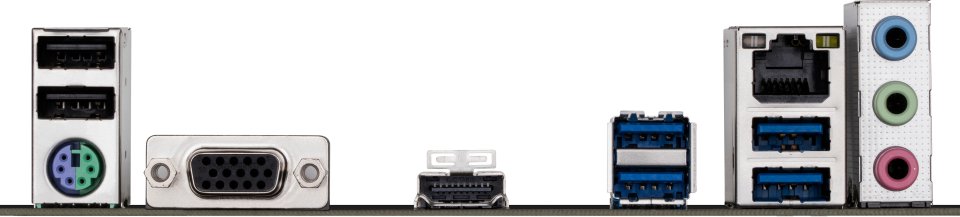

The motherboard features a Gigabit Ethernet port for wired networking. There are six USB ports in total: four USB 3.2 Gen 1 (3.1 Gen 1) and two USB 2.0 ports. Display connections include HDMI 2.1 and VGA, enabling connection to various display devices. Audio output supports 7.1-channel sound, and front panel connectors are also available.
The motherboard includes multiple connectors for fans, temperature and voltage monitoring, as well as a TPM connector for security. The BIOS is UEFI-based and includes a Clear CMOS jumper. The product dimensions are 233 x 198 x 35 mm, and it is designed to support 64-bit versions of Windows 10 and 11 operating systems.
The product comes with a three-year warranty. The package includes the motherboard, SATA cables, and a CR2032 battery for BIOS maintenance. Norton Internet Security software is also included.
