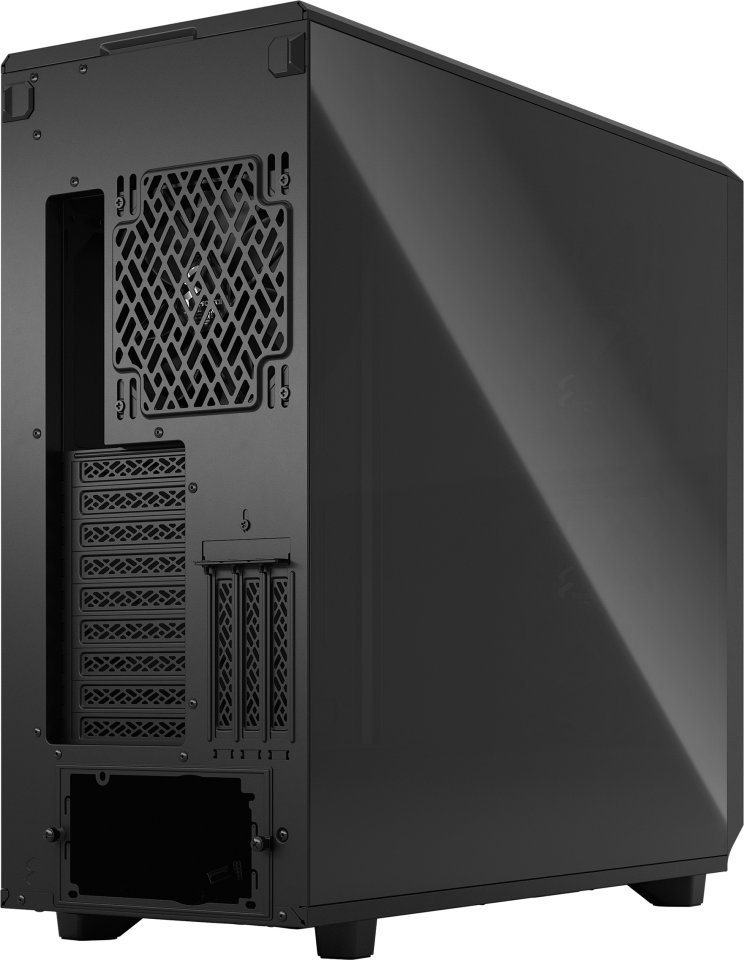

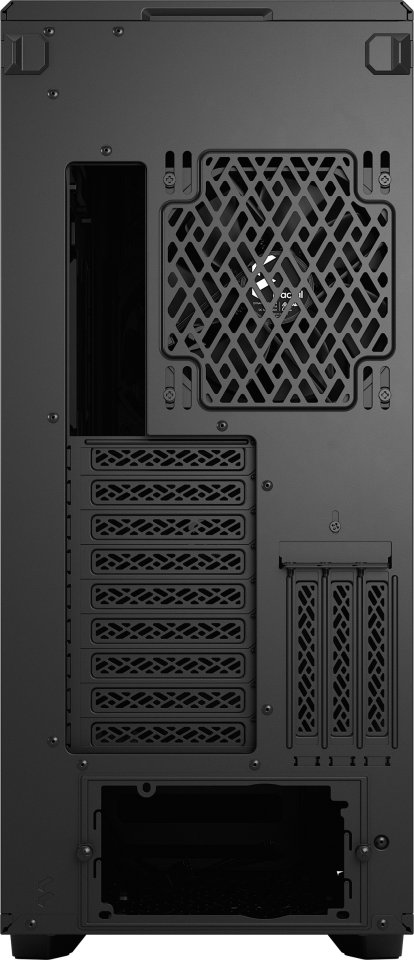

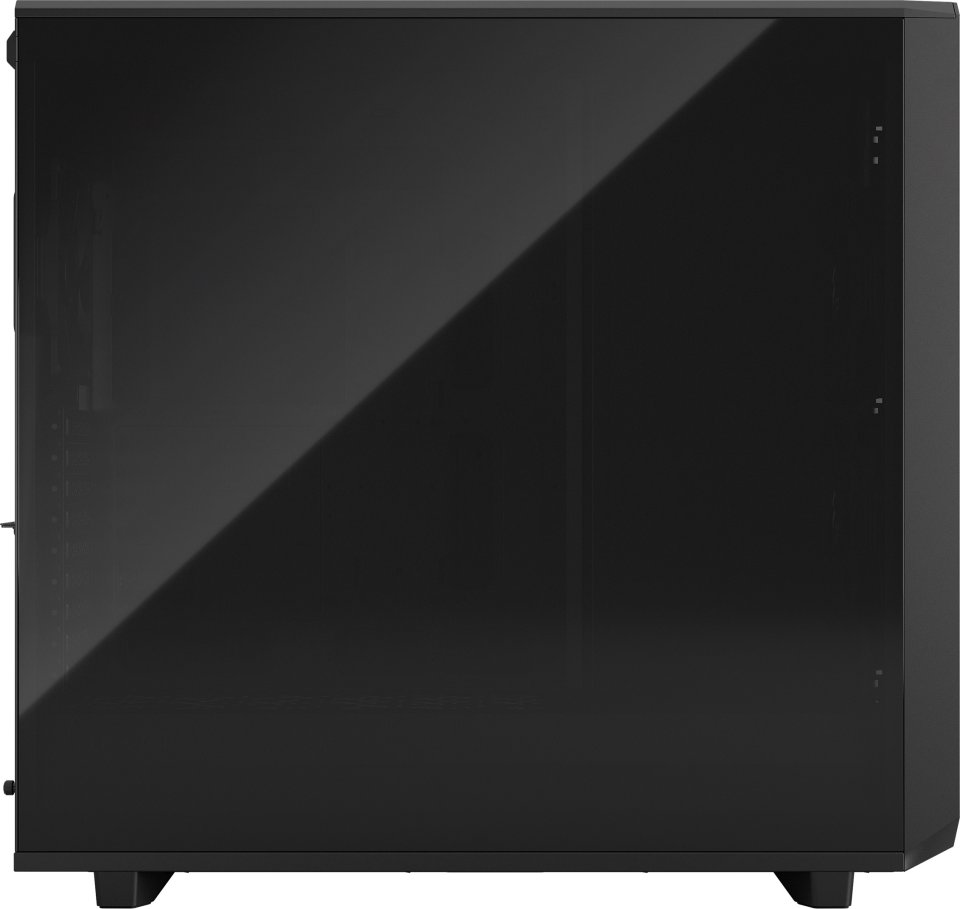

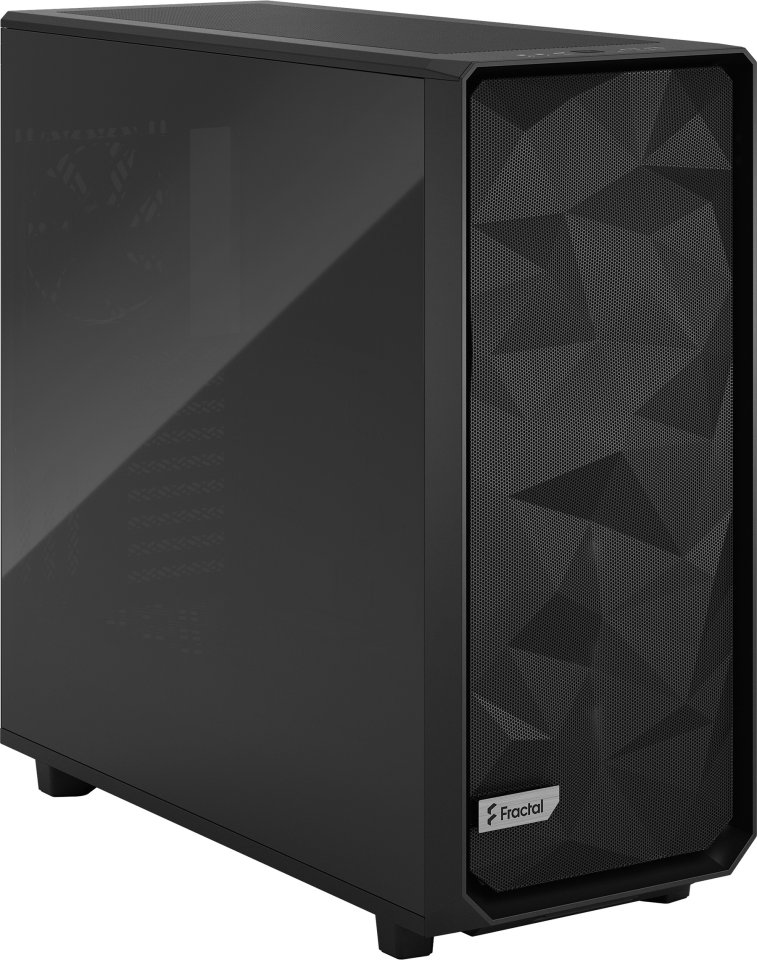

The Fractal Design Meshify 2 XL is an aggressively yet stylishly designed EATX case. The case is equipped with incredibly extensive fan and liquid cooling support. The Meshify 2 XL is specifically designed with various builds in mind, offering space for ten hard drives and room for graphics cards up to 359 mm long. The removable top panel and 30 mm cable space make installing components into the case easy and quick.

Features:

• Internal 2.5″ bays: 2
• Internal 2.5″/3.5″ bays: 6
• Dimensions: 600 x 240 x 566 mm
• Front panel connections: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O
• Dust filters on top, front, and bottom
• Additional expansion slots: 9+2
• Maximum CPU cooler height: 185 mm
• Maximum graphics card length: 359 mm, 549 mm without drive bays
• Power supply support: ATX
• Maximum power supply length: 250 mm
• Weight: 14.1 kg
• Tempered glass side panel
• Motherboard support: E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
• Includes three Dynamic X2 GP-14 140 mm fans

Fan mounts:

• Front: 4 x 120 mm or 3 x 140 mm
• Top: 4 x 120 mm or 3 x 140 mm
• Bottom: 2 x 120 / 140 mm
• Rear: 1 x 120 / 140 mm

Liquid cooling support:

• Front: 480 (120 mm) / 420 mm (140 mm)
• Top: 480 (120 mm) / 420 mm (140 mm)
• Bottom: 240 (120 mm) / 280 mm (140 mm)
• Rear: 120 mm
