Additional information

Color

White

Country of Origin

China

PID

1013675

Product depth (mm)

215

Product height (mm)

215

Product weight (g)

7 860

Product width (mm)

447

Motherboard form factor

ATX, Micro-ATX, Mini-ITX

Maximum CPU cooler height (mm)

17

Maximum graphics card length (mm)

37,2

Supported radiator size (mm)

360

Side Window

Yes

Manufacturer address

DATAVAGEN 37BS-436 32 ASKIM SWEDEN

Manufacturer's email address

https://group.fractal-design.com/

Manufacturer name

Fractal Gaming AB

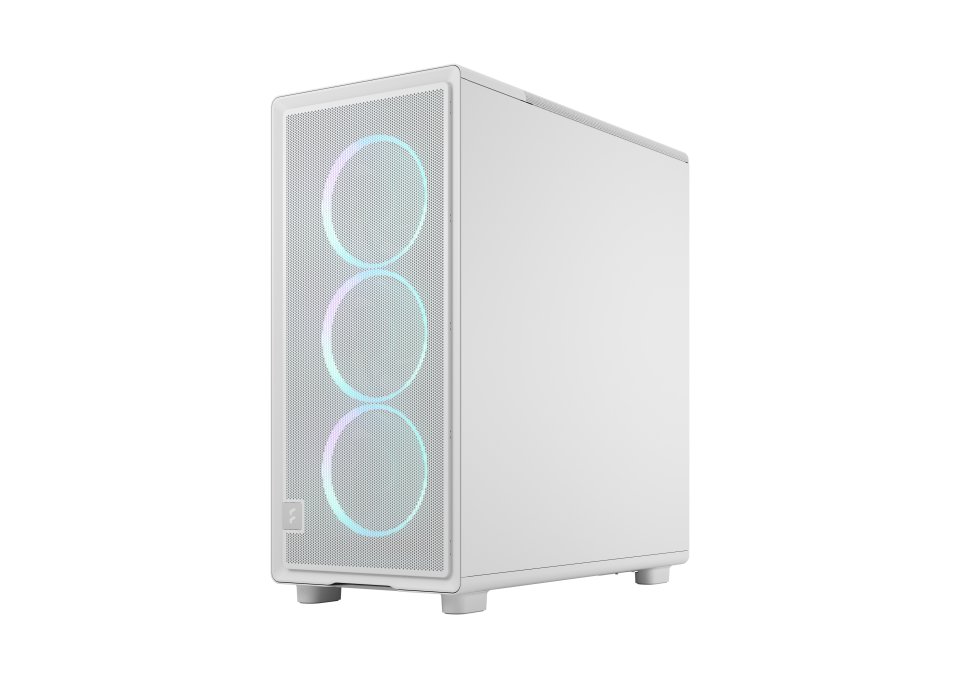

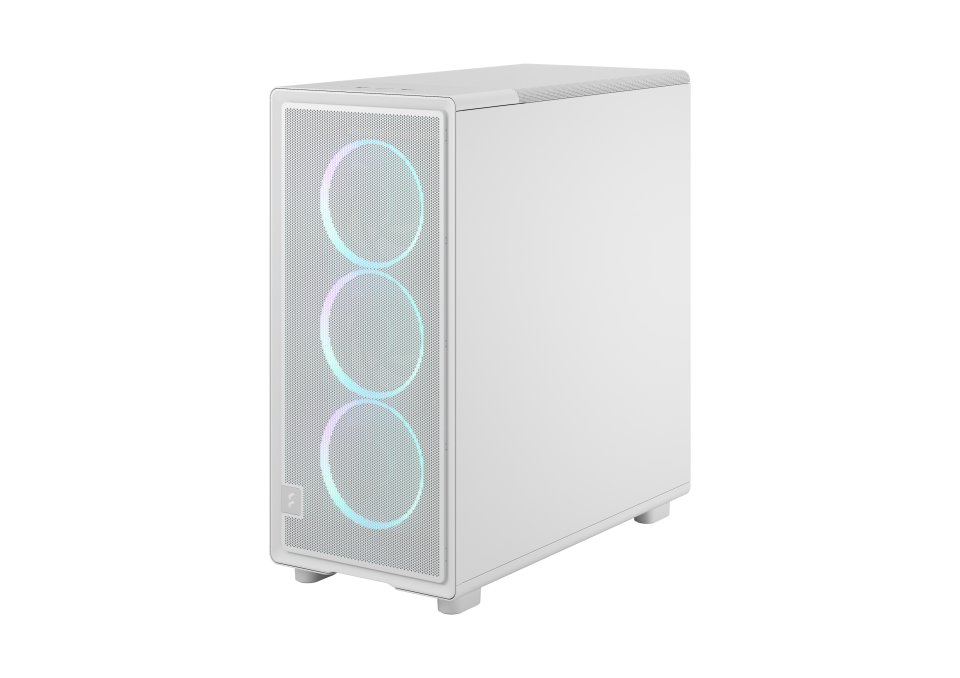

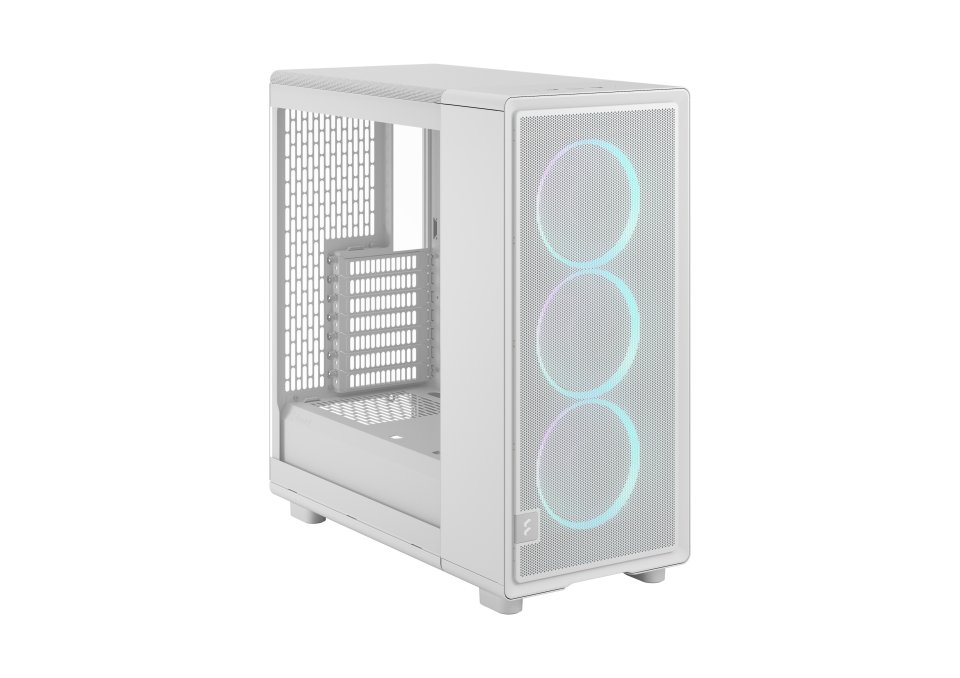

Fractal Design Epoch RGB is a gaming PC case that combines modern ventilation technology with minimalist design. The case features a mesh front panel and three powerful Momentum 12 fans that ensure good airflow and keep system components cool. The spacious interior supports ATX, mATX, and ITX motherboards as well as large graphics cards.

Airflow and Cooling

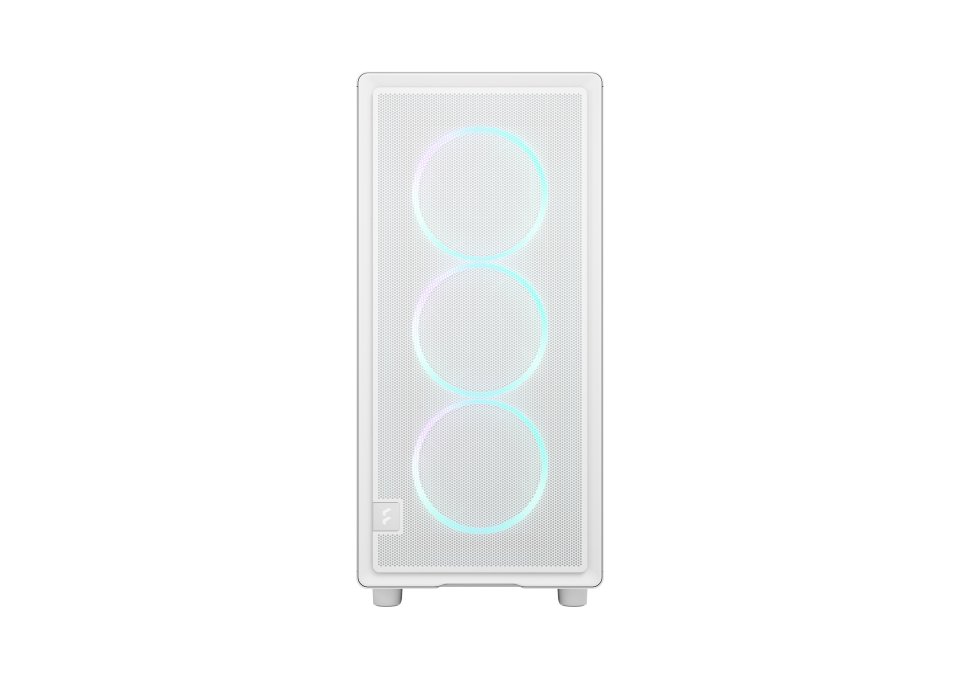

The case’s front and top panels are mesh-structured, enhancing ventilation. The included three Momentum 12 RGB fans are designed for efficient cooling with LCP blades and FDB bearings. Additionally, the case supports large coolers, such as radiators up to 360 mm in the front and 240 mm on top.

Spacious Interior

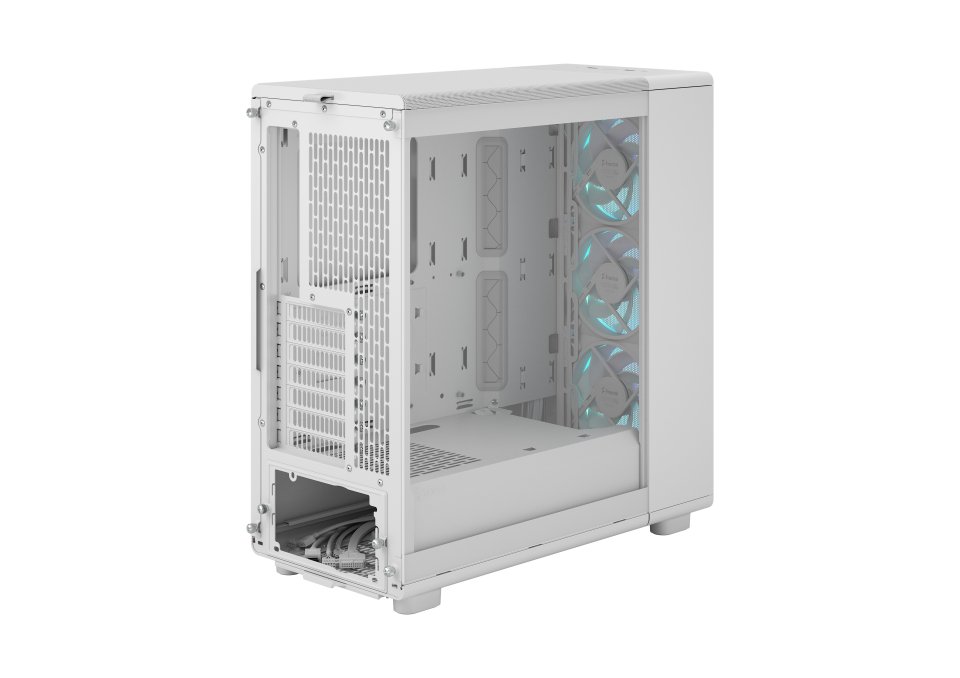

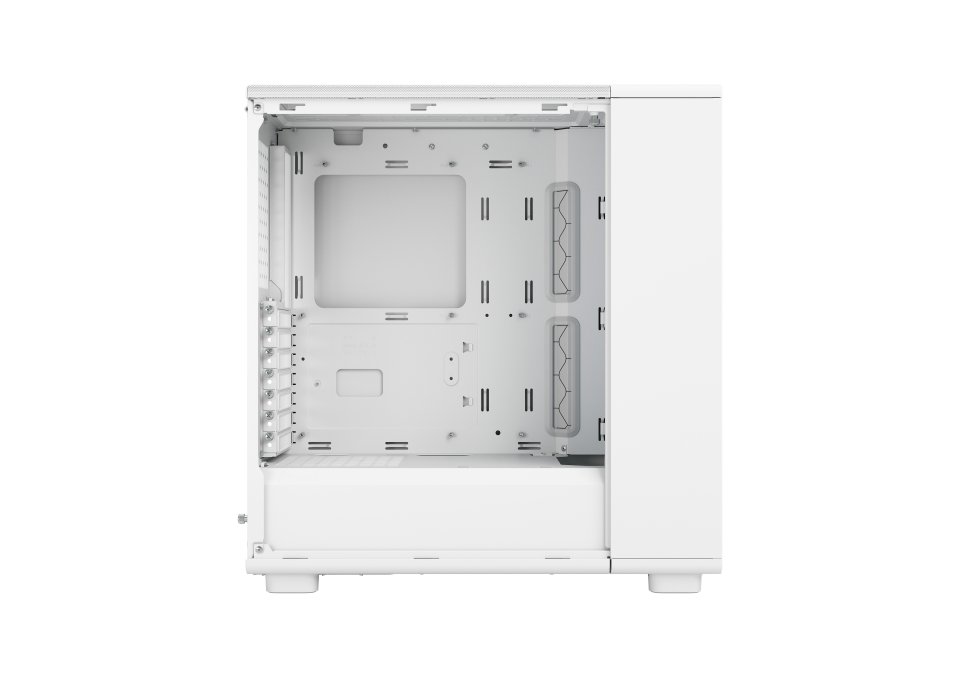

Epoch offers space for graphics cards up to 372 mm long when fans are installed in the front panel, or 345 mm if a radiator is installed in the front. The interior is neatly organized, making component installation easier and improving airflow.

Minimalist Design

The case has a subdued and modern appearance, with clean lines and mesh patterns. Stylish details include a fabric pull strap and a laser-engraved aluminum badge, adding a touch of sophistication to the gaming setup.

Compatibility

This case is suitable for a variety of builds, supporting ATX, mATX, and ITX motherboards, making it a flexible choice for different gaming systems.

Technical Specifications:

  • Power supply type: ATX
  • Maximum power supply length: 255 mm (1 HDD cage), 155 mm (2 HDD cages)
  • Maximum graphics card length: up to 372 mm with front fans or 345 mm with front radiator
  • Maximum CPU cooler height: 170 mm

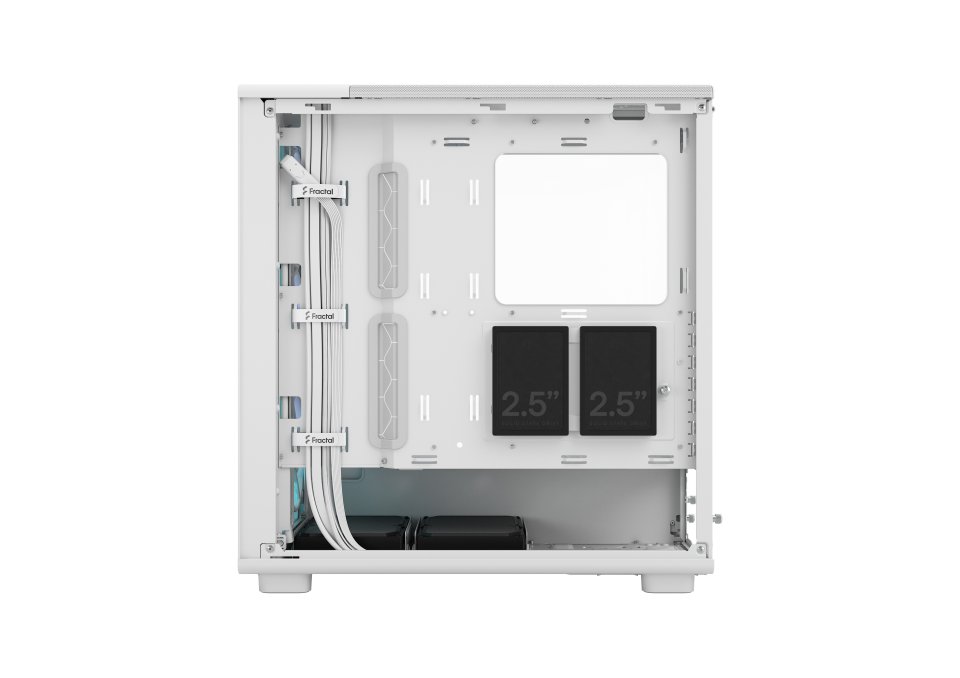

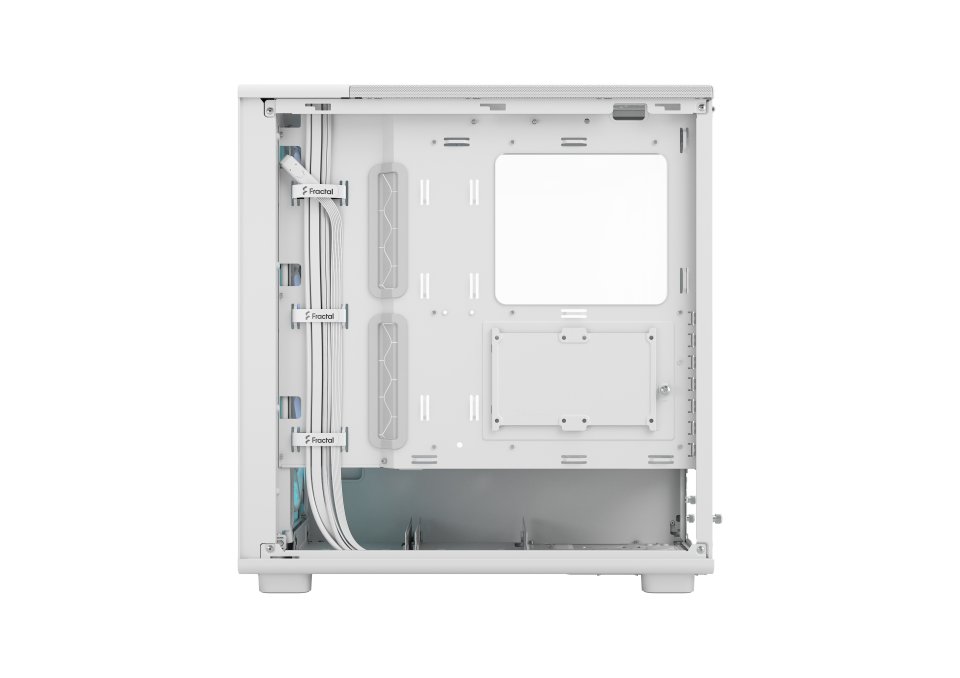

  • Cable routing space: 30 mm
  • Cable routing grommets: yes
  • Mounting straps: yes, Velcro fastened
  • Tool-free access: side panels, front panel, top panel
  • Fixed thumb screws: HDD and SSD mounts, side panels, power supply mount

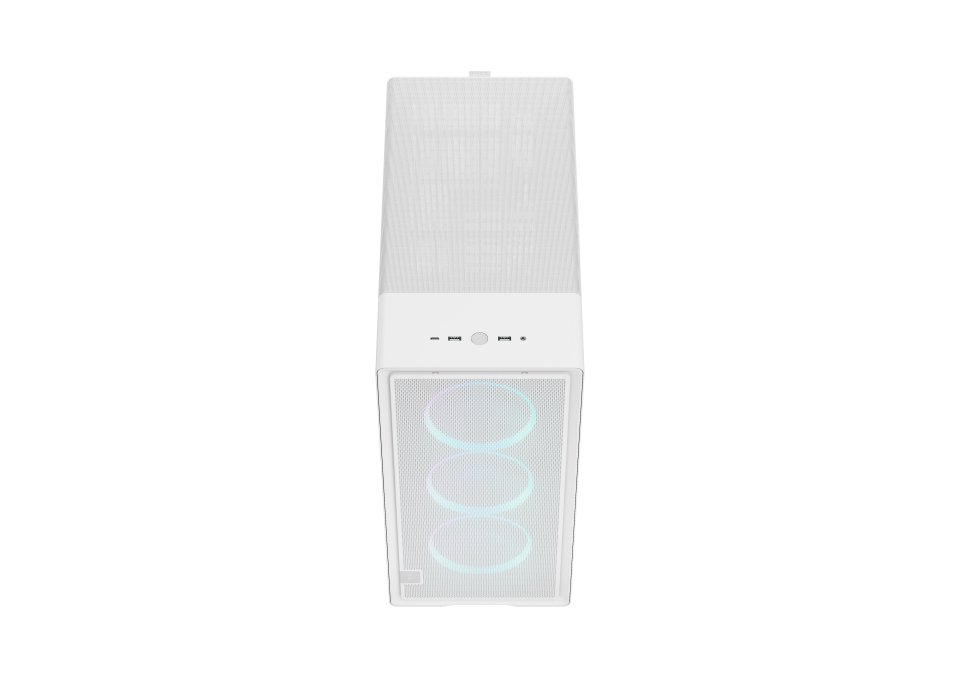

  • Front panel connections: 1 × USB Type-C 20 Gbps
  • Front panel connections: 2 × USB Type-A 5 Gbps
  • Front panel connections: 1 × Audio/microphone combo jack
  • Front fans: 6 × 120 mm or 4 × 140 mm (3 × 120 mm Momentum RGB fans included)
  • Top-mounted fans: 2 × 120/140 mm
  • Rear fan: 1 × 120 mm
  • Dust filters: for power supply
  • Front radiator: up to 280/360 mm
  • Top-mounted radiator: up to 240 mm
  • Rear radiator: 1 × 120 mm
  • Left side panel material: tempered glass (3 mm)
  • Right side panel material: steel
  • Case dimensions (L × W × H): 447 × 215 × 469 mm
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Fractal Design Epoch RGB TG ATX Case, White

151.27
sis. KM 24%

5 in stock

  • Stylish and modern design
  • 3 powerful Momentum 12 RGB fans
  • Excellent air circulation with mesh panels
  • Supports GPUs up to 372 mm in length
  • Support for 240/360 mm radiators
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: FD-C-EPO1A-05
EAN kood: 7340172709688, 2220010136751

Fractal Design Epoch RGB is a gaming PC case that combines modern ventilation technology with minimalist design. The case features a mesh front panel and three powerful Momentum 12 fans that ensure good airflow and keep system components cool. The spacious interior supports ATX, mATX, and ITX motherboards as well as large graphics cards.

Airflow and Cooling

The case’s front and top panels are mesh-structured, enhancing ventilation. The included three Momentum 12 RGB fans are designed for efficient cooling with LCP blades and FDB bearings. Additionally, the case supports large coolers, such as radiators up to 360 mm in the front and 240 mm on top.

Spacious Interior

Epoch offers space for graphics cards up to 372 mm long when fans are installed in the front panel, or 345 mm if a radiator is installed in the front. The interior is neatly organized, making component installation easier and improving airflow.

Minimalist Design

The case has a subdued and modern appearance, with clean lines and mesh patterns. Stylish details include a fabric pull strap and a laser-engraved aluminum badge, adding a touch of sophistication to the gaming setup.

Compatibility

This case is suitable for a variety of builds, supporting ATX, mATX, and ITX motherboards, making it a flexible choice for different gaming systems.

Technical Specifications:

  • Power supply type: ATX
  • Maximum power supply length: 255 mm (1 HDD cage), 155 mm (2 HDD cages)
  • Maximum graphics card length: up to 372 mm with front fans or 345 mm with front radiator
  • Maximum CPU cooler height: 170 mm
  • Cable routing space: 30 mm
  • Cable routing grommets: yes
  • Mounting straps: yes, Velcro fastened
  • Tool-free access: side panels, front panel, top panel
  • Fixed thumb screws: HDD and SSD mounts, side panels, power supply mount
  • Front panel connections: 1 × USB Type-C 20 Gbps
  • Front panel connections: 2 × USB Type-A 5 Gbps
  • Front panel connections: 1 × Audio/microphone combo jack
  • Front fans: 6 × 120 mm or 4 × 140 mm (3 × 120 mm Momentum RGB fans included)
  • Top-mounted fans: 2 × 120/140 mm
  • Rear fan: 1 × 120 mm
  • Dust filters: for power supply
  • Front radiator: up to 280/360 mm
  • Top-mounted radiator: up to 240 mm
  • Rear radiator: 1 × 120 mm
  • Left side panel material: tempered glass (3 mm)
  • Right side panel material: steel
  • Case dimensions (L × W × H): 447 × 215 × 469 mm
