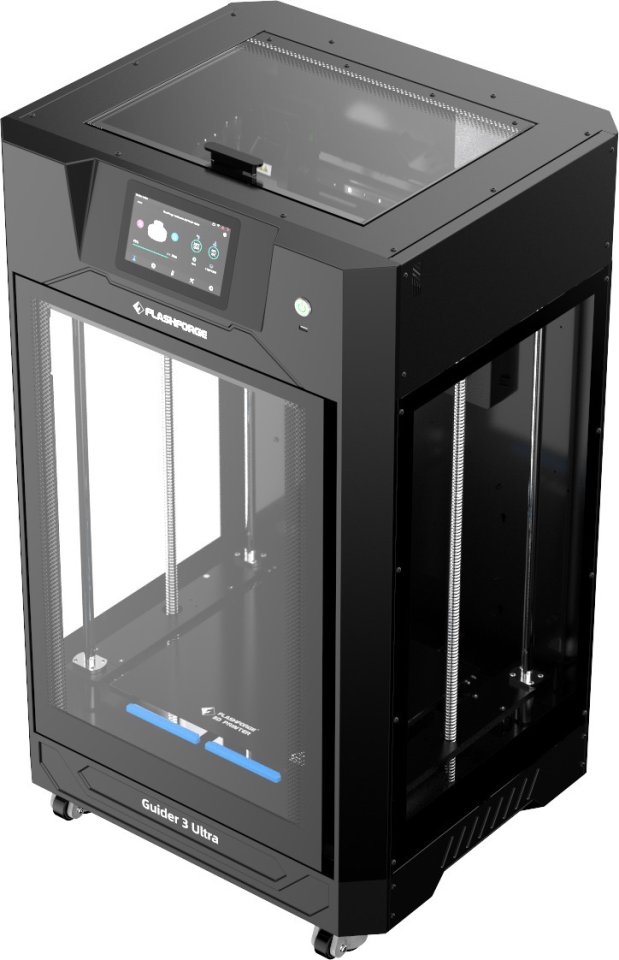

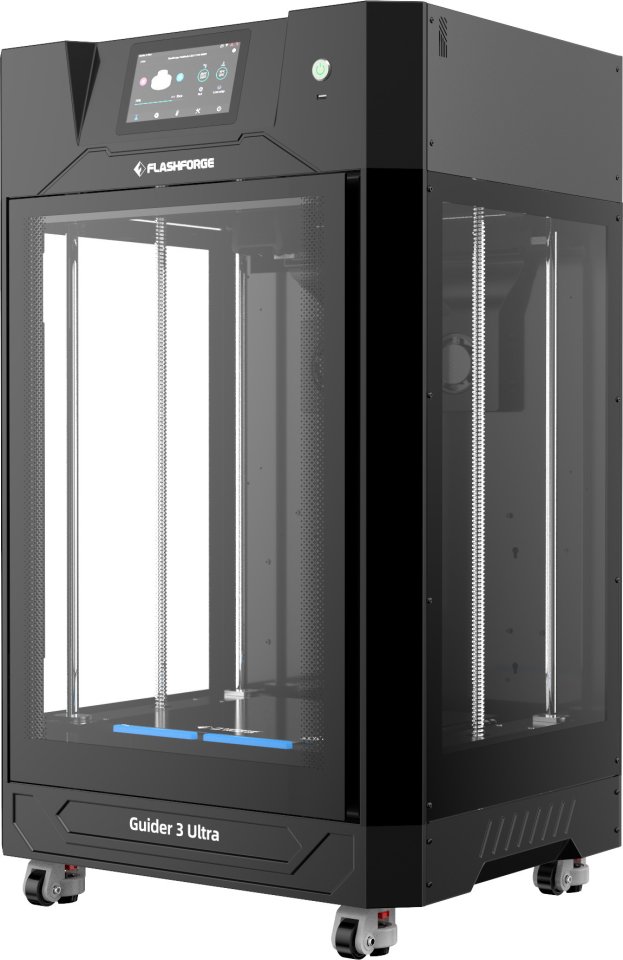

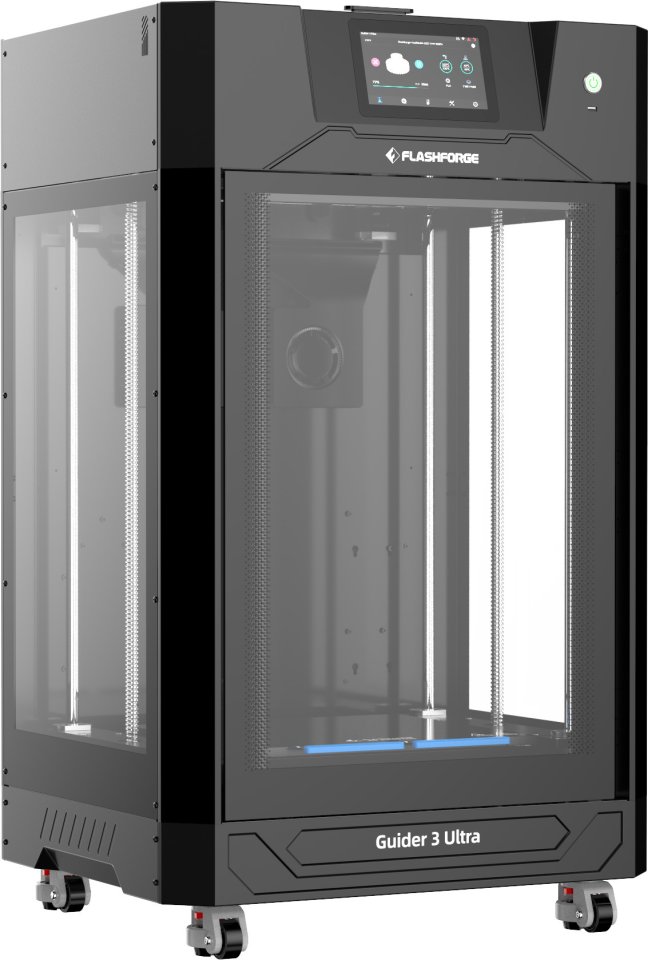

Flashforge Guider 3 Ultra surpasses its predecessor in both speed and ease of use, creating an even better printing experience for its users. Thanks to an incredible maximum print speed of 500 mm/s, prints can be completed in an instant while still offering good quality. These enhanced features of the Guider 3 Ultra, combined with other popular Flashforge features, make this printer a cost-effective choice for small batch production.

• Dual extruders
• Automatic leveling
• Maximum print head temperature: 350°C
• Maximum print speed: 500 mm/s

Guider 3 Ultra

To provide a user-friendly and streamlined experience, the machine includes several quality-of-life features such as a quick-lock nozzle for fast tool-free maintenance, a built-in filament sensor, power outage recovery function, and automatic shutdown. Advanced dual-fan cooling, an easy-to-use magnetic print bed, HD camera for remote monitoring, HEPA 13 air filtration system, enclosed filament drying chamber, quiet design, and Cloud platform. Software-wise, the Guider 3 Ultra model supports FlashPrint, Cura, and Slic3r.

Stable fast printing that eliminates ghosting and ringing

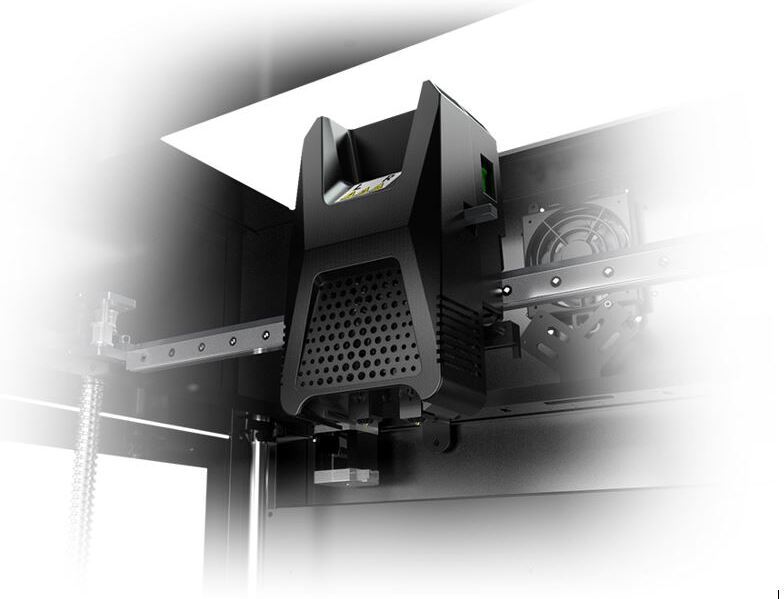

Thanks to a lighter extruder and a beam structure, inertia forces at high speeds can be reduced. Additionally, the unique self-developed extruder vibration damping algorithm automatically compensates for vibrations during fast printing, reducing ringing in prints.

• Print speed up to: 500 mm/s
• Acceleration up to: 20,000 mm/s²
• Flow rate up to: 32 mm³/s

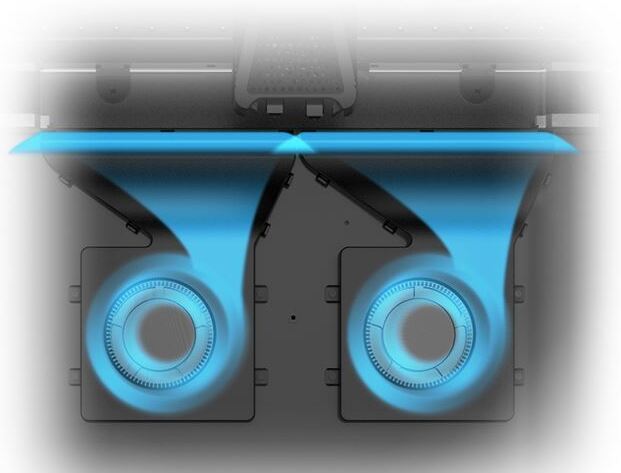

Air cooling system

The efficient dual-fan air cooling system quickly cools the extruded filament at the nozzle and ensures that each filament layer cools completely during fast printing, providing better molding accuracy.

Dual extruder design for complex models

Built with highly durable Z-axis TBI ball screws and a stable load-bearing platform, the Guider 3 Ultra guarantees precise positioning during the printing process, enabling the production of accurate and complex models.

Stable print quality

• Strong dual Z-axis TBI ball screws and a stable load-bearing platform for precise placement of each printed layer
• 24/7 continuous and stable printing
• After 10,000 hours of continuous use, it can still maintain stable printing performance
• After 100,000 dual extruder swap tests, there are no obvious vibration gaps in the extruder, ensuring continuous and stable printing

Excellent surface quality

Each layer is precisely placed, and the finish is smooth and refined. The nozzle pressure compensation algorithm accurately controls the amount of filament extruded in advance, resulting in smooth printing and a flawless first layer. The unique vibration damping algorithm automatically compensates for vibrations during fast printing, eliminating ringing.

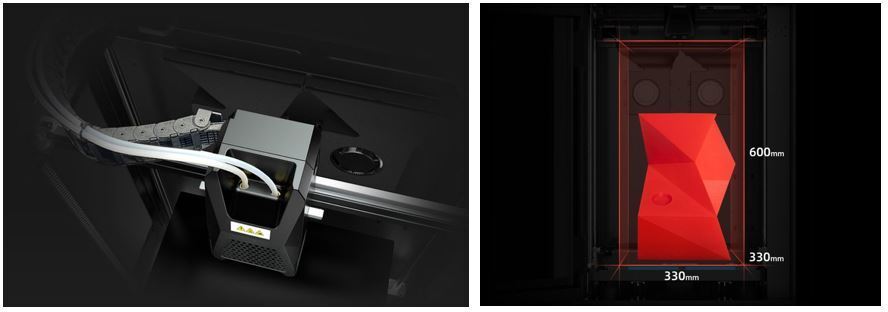

Large size, expanding limits

The Flashforge Guider 3 Ultra 3D printer offers a large print area of 330 x 330 x 600 mm with a single nozzle and 300 x 330 x 600 mm with dual nozzles. It allows you to produce models of various sizes, including fairly large ones, without needing to split them into parts or batches, saving time and increasing productivity.

Features that make a difference

• Filament indicator, filament run-out detection: Automatically detects filament shortage and pauses printing. Printing can be resumed after filament is reloaded
• Power outage recovery: Avoid failed prints caused by accidental power outages and ensure normal printing
• Built-in HD camera: Real-time remote monitoring
• HEPA 13 air filtration system: Filters dust, particles, and odors, ensuring an environmentally friendly and safe working environment
• Enclosed filament drying chamber
• Automatic shutdown: Models can be safely printed overnight and picked up during the day

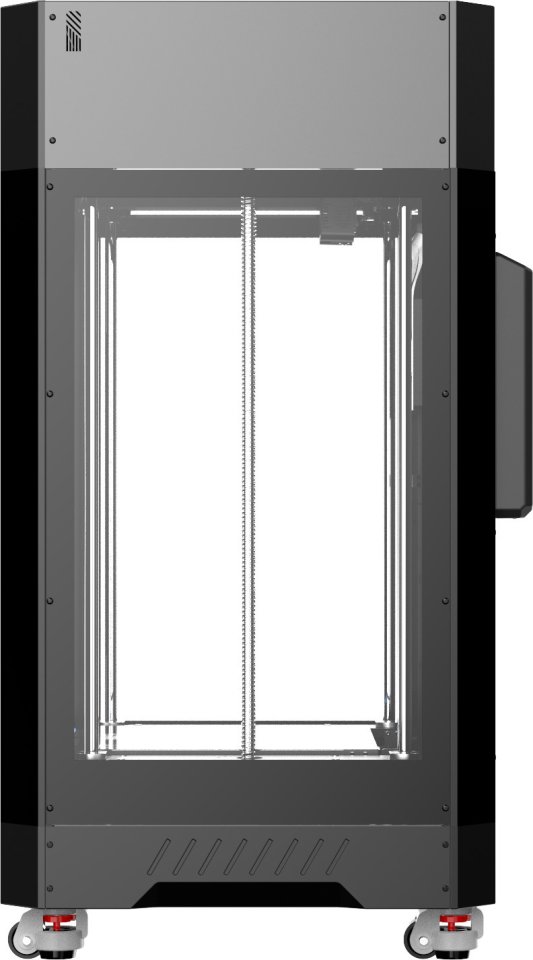

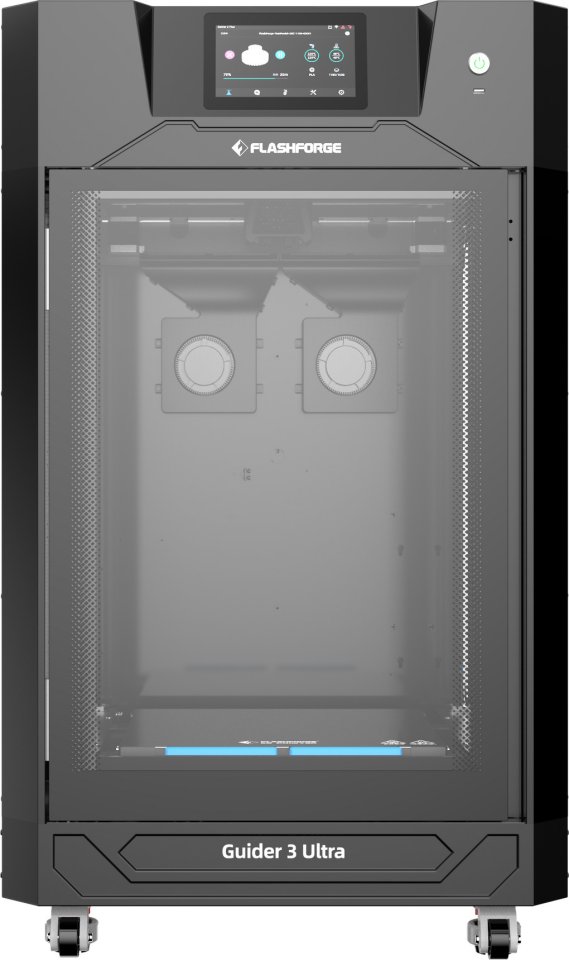

The sleek appearance and ergonomic design of the Flashforge Guider 3 Ultra 3D printer make it ideal for any studio, small business, or educational institution. The printer dimensions are 635 x 550 x 1070 mm.

Materials

With a nozzle temperature of 350 °C and a heated bed up to 120 °C, it ensures strong first layer adhesion. The Flashforge Guider 3 Ultra can print with many common and technical filaments, including PLA, ABS, PC, TPE, PETG, ASA, PP, nylon, glass, and others, ensuring high dimensional accuracy and surface quality. Glass fiber and carbon fiber reinforced filaments should be used with high-strength nozzle tips. The printer is an open system compatible with third-party materials, making filament selection virtually unlimited.

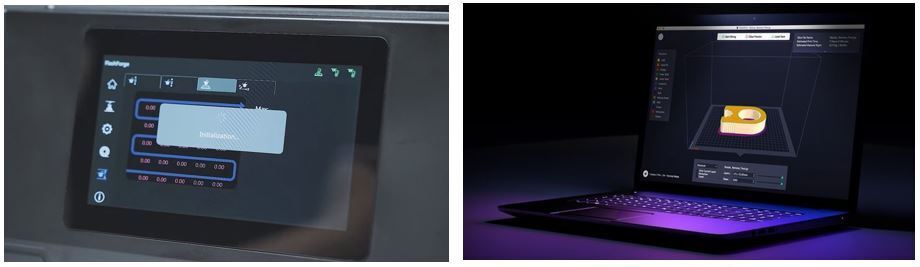

Printer controls and software

The Flashforge Guider 3 Ultra features a 7-inch smart LCD touchscreen with an intuitive and well-organized interface, providing quick and convenient access to all printer settings and parameters. It has Wi-Fi and Ethernet connectivity as well as a USB port for transferring files from a memory stick.

The machine includes the patented FlashPrint slicing software with powerful functions and a user-friendly redesigned interface. It can prepare slicing files with a few clicks, making usage fast, efficient, and smooth. In addition to a convenient preview function and smart path planning algorithm, the software effectively manages multiple machines, adjusts printing parameters in real time, automatically repairs damaged meshes, creates personal models, uses files from the memory list, and much more.

Technical specifications:

• Number of nozzles: 2
• Maximum nozzle temperature: 350°C
• Maximum heated bed temperature: 120°C
• Print bed: Flexible steel plate
• Print area single nozzle: 330 x 330 x 600 mm
• Print area dual nozzle: 300 x 330 x 600 mm
• Print accuracy: ±0.15 mm or ±0.002 mm/mm (larger values take precedence)
• Positioning accuracy: X/Y-axis 0.011 mm; Z-axis 0.0025 mm
• Print speed: Up to 500 mm/s
• Print acceleration: 20,000 mm/s²
• Layer thickness: 0.05 ~ 0.4 mm
• Nozzle tip type: High-strength nozzle tip
• Nozzle tip diameter: 0.4 mm (standard), 0.6 mm/0.8 mm optional
• Supported filaments: PLA / ABS / HIPS / ASA / PETG / CoPA / PLA-CF / PETG-CF / PAHT-CF / PAHT-GF / PET-CF / PET-GF / PA12-CF / PA-CF / PA-GF / NexPA-CF25
• USB, Ethernet, WLAN, Cloud Control

Note: This printer is a made-to-order product, with an average delivery time of 1–2 months from order.
