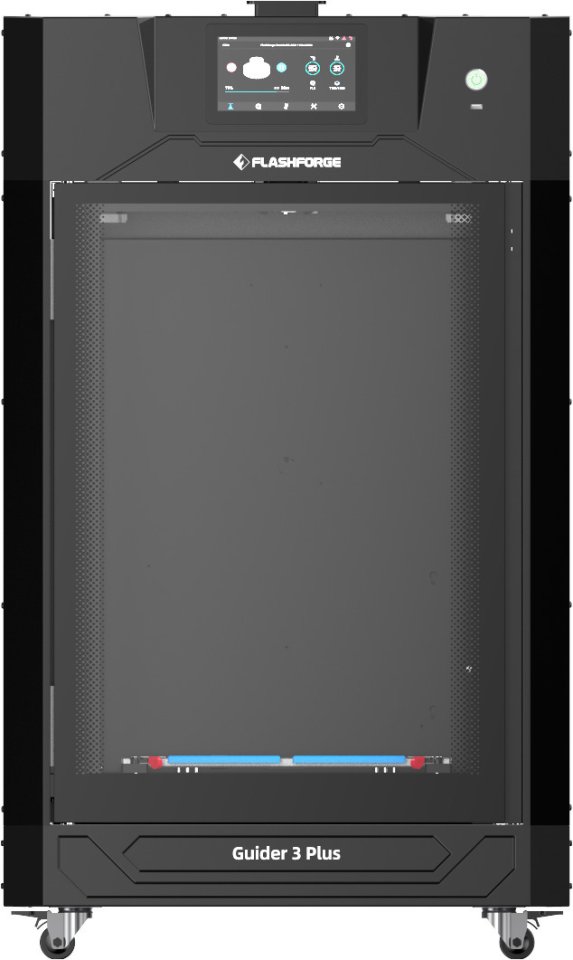

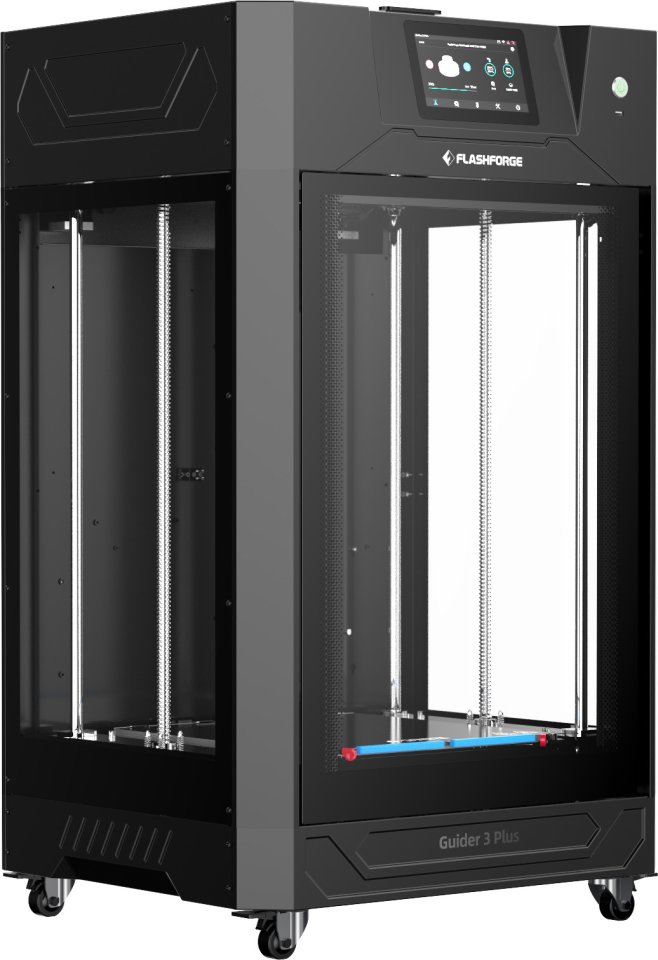

Guider 3 Plus is a professional-grade 3D printer that offers fast printing, high-quality prints, and quiet, smooth operation. The device is equipped with a versatile and intelligent control system, making it suitable for small businesses, studios, universities, and laboratories. Guider 3 Plus assists engineers and designers in rapid prototyping.

High Speed and Low Noise Level

The CoreXY structure allows printing at a speed of 250 mm/s with an operational noise level of under 50 dB.

High-Quality Printing

The dual Z-axis ball screw structure enables more precise positioning during printing and ensures a smooth surface finish, resulting in better print quality.

Stable Printing

The large platform supports up to 30 kg of weight, and its maximum build volume is 350 x 350 x 600 mm. Additionally, a 16 mm diameter Z-axis guide and 16 mm TBI ball screws on both sides ensure stability when printing larger models.

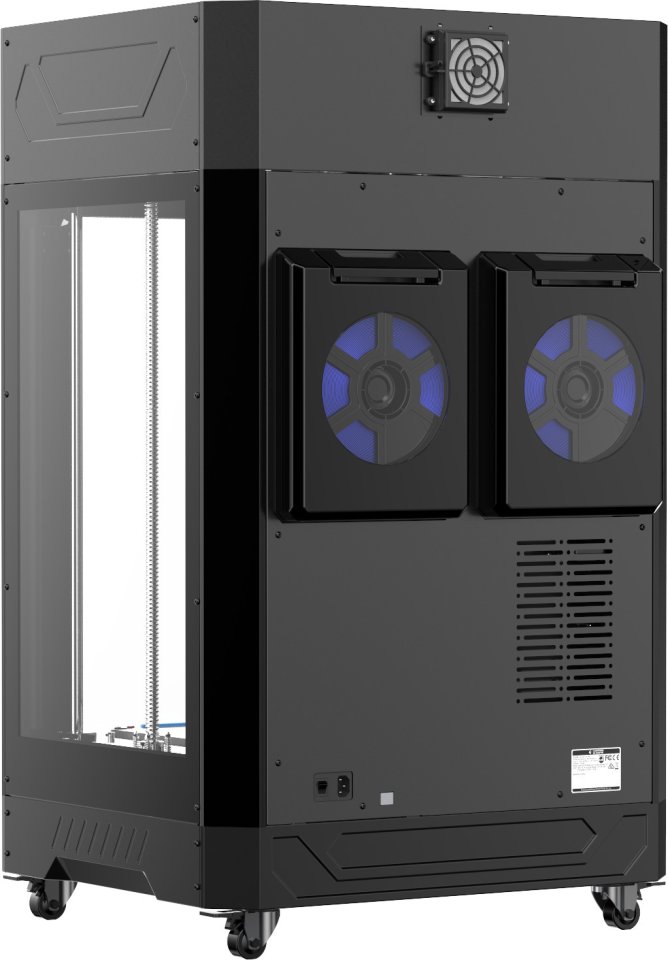

Closed Filament Chamber

Including silica gel desiccant, the dual closed filament chambers at the back of the device ensure that the filaments remain in a closed and dry environment both during printing and when not in use. This guarantees worry-free storage, effortless use, and excellent print quality.

One chamber can hold 1 kg of filament. Equipped with a humidity meter, the moisture level can be monitored visually, making it easier for users to manage the filament’s environment accurately.

HEPA 13 Air Purification System

The HEPA air purification system effectively filters dust, odors, and particles generated during the printing process. It also supports gas removal through an attached pipe, ensuring an environmentally friendly and safe working environment.

Intelligent Multi-Platform Control

Supports remote management of 3D printers through FlashPrint 5 and FlashCloud. Thanks to online printing and real-time monitoring, device management is efficient, and production runs smoothly.

Technical Specifications:

• Filament diameter: 1.75 mm
• Compatible filaments: PLA, ABS, HIPS, Nylon, PC, PETG, ASA, fiberglass-reinforced filament, and carbon fiber-reinforced filament (note: fiberglass and carbon fiber-reinforced filaments should be used with a high-strength nozzle)
• Nozzle maximum temperature: 320°C
• Open filament system: Yes
• Nozzle type: Direct drive type
• Recommended maximum printing speed: 250 mm/s
• Printing area: 350 mm x 350 mm x 600 mm
• Maximum printing bed temperature: 120°C
• Printing bed surface: BuildTak
• Printing bed material: Flexible steel surface
• Printing bed attachment: Magnetic
• Printing chamber during process: Open and closed
• Heated printing chamber: No
• Filament chamber closed: Yes
• Number of nozzles: 1

Installation Space / Requirements:

• Dimensions: 635.5 mm x 590.5 mm x 1060 mm
• Weight: 65 kg
• Operating temperature: 15°C–30°C
• Maximum power consumption: 650W
• Voltage: AC: 200 V – 240 V, 6.25 A; DC: 24 V

Accessories:

• HEPA filter: Yes
• Filament run-out sensor: Yes
• Power failure backup system: Yes
• Touchscreen: Yes
• Camera: Yes
• Internal memory: Yes

Connections:

• USB port, Ethernet port, WLAN, cloud management

Precision:

• Layer height: 0.05 – 0.4 mm
• Precision: 0.15 mm

Note: This printer is a made-to-order product, and the delivery time is typically 1–2 months from the order date.
