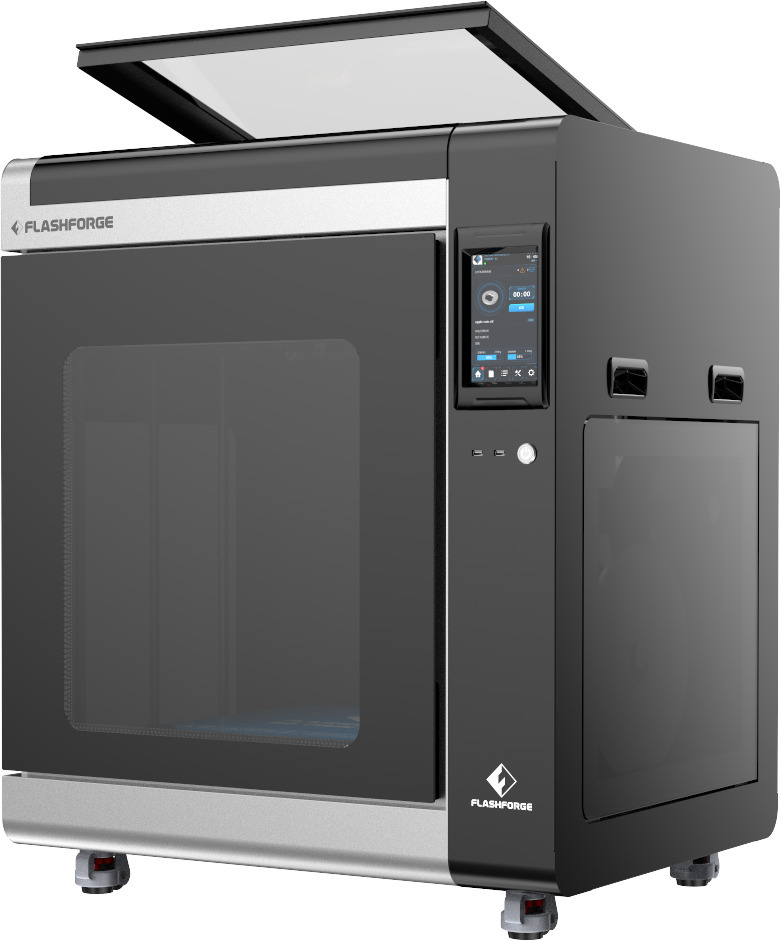

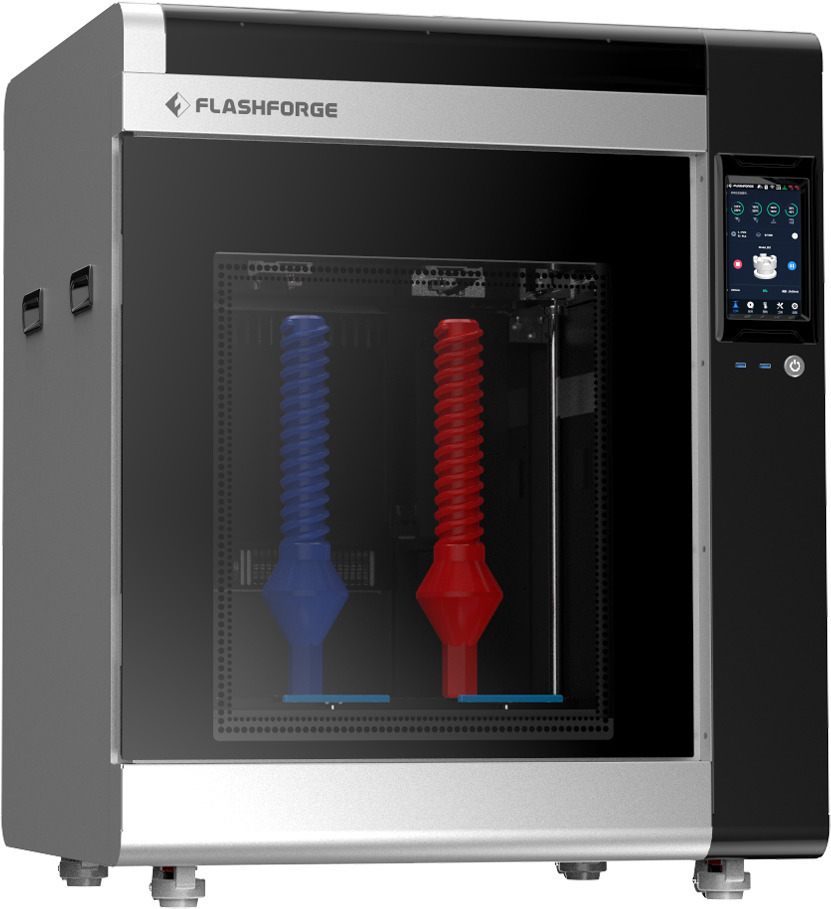

The Creator 4 is a multifunctional, flexible, and high-performance 3D printer. With three nozzle options, the Creator 4 3D printer can print with flexible filaments, technical filaments, and carbon fiber composite filaments, making it a great choice for commercial production.

This version is equipped with an HT extruder that can print at temperatures up to 320 °C, suitable for technical filaments.

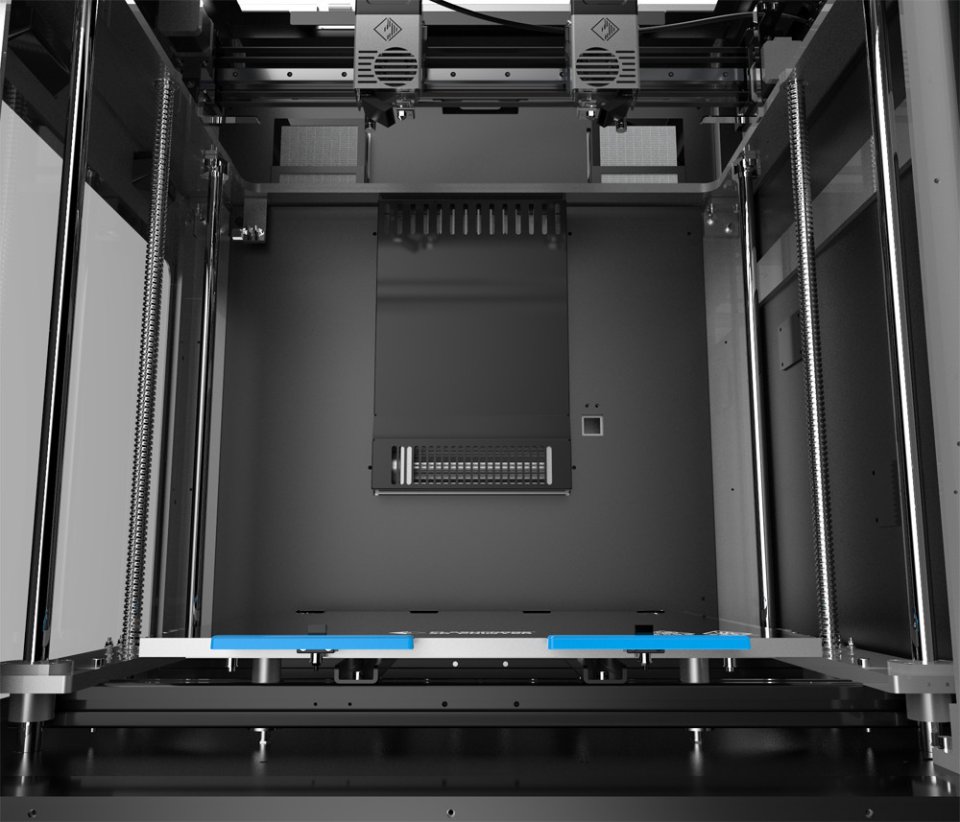

Large Print Area

The size of the Creator 4 is perfect for most applications. 400 mm x 350 mm x 500 mm is ideal for prototyping.

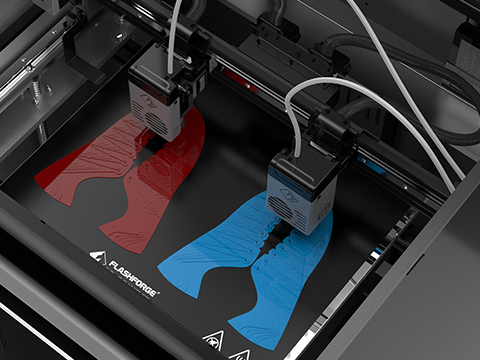

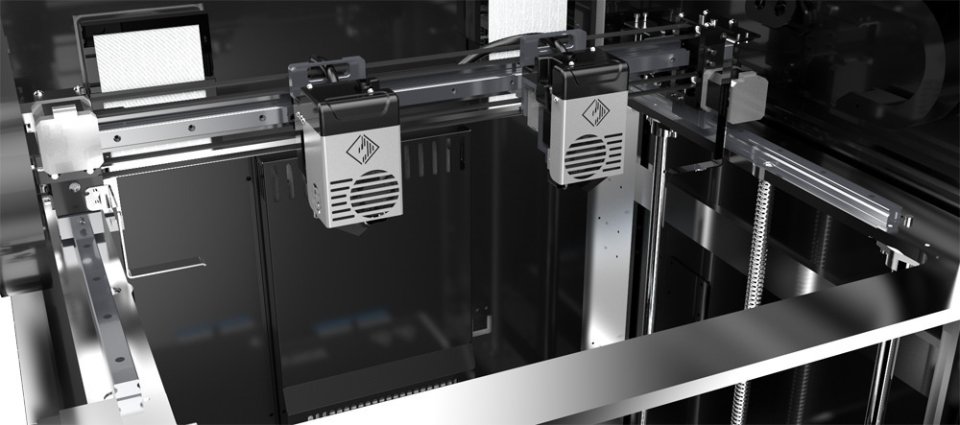

Independently Operating Dual Nozzles

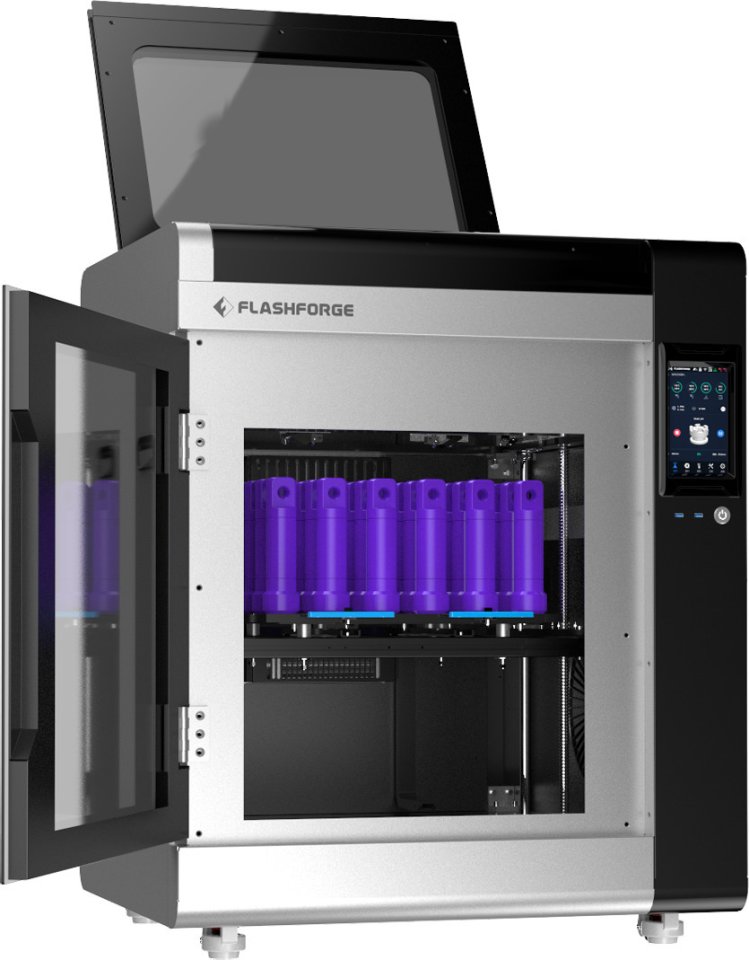

The two nozzle modules of the Creator 4 operate independently and are not connected to each other. This means that when you select one nozzle to work, the other nozzle moves away from the print area, preventing excess filament from dripping onto the printed object. Additionally, both nozzles can operate simultaneously and independently, effectively doubling the print output. The Creator 4 is indeed a good choice for mass production!

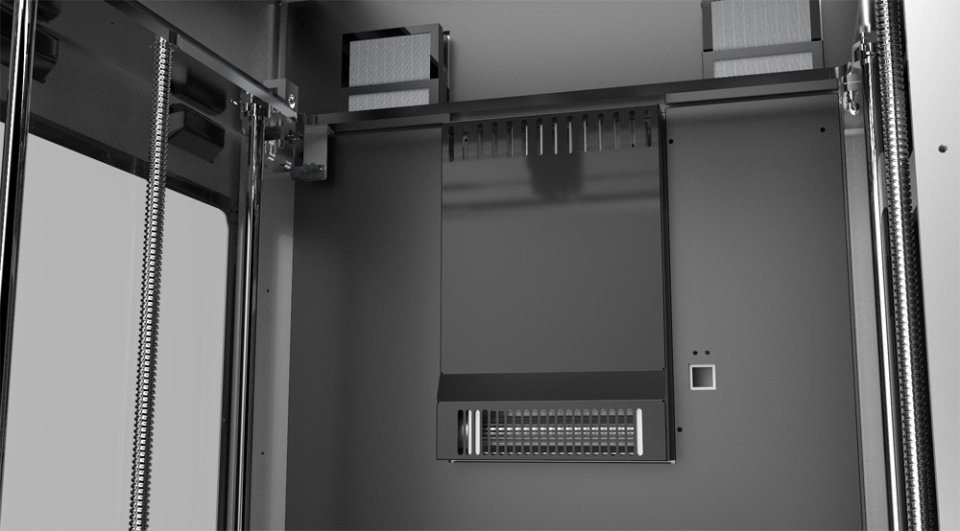

Heated Print Chamber

The advanced temperature control software can preheat and maintain the temperature before and after printing. The temperature control system maintains a constant chamber temperature of 65°C, which reduces thermal shrinkage of the model during the printing process. This prevents warping and cracking of ABS, PC, PA, and other technical filaments, ensuring model quality and dimensional accuracy while improving the success rate of printing.

High Printing Temperature

Thanks to the included high-temperature extruder, you can print most filaments available on the market at a usage temperature of up to 320°C. Supported filaments: PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT / PVA.

Heated Print Bed

The print bed can be heated to a temperature of 120°C, making it easier to print with ABS, nylon, and similar materials.

Smart Filament Management

Before printing, the temperature can be automatically adjusted using an intelligent system based on the type of filament. The smart setting, which maintains a constant chamber temperature, ensures a high success rate for printing. After printing, the smart control system helps adjust the cooling temperature, so there is no need to wait for the next print.

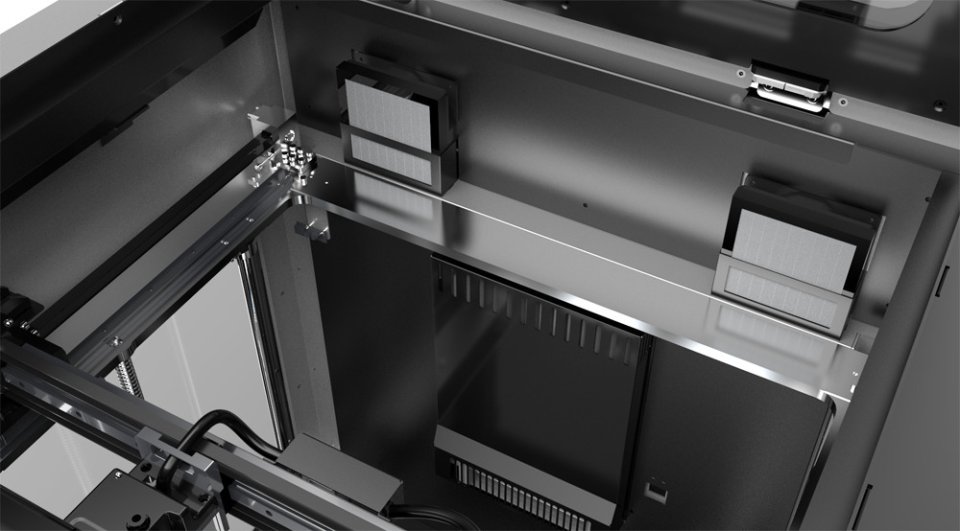

Clean Air

The included HEPA 13 air purifier ensures that harmful vapors and particles are removed before they exit the printer.

Camera Control

The built-in camera allows you to monitor the current print and see its progress.

Resume Printing After Power Outage

If the 3D printing is interrupted, you can easily resume it. Save time, filament, and money from interrupted 3D prints.

Specifications:

• Type of nozzle construction: IDEX
• Number of nozzles: 2 Suitable filament diameter: 1.75 mm
• Maximum nozzle temperature: 320 ºC
• Open filament system: Yes
• Print area: 400 mm x 350 mm x 500 mm
• Print speed: 200mm/s
• Maximum print bed temperature: 130 ºC
• Print bed material: Flexible steel plate
• Print bed attachment: Magnetic
• Print bed leveling system: Capacitive sensor

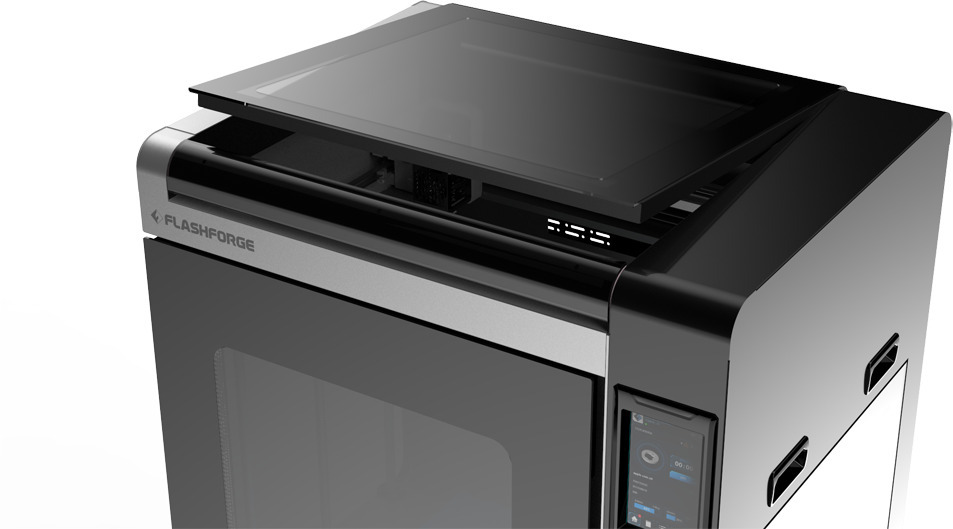

• Print chamber during printing: Open or closed
• Heated print chamber: Yes, max. 65°C

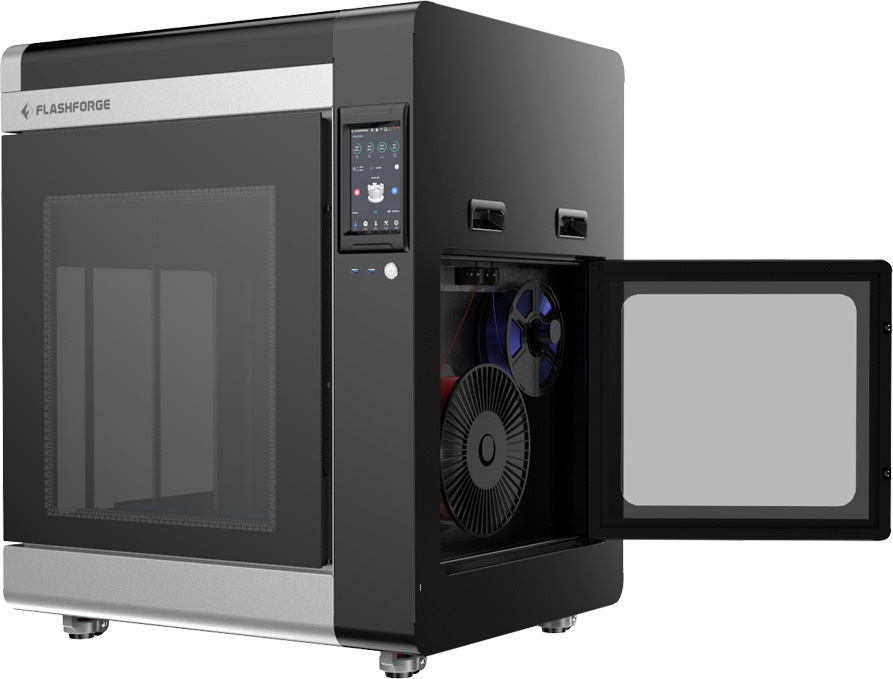

• Filament chamber enclosed: Yes

Installation Mode / Requirements

• Overall dimensions: 840 mm x 675 mm x 1050 mm
• Total weight: 90 kg
• Operating environmental temperature: 15°C – 30°C
• Maximum power consumption: 2320 W
• Voltage: AC: 100 V / 240 V, 30 A (50-60 Hz)

Accessories

• HEPA filter: Yes
• Filament run-out sensor: Yes
• Power outage safety system: Yes
• Touchscreen: Yes
• Camera: Yes

Connections

• USB port, Ethernet port, WLAN, Cloud control

Precision

• Layer height: 0.05 – 0.4 mm
• Resolution: 0.2 mm

Note: This printer is a made-to-order product, with an average delivery time of 1-2 months from the order.
