Additional information

PID

957251

Product depth (mm)

142

Product height (mm)

145

Product weight (g)

668

Product width (mm)

116

Manufacturer address

DIRK STORKLAAN 3 2132 PX HOOFDDORP THE NETHERLANDS

Manufacturer's email address

https://www.ezviz.com/

Manufacturer name

EZVIZ

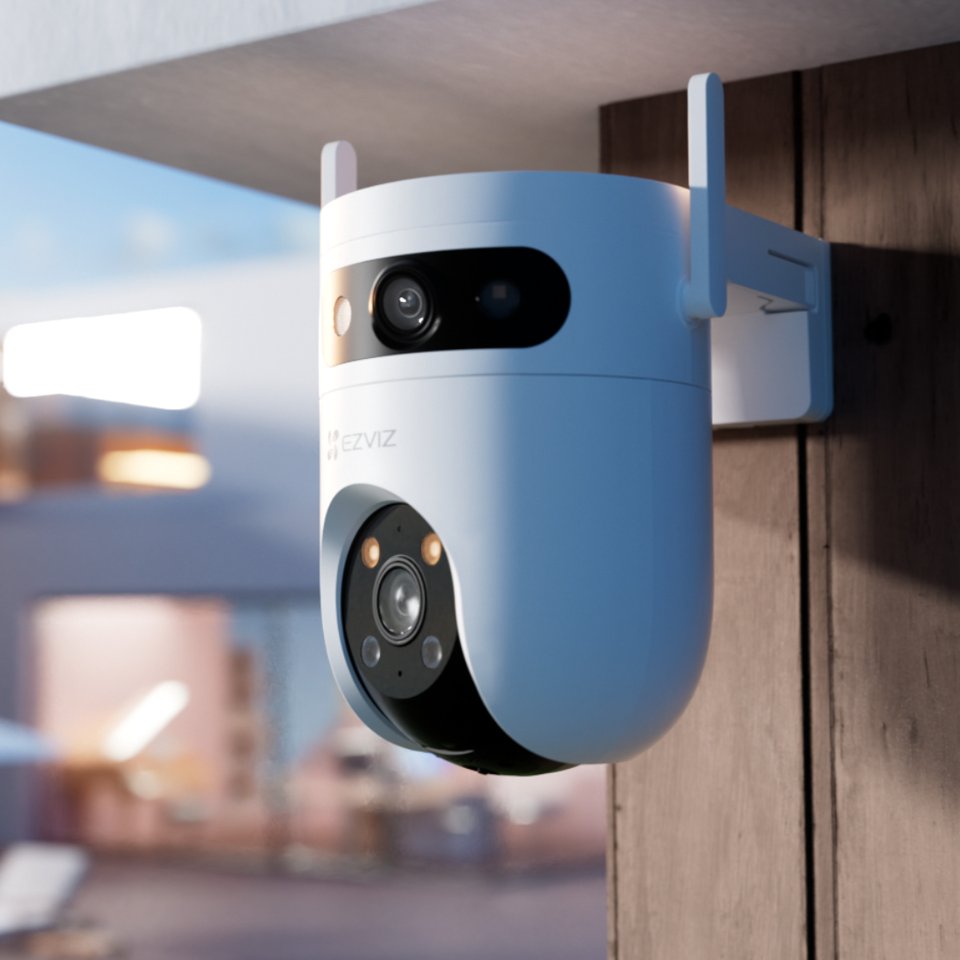

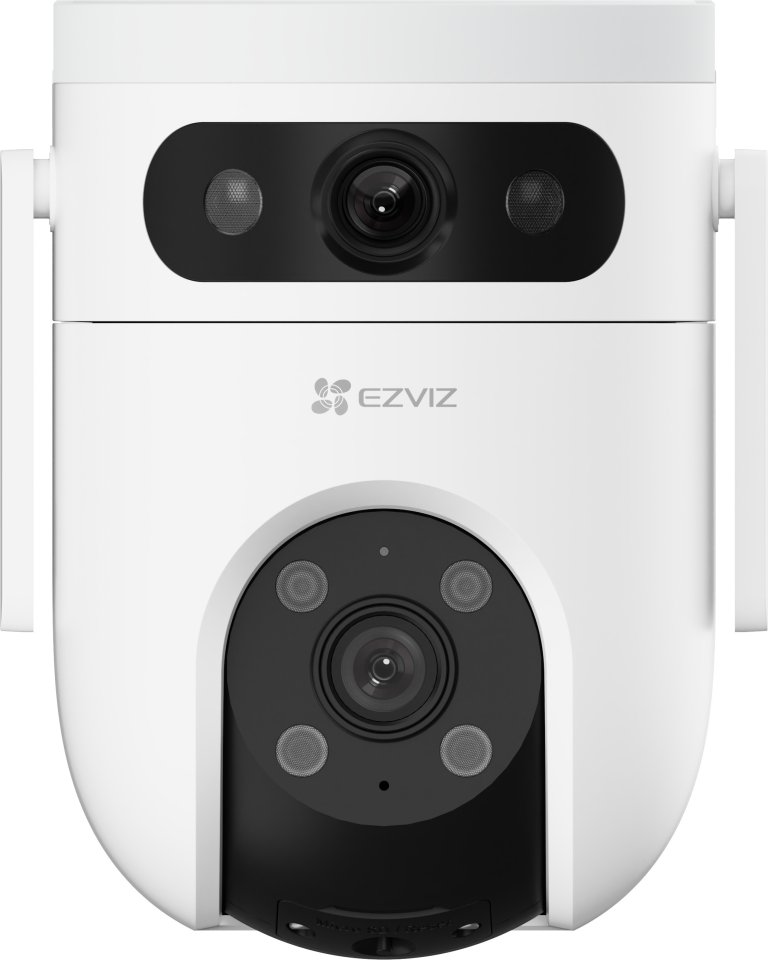

The EZVIZ H9c Dual Lens camera revolutionizes home and business surveillance by bringing a completely new level of security automation into one device. The dual-lens H9c 2K camera utilizes innovative technology that combines wide-area monitoring with precise tracking. The upper lens offers a wide 130° field of view, while the lower camera focuses on details with a motorized panorama and tilt function, covering up to 360°. This unique combination allows simultaneous monitoring of two different areas, reducing the need for multiple cameras while providing smarter, automatic surveillance. When motion is detected, the cameras work together to track and record the entire event, ensuring you don’t miss a single detail.

The H9c Dual camera provides exceptional protection around the clock and in all weather conditions. Three different night vision modes—color vision, black and white, and intelligent mode—enable a perfect view even in darkness, and four built-in spotlights ensure no intruder goes unnoticed. Thanks to intelligent alert functions, the camera can distinguish people and vehicles from other movements, such as falling leaves or flying insects, and notifies you only of important events. You can set up to 12 preset monitoring points and have the camera patrol automatically, performing rounds without any effort on your part. All of this is combined with user-friendly control via the EZVIZ app, where you can manage the camera’s operation, check real-time video streams, and receive instant alerts wherever you are.

Features:

  • 2K & 2K Dual Lenses: Double vision, double protection.
  • Smart joint detection and automatic tracking: Cameras work together to ensure nothing goes unnoticed.
  • One-click view switching: Easy control through the EZVIZ app.
  • Two patrol modes: Fully automatic surveillance covering wide areas.
  • AI-based human and vehicle detection: Reduces false alarms and notifies of important events.
  • 360° panoramic view: Complete area coverage with one camera.
  • Color night vision: Clear and vivid images in the dark.
  • Two-way talk: Easily communicate with visitors via your smartphone.
  • Active defense with alarm and lights: Effective intruder deterrence.
  • Weather-resistant design: Withstands all weather conditions.
  • Enhanced dual Wi-Fi antennas: Strong and stable connection, with up to 220 m Wi-Fi coverage.
  • H.265 video technology: Reduces video file size by up to 50%, ensuring smooth viewing experience.
  • Extensive storage options: MicroSD card (max. 512 GB) and EZVIZ CloudPlay storage.

Technical Specifications:

  • Model: CS-H9c-R100-8H33WKFL

Camera

  • Image Sensor: 1/2.7″ Progressive Scan CMOS
  • Shutter Speed: Self-adaptive shutter
  • Lens:
    • Upper camera: 2.8 mm @ F1.6, Field of view: Diagonal 130°, Horizontal 108°, Vertical 56°
    • Lower camera: 6 mm @ F1.6, Field of view: Diagonal 62°, Horizontal 55°, Vertical 28°
  • PT Angle: Pan: 350°, Tilt: 80°
  • Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux IR (data from EZVIZ laboratories)
  • Lens Mount: M12
  • Day/Night: IR filter with automatic switching
  • DNR: 3D DNR
  • WDR: Digital WDR
  • Black and White Night Vision Distance: 30 m

Video and Audio

  • Maximum Resolution: 2304 x 1296
  • Frame Rate: Max. 15 fps; self-adaptive during network transmission
  • Video Compression: H.265 / H.264
  • H.265 Type: Main profile
  • Video Bitrate: Quad HD, Full HD, Hi Def, Standard. Adaptive bitrate.
  • Audio Bitrate: Self-adaptive

Network

  • Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
  • Frequency Range: 2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth: 20 MHz
  • Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
  • Wi-Fi Pairing: AP pairing
  • Protocol: EZVIZ Cloud Proprietary Protocol
  • Interface Protocol: EZVIZ Cloud Proprietary Protocol
  • Wired Network: RJ45 x 1 (10/100M)
  • Security: WPA-PSK/WPA2-PSK

Functions

  • Smart Alarm: AI-assisted human/vehicle detection, motion detection
  • Automatic Tracking: Yes
  • Custom Alarm Area: Yes
  • Two-way Talk: Yes
  • Preset Positions: Yes
  • General Functions: Anti-flicker, dual stream, password protection, watermark

Storage

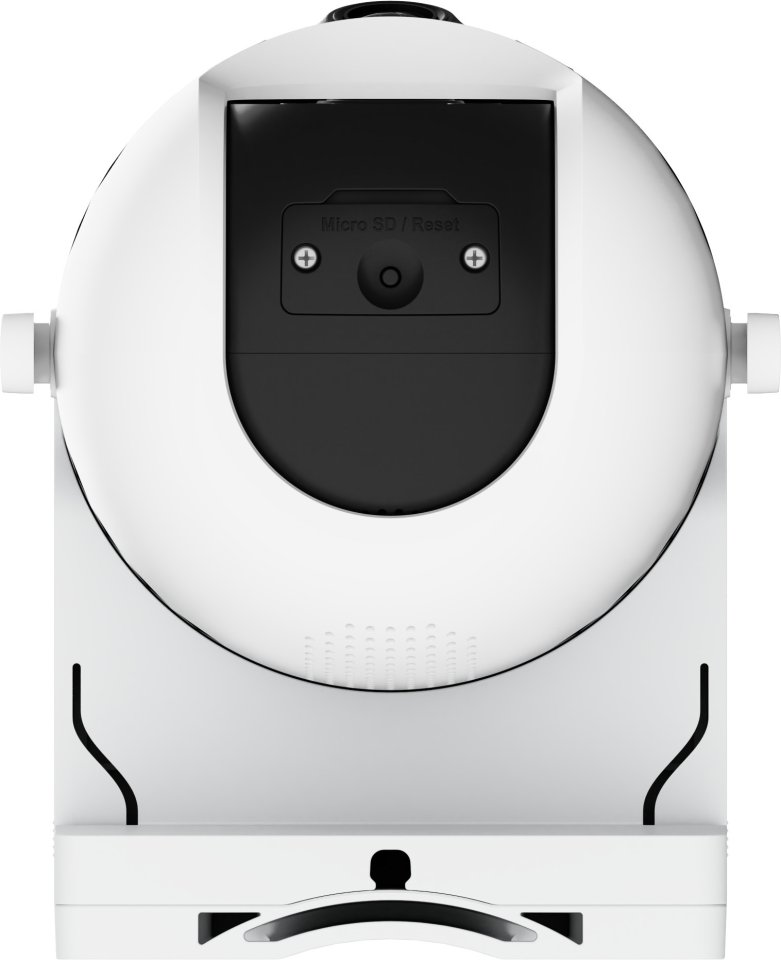

  • Local Storage: MicroSD card (max. 512 GB)
  • Cloud Storage: EZVIZ CloudPlay storage (subscription required)

General

  • Operating Conditions: -30 °C … 50 °C, humidity 95% or less (non-condensing)
  • IP Rating: Weather-resistant design
  • Power Supply: DC 12 V / 1.5 A
  • Power Consumption: Max. 12 W

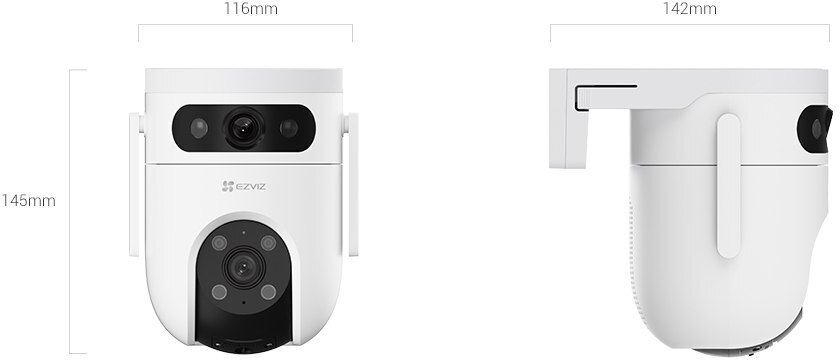

  • Dimensions: 145 x 116 x 142 mm
  • Weight: 668 g

Package Contents:

  • H9c camera
  • Drilling template
  • Screw pack
  • Waterproof set
  • Power adapter
  • Quick start guide
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

EZVIZ H9c 2K Dual Lens Surveillance Camera for Indoor and Outdoor Use

111.59
sis. KM 24%
  • Resolution: 2304 x 1296
  • Dual camera system
  • Smart motion detection
  • Color night vision
  • Two-way communication
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: CS-H9C-R100-8H33WKFL
EAN kood: 6941545631967, 2220009572515

The EZVIZ H9c Dual Lens camera revolutionizes home and business surveillance by bringing a completely new level of security automation into one device. The dual-lens H9c 2K camera utilizes innovative technology that combines wide-area monitoring with precise tracking. The upper lens offers a wide 130° field of view, while the lower camera focuses on details with a motorized panorama and tilt function, covering up to 360°. This unique combination allows simultaneous monitoring of two different areas, reducing the need for multiple cameras while providing smarter, automatic surveillance. When motion is detected, the cameras work together to track and record the entire event, ensuring you don’t miss a single detail.

The H9c Dual camera provides exceptional protection around the clock and in all weather conditions. Three different night vision modes—color vision, black and white, and intelligent mode—enable a perfect view even in darkness, and four built-in spotlights ensure no intruder goes unnoticed. Thanks to intelligent alert functions, the camera can distinguish people and vehicles from other movements, such as falling leaves or flying insects, and notifies you only of important events. You can set up to 12 preset monitoring points and have the camera patrol automatically, performing rounds without any effort on your part. All of this is combined with user-friendly control via the EZVIZ app, where you can manage the camera’s operation, check real-time video streams, and receive instant alerts wherever you are.

Features:

  • 2K & 2K Dual Lenses: Double vision, double protection.
  • Smart joint detection and automatic tracking: Cameras work together to ensure nothing goes unnoticed.
  • One-click view switching: Easy control through the EZVIZ app.
  • Two patrol modes: Fully automatic surveillance covering wide areas.
  • AI-based human and vehicle detection: Reduces false alarms and notifies of important events.
  • 360° panoramic view: Complete area coverage with one camera.
  • Color night vision: Clear and vivid images in the dark.
  • Two-way talk: Easily communicate with visitors via your smartphone.
  • Active defense with alarm and lights: Effective intruder deterrence.
  • Weather-resistant design: Withstands all weather conditions.
  • Enhanced dual Wi-Fi antennas: Strong and stable connection, with up to 220 m Wi-Fi coverage.
  • H.265 video technology: Reduces video file size by up to 50%, ensuring smooth viewing experience.
  • Extensive storage options: MicroSD card (max. 512 GB) and EZVIZ CloudPlay storage.

Technical Specifications:

  • Model: CS-H9c-R100-8H33WKFL

Camera

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Shutter Speed: Self-adaptive shutter
  • Lens:
    • Upper camera: 2.8 mm @ F1.6, Field of view: Diagonal 130°, Horizontal 108°, Vertical 56°
    • Lower camera: 6 mm @ F1.6, Field of view: Diagonal 62°, Horizontal 55°, Vertical 28°
  • PT Angle: Pan: 350°, Tilt: 80°
  • Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux IR (data from EZVIZ laboratories)
  • Lens Mount: M12
  • Day/Night: IR filter with automatic switching
  • DNR: 3D DNR
  • WDR: Digital WDR
  • Black and White Night Vision Distance: 30 m

Video and Audio

  • Maximum Resolution: 2304 x 1296
  • Frame Rate: Max. 15 fps; self-adaptive during network transmission
  • Video Compression: H.265 / H.264
  • H.265 Type: Main profile
  • Video Bitrate: Quad HD, Full HD, Hi Def, Standard. Adaptive bitrate.
  • Audio Bitrate: Self-adaptive

Network

  • Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
  • Frequency Range: 2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth: 20 MHz
  • Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
  • Wi-Fi Pairing: AP pairing
  • Protocol: EZVIZ Cloud Proprietary Protocol
  • Interface Protocol: EZVIZ Cloud Proprietary Protocol
  • Wired Network: RJ45 x 1 (10/100M)
  • Security: WPA-PSK/WPA2-PSK

Functions

  • Smart Alarm: AI-assisted human/vehicle detection, motion detection
  • Automatic Tracking: Yes
  • Custom Alarm Area: Yes
  • Two-way Talk: Yes
  • Preset Positions: Yes
  • General Functions: Anti-flicker, dual stream, password protection, watermark

Storage

  • Local Storage: MicroSD card (max. 512 GB)
  • Cloud Storage: EZVIZ CloudPlay storage (subscription required)

General

  • Operating Conditions: -30 °C ... 50 °C, humidity 95% or less (non-condensing)
  • IP Rating: Weather-resistant design
  • Power Supply: DC 12 V / 1.5 A
  • Power Consumption: Max. 12 W
  • Dimensions: 145 x 116 x 142 mm
  • Weight: 668 g

Package Contents:

  • H9c camera
  • Drilling template
  • Screw pack
  • Waterproof set
  • Power adapter
  • Quick start guide
