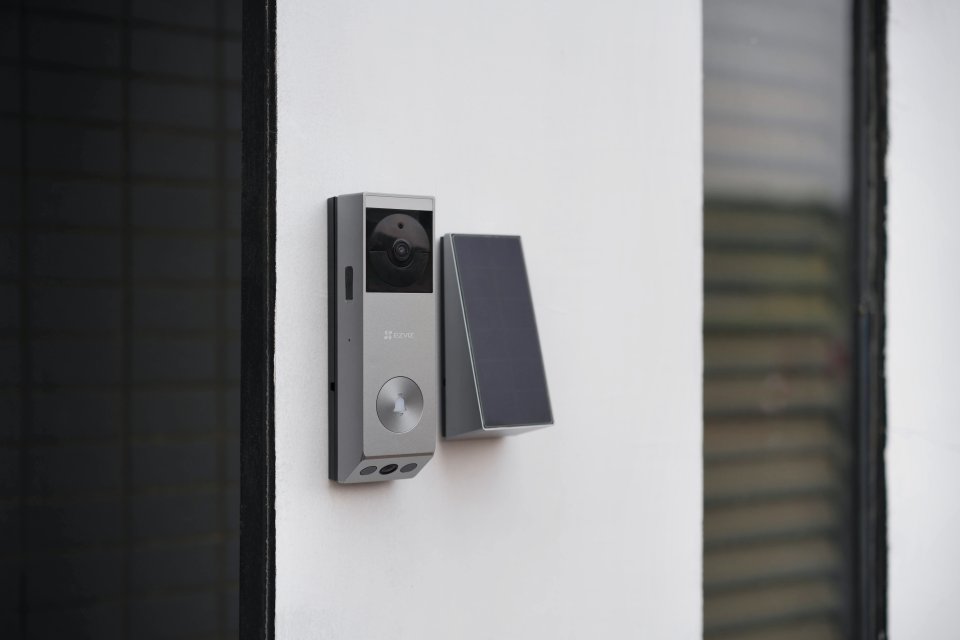

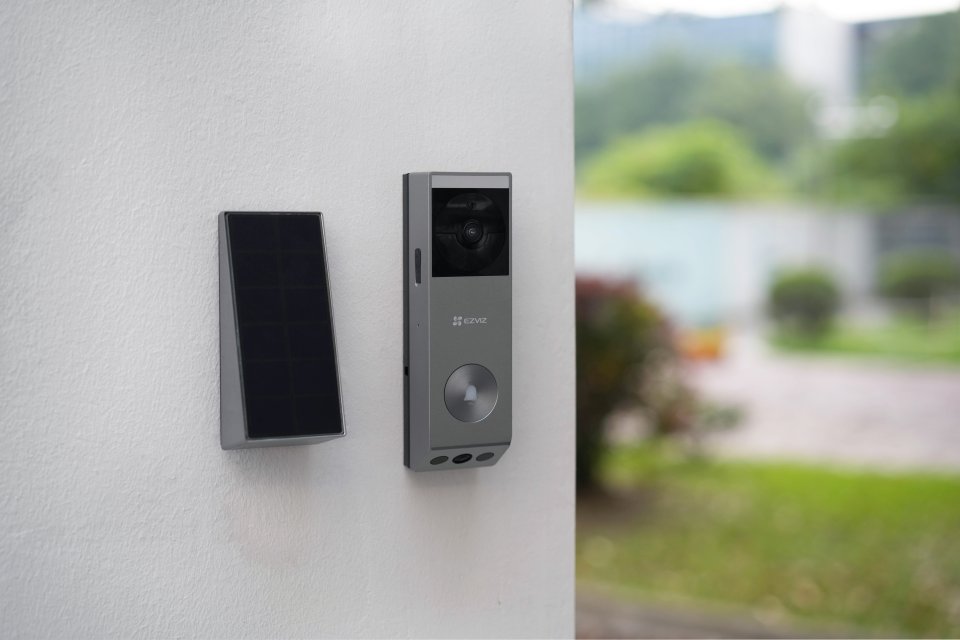

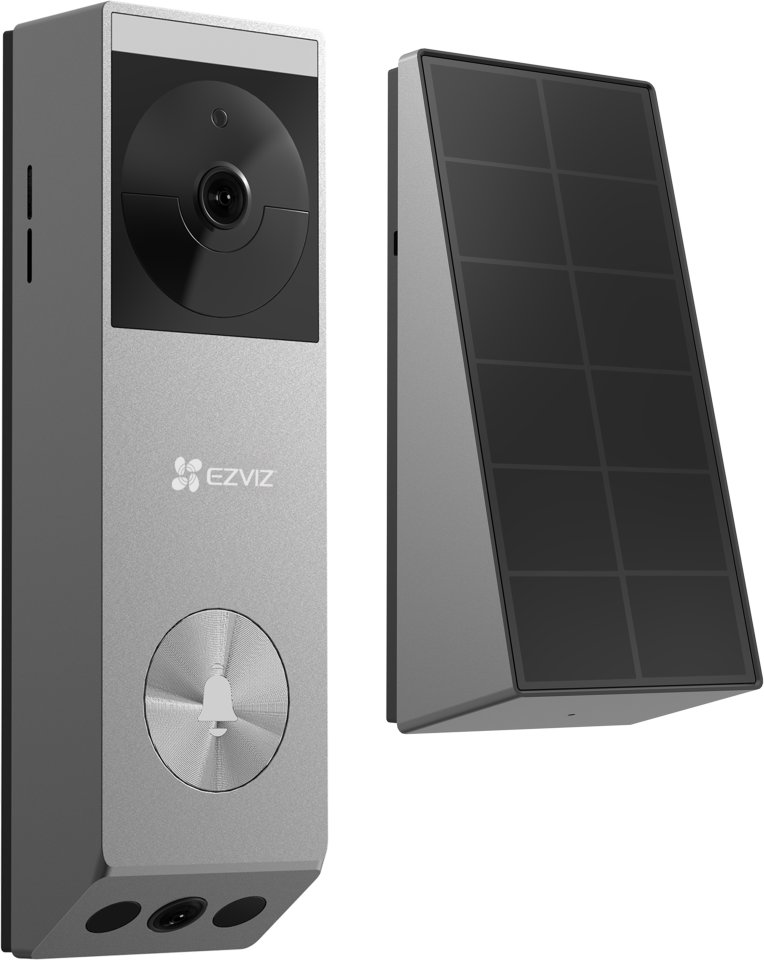

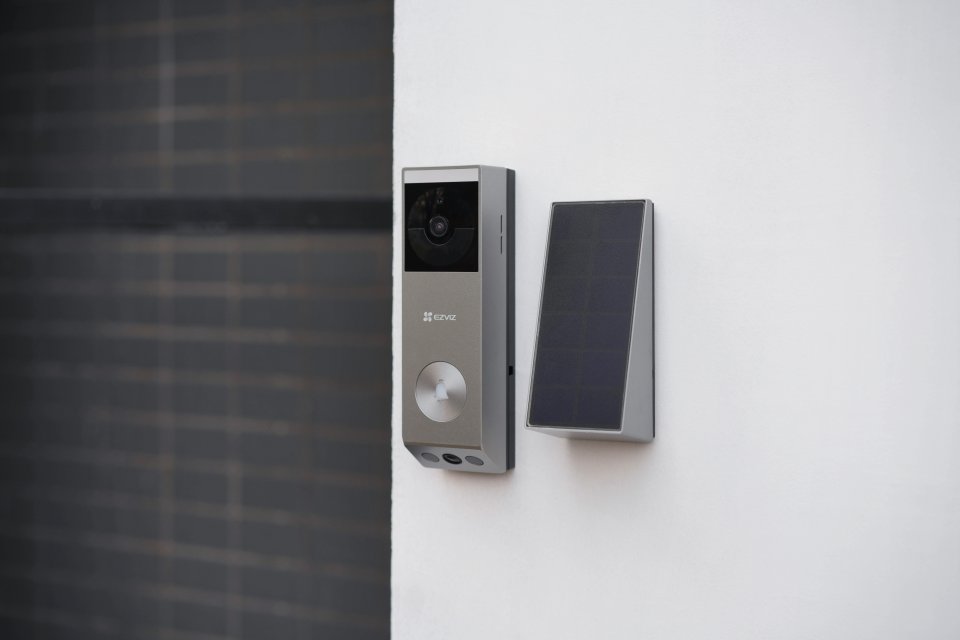

EZVIZ EP3x Pro Wi-Fi Smart Doorbell

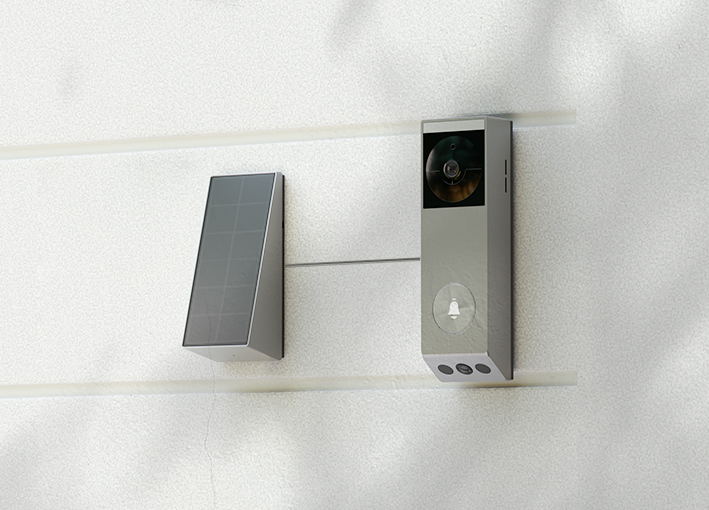

The EP3x Pro is a dual-lens video doorbell that offers unparalleled visibility, comprehensive detection features, and easy solar charging. This smart doorbell combines a 2K main camera and a 1080p bottom camera to detect moving people and delivered packages. The EP3x Pro is designed for ease of use: install and forget — it features built-in 32 GB eMMC storage and includes a solar panel for continuous eco-friendly charging. This doorbell requires no additional fees to start video recording and protects your data with unique privacy zone settings.

Features:

• Dual cameras (2K & 1080p): The 2K main camera records a wide view of your front door, and the 1080p bottom camera checks packages on the ground.
• Smart people and package detection: Differentiates people from animals and recognizes packages, so you never miss an important alert.
• Free 32 GB eMMC storage: Stores up to 6 months of video history at no extra cost.

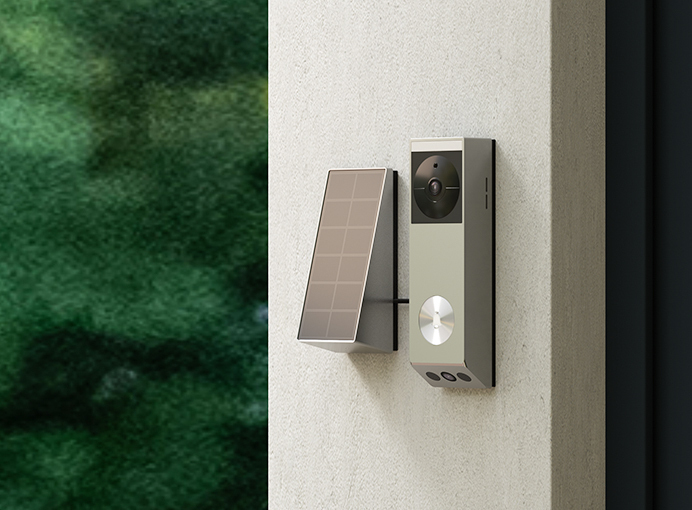

• Solar panel included: Enables continuous and environmentally friendly charging.
• Two-way talk and voice changer: Talk to visitors and protect your privacy by changing your voice.

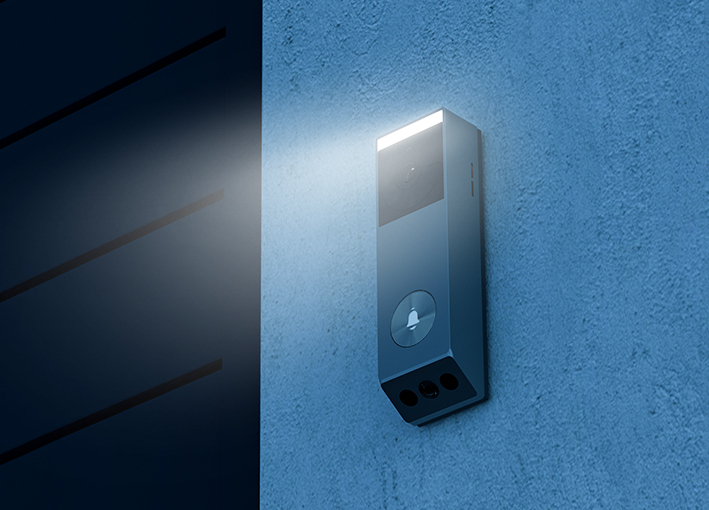

• Color night vision: Built-in LED light provides bright and colorful night vision even in darkness.

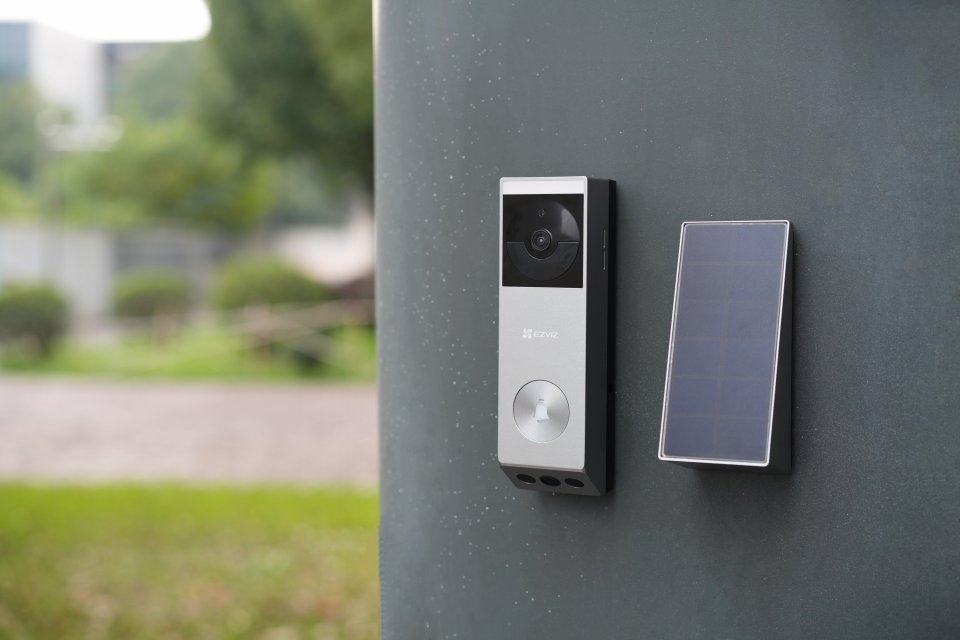

• Weather-resistant IP65 design: Built to withstand harsh weather conditions.
• Tamper alarm: Sends an alert if the device is forcibly removed and prevents unauthorized use by binding to the account.
• Restricted recording areas: Users can set up to four privacy zones that block recording in specific areas.
• Smart integration: Works with Google Assistant and Amazon Alexa, enabling hands-free control.

Technical specifications:

Camera:

• Image sensor: 1/2.8" Progressive Scan CMOS (supports low light sensitivity)
• Main camera: 2.3 mm @F/2.2, diagonal field of view 162°
• Bottom camera: 2.3 mm @F/2.2, diagonal field of view 155°
• Day and night: ICR infrared filter (maximum: 6 meters)

Video:

• Maximum resolution: Main camera: 2K (2048 x 1296), Bottom camera: 1080p (1920 x 1080)
• DNR: 2D / 3D DNR
• Video compression: H.265 / H.264
• Frame rate: 15 fps, fixed frame rate

Motion sensor (PIR):

• Detection angle: 120°
• Detection distance: Max. 5 m
• Sensitivity: Adjustable (high: 5 m, medium: 4 m, and low: 3 m)

Storage:

• Local storage: Built-in 32 GB eMMC memory
• Cloud storage: Supports EZVIZ CloudPlay storage

Connectivity:

• Audio input: Built-in highly sensitive microphone
• Audio output: Built-in high-power speaker
• Buttons: Doorbell button with electronic chime, reset button

Network:

• Wi-Fi standards: IEEE802.11b, 802.11g, 802.11n
• Frequency range: 2.4 GHz ~ 2.4835 GHz
• Channel bandwidth: 20 MHz
• Security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
• Data transfer rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps

General features:

• Smart alerts: AI-powered person and package detection
• Tamper alarm: Sound and light alarm (supports alert sending via EZVIZ app)
• Two-way audio: Yes
• Operating conditions: -20°C ... 50°C, humidity up to 95% (non-condensing)
• IP rating: IP65
• Battery capacity: 5200 mAh rechargeable lithium battery
• Power supply: 8 - 24 V AC, Type-C 5 V (±10%), EZVIZ solar panel
• Power consumption: 3 W max

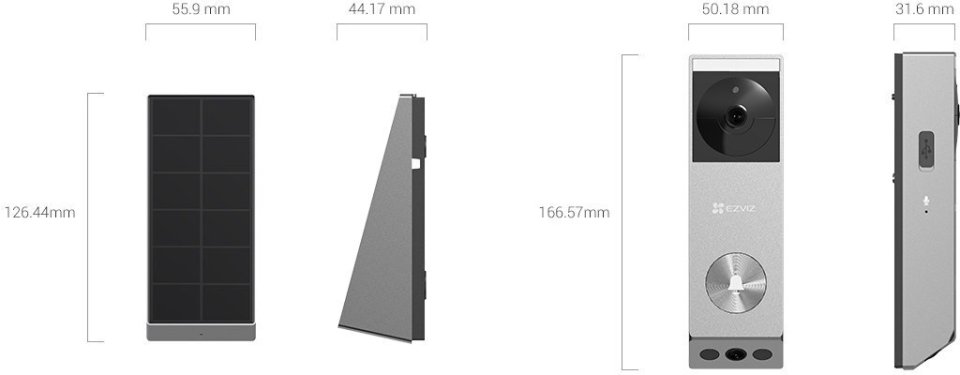

• Dimensions: 166 x 50 x 31 mm
• Weight: 276 g

Solar panel:

• Maximum voltage: 8.1 V
• Maximum current: 240 mA
• Maximum power: 1.2 W
• Operating temperature: -20°C ... 50°C
• Dimensions: 126 x 56 x 44 mm
• IP rating: IP65

Package contents:

• EP3x Pro video doorbell
• Doorbell mounting bracket
• Angled mounting bracket
• Drill template for doorbell
• Solar panel
• Drill template for solar panel
• Power cable
• Pin
• Screw set x 3
• U-shaped wire x 2
• Wire connector x 2
• Compliance information x 2
• Quick start guide
