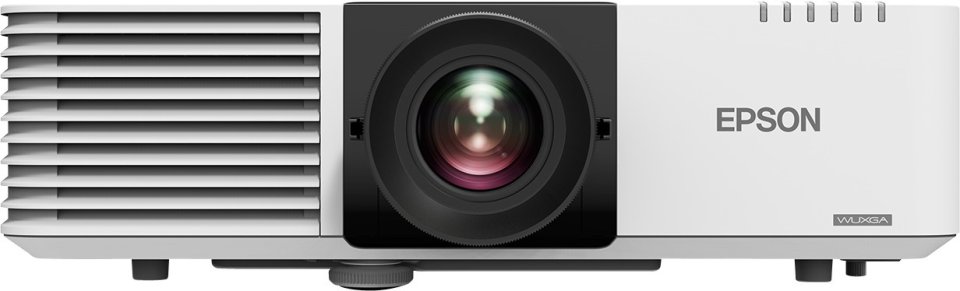

The EB-L520U projector features advanced connectivity and premium display capabilities. This affordable and bright laser projector is suitable for all types of users.

Display professional content with sharp images and vivid colors to anyone. The EB-L520U projects an adjustable image size up to 500 inches. The projector offers multiple connection options, making content sharing easy.

With 5200 lumens of color brightness, Full HD WUXGA resolution, a 16:10 widescreen aspect ratio, 4K content support, and detail-enhancing technology, it delivers a bright and clear display up to 500 inches in size.

The EB-L520U projector includes numerous high-quality features. For example, edge blending and geometric correction allow you to project one large screen using multiple projectors. You can play multimedia content without delays, create playlists, and set schedules directly from a USB drive. This is made possible by advanced H.264 video encoding and the Epson Content Manager software.

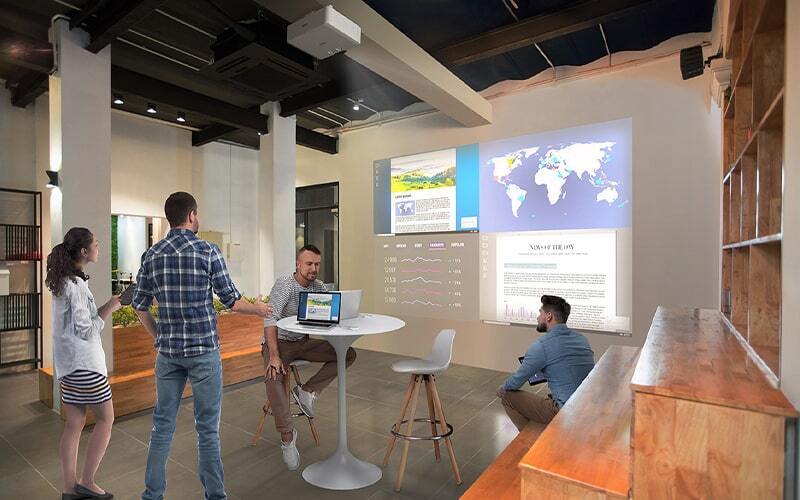

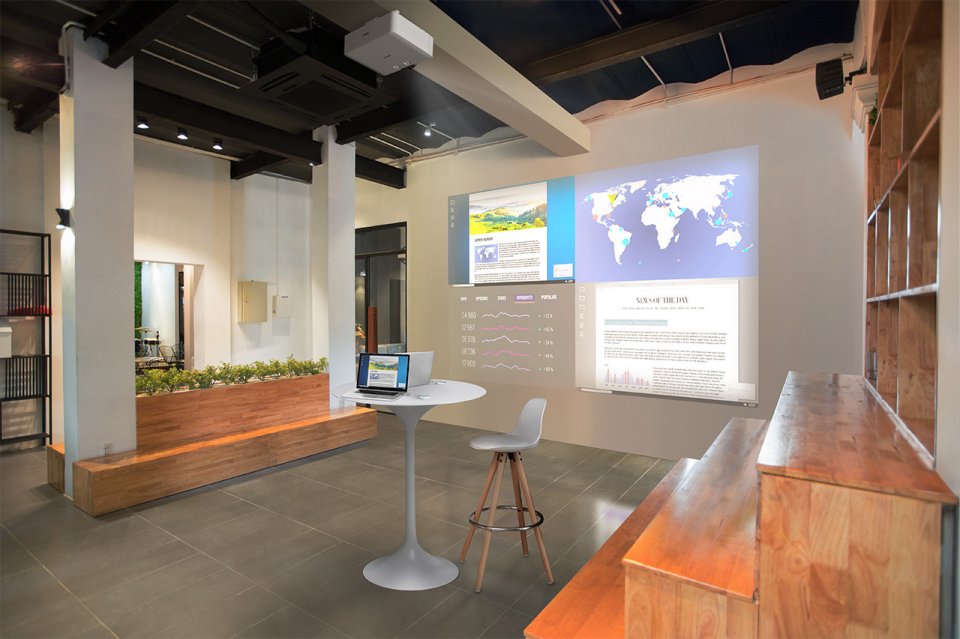

This projector is also flexible. The split-screen function allows combining two or four images from different sources into one large display. Connecting is easy and straightforward, with options for a wired connection or optionally wireless connection via Miracast. HDBaseT content can be shared and projected without quality loss.

Epson laser projectors are highly reliable and require no regular maintenance. The EB-L520U projector comes with a three-year warranty.

Technical specifications:

• Projection system: 3LCD technology, RGB, liquid crystal shutter
• LCD panel: 0.67 inch – C2 Fine
• Color brightness: 5,200 lumens – 3,640 lumens (eco mode) according to IDMS15.4 standard
• White brightness: 5,200 lumens – 3,640 lumens (eco mode) according to ISO 21118:2012 standard
• Resolution: WUXGA, 1920 x 1200, 16:10
• High Definition: Full HD
• Aspect ratio: 16:10
• Contrast ratio: over 2,500,000:1
• Light source: Laser, 20,000 hours bright mode, 30,000 hours eco mode
• Keystone correction: Manual vertical: ± 30°, Manual horizontal ± 30°
• Color reproduction: up to 1.07 billion colors
• Throw ratio: 1.35 – 2.20:1
• Zoom: Manual, factor: 1 – 1.6
• Projection lens zoom ratio: 1.35 – 2.2:1
• Image size: 50 inches – 500 inches
• Projection lens F-number: 1.5 – 1.7
• Focal length: 20 mm – 31.8 mm
• Focus: Manual

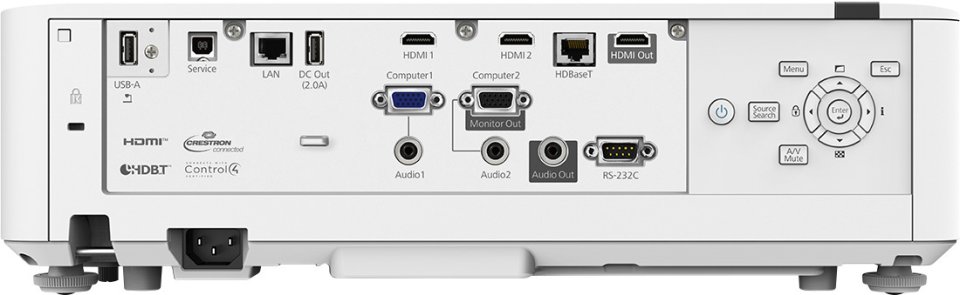

• Connections: RS-232C, Ethernet (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN a/n (5 GHz) (optional), VGA input (2x), VGA output, HDMI input (2x), HDBaseT, Miracast (optional), stereo mini jack audio output, stereo mini jack audio input (2x), USB 2.0 type A, USB 2.0 type B
• Smartphone connection: Ad hoc / infrastructure
• Security: Kensington lock, Padlock, Security cable slot, Wireless LAN unit lock
• 2D color modes: Dynamic, Cinema, Presentation, sRGB, DICOM SIM
• Features: Curve correction, Built-in speaker, Easy preset in on-screen menu, Edge blending, Long light source life, Computer-free operation, Quick Corner, Screen sharing, Ultra-wide screen (16:10), iProjection app
• Color modes: Dynamic, Cinema, Presentation, sRGB, DICOM SIM
• Projector control: AMX, Crestron (network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX device discovery, Control4 Simple Device Discovery Protocol
• Power consumption: 293 watts, 223 watts (eco mode), 0.3 watts (standby)
• Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
• Weight: 7.7 kg
• Noise level: Normal: 31 dB(A) – Eco mode: 23 dB(A)
• Included software: iProjection
• Speakers: 10 W
• Included in delivery besides projector: Power cable, Remote control incl. batteries, User guide, Warranty documents
• Warranty: 36 months carry-in warranty or 12,000 hours.
