EB-815E is Epson’s first ultra-short throw 4KE laser projector. It is designed for business use, hybrid work, and exhibitions.
EB-815E projects a bright 4KE image up to 160” in size from just a few centimeters away from the wall. It offers a large, affordable, and energy-efficient display solution with easy and quick installation, projecting content with astonishing clarity.

The ultra-short throw lens of the EB-815E can be discreetly placed close to the wall, allowing presenters to display content without casting shadows on the screen.

EB-815E’s 5,000-lumen color brightness and 3LCD technology ensure that the display image is bright and vivid up to 160 inches and clearly visible from afar and all angles. The experience is immersive and the display very user-friendly.

Versatile wired and wireless connectivity options, such as screen mirroring via Miracast™, make it easy for participants to share content from multiple devices.

Weighing only 12.3 kg, it is also easy to move. Installation is fast and simple with the Epson Setting Assistant app. An ideal display solution for various room sizes, with flexible installation options.

EB-815E supports multiple aspect ratios and multi-projector edge blending, ensuring an affordable, seamless, and energy-efficient ultra-wide display that is perfect for video conferencing.

When projected onto Epson’s ALR screen, the image produced by the EB-815E could be mistaken for a video wall or LED display, yet it is surprisingly affordable and consumes only a fraction of the energy.

Key features

• Scalable 4KE display for all types of spaces 80–160 inch ultra-short throw projector (no shadows/reflections)
• Bright and energy-efficient laser 5,000-lumen color brightness and 3LCD technology ensure brighter colors
• Easy connectivity options Automatically activated wired/wireless display with USB 2A output for streaming sticks
• User-friendly and durable Virtually maintenance-free, five-year / 12,000-hour warranty
• Alternative to LED/video walls Surprisingly affordable, low energy consumption

Technical specifications:

• Projection system: 3LCD technology, RGB, liquid crystal shutter
• LCD panel: 0.62 inch – C2 Fine
• Color brightness: 5,000 lumens – 3,500 lumens (eco mode) according to IDMS15.4 standard
• White brightness: 5,000 lumens – 3,500 lumens (eco mode) according to ISO 21118:2020 standard
• Resolution: 1080p
• High Definition: 4K enhancement
• Aspect ratio: 16:9
• Contrast ratio: Over 2,500,000 : 1
• Light source: Laser
• Light source lifespan: 20,000 hours (high), 30,000 hours (eco)
• 2D vertical refresh rate: 192 Hz – 240 Hz
• Throw ratio: 0.16 – 0.40:1
• Image size: 80 inches – 160 inches
• Focal length: 2.3 mm
• Focus: Manual

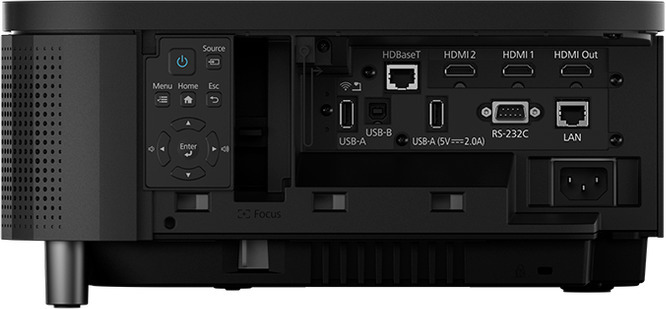

• Connections: USB 2.0-A (2x), USB 2.0 type B (service only), RS-232C, Ethernet (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI input (2x), HDMI output, HDBaseT, Miracast
• Smartphone connection: Ad hoc / infrastructure
• Features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Curvature correction, Automatic power on, Automatic signal source search, Built-in speaker, CEC compatible, Customizable user logo, Stacked multi-projection, Digital zoom, Direct Power On/Off function, Document camera compatibility, Edge blending, Email notification, Fit to screen, Home screen, Horizontal and vertical trapezoid correction, Image shift, JPEG viewer, Long light source life, Computer-free operation, Point correction, Power on button, Quick Corner, Timer function, Screen Mirroring, Source function, Split screen function, Ultra-wide display (16:6), Network management, Network remote control, Wireless LAN ready, iProjection app
• Dimensions 695 x 341 x 156 mm (Width x Depth x Height)
• Weight 12.5 kg
• Noise level: Normal: 35 dB(A) – Eco mode: 26 dB(A)
• Included in delivery: Power cable, Quick guide, Remote control incl. batteries
• Room type / use case: 4K streaming, Meeting room, Portable/conference room, Large meeting room / auditorium, Meeting room/classroom, Signage/retail, Attractions
• Placement: Ceiling mount, Tabletop, TV stand, Wall mount
