Transferring real-life objects to a computer environment has never been easier! EINSTAR, an affordable handheld 3D scanner, offers high-quality 3D data accessible to everyone.

Better results with Einstar

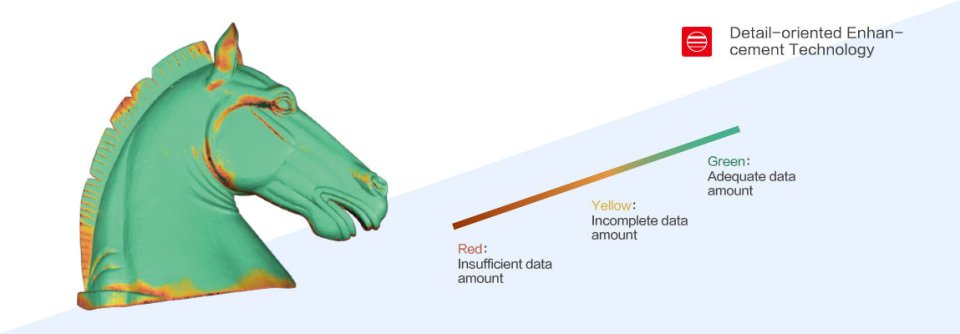

The Einstar 3D scanner can provide high-quality scans with high color accuracy and detailed scans. The scanner collects high-density point cloud data quickly and easily with point spacing as fine as 0.1 mm. Thanks to the built-in RGB color camera, the 3D data consists of true colors. Additionally, the built-in detail enhancement technology optimizes the point cloud for perfect data collection.

A better experience with Einstar

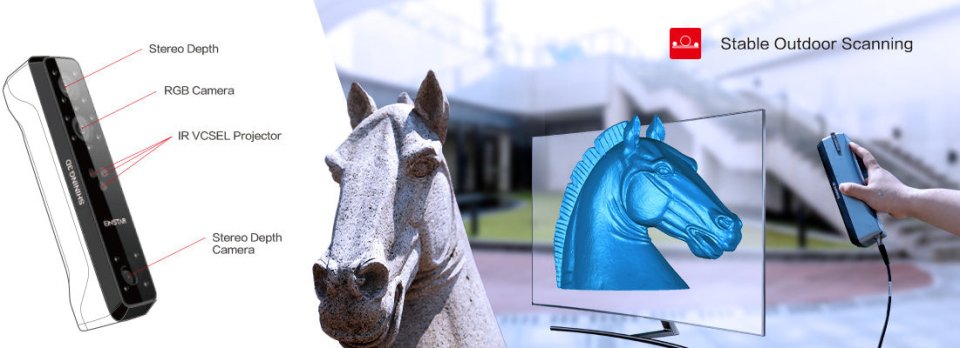

Scanning with Einstar is both easier and more accurate. With an intelligent algorithm, automatic alignment, and smart tracking performance, Einstar can provide smooth and fast scanning at up to 14 FPS. Furthermore, the scanner features 3 infrared VCSEL projectors, 2 stereo depth cameras, and 1 RGB camera, offering stable outdoor scanning. Selfie scanning is easier with Einstar’s “Hair mode,” which provides sufficient hair data and improves the completeness of the entire dataset. The absence of projector light during the scanning process also ensures safe and comfortable eye scanning.

Highlights:

• Easy to set up and use both indoors and outdoors
• High-quality data with point spacing as fine as 0.1 mm
• High color accuracy thanks to the built-in RGB color camera

Einstar 3D scanner technical specifications:

• Scanning mode: Structured light scanning
• Point spacing: 0.1 mm ~ 3 mm
• Light source: Infrared VCSEL structured light
• Working distance: Effective working distance: 160 mm–1400 mm; Optimal working distance: 400 mm
• Depth of field: 160–1400 mm
• Maximum field of view: 434 mm x 379 mm (at optimal working distance)
• Scanning speed: 980,000 points/s, up to 14 FPS
• Alignment modes: Feature alignment, combined alignment, texture alignment, global markers
• Safety: Eye-safe
• Texture scanning: Yes
• Outdoor scanning: Yes
• Interface: USB 2.0 or newer
• Output formats: OBJ; STL; PLY; P3; 3MF
• Scanner size: 220 mm x 46 mm x 55 mm
• Carrying case size: 245 mm x 245 mm x 90 mm
• Scanner weight: 500 g
• Operating temperature range: 0–40°C
• Operating humidity range: 10–90%
• Certifications: CE, FCC, ROHS, WEEE, KC
• Recommended configuration: Operating system: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: i7-11800H; Memory: ≥32GB
• Basic configuration: Operating system: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: i7-7700H; Memory: ≥16GB

Notes:

• The Einstar infrared light source, classified as a class 1 laser product, is safe under all normal usage conditions.
• Global marker alignment is only available in object scanning mode.
